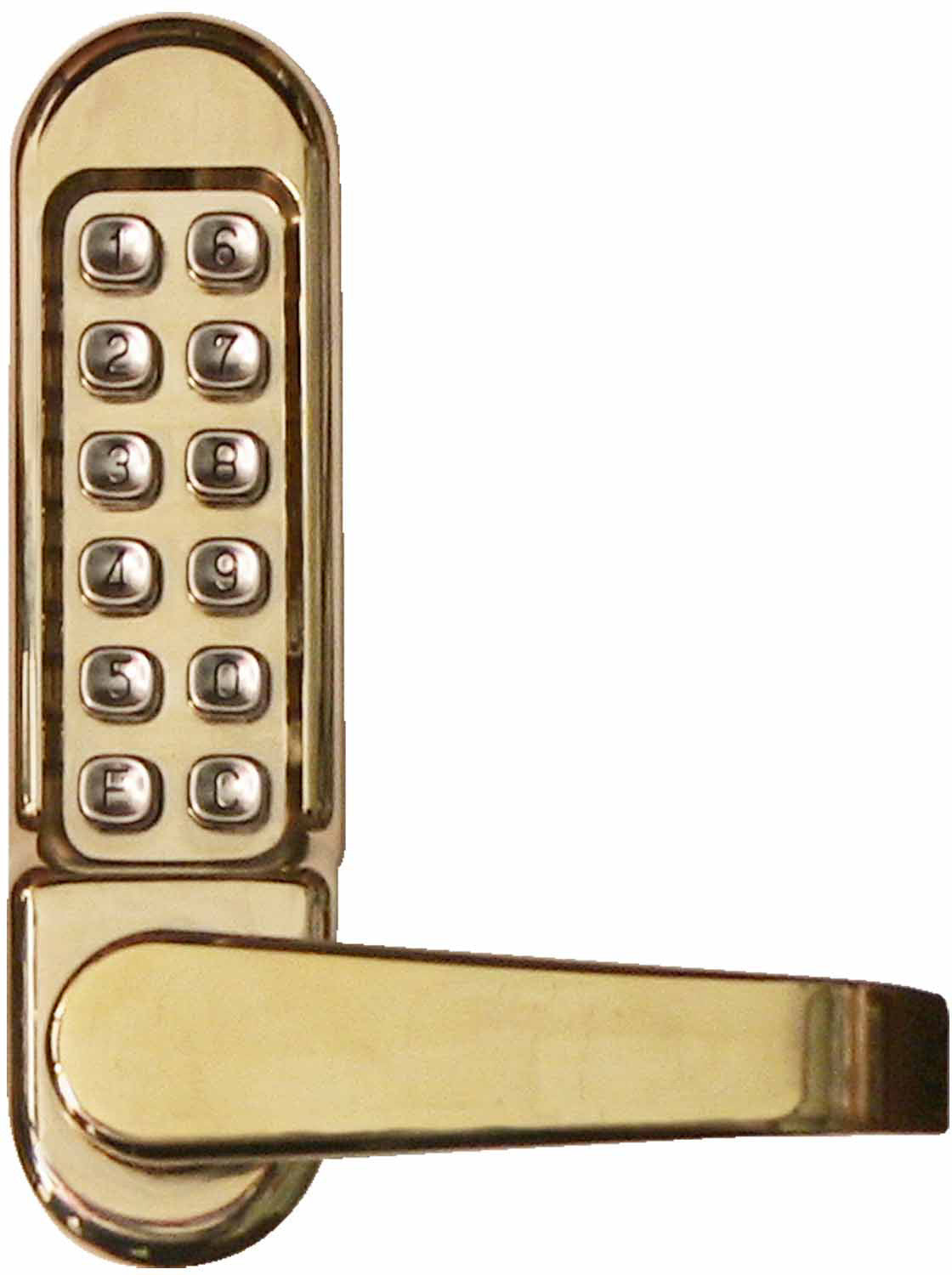

Simplex LD471-2 Light Duty Pushbutton Lock Passage Lever LD470 Series

Simplex LD471-2 Light Duty Pushbutton Lock Passage Lever LD470 Series

Kaba

  • 17700


Access Control: Mechanical pushbutton lock eliminates problems and costs associated with issuing, controlling, and collecting keys and cards
No Battery: Fully mechanical lock eliminates the material and labor expense of battery replacements Locking Device: Tubular latch
Number of Codes: Single access code (non-sequential)—one easy-to-manage code for all users
Programming: Lock is easily programmed via keypad once removed from door Handing: Pre-assembled for right-hand door installations (easily changed in field)
Operation Modes: Pushbutton Access
Passage (easily removed in field)
Economical: A cost effective access control solution
Key Override: Not available

Mechanical Features
Construction: Solid cast housings; solid cast levers
Numeric Keypad: Vandal resistant, metal pushbuttons
Handing: Non-handed, pre-assembled for right-hand door installations (easily changed in field)
Finishes: Satin Stainless 32D (630), Bright Brass (03), Antique Brass (05) housings and levers
Backset: 2¾" (70 mm) backset, 2?" (66 mm) backset
Latch: 3½" (89 mm) latch
Weight: 6.5 lbs. (2.94 kg)

Installation
Door Preparation: Easily installs on wood or metal doors. Requires three holes (two through bolts, one for latch spindle)
Door Thickness: 1?" (35 mm) to 2½" (64 mm)
Supplies Included: Lock assembly, installation manual, template, and required hardware; as well as two 2½" (64 mm) x 8" (203 mm) cover plates and two 2" (51 mm) gaskets

Warranty
Warranty: 1-year warranty
