Exit Alarms

Barzel Lock Stocks Exit Alarms In All Options from Many Brands.
Detex EAX-2500 12-24VAC/DC Exit Alarm

The Detex EAX-2500 Series Exit Alarm is designed for applications requiring a hardwired AC/DC alarm on secure doors. The alarm, with approximately 100dB, will sound when an unauthorized exit occurs. The smaller size of the EAX-2500, which is designed to fit in a standard 4"x4" outlet box, makes it the choice for quick and easy installations on emergency exit and restricted doors.

Here Are Instructions For The EAX-2500

• Field selectable features allow customer to choose status indicators and auto rearm options

• 100dB piezo horn provides security for restricted doors

• Surface and flush mount available using 4"x4" double switch/outlet box

• Patented cam assembly automatically adjusts for different size cylinders without spacers

• Inside Key Control uses mortise cylinder with standard Yale cam Features Benefits

• Easy to install using ordinary tools to save time and money

• New graphics on cover are easy to understand and make key operation simple

• Available in either gray or black to blend with any décor

• AC/DC hardwired power with optional 9VDC backup battery

• Low battery alert is field selectable

• Silent arming feature is field selectable

• Tamper resistant housing and cover protects electronics

• Extended bypass allows alarm to remain silenced when door is open and automatically rearm upon closing of door

• Relay output for signaling external accessories

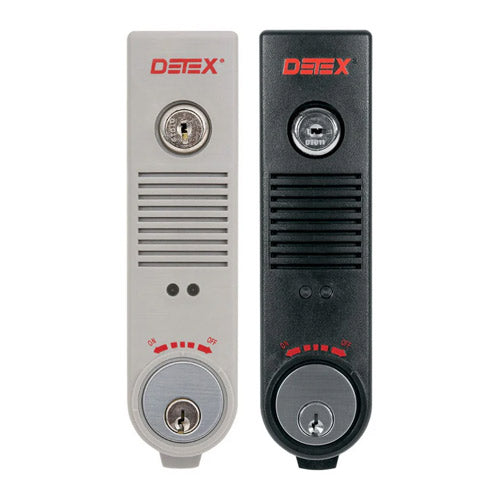

Detex EAX-300 Battery Powered Door Prop Alarm

Barzel Lock Stocks All The Detex EAX-300 Series is designed for applications where doors may be used for egress or ingress, but may not be held or propped open. Door open times from 1 second to 4 minutes (15 second default) are field selectable.

The smaller size makes installation quick and easy.

Benefits

• Alarm silences when door is closed, no waiting for key-holder to arrive

• Low cost, solution to propped open doors

• Helps keep energy costs down by ensuring doors are closed

• Quick, easy installation saves time and money

• Secure, tamper resistant housing

• Patented plastic template assures accurate installation by providing foolproof alignment with internal magnetic door contact

• Tapered cover allows for installation on narrow stile doors

• Intelligent circuit senses the external magnet location automatically and sets the correct door handing

• 100 dB piezo alarm

• 9VDC battery operated with Low Battery Alert

• LED visual arming indicators

The Detex EAX-300W Series is designed for applications where doors that open to the outdoors or wet environments may be used for egress or ingress, but may not be held or propped open. Door open times from 1 second to 4 minutes (15 second default) are field selectable. The smaller size makes installation quick and easy on doors or gates.

Instructions For The Detex EAX-300W Exit Alarm

Benefits:

• Low cost, solution to propped open doors

• Weatherized for use on gates or doors that are subjected to inclement weather

• Helps keep energy costs down by ensuring doors are closed

• Quick, easy installation saves time and money

• Alarm silences when door is closed, no waiting for key-holder to arrive

Features:

• Secure, tamper resistant housing

• Patented plastic template assures accurate installation by providing foolproof alignment with internal magnetic door contact

• Weatherized electronics certified to driving rain and salt fog test (see Listings & Approvals)

• Tapered cover allows for installation on narrow stile doors

• Intelligent circuit senses the external magnet location automatically and sets the correct door handing

• 100 dB piezo alarm

• 9VDC battery operated with Low Battery Alert

• LED visual arming indicators

The Detex EAX-3500 is designed for applications requiring a hard-wired, timed-bypass alarm with rechargeable backup battery. The 100dB alarm will sound when someone attempts an unauthorized exit. The EAX-3500 can be temporarily bypassed for deliveries and trash removal, but reminds manager to close and secure the door.

Instructions

• Allows manager to temporarily bypass the alarm, but does not allow the alarm to be turned off

• Reminds manager to close and secure the door, minimizing door prop time

• Minimizing door prop time saves energy costs

• Hard-wired low voltage power with rechargeable battery insures uninterrupted secure power feed

• Maximum allowable bypass time can be factory set or field- adjusted to 5, 10, 20 or 40 minutes • Bypass time is easily set using two simple slide jumpers, located inside secured enclosure Features Benefits

• Minimizing door prop time reduces exposure to theft and threat of robbery

• Simple, on-the-cover instructions make operation easy

• LEDs illustrate armed status and bypass time, allowing quick easy reference

• Alarm demands attention even in noisy environments

• Tamper-resistant housing and circuits prevent dishonest employees from defeating alarm

• Mortise cylinder sold separately, allowing alarm to be keyed to existing master-key system, helping to maintain key control

• 100dB alarm, powered by 12 to 24 VAC and rechargeable backup battery (included)

• Low battery alert

• Rechargeable backup battery provides 72-hours of operation

• Timed bypass allows alarm to remain bypassed for allotted minutes, automatically rearming upon door closing

• Accepts 5, 6 or 7-pin standard and interchangeable core mortise cylinders with a standard Yale cam

• Patented cam assembly automatically adjusts for different size/length cylinders without the use of additional spacers or cylinder collars

• Resetting the alarm can only be accomplished with a control key

Barzel Lock Stocks The Detex EAX-500 Battery Powered Door or Wall Mount  Exit Alarm. Benefits The Detex EAX-500 Series is designed for applications requiring a battery-powered alarm on secured doors. The alarm, with approximately 100dB, will sound when an unauthorized exit occurs.

Finishes:

Grey

Black

Here Is An Instructions Video

The redesigned shape and smaller size of the EAX-500 makes it the ideal choice for quick and easy installations on emergency exit and restricted doors.

• Quick, easy installation saves time and money

• EAX-500SK includes exit alarm prepped for wall mounting, and surface magnetic door contacts - specify cover lock # - additional surface contacts can be ordered separately (mortise cylinder sold separately)

• OKC - Outside Key Control (Rim Cylinder required) Mechanical Options

• Low cost, self-contained door alarm with piezo horn that sounds to warn unauthorized use of a door or gate • Secure, tamper resistant housing

• Patented plastic template allows for foolproof alignment of internal magnetic door contact and accurate installation

• Tapered cover allows for installation on narrow stile doors

• Intelligent circuit senses the external magnet location automatically and sets the correct door handing

• Patented cam assembly automatically adjusts for different sizes of cylinders without use of spacers

• Alarm can only be silenced by proper control key

• Extended bypass (now a standard feature) allows alarm to remain bypassed when door is open and automatically rearm upon door closing

• 100 dB piezo alarm

• Modern graphics on cover to demonstrate key rotation and operation

• 9VDC battery operated with Low Battery Alert

• LED visual and audible arming indicators



Detex EAX-500W Weatherized Battery Powered Exit Alarm

The Detex EAX-500W Weatherized Exit Alarm is designed for applications that require a battery-powered alarm on secured doors, particularly emergency exits that open to the outdoors or wet environment. The alarm, with approximately 100dB, will sound when someone attempts an unauthorized exit. The redesigned shape and smaller size of the EAX-500W makes it the choice for quick and easy installations on emergency exit and restricted doors.

Finishes:

Grey

Black

Here Is An Instructions Video

• Low cost, self-contained door alarm with piezo horn that sounds to warn unauthorized use of a door or gate

• Patented plastic template allows for foolproof alignment of internal magnetic door contact and accurate installation

• Tapered cover allows for installation on narrow stile doors

• Intelligent circuit senses the external magnet location automatically and sets the correct door handing

• Patented cam assembly automatically adjusts for different sizes of cylinders without use of spacers Features Benefits

• Weatherized for outdoor environments

• Secure, tamper resistant housing

• Quick, easy installation saves time and money

• Alarm can only be silenced by proper control key

• Extended bypass (now a standard feature) allows alarm to remain bypassed when door is open and automatically rearm upon door closing

• Modern graphics on cover to demonstrate key rotation and operation

• 100 dB piezo alarm

• 9VDC battery operated with Low Battery Alert

• LED visual and audible arming indicators

• Field selectable 2-minute auto rearm, if desired

• Field selectable status indicators, if desired

• Weatherized electronics certified to Driving Rain and Salt Fog Test (see Listings and Approvals)
