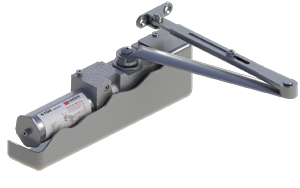

Hager

Size:  - 1-6 adjustable

Certifications: - BHMA Certified ANSI A156.4, adjustable size 1-6
- ADA compliant ANSI A117.1 Accessibility Code
- UL/cUL Listed for up to 3 hours
- UL10C Positive Pressure Rated
- UL10B Neutral Pressure Rated
- Lifetime warranty

Material: - Cast Iron

Cover: - Full plastic cover - Standard
- Plated metal cover - Optional

Springs: - One piece seamless steel spring tube
- Double heat treated steel, tempered springs
- Precision machined, heat treated steel piston

Valves: - Adjustable latching and sweep speed valves
- Adjustable backcheck valve - Standard
- Delayed action valve - Optional
- Staked valves - Standard

Handing: - Non-Handed

Arms & Brackets: - Tri-Pack - Regular, Top Jamb, and Parallel Arms - Standard

Optional Arms: - Extra Heavy Duty Stop Arm
- Extra Heavy Duty Arm
- Hold Open Arm
- Extra Heavy Duty Hold Open Arm
- Extra Heavy Duty Cushion Stop Arm
- Extra Heavy Duty Hold Open Stop Arm
- Extra Heavy Duty Hold Open Cushion Stop Arm

Optional Brackets: - Regular Arm Mount - Narrow Top Rail
- Parallel Arm Mount - Narrow Top Rail

Fasteners: - Self-reaming, self-tapping wood and machine screws
- Sex nuts and bolts

Door Thickness: - 1-3/4" (44 mm) - Standard
- 1-3/8'' - 2-1/4'' (36 mm - 57 mm) thick door - Optional

Painted Finishes: - ALM, BRZ, DBZ, GOL
- Rust inhibiting primer - Standard

Contents: - Standard package contains 5101 closer body, 5102 closer cover, 5103 main arm assembly, 5104 standard screw pack, 5909 parallel arm bracket, and 5940 SNB screw pack for 1-3/4" (44 mm) doors

Note: - Full rack and pinion operation

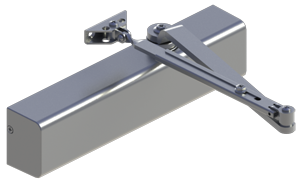

Hager Grade 1 Heavy Duty Door Closer 5200 Series - Barzellock.com
Size:  - 1-6 adjustable

Certifications: - BHMA Certified ANSI A156.4, adjustable sizes 2 to 5 - Standard
- ADA Compliant ANSI A117.1 Accessibility Code
- UL/cUL Listed for up to 3 hours
- UL10C Positive Pressure Rated
- UL10B Neutral Pressure Rated
- Lifetime Warranty

Material: - Aluminum alloy

Cover: - Full plastic cover - Standard
- Slim line plastic cover - Optional
- Full size plated metal cover - Optional

Springs: - Double heat treated steel, tempered springs
- Precision machined, heat treated Steel piston

Valves: - Adjustable latching and sweep speed valve
- Adjustable backcheck valve - Standard
- Delayed action valve - Optional

Handing: - Non-Handed
Arms & Brackets: - Tri-Pack - Regular, parallel arm, and top jamb mount - Standard
- 15% power adjustment in standard arm for regular and top jamb mount

Optional Arms: - Hold Open Arm
- Extra Heavy Duty Hold Open Stop Arm
- Extra Heavy Duty Stop Arm
- Extra Heavy Duty Arm
- Extra Heavy Duty Hold Open Arm
- Extra Heavy Duty Cushion Stop Arm
- Extra Heavy Duty Hold Open Cushion Stop Arm

Fasteners: - Self-reaming, self-tapping wood and machine screws
- Sex nuts and bolts

Door Thickness: - 1-3/4" (44 mm)
- 1-3/8'' - 2-1/4'' (36 mm - 57 mm) - Optional


Finishes:
- ALM, BRZ, DBZ, GOL
- Rust inhibiting primer - Standard
Size:  - 1-6 adjustable
Certifications: - BHMA Certified ANSI A156.4, adjustable sizes 2 to 6 - Standard
- ADA Compliant ANSI A117.1 Accessability Code
- UL/cUL Listed for up to 3 hours
- UL10C Positive Pressure Rated
- UL10B Neutral Pressure Rated
- Lifetime warranty

Material: - Aluminum alloy

Cover: - Full plastic cover and pinion cap

Springs: - Double heat treated steel, tempered springs
Valves: - Adjustable latching and sweep speed valves
- Adjustable backcheck valve - Standard
- Delayed action valve - Optional
- Staked valves - Standard

Handing: - Non-handed

Arms & Brackets: - Slide Adjustable Arm
- Tri-Pack - regular, top jamb, and parallel arms - Standard
- 15% power adjustment in standard arm for regular and top jamb mount

Fasteners: - Self-reaming, self-tapping wood and machine screws
- Sex nuts and bolts

Door Thickness - 1-3/4" (44 mm)
- 1-3/8'' - 2-1/4'' (36 mm - 57 mm) Optional

Finishes: - ALM, BRZ, DBZ, GOL
- Rust inhibiting primer - Standard
Certifications: - BHMA Certified ANSI A156.4, sizes 2, 3, 4, 5 - Must specify
- UL/cUL Listed for up to 3 hours
- UL10C Positive Pressure Rated
- UL10B Neutral Pressure Rated
- Five-year warranty
Material: - Aluminum alloy
Springs: - Double heat treated steel, tempered springs
Valves: - Adjustable latching and sweep speed valves
- Adjustable backcheck valve - Optional
- Staked valves - Standard
Handing: - Non-Handed
Arms & Brackets: - Tri-Pack - Regular, parallel, and top jamb arm mount - standard
- 15% power adjustment in standard arm for regular and top jamb mount
Fasteners: - Self-reaming self-tapping wood and machine screws
- Sex nuts and bolts
Door Thickness: - 1-3/4" (44 mm) - Standard
- 1-3/8" - 2-1/4" (36 mm - 57 mm) - Optional
Finishes: - ALM, BRZ, DBZ, GOL
- Rust inhibiting primer - Standard
Cover: - Pinion cap
