Corbin Russwin

Corbin Russwin is known for manufacturing high quality, commercial grade locks, panic bars, door closers and other commercial door hardware you can rely on. Barzel Lock offers many different Corbin Russwin products for a variety of applications.

We carry several Corbin Russwin exit devices, including the Corbin Russwin ED8200, ED8400, ED5400, ED4800, ED4200, ED4400, ED5200 and ED5800. These include rim exit devices, narrow stile rim exit devices, fire rated exit devices and more, so you can find the exact Corbin Russwin exit device for your needs.

Our Corbin Russwin collection also includes a number of door closers in different sizes and heavy duty options. Choose from the Corbin Russwin DC3200, DC3210, DC3220, DC6210, DC6410, DC6200, DC6400, DC8200, and DC8210.

Looking for Corbin Russwin levers? We carry a full line, including electrified and extra heavy duty models. Popular models from the CL3300 series include the Corbin Russwin CL3310, CL3355, CL3320, CL3351, and CL3357.

Shop with us for Corbin Russwin mortise locks as well -- including the Corbin Russwin ML2057.

For all the best Corbin Russwin locks and other door hardware such as Corbin Russwin lever locks, Corbin Russwin deadbolt locks, and mortise locks; plus Corbin Russwin door closers, panic bars, door knob locks and more at the best prices, shop at Barzel Lock today!

Corbin Russwin CK4410 Passage or Closet Knob. An outstanding combination of value and performance. Ideal for quality residential and light commercial buildings, such as:

  • Fine homes
  • Apartments
  • Motels
  • Offices

Corbin Russwin CK4410 Passage or Closet:

• Latchbolt by knob either side.

• Both knobs always free.

Advantages



  • Wide array of functions
  • Precision manufactured mechanisms, zinc dichromated for corrosion resistance
  • Stainless steel latchbolt for long life
  • Adjustable latchbolts accommodates flat and beveled doors
  • Stainless steel trim available

Features Handing Field reversible.

Door Thickness 1-3/8" (35mm) - 1-3/4" (44mm) standard.

Backset 2-3/4" (70mm) standard.

Optional: 2-3/8" (60mm), 3-3/4" (95mm) and 5" (127mm); see How to Order, page 9.

Lock Chassis Steel, zinc dichromated for corrosion resistance. Front Wrought brass, bronze, or stainless steel, 2-1/4" (57mm) x 1-1/8" (29mm) standard.

Accommodates flat doors and doors beveled 1/8" (3mm) in 2" (51mm).

Optional fronts available; see How to Order, page 9. Latchbolt Brass or stainless steel, 1/2" (13mm) throw.

Auxiliary Latchbolt Deadlocking latchbolt prevents manipulation when door is closed. Strike Wrought brass, bronze, or stainless steel ANSI curved lip standard, 4-7/8" (124mm) x 1-1/4" (32mm) x 1-1/4" (32mm) lip to center.

Optional strikes, lip lengths and ANSI wrought strike box available; see How to Order, page 9.

Cylinder Brass, 6-pin L4 keyway, 0-bitted standard. Keying Features Available Master keying Construction master keying Keys Two nickel silver standard. Warranty One-year limited.

Certification/Compliance ANSI/BHMA Certified and meets A156.2 Series 4000, Grade 2. Federal Meets FF-H-106C. UL-cUL UL/ULC All locks with listed for A label and lesser class single doors, 4' x 8'. Letter F and UL symbol on latch front indicate listing.

Any retrofit or other field modification to a fire-rated opening can potentially impact the fire rating of the opening, and Corbin Russwin, Inc. makes no representations or warranties concerning what such impact may be in any specific situation.

When retrofitting any portion of an existing firerated opening, or specifying and installing a new fire-rated opening, please consult with a code specialist or local code official (Authority Having Jurisdiction) to ensure compliance with all applicable codes and ratingsAvailable Finishes

Click on a swatch to view finish on hardware.

BHMA 605

Bright Brass

BHMA 612

Satin Bronze

BHMA 613

Dark Oxidized Satin Bronze, Oil Rubbed

BHMA 629 Bright Stainless Steel
BHMA 630 Satin Stainless Steel

Trim





Belmont
Global
Advantages



  • Wide array of functions
  • Precision manufactured mechanisms, zinc dichromated for corrosion resistance
  • Stainless steel latchbolt for long life
  • Adjustable latchbolts accommodates flat and beveled doors
  • Stainless steel trim available

Corbin Russwin CK4410 Privacy, Bedroom or Bathroom Knob. An outstanding combination of value and performance. Ideal for quality residential and light commercial buildings, such as:

  • Fine homes
  • Apartments
  • Motels
  • Offices

Corbin Russwin CK4410 Privacy, Bedroom or Bathroom:

• Deadlocking latchbolt by knob either side.

• Outside knob locked by push button.

• Outside knob unlocked by turning slotted button outside, by rotating inside knob, or by closing door.

• Inside knob always free.

Advantages



  • Wide array of functions
  • Precision manufactured mechanisms, zinc dichromated for corrosion resistance
  • Stainless steel latchbolt for long life
  • Adjustable latchbolts accommodates flat and beveled doors
  • Stainless steel trim available

Features Handing Field reversible.

Door Thickness 1-3/8" (35mm) - 1-3/4" (44mm) standard.

Backset 2-3/4" (70mm) standard.

Optional: 2-3/8" (60mm), 3-3/4" (95mm) and 5" (127mm); see How to Order, page 9.

Lock Chassis Steel, zinc dichromated for corrosion resistance. Front Wrought brass, bronze, or stainless steel, 2-1/4" (57mm) x 1-1/8" (29mm) standard.

Accommodates flat doors and doors beveled 1/8" (3mm) in 2" (51mm).

Optional fronts available; see How to Order, page 9. Latchbolt Brass or stainless steel, 1/2" (13mm) throw.

Auxiliary Latchbolt Deadlocking latchbolt prevents manipulation when door is closed. Strike Wrought brass, bronze, or stainless steel ANSI curved lip standard, 4-7/8" (124mm) x 1-1/4" (32mm) x 1-1/4" (32mm) lip to center.

Optional strikes, lip lengths and ANSI wrought strike box available; see How to Order, page 9.

Cylinder Brass, 6-pin L4 keyway, 0-bitted standard. Keying Features Available Master keying Construction master keying Keys Two nickel silver standard. Warranty One-year limited.

Certification/Compliance ANSI/BHMA Certified and meets A156.2 Series 4000, Grade 2. Federal Meets FF-H-106C. UL-cUL UL/ULC All locks with listed for A label and lesser class single doors, 4' x 8'. Letter F and UL symbol on latch front indicate listing.

Any retrofit or other field modification to a fire-rated opening can potentially impact the fire rating of the opening, and Corbin Russwin, Inc. makes no representations or warranties concerning what such impact may be in any specific situation.

When retrofitting any portion of an existing firerated opening, or specifying and installing a new fire-rated opening, please consult with a code specialist or local code official (Authority Having Jurisdiction) to ensure compliance with all applicable codes and ratingsAvailable Finishes

Click on a swatch to view finish on hardware.

BHMA 605

Bright Brass

BHMA 612

Satin Bronze

BHMA 613

Dark Oxidized Satin Bronze, Oil Rubbed

BHMA 629 Bright Stainless Steel
BHMA 630 Satin Stainless Steel

Trim





Belmont
Global
Advantages



  • Wide array of functions
  • Precision manufactured mechanisms, zinc dichromated for corrosion resistance
  • Stainless steel latchbolt for long life
  • Adjustable latchbolts accommodates flat and beveled doors
  • Stainless steel trim available

Corbin Russwin CK4450 Half Dummy Trim Knob. An outstanding combination of value and performance. Ideal for quality residential and light commercial buildings, such as:

  • Fine homes
  • Apartments
  • Motels
  • Offices

Corbin Russwin CK4450 Half Dummy Trim:

• Knob acts as pull only; no operation.

• Knob is rigid.

    Advantages

    • Wide array of functions
    • Precision manufactured mechanisms, zinc dichromated for corrosion resistance
    • Stainless steel latchbolt for long life
    • Adjustable latchbolts accommodates flat and beveled doors
    • Stainless steel trim available

    Features Handing Field reversible.

    Door Thickness 1-3/8" (35mm) - 1-3/4" (44mm) standard.

    Backset 2-3/4" (70mm) standard.

    Optional: 2-3/8" (60mm), 3-3/4" (95mm) and 5" (127mm); see How to Order, page 9.

    Lock Chassis Steel, zinc dichromated for corrosion resistance. Front Wrought brass, bronze, or stainless steel, 2-1/4" (57mm) x 1-1/8" (29mm) standard.

    Accommodates flat doors and doors beveled 1/8" (3mm) in 2" (51mm).

    Optional fronts available; see How to Order, page 9. Latchbolt Brass or stainless steel, 1/2" (13mm) throw.

    Auxiliary Latchbolt Deadlocking latchbolt prevents manipulation when door is closed. Strike Wrought brass, bronze, or stainless steel ANSI curved lip standard, 4-7/8" (124mm) x 1-1/4" (32mm) x 1-1/4" (32mm) lip to center.

    Optional strikes, lip lengths and ANSI wrought strike box available; see How to Order, page 9.

    Cylinder Brass, 6-pin L4 keyway, 0-bitted standard. Keying Features Available Master keying Construction master keying Keys Two nickel silver standard. Warranty One-year limited.

    Certification/Compliance ANSI/BHMA Certified and meets A156.2 Series 4000, Grade 2. Federal Meets FF-H-106C. UL-cUL UL/ULC All locks with listed for A label and lesser class single doors, 4' x 8'. Letter F and UL symbol on latch front indicate listing.

    Any retrofit or other field modification to a fire-rated opening can potentially impact the fire rating of the opening, and Corbin Russwin, Inc. makes no representations or warranties concerning what such impact may be in any specific situation.

    When retrofitting any portion of an existing firerated opening, or specifying and installing a new fire-rated opening, please consult with a code specialist or local code official (Authority Having Jurisdiction) to ensure compliance with all applicable codes and ratingsAvailable Finishes

    Click on a swatch to view finish on hardware.

    BHMA 605

    Bright Brass

    BHMA 612

    Satin Bronze

    BHMA 613

    Dark Oxidized Satin Bronze, Oil Rubbed

    BHMA 629 Bright Stainless Steel
    BHMA 630 Satin Stainless Steel

    Trim





    Belmont
    Global
    Advantages



    • Wide array of functions
    • Precision manufactured mechanisms, zinc dichromated for corrosion resistance
    • Stainless steel latchbolt for long life
    • Adjustable latchbolts accommodates flat and beveled doors
    • Stainless steel trim available

    Corbin Russwin CK4451 Entrance or Office Knob. An outstanding combination of value and performance. Ideal for quality residential and light commercial buildings, such as:

    • Fine homes
    • Apartments
    • Motels
    • Offices

    Corbin Russwin CK4451 Entrance or Office:

    • Deadlocking latchbolt by knob either side, except when turn button locks outside knob.

    • Pushing turn button in locks outside knob, requiring use of key outside to unlock.

    • Turning inside knob unlocks outside knob.

    • Pushing in and turning button locks outside knob, requiring key at all times. Turning inside knob does not unlock outside knob until button is manually turned to unlocked position.

    • Inside knob always free.

    Advantages



    • Wide array of functions
    • Precision manufactured mechanisms, zinc dichromated for corrosion resistance
    • Stainless steel latchbolt for long life
    • Adjustable latchbolts accommodates flat and beveled doors
    • Stainless steel trim available

    Features Handing Field reversible.

    Door Thickness 1-3/8" (35mm) - 1-3/4" (44mm) standard.

    Backset 2-3/4" (70mm) standard.

    Optional: 2-3/8" (60mm), 3-3/4" (95mm) and 5" (127mm); see How to Order, page 9.

    Lock Chassis Steel, zinc dichromated for corrosion resistance. Front Wrought brass, bronze, or stainless steel, 2-1/4" (57mm) x 1-1/8" (29mm) standard.

    Accommodates flat doors and doors beveled 1/8" (3mm) in 2" (51mm).

    Optional fronts available; see How to Order, page 9. Latchbolt Brass or stainless steel, 1/2" (13mm) throw.

    Auxiliary Latchbolt Deadlocking latchbolt prevents manipulation when door is closed. Strike Wrought brass, bronze, or stainless steel ANSI curved lip standard, 4-7/8" (124mm) x 1-1/4" (32mm) x 1-1/4" (32mm) lip to center.

    Optional strikes, lip lengths and ANSI wrought strike box available; see How to Order, page 9.

    Cylinder Brass, 6-pin L4 keyway, 0-bitted standard. Keying Features Available Master keying Construction master keying Keys Two nickel silver standard. Warranty One-year limited.

    Certification/Compliance ANSI/BHMA Certified and meets A156.2 Series 4000, Grade 2. Federal Meets FF-H-106C. UL-cUL UL/ULC All locks with listed for A label and lesser class single doors, 4' x 8'. Letter F and UL symbol on latch front indicate listing.

    Any retrofit or other field modification to a fire-rated opening can potentially impact the fire rating of the opening, and Corbin Russwin, Inc. makes no representations or warranties concerning what such impact may be in any specific situation.

    When retrofitting any portion of an existing firerated opening, or specifying and installing a new fire-rated opening, please consult with a code specialist or local code official (Authority Having Jurisdiction) to ensure compliance with all applicable codes and ratingsAvailable Finishes

    Click on a swatch to view finish on hardware.

    BHMA 605

    Bright Brass

    BHMA 612

    Satin Bronze

    BHMA 613

    Dark Oxidized Satin Bronze, Oil Rubbed

    BHMA 629 Bright Stainless Steel
    BHMA 630 Satin Stainless Steel

    Trim





    Belmont
    Global
    Advantages



    • Wide array of functions
    • Precision manufactured mechanisms, zinc dichromated for corrosion resistance
    • Stainless steel latchbolt for long life
    • Adjustable latchbolts accommodates flat and beveled doors
    • Stainless steel trim available
    Corbin Russwin CK4455 Classroom Knob Lock

    Corbin Russwin CK4455 Classroom Knob Lock

    by Corbin Russwin
    $ 135.00

    Corbin Russwin CK4455 Classroom Knob. An outstanding combination of value and performance. Ideal for quality residential and light commercial buildings, such as:

    • Fine homes
    • Apartments
    • Motels
    • Offices

    Corbin Russwin CK4455 Classroom:

    • Deadlocking latchbolt by knob either side except when key outside locks outside knob.
    • Outside knob unlocked by key outside.
    •  Inside knob always free.

    Advantages



    • Wide array of functions
    • Precision manufactured mechanisms, zinc dichromated for corrosion resistance
    • Stainless steel latchbolt for long life
    • Adjustable latchbolts accommodates flat and beveled doors
    • Stainless steel trim available

    Features Handing Field reversible.

    Door Thickness 1-3/8" (35mm) - 1-3/4" (44mm) standard.

    Backset 2-3/4" (70mm) standard.

    Optional: 2-3/8" (60mm), 3-3/4" (95mm) and 5" (127mm); see How to Order, page 9.

    Lock Chassis Steel, zinc dichromated for corrosion resistance. Front Wrought brass, bronze, or stainless steel, 2-1/4" (57mm) x 1-1/8" (29mm) standard.

    Accommodates flat doors and doors beveled 1/8" (3mm) in 2" (51mm).

    Optional fronts available; see How to Order, page 9. Latchbolt Brass or stainless steel, 1/2" (13mm) throw.

    Auxiliary Latchbolt Deadlocking latchbolt prevents manipulation when door is closed. Strike Wrought brass, bronze, or stainless steel ANSI curved lip standard, 4-7/8" (124mm) x 1-1/4" (32mm) x 1-1/4" (32mm) lip to center.

    Optional strikes, lip lengths and ANSI wrought strike box available; see How to Order, page 9.

    Cylinder Brass, 6-pin L4 keyway, 0-bitted standard. Keying Features Available Master keying Construction master keying Keys Two nickel silver standard. Warranty One-year limited.

    Certification/Compliance ANSI/BHMA Certified and meets A156.2 Series 4000, Grade 2. Federal Meets FF-H-106C. UL-cUL UL/ULC All locks with listed for A label and lesser class single doors, 4' x 8'. Letter F and UL symbol on latch front indicate listing.

    Any retrofit or other field modification to a fire-rated opening can potentially impact the fire rating of the opening, and Corbin Russwin, Inc. makes no representations or warranties concerning what such impact may be in any specific situation.

    When retrofitting any portion of an existing firerated opening, or specifying and installing a new fire-rated opening, please consult with a code specialist or local code official (Authority Having Jurisdiction) to ensure compliance with all applicable codes and ratingsAvailable Finishes

    Click on a swatch to view finish on hardware.

    BHMA 605

    Bright Brass

    BHMA 612

    Satin Bronze

    BHMA 613

    Dark Oxidized Satin Bronze, Oil Rubbed

    BHMA 629 Bright Stainless Steel
    BHMA 630 Satin Stainless Steel

    Trim





    Belmont
    Global
    Advantages



    • Wide array of functions
    • Precision manufactured mechanisms, zinc dichromated for corrosion resistance
    • Stainless steel latchbolt for long life
    • Adjustable latchbolts accommodates flat and beveled doors
    • Stainless steel trim available

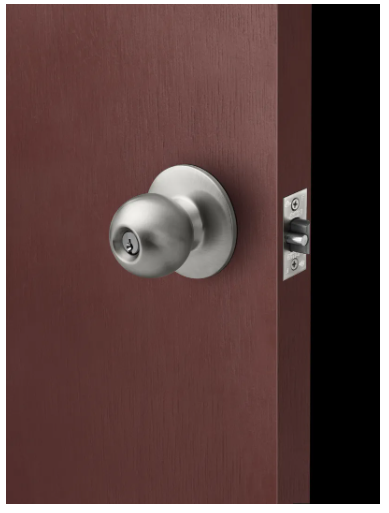

    Corbin Russwin CK4457 Storeroom or Closet Knob. An outstanding combination of value and performance. Ideal for quality residential and light commercial buildings, such as:

    • Fine homes
    • Apartments
    • Motels
    • Offices

    Corbin Russwin CK4457 Storeroom or Closet:

    • Deadlocking latchbolt by key in outside knob, or by rotating inside knob.

    • Outside knob always rigid.

    • Inside knob always free.

      Advantages



      • Wide array of functions
      • Precision manufactured mechanisms, zinc dichromated for corrosion resistance
      • Stainless steel latchbolt for long life
      • Adjustable latchbolts accommodates flat and beveled doors
      • Stainless steel trim available

      Features Handing Field reversible.

      Door Thickness 1-3/8" (35mm) - 1-3/4" (44mm) standard.

      Backset 2-3/4" (70mm) standard.

      Optional: 2-3/8" (60mm), 3-3/4" (95mm) and 5" (127mm); see How to Order, page 9.

      Lock Chassis Steel, zinc dichromated for corrosion resistance. Front Wrought brass, bronze, or stainless steel, 2-1/4" (57mm) x 1-1/8" (29mm) standard.

      Accommodates flat doors and doors beveled 1/8" (3mm) in 2" (51mm).

      Optional fronts available; see How to Order, page 9. Latchbolt Brass or stainless steel, 1/2" (13mm) throw.

      Auxiliary Latchbolt Deadlocking latchbolt prevents manipulation when door is closed. Strike Wrought brass, bronze, or stainless steel ANSI curved lip standard, 4-7/8" (124mm) x 1-1/4" (32mm) x 1-1/4" (32mm) lip to center.

      Optional strikes, lip lengths and ANSI wrought strike box available; see How to Order, page 9.

      Cylinder Brass, 6-pin L4 keyway, 0-bitted standard. Keying Features Available Master keying Construction master keying Keys Two nickel silver standard. Warranty One-year limited.

      Certification/Compliance ANSI/BHMA Certified and meets A156.2 Series 4000, Grade 2. Federal Meets FF-H-106C. UL-cUL UL/ULC All locks with listed for A label and lesser class single doors, 4' x 8'. Letter F and UL symbol on latch front indicate listing.

      Any retrofit or other field modification to a fire-rated opening can potentially impact the fire rating of the opening, and Corbin Russwin, Inc. makes no representations or warranties concerning what such impact may be in any specific situation.

      When retrofitting any portion of an existing firerated opening, or specifying and installing a new fire-rated opening, please consult with a code specialist or local code official (Authority Having Jurisdiction) to ensure compliance with all applicable codes and ratingsAvailable Finishes

      Click on a swatch to view finish on hardware.

      BHMA 605

      Bright Brass

      BHMA 612

      Satin Bronze

      BHMA 613

      Dark Oxidized Satin Bronze, Oil Rubbed

      BHMA 629 Bright Stainless Steel
      BHMA 630 Satin Stainless Steel

      Trim





      Belmont
      Global
      Advantages



      • Wide array of functions
      • Precision manufactured mechanisms, zinc dichromated for corrosion resistance
      • Stainless steel latchbolt for long life
      • Adjustable latchbolts accommodates flat and beveled doors
      • Stainless steel trim available

      Corbin Russwin CK4480 Communicating or Exit Knob. An outstanding combination of value and performance. Ideal for quality residential and light commercial buildings, such as:

      • Fine homes
      • Apartments
      • Motels
      • Offices

      Corbin Russwin CK4480 Communicating or Exit:

      • Deadlocking latchbolt by knob outside only.

      • Blank rose inside; no inside operation.

        Advantages

        • Wide array of functions
        • Precision manufactured mechanisms, zinc dichromated for corrosion resistance
        • Stainless steel latchbolt for long life
        • Adjustable latchbolts accommodates flat and beveled doors
        • Stainless steel trim available

        Features Handing Field reversible.

        Door Thickness 1-3/8" (35mm) - 1-3/4" (44mm) standard.

        Backset 2-3/4" (70mm) standard.

        Optional: 2-3/8" (60mm), 3-3/4" (95mm) and 5" (127mm); see How to Order, page 9.

        Lock Chassis Steel, zinc dichromated for corrosion resistance. Front Wrought brass, bronze, or stainless steel, 2-1/4" (57mm) x 1-1/8" (29mm) standard.

        Accommodates flat doors and doors beveled 1/8" (3mm) in 2" (51mm).

        Optional fronts available; see How to Order, page 9. Latchbolt Brass or stainless steel, 1/2" (13mm) throw.

        Auxiliary Latchbolt Deadlocking latchbolt prevents manipulation when door is closed. Strike Wrought brass, bronze, or stainless steel ANSI curved lip standard, 4-7/8" (124mm) x 1-1/4" (32mm) x 1-1/4" (32mm) lip to center.

        Optional strikes, lip lengths and ANSI wrought strike box available; see How to Order, page 9.

        Cylinder Brass, 6-pin L4 keyway, 0-bitted standard. Keying Features Available Master keying Construction master keying Keys Two nickel silver standard. Warranty One-year limited.

        Certification/Compliance ANSI/BHMA Certified and meets A156.2 Series 4000, Grade 2. Federal Meets FF-H-106C. UL-cUL UL/ULC All locks with listed for A label and lesser class single doors, 4' x 8'. Letter F and UL symbol on latch front indicate listing.

        Any retrofit or other field modification to a fire-rated opening can potentially impact the fire rating of the opening, and Corbin Russwin, Inc. makes no representations or warranties concerning what such impact may be in any specific situation.

        When retrofitting any portion of an existing firerated opening, or specifying and installing a new fire-rated opening, please consult with a code specialist or local code official (Authority Having Jurisdiction) to ensure compliance with all applicable codes and ratingsAvailable Finishes

        Click on a swatch to view finish on hardware.

        BHMA 605

        Bright Brass

        BHMA 612

        Satin Bronze

        BHMA 613

        Dark Oxidized Satin Bronze, Oil Rubbed

        BHMA 629 Bright Stainless Steel
        BHMA 630 Satin Stainless Steel

        Trim





        Belmont
        Global
        Advantages



        • Wide array of functions
        • Precision manufactured mechanisms, zinc dichromated for corrosion resistance
        • Stainless steel latchbolt for long life
        • Adjustable latchbolts accommodates flat and beveled doors
        • Stainless steel trim available
        Corbin Russwin CK4482 Store Door Knob Lock

        Corbin Russwin CK4482 Store Door Knob Lock

        by Corbin Russwin
        $ 170.00

        Corbin Russwin CK4482 Store Door Knob. An outstanding combination of value and performance. Ideal for quality residential and light commercial buildings, such as:

        • Fine homes
        • Apartments
        • Motels
        • Offices

        Corbin Russwin CK4482 Store Door:

        • Deadlocking latchbolt by knob either side, except when key either side locks both knobs.

        • Keyed alike unless otherwise specified.

          Advantages

          • Wide array of functions
          • Precision manufactured mechanisms, zinc dichromated for corrosion resistance
          • Stainless steel latchbolt for long life
          • Adjustable latchbolts accommodates flat and beveled doors
          • Stainless steel trim available

          Features Handing Field reversible.

          Door Thickness 1-3/8" (35mm) - 1-3/4" (44mm) standard.

          Backset 2-3/4" (70mm) standard.

          Optional: 2-3/8" (60mm), 3-3/4" (95mm) and 5" (127mm); see How to Order, page 9.

          Lock Chassis Steel, zinc dichromated for corrosion resistance. Front Wrought brass, bronze, or stainless steel, 2-1/4" (57mm) x 1-1/8" (29mm) standard.

          Accommodates flat doors and doors beveled 1/8" (3mm) in 2" (51mm).

          Optional fronts available; see How to Order, page 9. Latchbolt Brass or stainless steel, 1/2" (13mm) throw.

          Auxiliary Latchbolt Deadlocking latchbolt prevents manipulation when door is closed. Strike Wrought brass, bronze, or stainless steel ANSI curved lip standard, 4-7/8" (124mm) x 1-1/4" (32mm) x 1-1/4" (32mm) lip to center.

          Optional strikes, lip lengths and ANSI wrought strike box available; see How to Order, page 9.

          Cylinder Brass, 6-pin L4 keyway, 0-bitted standard. Keying Features Available Master keying Construction master keying Keys Two nickel silver standard. Warranty One-year limited.

          Certification/Compliance ANSI/BHMA Certified and meets A156.2 Series 4000, Grade 2. Federal Meets FF-H-106C. UL-cUL UL/ULC All locks with listed for A label and lesser class single doors, 4' x 8'. Letter F and UL symbol on latch front indicate listing.

          Any retrofit or other field modification to a fire-rated opening can potentially impact the fire rating of the opening, and Corbin Russwin, Inc. makes no representations or warranties concerning what such impact may be in any specific situation.

          When retrofitting any portion of an existing firerated opening, or specifying and installing a new fire-rated opening, please consult with a code specialist or local code official (Authority Having Jurisdiction) to ensure compliance with all applicable codes and ratingsAvailable Finishes

          Click on a swatch to view finish on hardware.

          BHMA 605

          Bright Brass

          BHMA 612

          Satin Bronze

          BHMA 613

          Dark Oxidized Satin Bronze, Oil Rubbed

          BHMA 629 Bright Stainless Steel
          BHMA 630 Satin Stainless Steel

          Trim





          Belmont
          Global
          Advantages



          • Wide array of functions
          • Precision manufactured mechanisms, zinc dichromated for corrosion resistance
          • Stainless steel latchbolt for long life
          • Adjustable latchbolts accommodates flat and beveled doors
          • Stainless steel trim available

          The CL3300 series is a Grade 1 cylindrical lockset manufactured with the highest quality materials to ensure strength, durability and quiet operation. Available in all standard architectural finishes and four lever designs, the CL3300 series subtly complements any high-use commercial, industrial and institutional application.

          • Latchbolt by lever either side.

          • Both levers always free.

          Vandal Resistance

          Engineered to meet today’s increased security needs, the CL3300 series offers several advantages. All functions feature the Lever Release™ design for vandal resistance, allowing the outside lever to rotate when in the locked position. All CL3300 series locksets, including the CL33900 series, are available with Corbin Russwin Pyramid patented security or high security cylinders, the most secure locking system available. Pyramid is especially recommende



          d for installations that require superior protection against picking, drilling and other surreptitious entry. See the Pyramid catalog for additional information.

          Access Control



          For access control, the CL33900 Series Electrified Cylindrical lockset utilizes the proven CL3300 series lockset and
          features an integral continuous duty solenoid that allows installation in a standard cylindrical prep. Available in Fail Safe or Fail Secure, the CL33900 is ideal for door control where increased security is necessary at all times, while meeting life safety codes.

          Key Advantages

          • EZ-Install components significantly reduce installation time
          • Lever Release™ lever design for vandal resistance
          • Pyramid cylinders for increased security
          • Access control available with CL33900 Electrified lockset
          • ElectroLynx® connectors are standard on all Corbin Russwin electrified products. McKinney QC hinges are recommended to make a complete plug and play application.
          • Independent return springs prevent lever sag
          • Covers ANSI/DHI Door Prep A115.18

          The CL3300 series is a Grade 1 cylindrical lockset manufactured with the highest quality materials to ensure strength, durability and quiet operation. Available in all standard architectural finishes and four lever designs, the CL3300 series subtly complements any high-use commercial, industrial and institutional application.

          • Throw-off latchbolt by lever.

          • Outside lever locked by push button. (Lever handle is freewheeling in locked position.)

          • Outside lever unlocked by emergency release tool outside, by rotating inside lever or by closing door.

          • Inside lever always free.

          Vandal Resistance

          Engineered to meet today’s increased security needs, the CL3300 series offers several advantages. All functions feature the Lever Release™ design for vandal resistance, allowing the outside lever to rotate when in the locked position. All CL3300 series locksets, including the CL33900 series, are available with Corbin Russwin Pyramid patented security or high security cylinders, the most secure locking system available. Pyramid is especially recommende



          d for installations that require superior protection against picking, drilling and other surreptitious entry. See the Pyramid catalog for additional information.

          Access Control



          For access control, the CL33900 Series Electrified Cylindrical lockset utilizes the proven CL3300 series lockset and
          features an integral continuous duty solenoid that allows installation in a standard cylindrical prep. Available in Fail Safe or Fail Secure, the CL33900 is ideal for door control where increased security is necessary at all times, while meeting life safety codes.

          Key Advantages

          • EZ-Install components significantly reduce installation time
          • Lever Release™ lever design for vandal resistance
          • Pyramid cylinders for increased security
          • Access control available with CL33900 Electrified lockset
          • ElectroLynx® connectors are standard on all Corbin Russwin electrified products. McKinney QC hinges are recommended to make a complete plug and play application.
          • Independent return springs prevent lever sag
          • Covers ANSI/DHI Door Prep A115.18

          The CL3300 series is a Grade 1 cylindrical lockset manufactured with the highest quality materials to ensure strength, durability and quiet operation. Available in all standard architectural finishes and four lever designs, the CL3300 series subtly complements any high-use commercial, industrial and institutional application.

          • Deadlocking latchbolt by lever either side, except when turn button locks outside lever. Pushing turn button in locks outside lever, requiring use of key outside to unlock. (Lever handle is freewheeling in locked position.)

          • Turning inside lever unlocks outside lever.

          • Pushing in and turning button locks outside lever, requiring key at all times. Turning inside lever does not unlock outside lever until button is manually turned to unlocked position.

          • Inside lever always free.

          Vandal Resistance

          Engineered to meet today’s increased security needs, the CL3300 series offers several advantages. All functions feature the Lever Release™ design for vandal resistance, allowing the outside lever to rotate when in the locked position. All CL3300 series locksets, including the CL33900 series, are available with Corbin Russwin Pyramid patented security or high security cylinders, the most secure locking system available. Pyramid is especially recommende



          d for installations that require superior protection against picking, drilling and other surreptitious entry. See the Pyramid catalog for additional information.

          Access Control



          For access control, the CL33900 Series Electrified Cylindrical lockset utilizes the proven CL3300 series lockset and
          features an integral continuous duty solenoid that allows installation in a standard cylindrical prep. Available in Fail Safe or Fail Secure, the CL33900 is ideal for door control where increased security is necessary at all times, while meeting life safety codes.

          Key Advantages

          • EZ-Install components significantly reduce installation time
          • Lever Release™ lever design for vandal resistance
          • Pyramid cylinders for increased security
          • Access control available with CL33900 Electrified lockset
          • ElectroLynx® connectors are standard on all Corbin Russwin electrified products. McKinney QC hinges are recommended to make a complete plug and play application.
          • Independent return springs prevent lever sag
          • Covers ANSI/DHI Door Prep A115.18

          The CL3300 series is a Grade 1 cylindrical lockset manufactured with the highest quality materials to ensure strength, durability and quiet operation. Available in all standard architectural finishes and four lever designs, the CL3300 series subtly complements any high-use commercial, industrial and institutional application.

          • Deadlocking latchbolt by lever either side, except when key outside locks outside lever. (Lever handle is freewheeling in locked position.)

          • Outside lever unlocked by key outside.

          • Inside lever always free.

          Vandal Resistance

          Engineered to meet today’s increased security needs, the CL3300 series offers several advantages. All functions feature the Lever Release™ design for vandal resistance, allowing the outside lever to rotate when in the locked position. All CL3300 series locksets, including the CL33900 series, are available with Corbin Russwin Pyramid patented security or high security cylinders, the most secure locking system available. Pyramid is especially recommende



          d for installations that require superior protection against picking, drilling and other surreptitious entry. See the Pyramid catalog for additional information.

          Access Control



          For access control, the CL33900 Series Electrified Cylindrical lockset utilizes the proven CL3300 series lockset and
          features an integral continuous duty solenoid that allows installation in a standard cylindrical prep. Available in Fail Safe or Fail Secure, the CL33900 is ideal for door control where increased security is necessary at all times, while meeting life safety codes.

          Key Advantages

          • EZ-Install components significantly reduce installation time
          • Lever Release™ lever design for vandal resistance
          • Pyramid cylinders for increased security
          • Access control available with CL33900 Electrified lockset
          • ElectroLynx® connectors are standard on all Corbin Russwin electrified products. McKinney QC hinges are recommended to make a complete plug and play application.
          • Independent return springs prevent lever sag
          • Covers ANSI/DHI Door Prep A115.18

          The CL3300 series is a Grade 1 cylindrical lockset manufactured with the highest quality materials to ensure strength, durability and quiet operation. Available in all standard architectural finishes and four lever designs, the CL3300 series subtly complements any high-use commercial, industrial and institutional application.

          • Deadlocking latchbolt by key in outside lever or by rotating inside lever. (Lever handle is freewheeling in locked position.)

          • Inside lever always free.

          Vandal Resistance

          Engineered to meet today’s increased security needs, the CL3300 series offers several advantages. All functions feature the Lever Release™ design for vandal resistance, allowing the outside lever to rotate when in the locked position. All CL3300 series locksets, including the CL33900 series, are available with Corbin Russwin Pyramid patented security or high security cylinders, the most secure locking system available. Pyramid is especially recommende



          d for installations that require superior protection against picking, drilling and other surreptitious entry. See the Pyramid catalog for additional information.

          Access Control



          For access control, the CL33900 Series Electrified Cylindrical lockset utilizes the proven CL3300 series lockset and
          features an integral continuous duty solenoid that allows installation in a standard cylindrical prep. Available in Fail Safe or Fail Secure, the CL33900 is ideal for door control where increased security is necessary at all times, while meeting life safety codes.

          Key Advantages

          • EZ-Install components significantly reduce installation time
          • Lever Release™ lever design for vandal resistance
          • Pyramid cylinders for increased security
          • Access control available with CL33900 Electrified lockset
          • ElectroLynx® connectors are standard on all Corbin Russwin electrified products. McKinney QC hinges are recommended to make a complete plug and play application.
          • Independent return springs prevent lever sag
          • Covers ANSI/DHI Door Prep A115.18

          Corbin Russwin CL33903 Electrified Lever Lock Fail Safe. The CL3300 series is a Grade 1 cylindrical lockset manufactured with the highest quality materials to ensure strength, durability and quiet operation. Available in all standard architectural finishes and four lever designs, the CL3300 series subtly complements any high-use commercial, industrial and institutional application.

          CL33903 Fail Safe

          • Deadlocking latchbolt by lever either side except when power on locks outside lever

          • Power off/unlocks outside lever

          • Inside lever always free

          • Latchbolt retracted by key when locked electrically

          Electrified locks contain an internal solenoid. The solenoid can be ordered to either lock when electrical current is applied or unlock when current is applied.

          FAIL SAFE - Unlocked when lock is at rest. Only locks when current is applied.


          Levers: Armstrong, Princeton & Newport Levers

          Finishes: 605 (US3) Bright Brass, 606 (US4) Satin Brass, 612 (US10) Satin Bronze, 613 (US10B) Dark Oxidized Satin Bronze, Oil Rubbed, 625 (US26) Bright Chromium Plated, 626 (US26D) Satin Chromium Plated


          Vandal Resistance

          Engineered to meet today’s increased security needs, the CL3300 series offers several advantages. All functions feature the Lever Release™ design for vandal resistance, allowing the outside lever to rotate when in the locked position. All CL3300 series locksets, including the CL33900 series, are available with Corbin Russwin Pyramid patented security or high security cylinders, the most secure locking system available. Pyramid is especially recommende



          d for installations that require superior protection against picking, drilling and other surreptitious entry. See the Pyramid catalog for additional information.


          Access Control




          For access control, the CL33900 Series Electrified Cylindrical lockset utilizes the proven CL3300 series lockset and
          features an integral continuous duty solenoid that allows installation in a standard cylindrical prep. Available in Fail Safe or Fail Secure, the CL33900 is ideal for door control where increased security is necessary at all times, while meeting life safety codes.

          Key Advantages
          •EZ-Install components significantly reduce installation time
          •Lever Release™ lever design for vandal resistance
          •Pyramid cylinders for increased security
          •Access control available with CL33900 Electrified lockset
          •ElectroLynx® connectors are standard on all Corbin Russwin electrified products. McKinney QC hinges are recommended to make a complete plug and play application.
          •Independent return springs prevent lever sag
          •Covers ANSI/DHI Door Prep A115.18

          Corbin Russwin CL33905 Electrified Lever Lock Fail Secure. The CL3300 series is a Grade 1 cylindrical lockset manufactured with the highest quality materials to ensure strength, durability and quiet operation. Available in all standard architectural finishes and four lever designs, the CL3300 series subtly complements any high-use commercial, industrial and institutional application.

          CL33905 Fail Secure

          • Deadlocking latchbolt by lever either side except when power off locks outside lever

          • Power on/unlocks outside lever

          • Inside lever always free

          • Latchbolt retracted by key when power is off

          Electrified locks contain an internal solenoid. The solenoid can be ordered to either lock when electrical current is applied or unlock when current is applied.

          FAIL SECURE - Locked when lock is at rest. Only unlocks when current is applied.

          Fail Secure is by far the most popular version ordered.

          Levers: Armstrong, Princeton & Newport Levers

          Finishes: 605 (US3) Bright Brass, 606 (US4) Satin Brass, 612 (US10) Satin Bronze, 613 (US10B) Dark Oxidized Satin Bronze, Oil Rubbed, 625 (US26) Bright Chromium Plated, 626 (US26D) Satin Chromium Plated


          Vandal Resistance

          Engineered to meet today’s increased security needs, the CL3300 series offers several advantages. All functions feature the Lever Release™ design for vandal resistance, allowing the outside lever to rotate when in the locked position. All CL3300 series locksets, including the CL33900 series, are available with Corbin Russwin Pyramid patented security or high security cylinders, the most secure locking system available. Pyramid is especially recommende



          d for installations that require superior protection against picking, drilling and other surreptitious entry. See the Pyramid catalog for additional information.


          Access Control




          For access control, the CL33900 Series Electrified Cylindrical lockset utilizes the proven CL3300 series lockset and
          features an integral continuous duty solenoid that allows installation in a standard cylindrical prep. Available in Fail Safe or Fail Secure, the CL33900 is ideal for door control where increased security is necessary at all times, while meeting life safety codes.

          Key Advantages
          •EZ-Install components significantly reduce installation time
          •Lever Release™ lever design for vandal resistance
          •Pyramid cylinders for increased security
          •Access control available with CL33900 Electrified lockset
          •ElectroLynx® connectors are standard on all Corbin Russwin electrified products. McKinney QC hinges are recommended to make a complete plug and play application.
          •Independent return springs prevent lever sag
          •Covers ANSI/DHI Door Prep A115.18

          A heavy-duty Grade 1 lever lockset, ideal for commercial, institutional and multifamily applications such as:

          • Interior offices
          • Apartment complexes
          • Convalescent and elderly care facilities
          • Hotels
          • Restaurants
          • Retail centers

          • Latchbolt by lever either side.

          • Both levers always free.

          Advantages

          • Non-handed
          • Solid cast levers
          • Independent return springs to prevent lever sag
          • Through-bolted cylindrical chassis prevents rotation and ensures proper alignment
          • ANSI Grade 1 certification
          • Trim and keying compatible with other Corbin Russwin locksets

          A heavy-duty Grade 1 lever lockset, ideal for commercial, institutional and multifamily applications such as:

          • Interior offices
          • Apartment complexes
          • Convalescent and elderly care facilities
          • Hotels
          • Restaurants
          • Retail centers

          • Throw-off latchbolt by lever either side.

          • Outside lever locked by push button.

          • Outside lever unlocked by emergency release tool outside, by rotating lever or by closing door.

          • Inside lever always free.

          Advantages

          • Non-handed
          • Solid cast levers
          • Independent return springs to prevent lever sag
          • Through-bolted cylindrical chassis prevents rotation and ensures proper alignment
          • ANSI Grade 1 certification
          • Trim and keying compatible with other Corbin Russwin locksets

          A heavy-duty Grade 1 lever lockset, ideal for commercial, institutional and multifamily applications such as:

          • Interior offices
          • Apartment complexes
          • Convalescent and elderly care facilities
          • Hotels
          • Restaurants
          • Retail centers

          • Deadlocking latchbolt by lever either side except when turn button locks outside lever. Pushing turn button locks outside lever, requiring use of key outside to unlock.

          • Turning inside lever unlocks outside lever (when button is pushed in but not turned).

          • Pushing in and turning button locks outside lever, requiring key at all times. Turning inside lever does not unlock outside lever until button is manually turned to unlocked position.

          • Inside lever always free.

          Advantages

          • Non-handed
          • Solid cast levers
          • Independent return springs to prevent lever sag
          • Through-bolted cylindrical chassis prevents rotation and ensures proper alignment
          • ANSI Grade 1 certification
          • Trim and keying compatible with other Corbin Russwin locksets

          A heavy-duty Grade 1 lever lockset, ideal for commercial, institutional and multifamily applications such as:

          • Interior offices
          • Apartment complexes
          • Convalescent and elderly care facilities
          • Hotels
          • Restaurants
          • Retail centers

          • Deadlocking latchbolt by lever either side except when key outside locks outside lever.

          • Outside lever unlocked by key outside.

          • Inside lever always free.

          Advantages

          • Non-handed
          • Solid cast levers
          • Independent return springs to prevent lever sag
          • Through-bolted cylindrical chassis prevents rotation and ensures proper alignment
          • ANSI Grade 1 certification
          • Trim and keying compatible with other Corbin Russwin locksets

          A heavy-duty Grade 1 lever lockset, ideal for commercial, institutional and multifamily applications such as:

          • Interior offices
          • Apartment complexes
          • Convalescent and elderly care facilities
          • Hotels
          • Restaurants
          • Retail centers

           • Deadlocking latchbolt by key in outside lever or by rotating inside lever.

          • Outside lever always rigid.

          • Inside lever always free

          Advantages

          • Non-handed
          • Solid cast levers
          • Independent return springs to prevent lever sag
          • Through-bolted cylindrical chassis prevents rotation and ensures proper alignment
          • ANSI Grade 1 certification
          • Trim and keying compatible with other Corbin Russwin locksets

          CL3800 Series Is an economical, Grade 2 standard-duty lever lockset which provides an outstanding combination of value and performance. It’s the ideal lever lockset for standard commercial applications. When used in conjunction with the CL3300 Series Extra Heavy-Duty Grade 1 and the CL3500 Series Heavy-Duty Grade 1 Cylindrical Lever Locksets, the overall cost of many projects may be reduced without compromising functionality and durability.

          Typical applications

          • Interior offices
          • Closets
          • Multi-family housing
          • Restaurants
          • Retail complexes

           • Latchbolt by lever either side.

          • Both levers always free.

          Advantages

          • Lever Release™ for vandal resistance
          • Solid cast levers
          • ANSI Grade 2 certification
          • UL 3-hour fire rating
          • Independent lever return springs
          • Through-bolts on door for solid attachment
          • Covers ANSI/DHI door prep A115.18 - 1994 “Spider Cut Out”
