Von Duprin 9857EO/9957EO Three-Point Latching Touch Bar Exit Device

by Von Duprin
$ 1,255.00
Qty Price
Buy 1 $ 1,255.00 ea
Buy 2 $ 1,217.35 ea
Buy 4 $ 1,179.70 ea

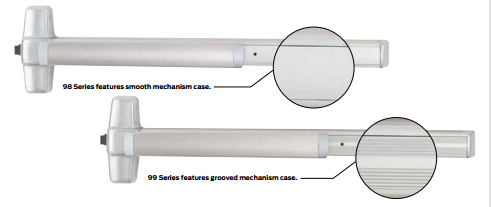

Von Duprin 9857EO/9957EO three-point latching device for all types of single or double doors, UL listed for Panic Exit Hardware. Devices are ANSI A156.3 – 2001 Grade 1. Covers stock hollow metal doors with 86 or 161 cutouts. The 9857 device has a smooth mechanism case and the 9957 device has a grooved case. The three-point latching device is non-handed except when the following device options are used: SD (Special Dogging), or SS (Signal Switch).

Vertical rod and latch guards are available to protect the bottom rod of the exit device from damage by impacts of carts or gurneys passing through doors.

The 9857/9957 devices are available in the following finishes: US3, US4, US10, US26, US26D, US28 and 313AN. US32D available with 98 Series only.

Specifications

  • Device Functions: Device ships EO/DT/NL. Field selectable. For TP,K,or L remove NL drive screw from device
  • Device Lengths: 3’ 2’4" to 3’ (711mm to 914 mm) Door Size; 4’ 2’10" to 4’ (864 mm to 1219 mm) Door Size
  • Strikes: Top & Middle-299–Dull Black, Bottom–248L4 & 304L-Unfinished; Optional Strikes available
  • Dogging Feature: Hex key dogging standard
  • Dogging Options: CD Cylinder Dogging; SD Special Center Case Dogging; LD Less Dogging
  • Electric Options: LX Latchbolt Monitor Switch; RX Pushpad Monitor Switch; RX2 Double Pushpad Monitor Switch; EL Electric Latch Retraction; SS Signal Switch; CX Chexit Delayed Exit; ALK Alarm Exit Kit; E Electric Unlocking and Locking Trim
  • Mechanical Options: PN Pneumatic Latch Retraction; LBR Less Bottom Rod; GBK Glass Bead Kit; PL Pullman Latch
  • Fasteners & Sex Bolts (SNB): Includes screw pack for 1-3/4" (44mm) – 2-1/4" (57mm) Thick Metal and Wood Doors, and 325 SNB for top & bottom latch. Optional 425SNB available
  • Latch Bolt: Deadlocking Anti-friction Top & Bottom Bolt, 5/8" (16mm) throw; Deadlocking Rim Bolt, 3/4" (19mm) throw
  • Device Centerline from Finished Floor: 39-13/16" (1011 mm)
  • Door Undercut: 1/4" (7mm)
  • Center Case Dimensions: 8" x 2-3/4" x 2-3/8" (203mm x 70mm x 60mm)
  • Mechanism Case Dimensions: 2-1/4" x 2-1/4" (57mm x 57mm)
  • Top & Bottom Latch Case: 4-1/2" x 2-1/8" x 1-1/2" (114mm x 54mm x 38mm)
  • Vertical Rods: 1/2" square tubing, standard rods accommodate 7’ (2134mm) door; Top rod length is 34-15/16" (887mm); Bottom rod length is 31-1/2" (794mm); Extension rods available, 1’ (205mm) or 3’ (914mm) for doors over 7’ "F"; One piece top rod available for 8’ (2438mm) and 10’ (3048mm) door
  • Projection: Pushbar Neutral – 3-13/16" (97 mm); Pushbar Depressed – 3-1/16" (78 mm)
