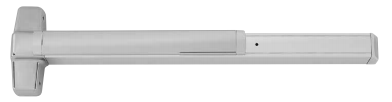

Von Duprin 9848EO/9948EO Concealed Vertical Rod Touch Bar Exit Device

by Von Duprin
$ 1,120.00
Qty Price
Buy 1 $ 1,120.00 ea
Buy 2 $ 1,086.40 ea
Buy 4 $ 1,052.80 ea
Von Duprin 9848EO/9948EO Concealed Vertical Rod Touch Bar Exit Device device for use on single or double metal doors, UL listed for Panic Exit Hardware. Covers stock hollow metal doors with 86 or 161 cutouts. Devices are ANSI A156.3 – 2001 Grade 1. The 9848 device has a smooth mechanism case and the 9948 device has a grooved case. The concealed vertical rod device is non-handed except when the following device options are used: SD (Special Dogging), or SS (Signal Switch).

The 9848/9948 devices are available in the following finishes: US3, US4, US10, US26, US26D, US28 and 313AN. US32D available with 98 Series only.

Specifications
  • Device Functions: Device ships EO/DT/NL. Field selectable. For TP,K,or L remove NL drive screw from device
  • Device Lengths: 3’: 2’4" to 3’ (711mm to 914 mm) Door Size; 4’: 2’10" to 4’ (864 mm to 1219 mm) Door Size
  • Strikes: Top - 338 – Unfinished, Bottom – 385A - Unfinished; Optional Strikes available
  • Dogging Feature: Hex key dogging standard
  • Dogging Options: CD Cylinder Dogging; SD Special Center Case Dogging; LD Less Dogging
  • Electric Options: LX Latchbolt Monitor Switch; RX Pushpad Monitor Switch; RX2 Double Pushpad Monitor Switch; EL Electric Latch Retraction; SS Signal Switch; CX Chexit Delayed Exit; ALK Alarm Exit Kit; EL Electric Latch Retractor
  • Mechanical Options: PN Pneumatic Latch Retraction; GBK Glass Bead Kit
  • Fasteners & Sex Bolts (SNB): Includes screw pack for 1-3/4" (44mm) – 2-1/4" (57mm) Thick Metal Doors. Optional 425 SNB available
  • Latch Bolt: Deadlocking Top Bolt, 3/4" (19mm) throw
    Deadlocking Bottom Bolt, 1-1/2" (38mm) throw
  • Device Centerline from Finished Floor: 39 5/8" (1006 mm) Standard, Adjustable from 35 5/8" (905mm) to 49 5/8" (1260mm)
  • Door Undercut: 1/4" (7mm) maximum up to 3/4" (19mm)
  • Center Case Dimensions: 8" x 2-3/4" x 2-3/8" (203mm x 70mm x 60mm)
  • Mechanism Case Dimensions: 2-1/4" x 2-1/4" (57mm x 57mm)
  • Top & Bottom Latch Case: 4-1/2" x 2 1/8" x 1-1/2" (114mm x 54mm x 38mm);
  • Vertical Rods: Round 2-piece adjustable rods; Top rod adjustable from 6’8" (2027mm) to 8’4"(2533mm); Bottom rod adjustable 35-5/8" (905 mm) to 49-5/8" (1260 mm); Extension rod kits available for doors over 8’4" (2533mm)
  • Projection: Pushbar Neutral – 3-13/16" (97 mm); Pushbar Depressed – 3-1/16" (78 mm)
