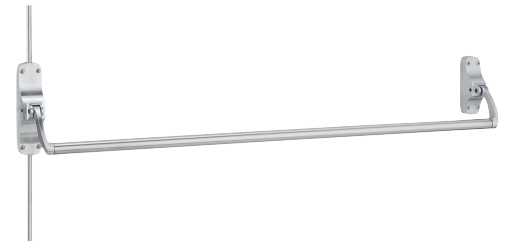

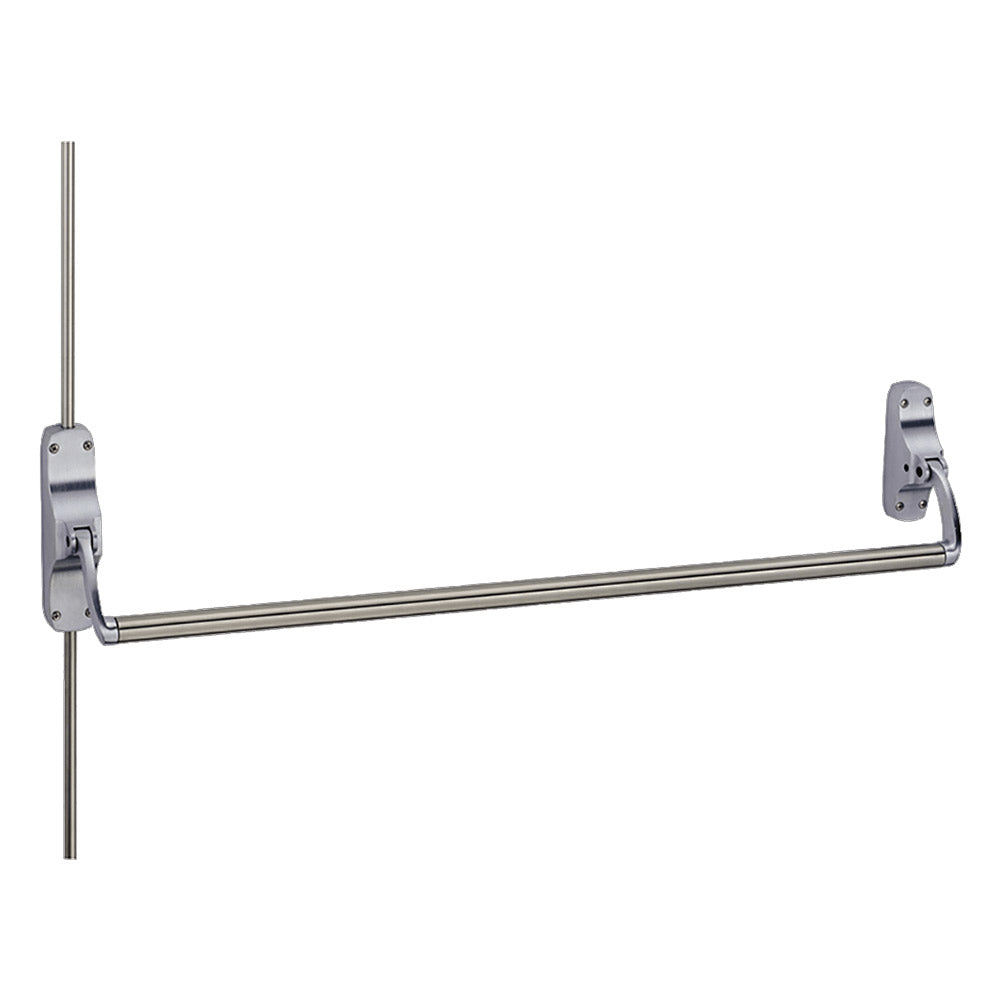

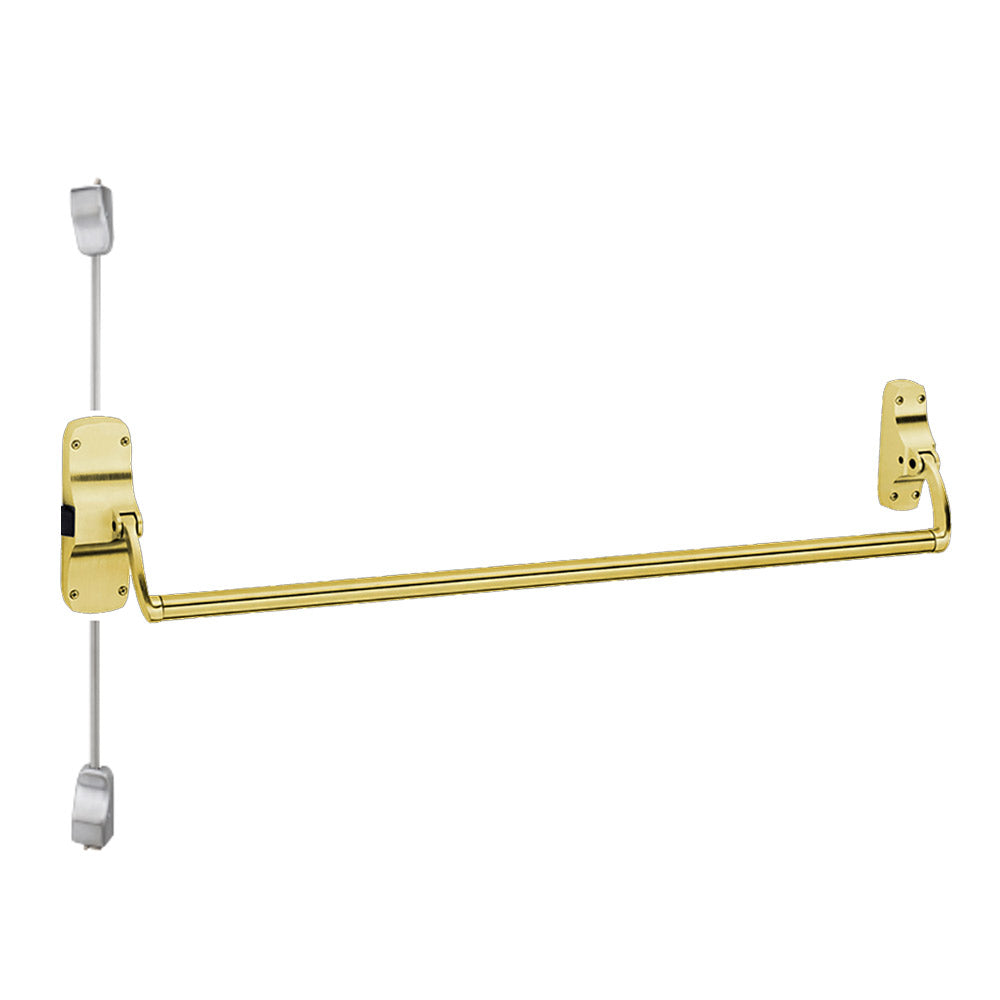

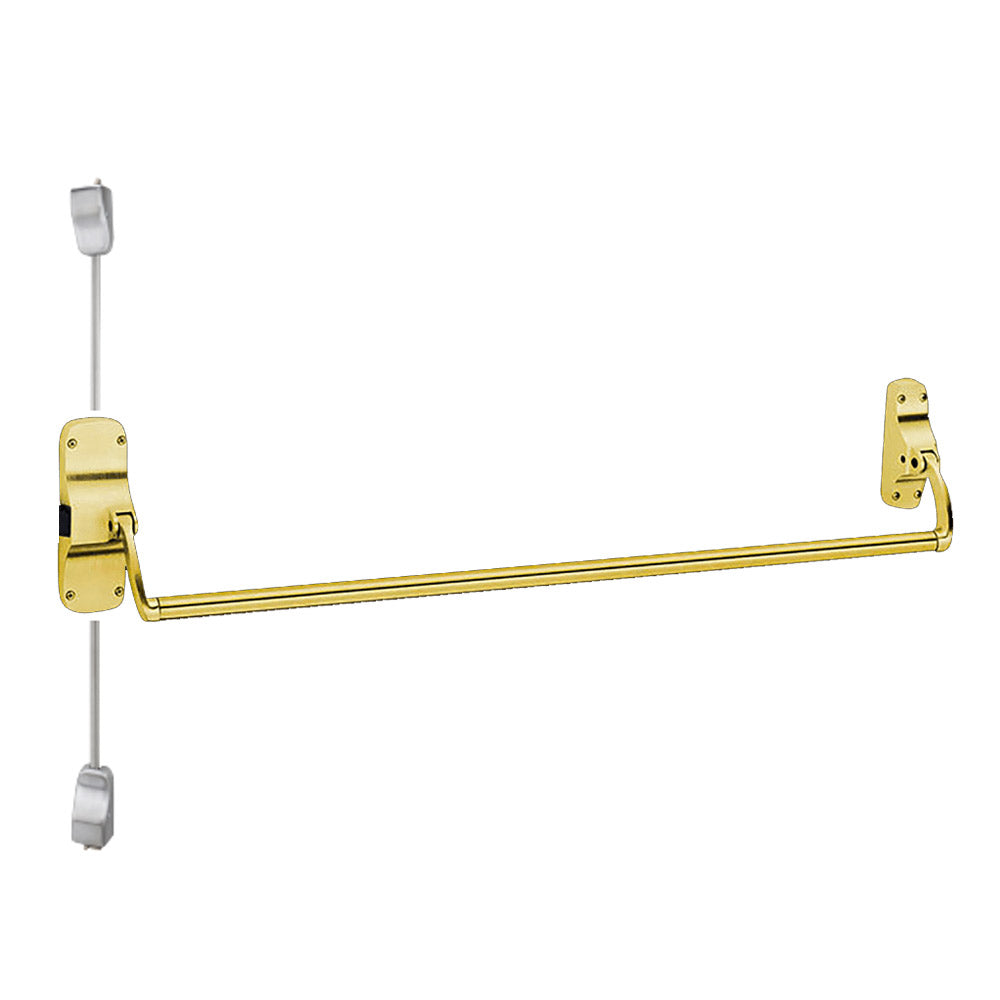

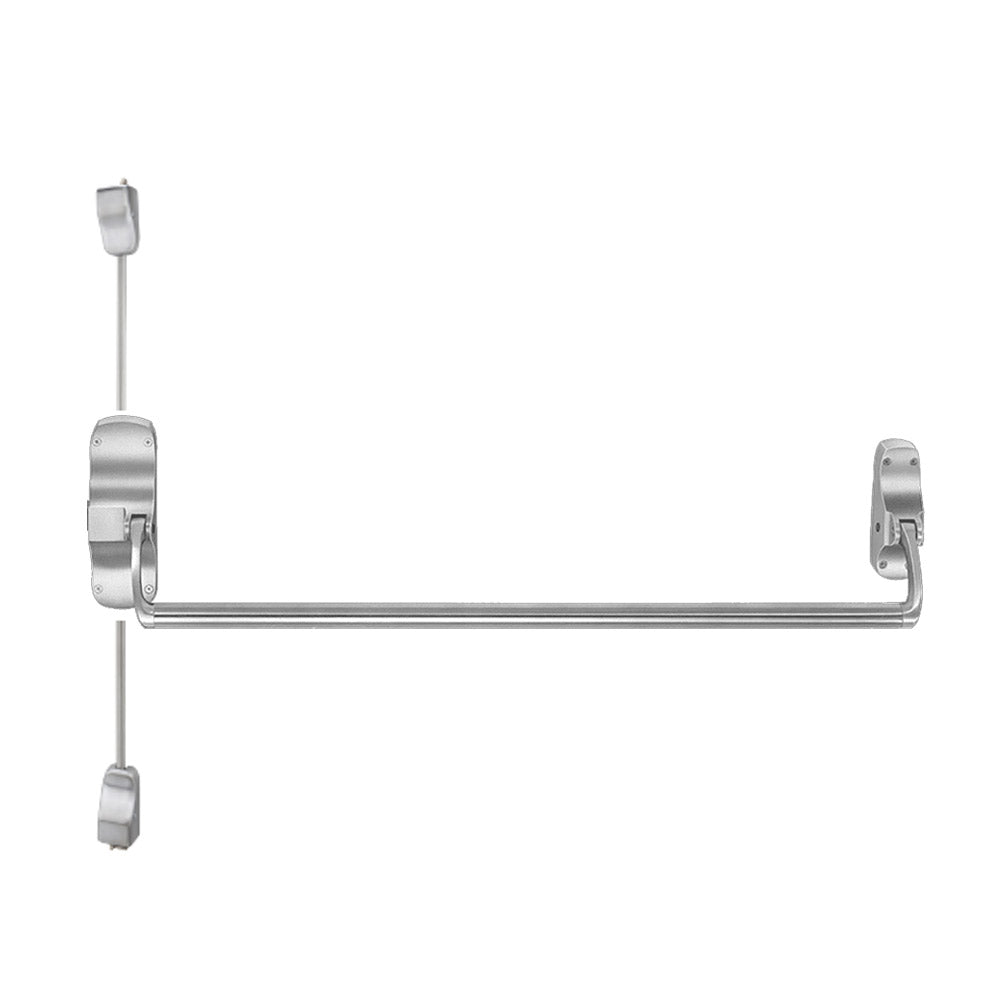

Von Duprin 8827EO Surface Vertical Rod Exit device 88 Series

by Von Duprin
$ 980.00

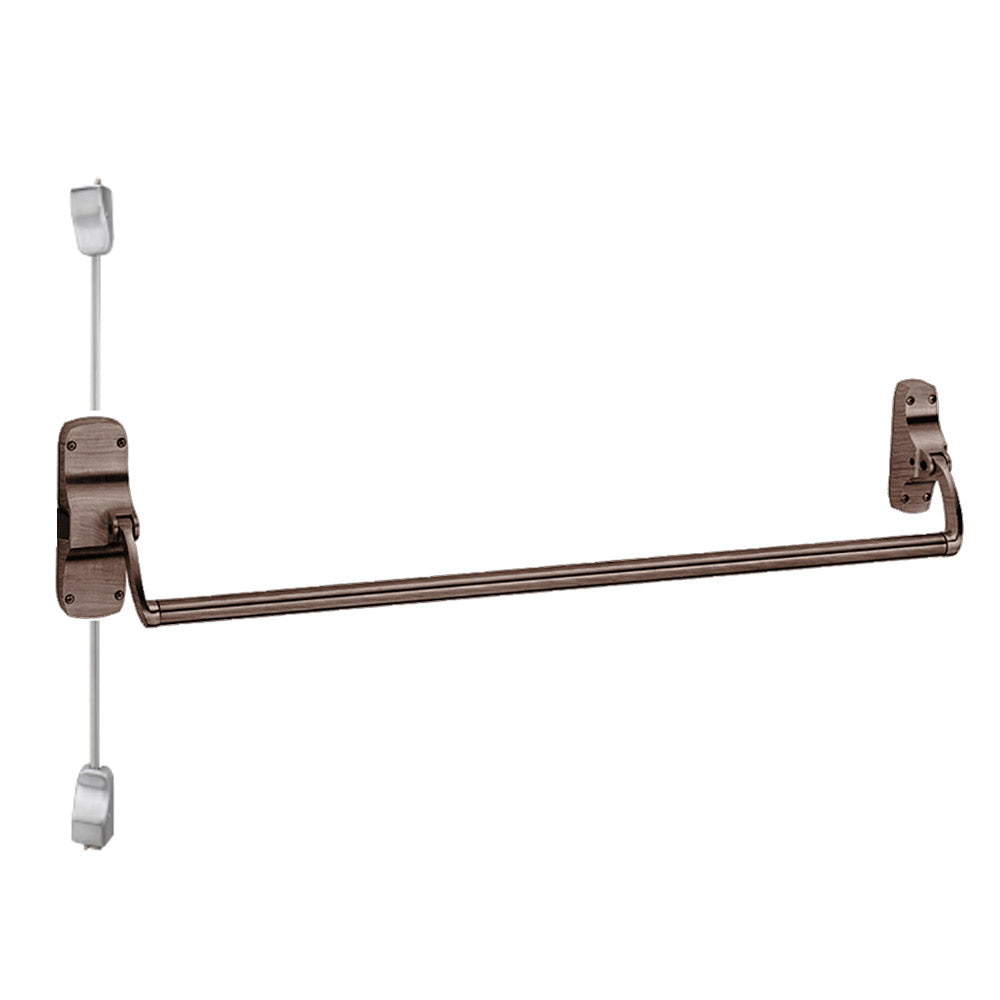

Von Duprin 8827EO Surface Vertical Rod Exit device 88 Series
The 88-Series is a traditional crossbar design with proven service on rugged applications. All Von Duprin 88 Series exit devices are UL listed for Accident Hazard and Fire Exit Hardware, and are tested in accordance to ANSI Grade 1 requirements.

88-Series Surface Mounted Vertical Rod Device (8827) - for all types of single or double doors, UL listed for accident hazard installations. Covers stock hollow metal doors with 86 or 161 cutouts and fits door stiles as narrow as 3-1/2".

Features: Fully Reversible (Nonhanded), Field Sizeable, Hex key dogging, 5/8” throw latch bolt.
Features: Fully Reversible(Nonhanded), Field Sizeable, Hex key dogging, 5/8" throw latch bolt.

Dimensions

     -     Crossbar height to finished floor: 36-13/16" at center
     -     Crossbar Projection: Neutral = 4-7/8"; Depressed = 4"
     -     Crossbar Width: 42" field sizeable
     -     Lock Stile Case: 8-1/4" x 2" x 15/16"
     -     Hinge Stile Case: 6" x 1-3/4" x 15/16"
     -     Crossbar tubing: 1"
     -     Top and Bottom Latch Case: 4" x 2" x 1-7/8"
     -     Vertical Rod: 1/2"

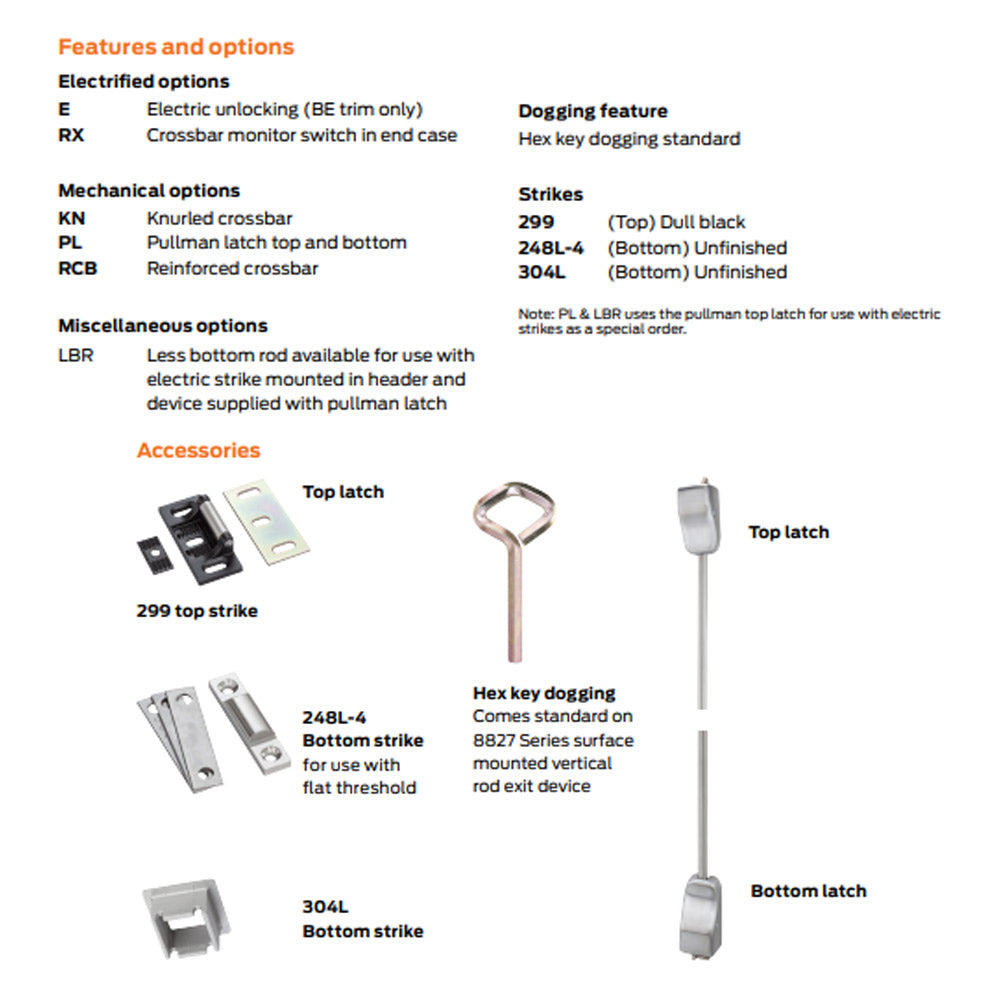

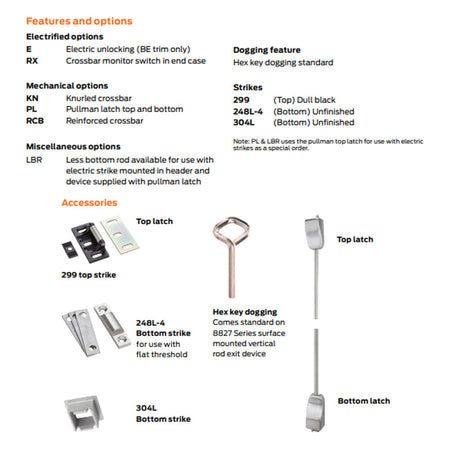

Strike and Fasteners – Device is furnished with standard 299 strike in dull black finish, 248L-4 and 304L strikes. All necessary mounting fasteners are included.
