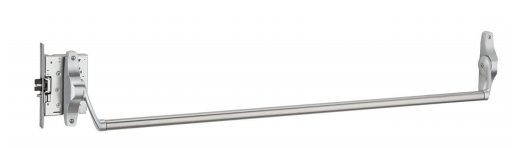

Von Duprin 5575EO-F Fire Rated Mortise lock exit device 55 Series

by Von Duprin
$ 1,370.00

5575EO FIRE RATED Mortise lock devices for all types of single and double doors. UL listed for accident hazard installations. The 7500 Mortise lock is field reversible without removing the lock from the door. It has a non-handed auxiliary bolt for deadlocking and a faceplate with an adjustable bevel. Wood doors required 589 cover plate. Specify for 2 1/4" door. Finishes – US3, US4, US10B, US10, US26, US26D.

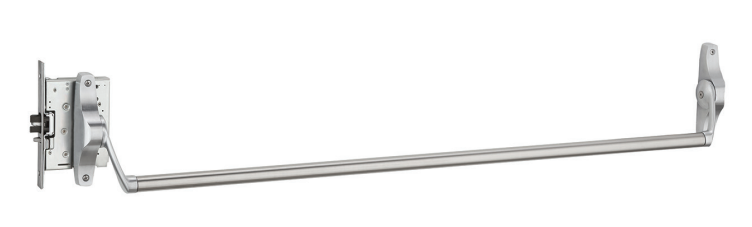

5575 mortise lock devices for all types of single and double doors. UL listed for accident hazard installations.

The 5575 mortise lock is equipped with a 3/4" (19mm) anti-friction latch bolt which is field reversible without removing the lock from the door. It has a non-handed auxiliary bolt for deadlocking and a faceplate with an adjustable bevel. Wood doors required 589 cover plate.

Features and Benefits
     FIRE RATED
  • Field sizeable
  • Latch bolt deadlocking
  • 3/4" (19mm) throw latch bolt
  • Five popular finishes

Dimensions

  • Crossbar height to finished floor 36 13/16" (935mm) at center
  • Latch bolt height to finished floor 40 3/32" (1018mm) at center
  • Crossbar projection — neutral 3 3/4" (95mm)
    depressed 2 3/8" (60mm)
  • Crossbar length 42" (1067mm)
  • Lock stile case 7 1/4" x 1 3/16" x 2 1/4" (184mm x 30mm x 57mm)
  • Hinge stile case 7 1/4" x 1 3/16" x 2 1/4" (184mm x 30mm x 57mm)
  • Lock case 4 5/8" x 5 3/4" x 1 1/16" (117mm x 146mm x 27mm)
  • Faceplate 1 1/4" x 8" x 7/32" (32mm x 203mm x 6mm)
  • Cylinder backset 2 3/4" (70mm)
  • Crossbar tubing 1" (25mm)
