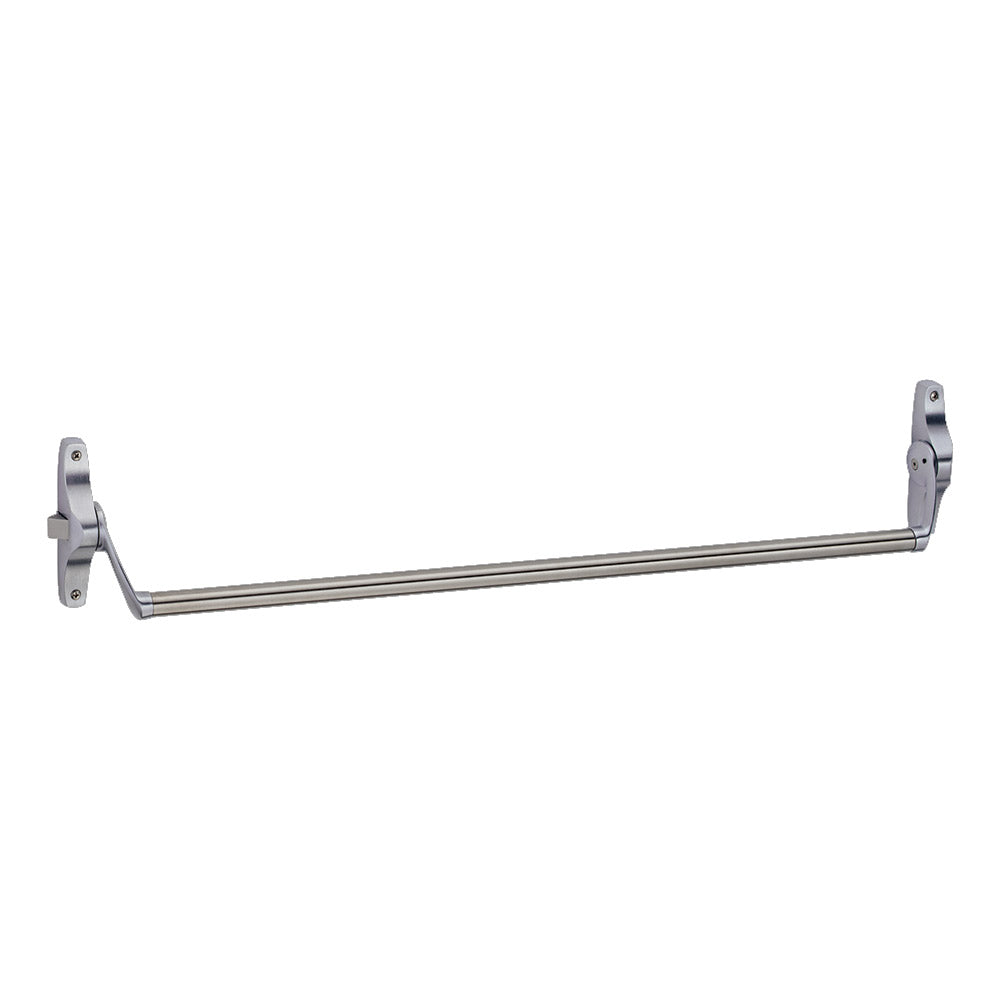

Von Duprin 55EO Rim Crossbar Exit Device

by Von Duprin
$ 1,310.00

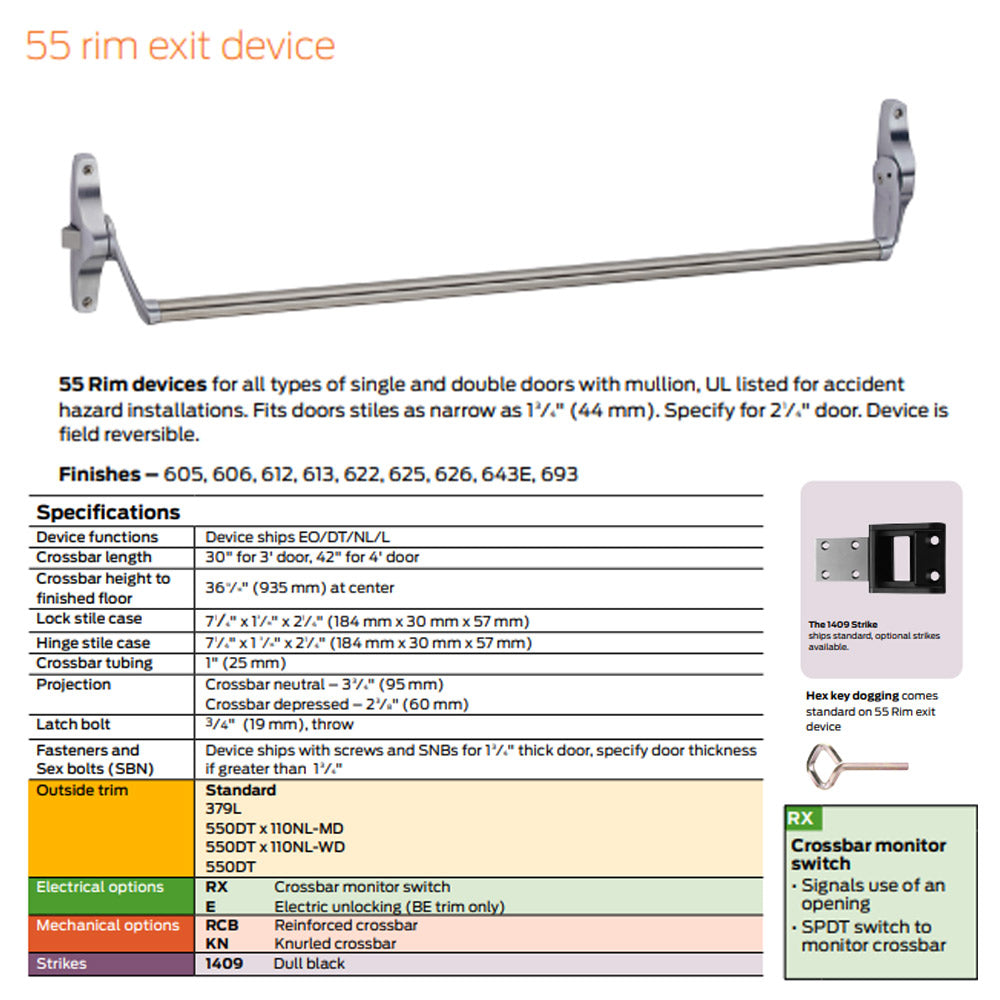

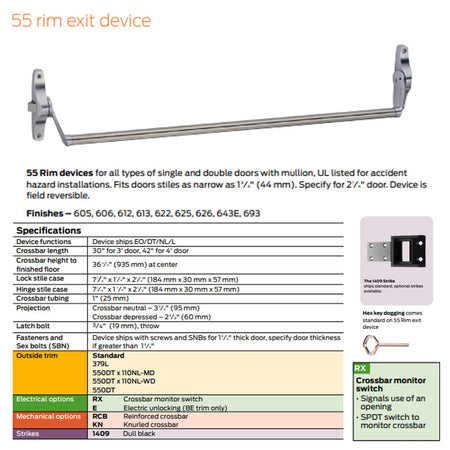

Von Duprin 55EO Rim Crossbar Exit Device. 55 rim devices for all types of single and double doors with mullion, UL listed for accident hazard installations. Fits doors stiles as narrow as 1-3/4" (44mm). Specify if 2-1/4 " door.

Features and Benefits
  • Field sizeable

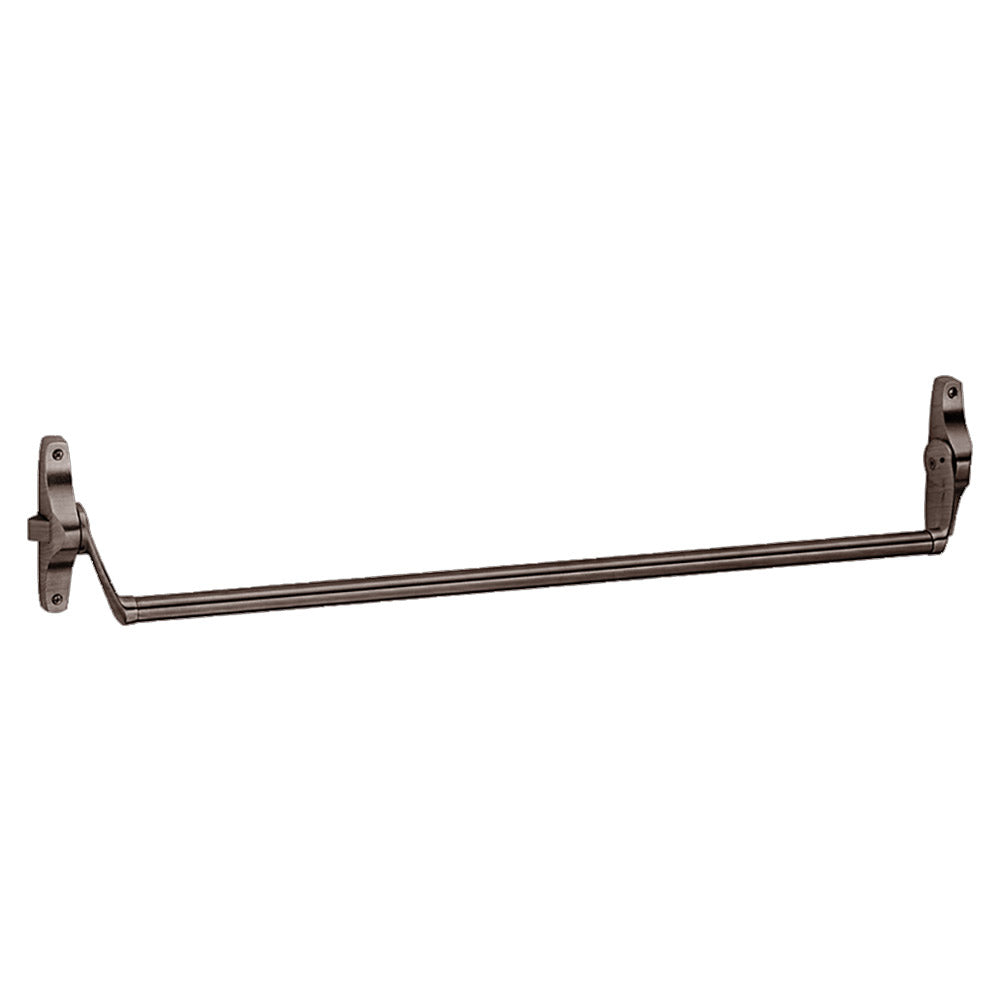

  • Five popular finishes
  • 3/4" (19mm) throw latch bolt
  • Hex key dogging
Dimensions
  • Crossbar height to finished floor 36 13/16" (1011mm) at center
  • Crossbar projection — neutral 3 3/4" (95mm) depressed 2 3/8" (60mm)
  • Crossbar length 42" (1067mm)
  • Lock stile case 7 1/4" x 1 3/16" x 2 1/4" (184mm x 30mm x 57mm)
  • Hinge stile case 7 1/4" x 1 3/16" x 2 1/4" (184mm x 30mm x 57mm)
  • Crossbar tubing 1" (25mm)
