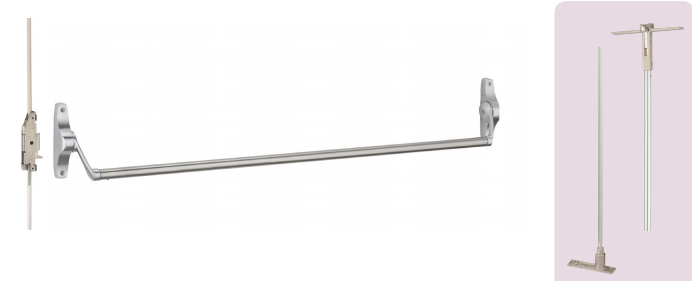

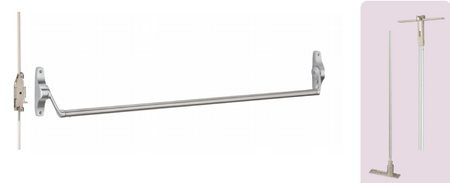

Von Duprin 5547WDCEO Concealed Vertical Rod Cross Bar Exit Device 55 Series

by Von Duprin
$ 2,060.00
Von Duprin 5547WDCEO Concealed Vertical Rod Cross Bar Exit Device 55 Series. 5547WDC-F fire exit concealed vertical rod devices for use on 8' x 9'3" (2438mm x 2819mm) double wooddoors swinging same direction or double egress. UL listed for up to 90 minute doors and fits stiles as narrowas 4-3/4" (121mm).
Double doors swinging same direction using a pair of 5547WDC-F devices must not have an overlapping astragal.

Features and Benefits
  • Field sizeable
  • Five popular finishes
  • 5/8" (13mm) throw latch bolt

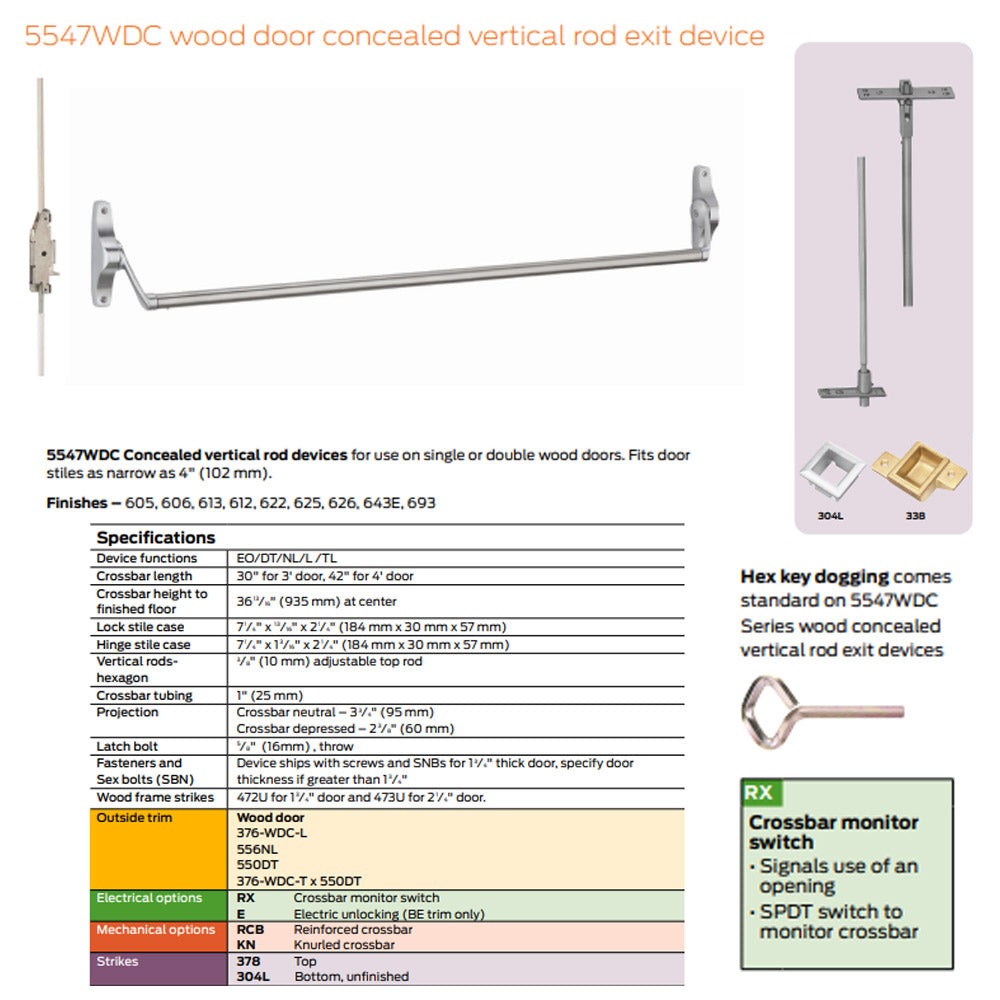

Dimensions

  • Crossbar height to finished floor 36 13/16" (935mm) at center
  • Crossbar projection — neutral 3 3/4" (95mm)
    depressed 2 3/8" (60mm)
  • Crossbar length 42" (1067mm)
  • Lock stile case 7 1/4" x 1 3/16" x 2 1/4" (184mm x 30mm x 57mm)
  • Hinge stile case 7 1/4" x 1 3/16" x 2 1/4" (184mm x 30mm x 57mm)
  • Vertical rods 3/8" (10mm) hexagon
  • Crossbar tubing 1" (25mm)
    Note: Maximum door undercut, 1/4" (6mm).
