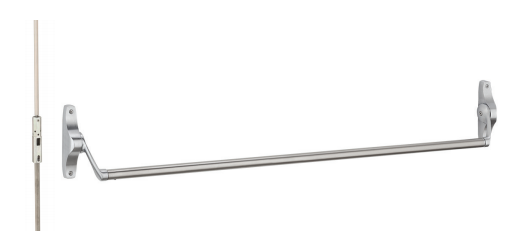

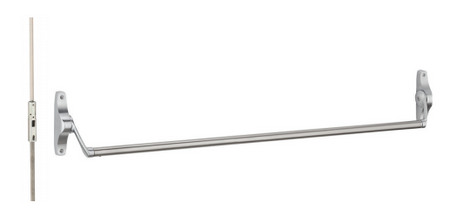

Von Duprin 5547EO Concealed Vertical Rod Cross Bar Exit Device 55 Series

Von Duprin 5547EO Concealed Vertical Rod Cross Bar Exit Device 55 Series

Von Duprin

  • 1,66500

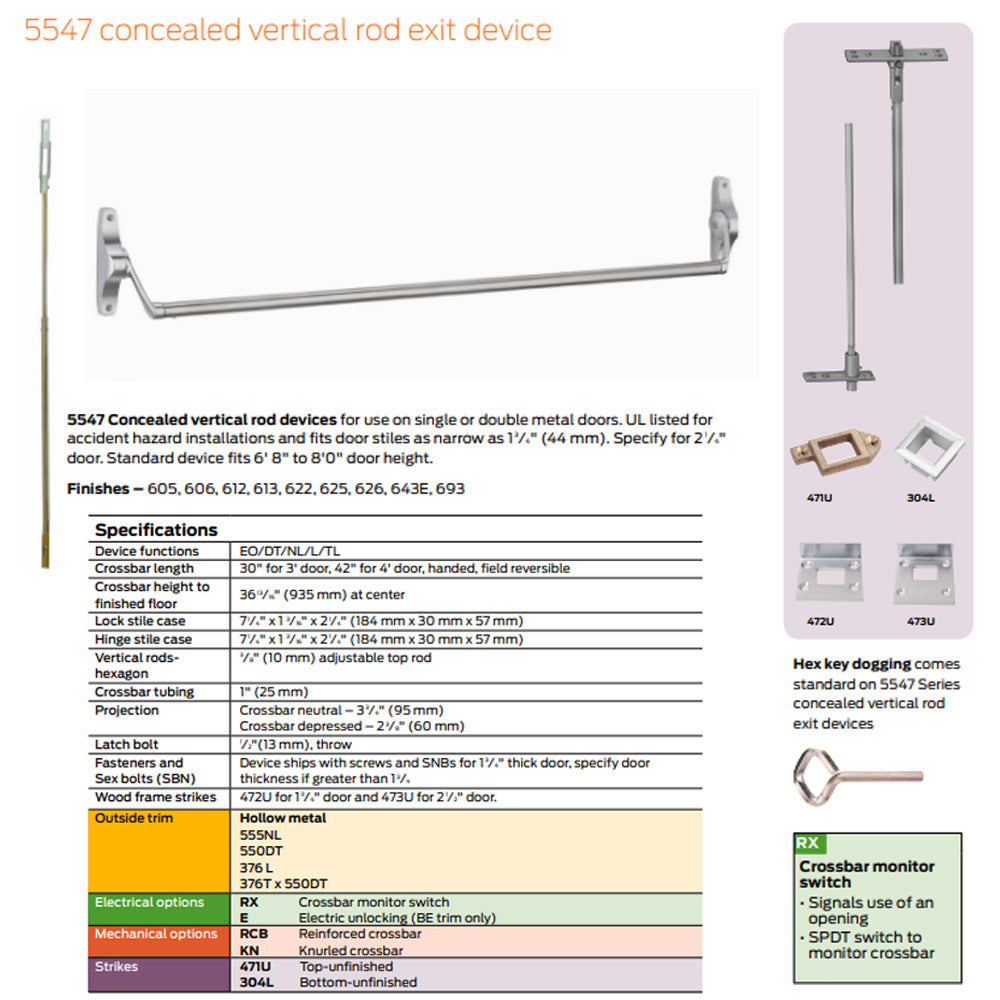

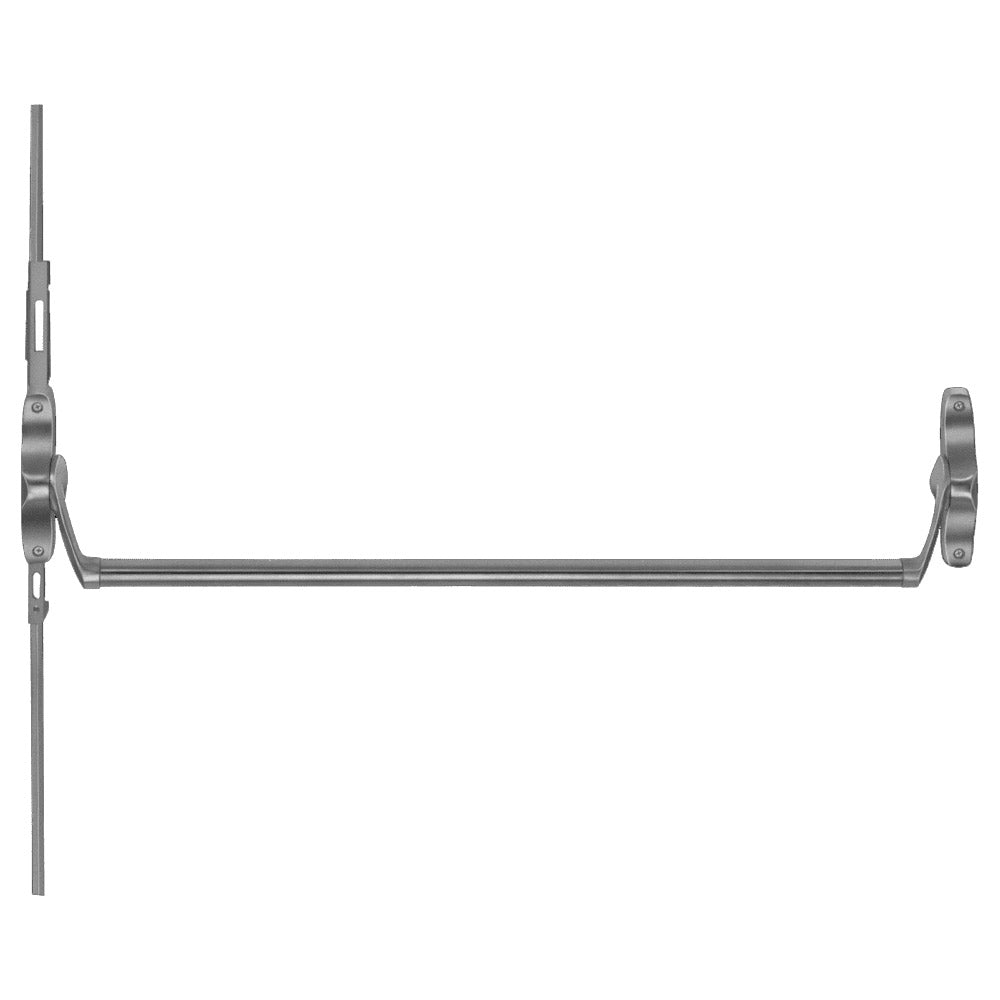

Von Duprin 5547EO Concealed Vertical Rod Cross Bar Exit Device 55 Series. 5547 concealed vertical rod devices for use on single or double metal doors. UL listed for accident hazard installations and fits door stiles as narrow as 1-3/4" (44mm). Specify if 2-1/4 " door.

5547WDC concealed vertical rod devices for use on single or double wood doors.Fits door stiles as narrow as 4" (102mm).

Features and Benefits
  • Field sizeable
  • Five popular finishes
  • 1/2" (13mm) (MD) or 5/8" (16mm) WD throw latch bolt
  • Hex key dogging

Dimensions

  • Crossbar height to finished floor 36 13/16" (935mm) at center
  • Crossbar projection — neutral 3 3/4" (95mm)
    depressed 2 3/8" (60mm)
  • Crossbar length 42" (1067mm)
  • Lock stile case 7 1/4" x 1 3/16" x 2 1/4" (184mm x 30mm x 57mm)
  • Hinge stile case 7 1/4" x 1 3/16" x 2 1/4" (184mm x 30mm x 57mm)
  • Vertical rods-hexagon 3/8" (10mm) adjustable top rod
  • Crossbar tubing 1" (25mm)
    Note: Maximum door undercut, 1/4" (6mm).
