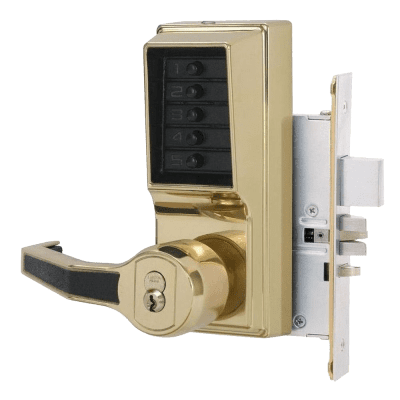

Simplex 8148 Combination Entry, Key Override, Passage, Lockout, Deadbolt .8000 Series

by Kaba
$ 450.00
Access Control: Mechanical pushbutton lock eliminates problems and costs associated with issuing, controlling, and collecting keys and cards. Provides exterior access by combination, while allowing free egress.

No Battery: Fully mechanical lock eliminates the material and labor expense of battery replacements Locking Device Options: Mortise with 1" (25 mm) deadbolt, ¾" (19 mm) two-piece anti-friction latch Mortise with ¾" (19 mm) two-piece anti-friction latch
Number of Codes: Single access code—one easy-to-manage code for all users
Programming: Lock is easily programmed via keypad without removing lock from the door

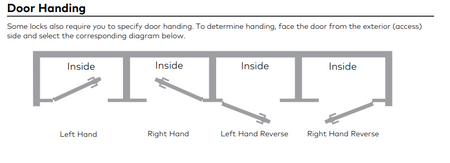

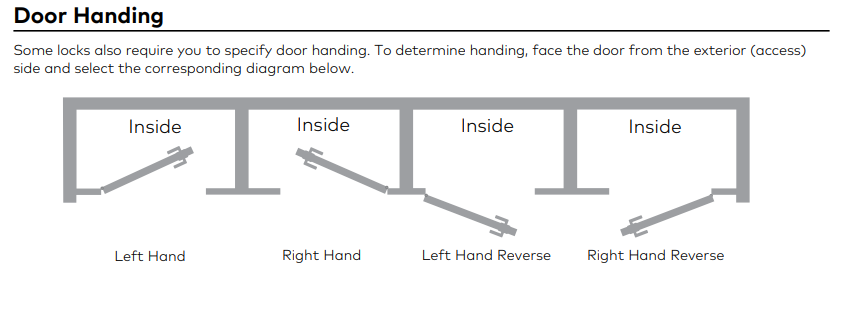

Handing: Factory-handed; not field reversible
Key Override (Optional): Small format interchangeable cores, large format removable cores
Operation Modes: Pushbutton Access
Passage (select models)—allows access without using the lock entry code. Feature activated from the inside with a thumbturn or key (included with all passage feature models).
Deadbolt (select models)—added security of 1" deadbolt. Access permitted by combination or key override.
Lockout (all models)—disables the lock from the inside so that the entry codes cannot be used to gain access. Access is permitted using key override.
Economical: A cost effective access control solution

Mechanical Features
Construction: Cast front housing; unified trim plate; fixed ADA—compliant levers
Numeric Keypad: Vandal resistant, solid metal pushbuttons
Handing: Factory-handed; not field reversible

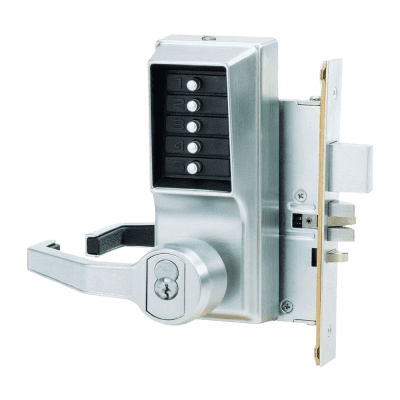

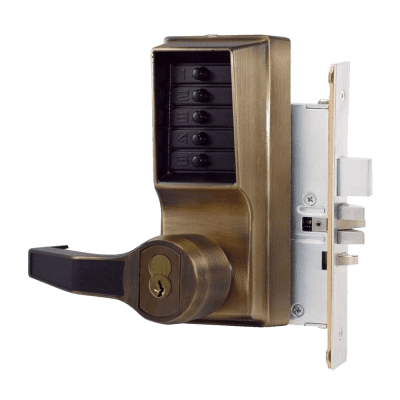

Standard Finishes: Antique Brass 05 (609), Satin Chrome 26D (626)

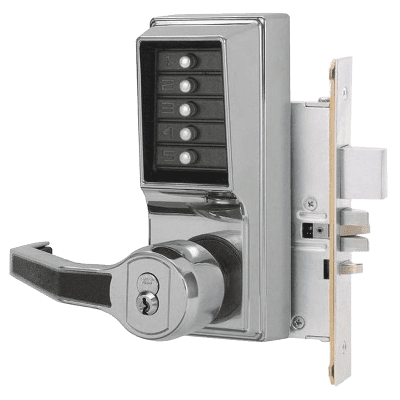

Optional Finishes: Bright Chrome 026 (625), Bright Brass 03 (605)
Backset: 2¾" (70 mm)
Latch: ¾" (19 mm) two-piece anti-friction latch;
1" (25 mm) optional deadbolt
Minimum Stile Recommended: 5" (127 mm)
Weight: 9.8 lbs. (3.7 kg)
Strike: 4?" (124 mm) L x 1¼" (32 mm) W x ¼" (6 mm) D Deadbolt/Latch mortise strike plate
