UNL-12-10B Securitron Electric Strikes, Bolts, Magnet

SKU: UNL-12-10B
$391.77
Sale $669.00 $391.77

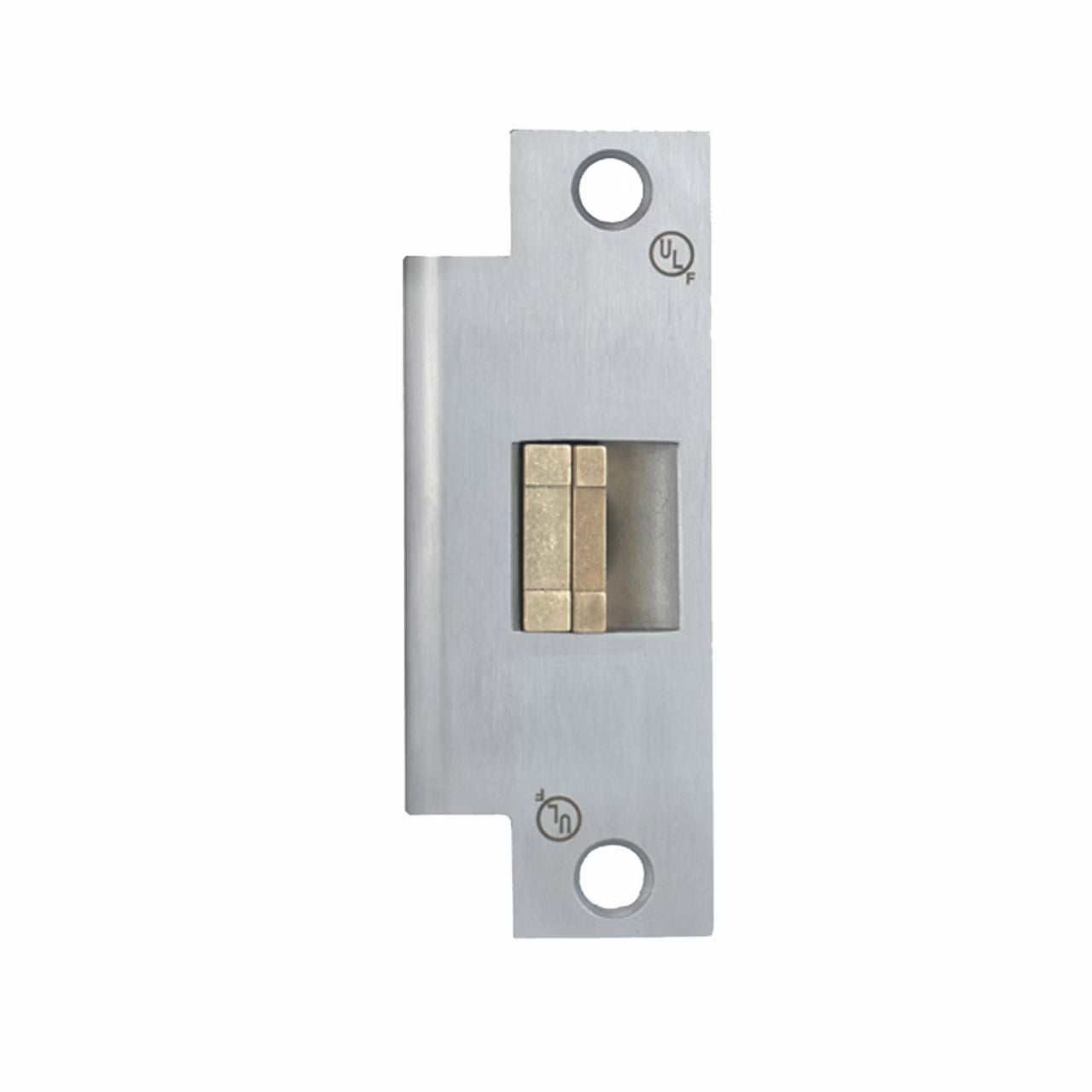

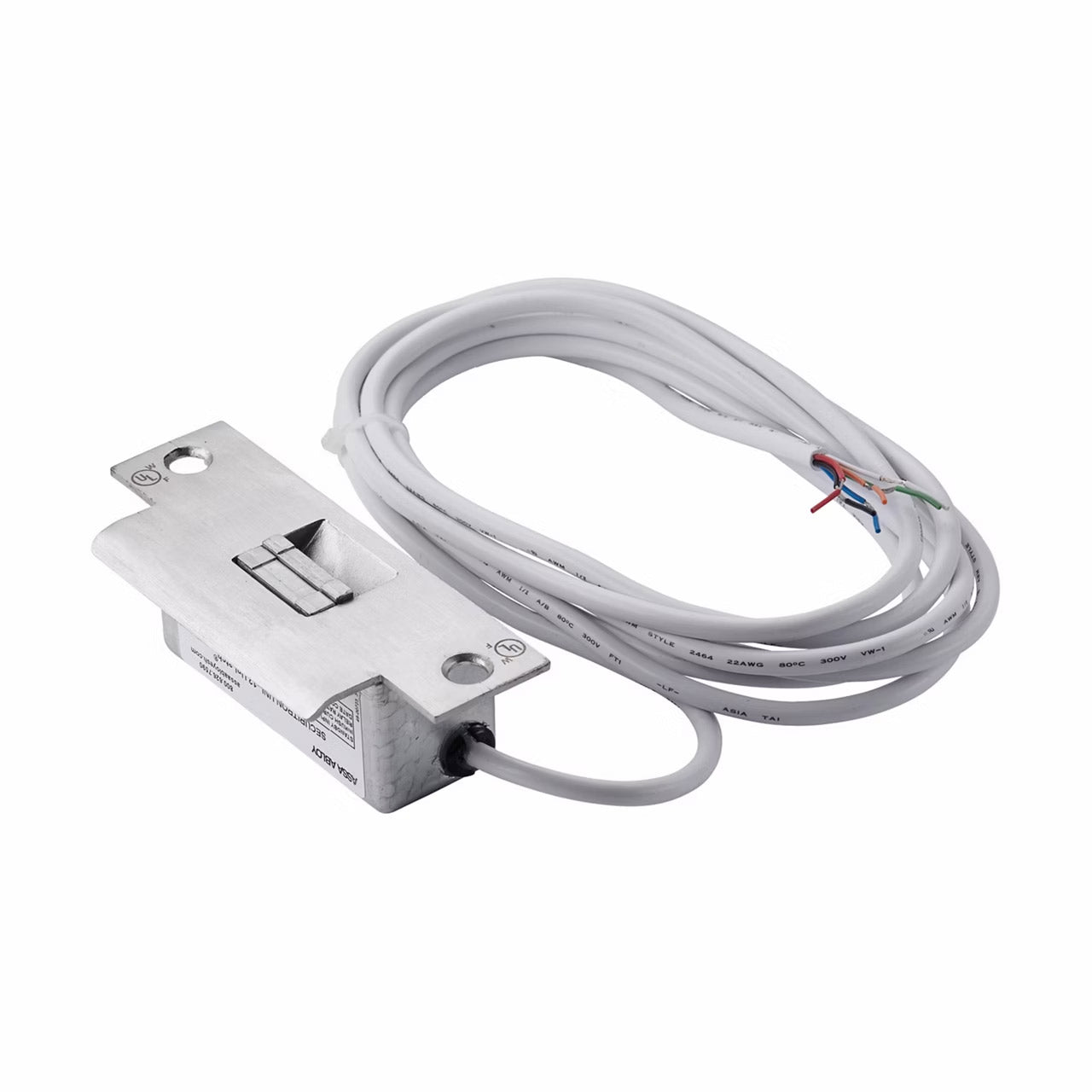

Unlatch Motorized Electric Strike, 12VDC, Satin Stainless Steel

Inventory loading
The universal electromechanical UNL strike works with most North American cylindrical locksets, with or without deadlatches. The UNL supports full deadlatch function, releases under pressure and includes latch status monitoring. Strong enough to withstand windstorm conditions, the UNL provides Grade 1 holding power and is UL listed and fire-rated. No cutting or altering of the jamb required. Fits standard ANSI 4-7/8" strike cutout. Motor driven action. Higher capacity supply (1-3As) is recommended for startup inrush to achieve best operation under pre-load. Operating Temperature -20 to +125F [-29 to +52C].
BAA QUALIFIED: Yes
BASE MATERIAL: Stainless Steel
BURGLAR RATED: No
COUNTRY OF ORIGIN: USA
FINISH: 613/US10B Oil Rubbed Bronze
FINISH DESCRIPTION: Satin Stainless Steel
FINISH TITLE: 630/US32D
FIRE RATED: 3 Hours {A}
GRADE: Grade 1
HEIGHT: 1.5
LENGTH: 4.875
LIMITED WARRANTY: Lifetime
MANUFACTURER: Securitron
OPERATING VOLTAGE: 12VDC
SERIES: Securitron Specialty Magnalocks
WEIGHT: 1.6 lbs.
WIDTH: 1.9375
