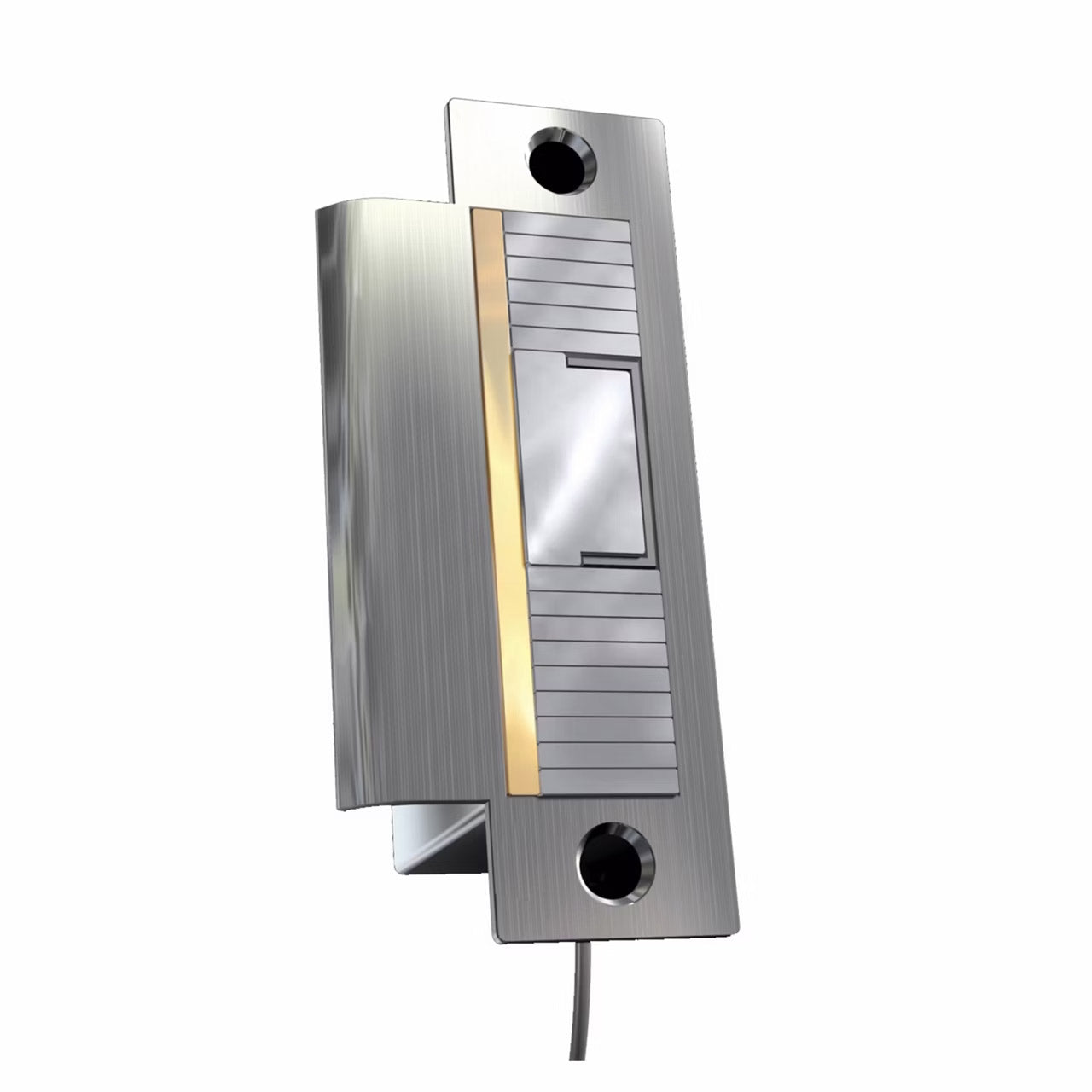

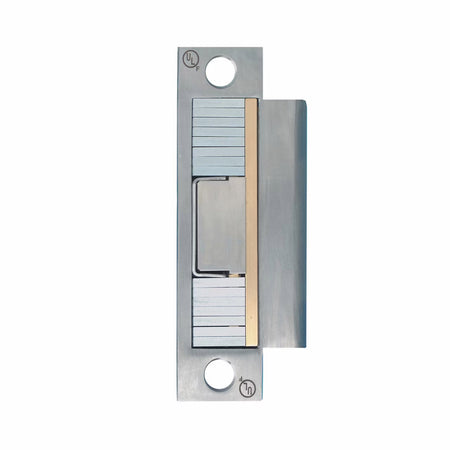

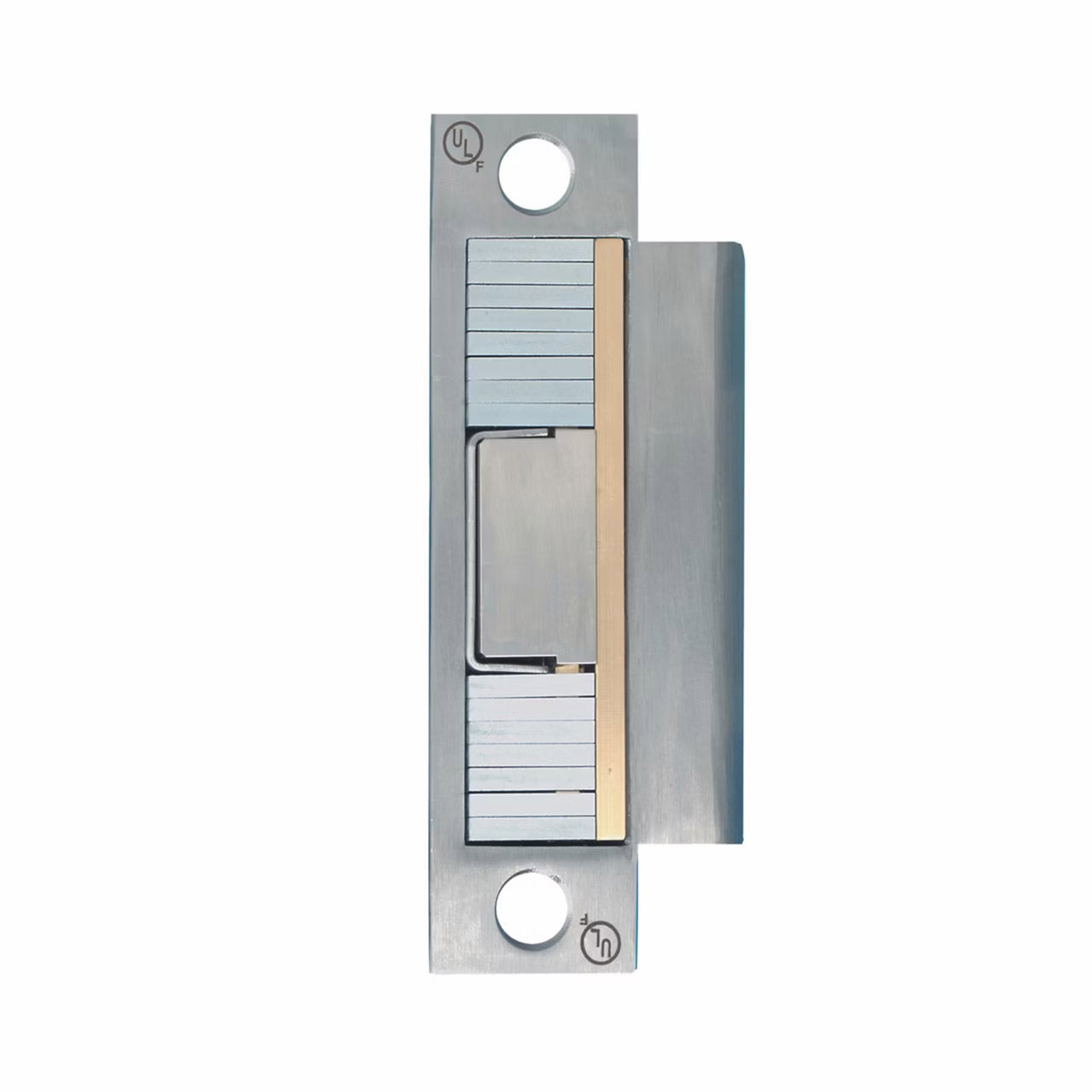

MUNL-24 Securitron Electric Strikes, Bolts, Magnet

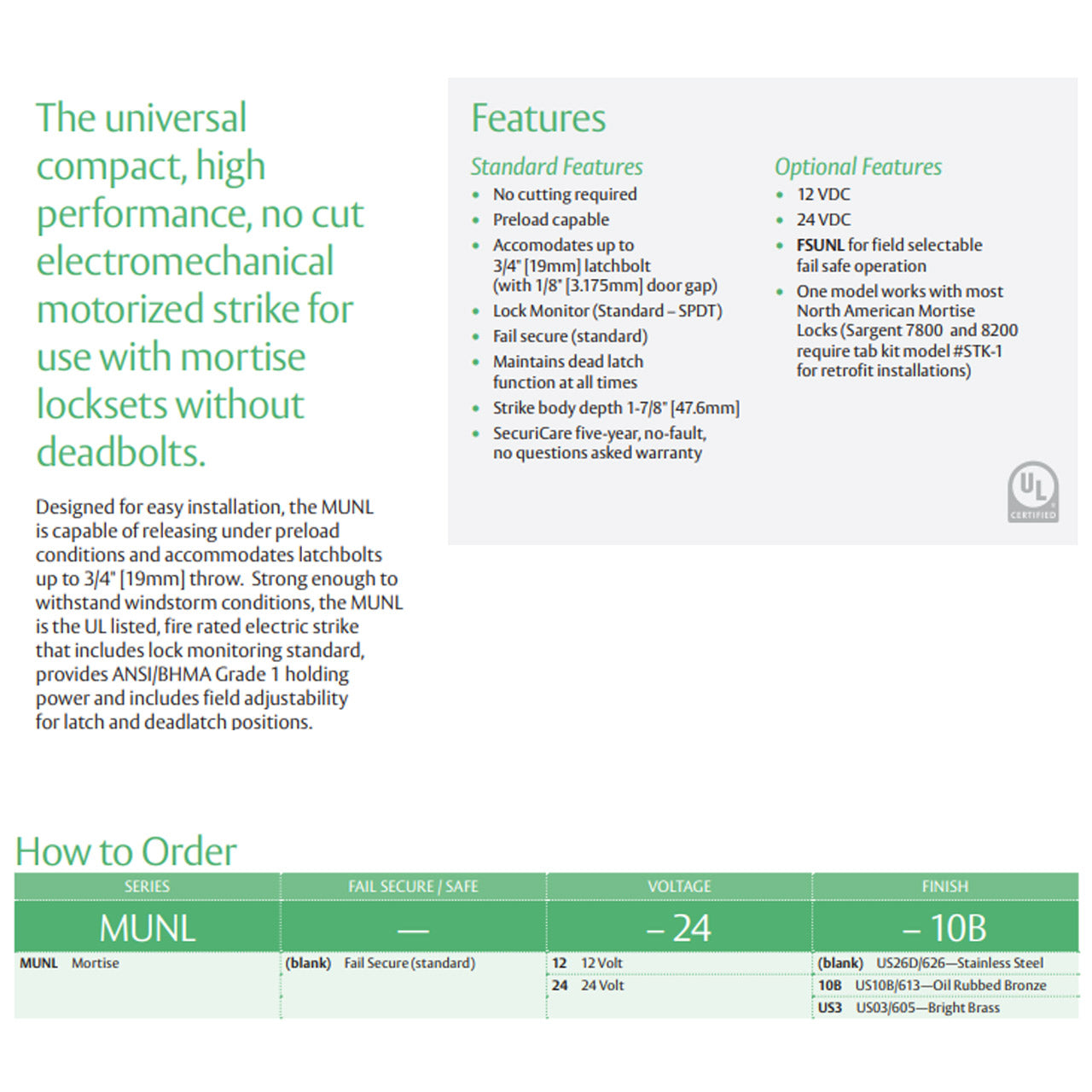

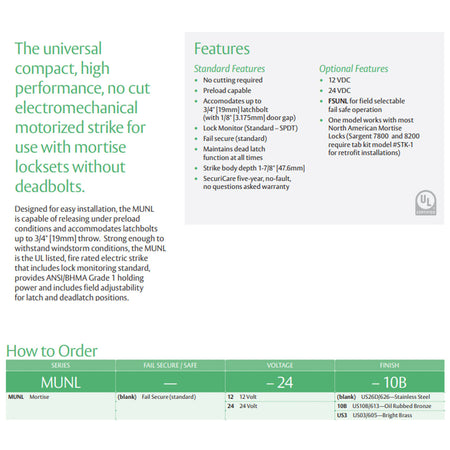

Mortise UnLatch is for any application where an electric strike would be used for a mortise type lock. The Mortise UnLatch includes field adjustability for latch and deadlatch positions, releases under pressure and includes a latch status monitoring output. No cutting or altering of the jamb required. Fail secure. Releases under preload. Fits standard ANSI 4-7/8" strike cutout. Motorized, no solenoids. Fully concealed installation. Maintains dead latch function at all times. Continuous duty. Latch status sensor is standard. Holding Force: 1500 lbs [680kg] static. Current Draw: 12 VDC-40 mA continuous, minimum 700 mA when operating. 24 VDC-40 mA continuous, minimum 500 mA when operating. Higher capacity supply (1-4As) is recommended for startup inrush to achieve best operation under pre-load. One model works with most North American Mortise Locks (Sargent 7800 and 8200 require tab kit model #STK-1 for retrofit installations).

BAA QUALIFIED: Yes
BASE MATERIAL: Stainless Steel
BURGLAR RATED: No
COUNTRY OF ORIGIN: USA

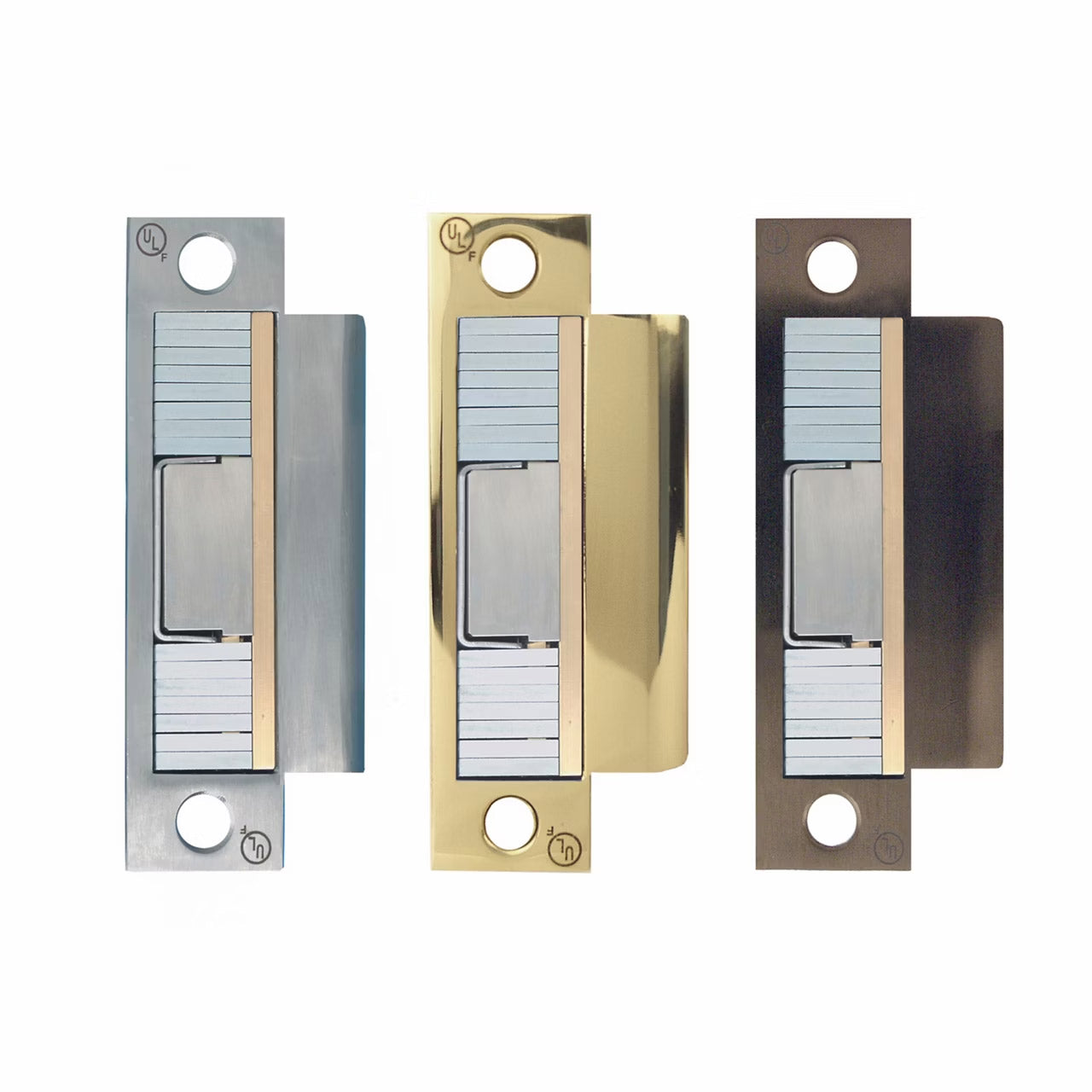

FINISH: 630/US32D Satin Stainless Steel
FINISH DESCRIPTION: Satin Stainless Steel
FINISH TITLE: 630/US32D
FIRE RATED: 3 Hours {A}
GRADE: Grade 1

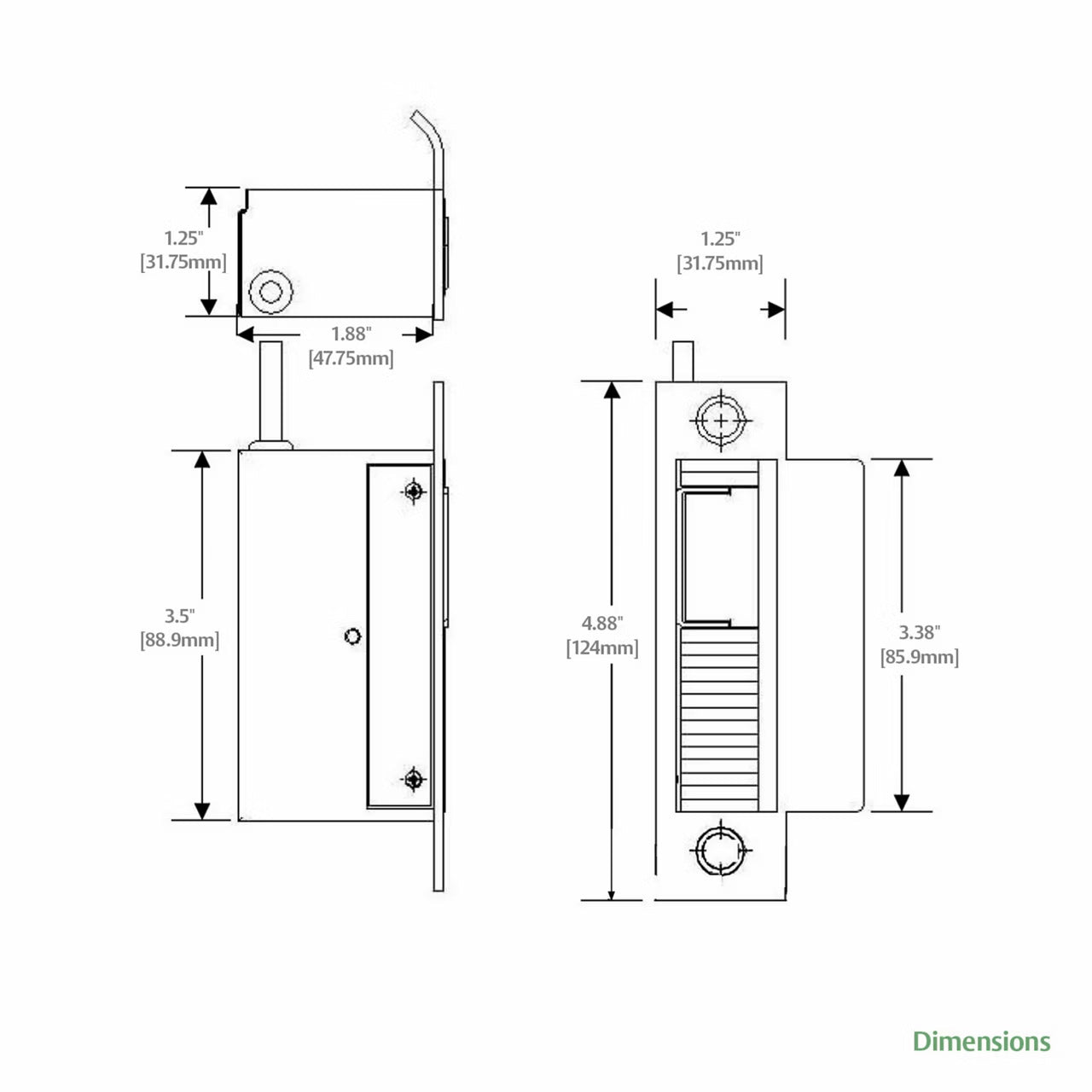

HEIGHT: 1.75
LENGTH: 4.75
LIMITED WARRANTY: Lifetime
MANUFACTURER: Securitron
OPERATING VOLTAGE: 24VDC
SERIES: Securitron Specialty Magnalocks
WEIGHT: 2 lbs.
WIDTH: 1.875
