DK-26BK Securitron Readers, Keypads, Credential

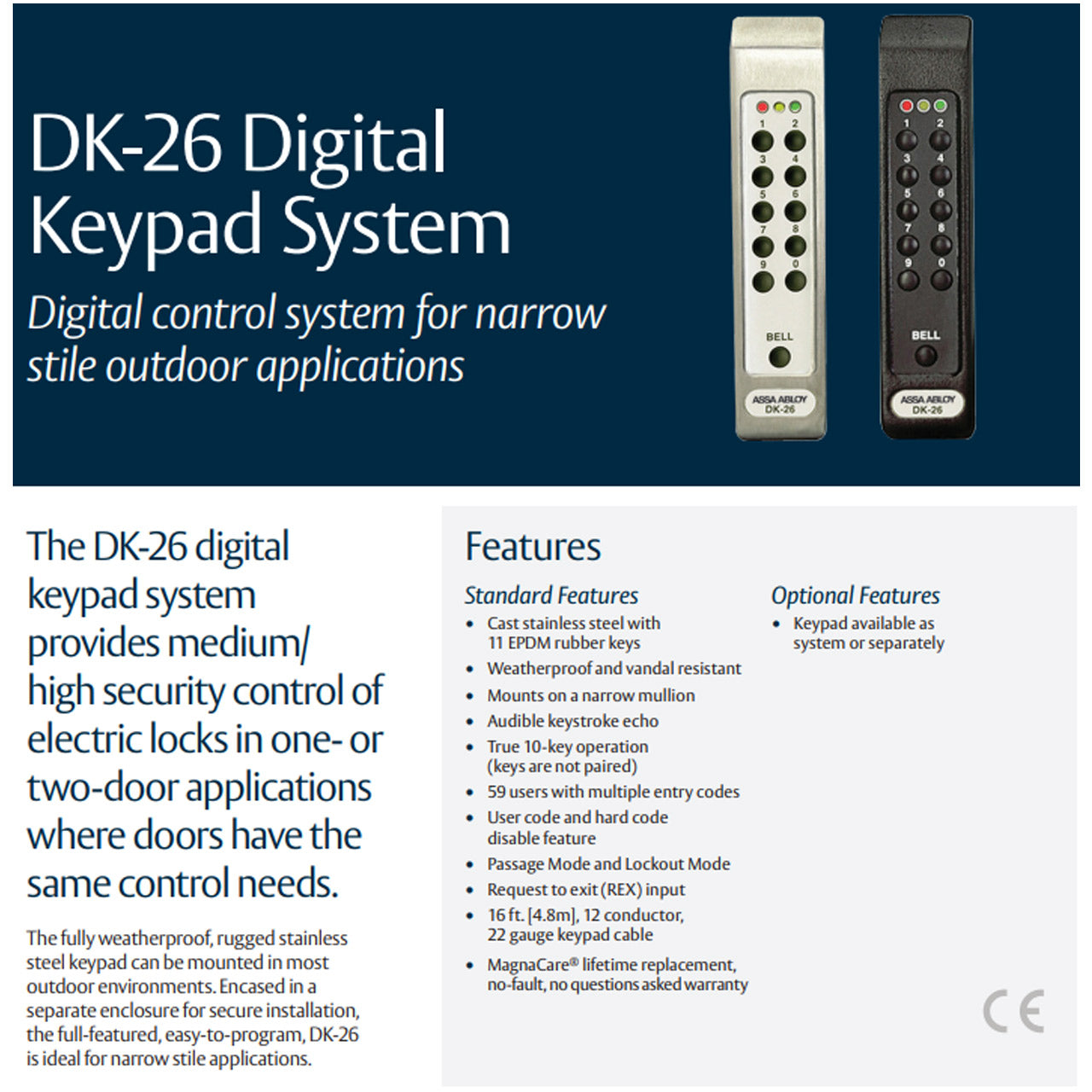

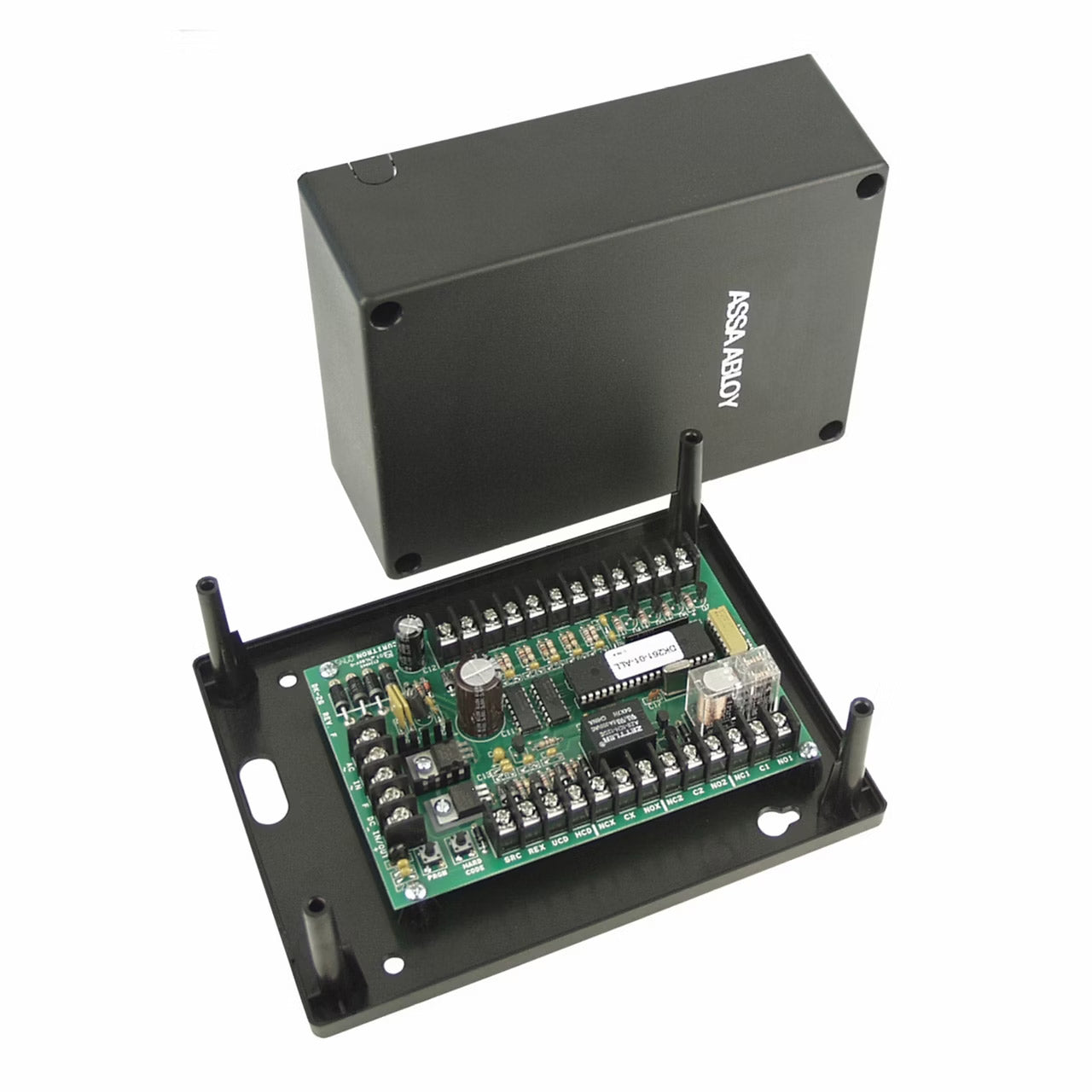

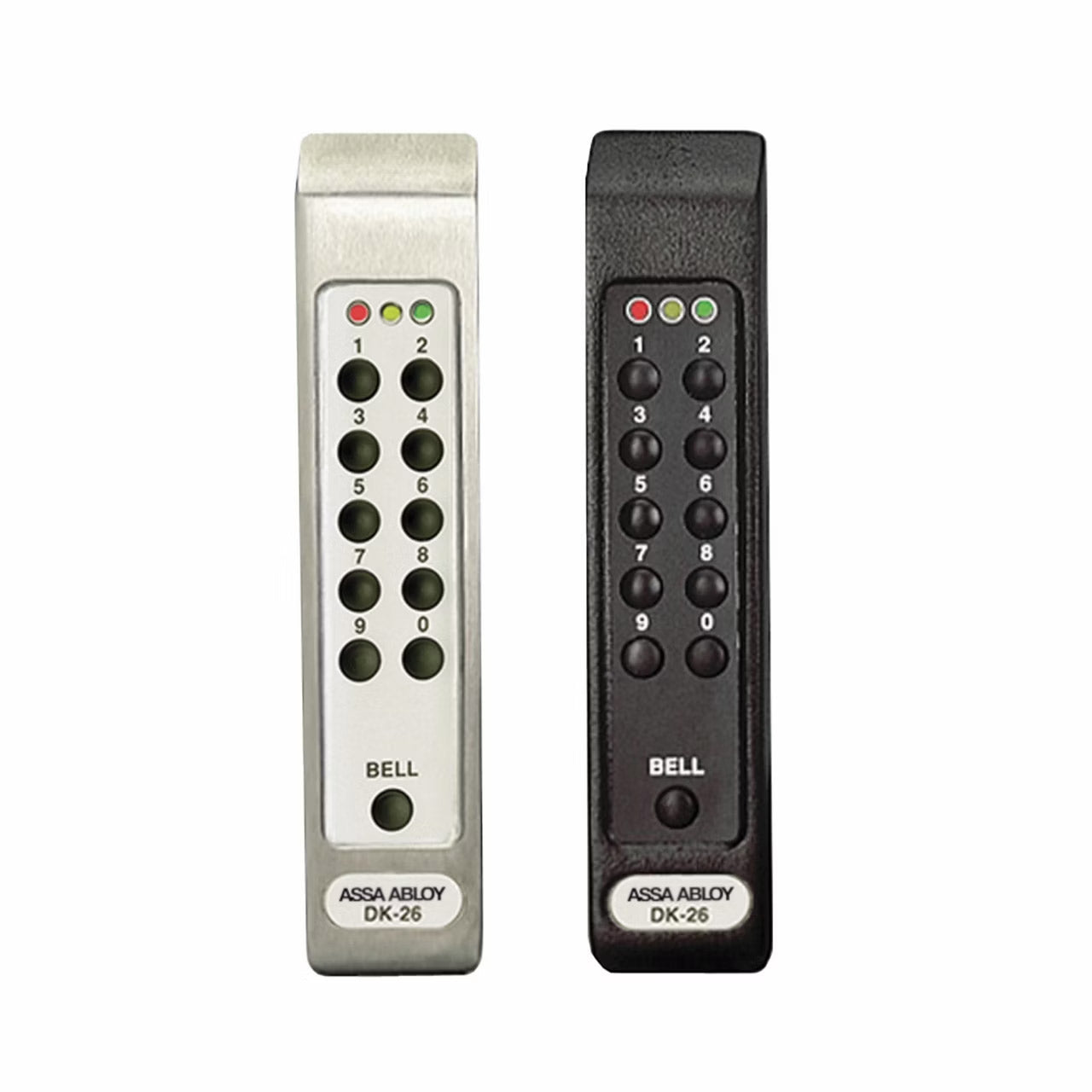

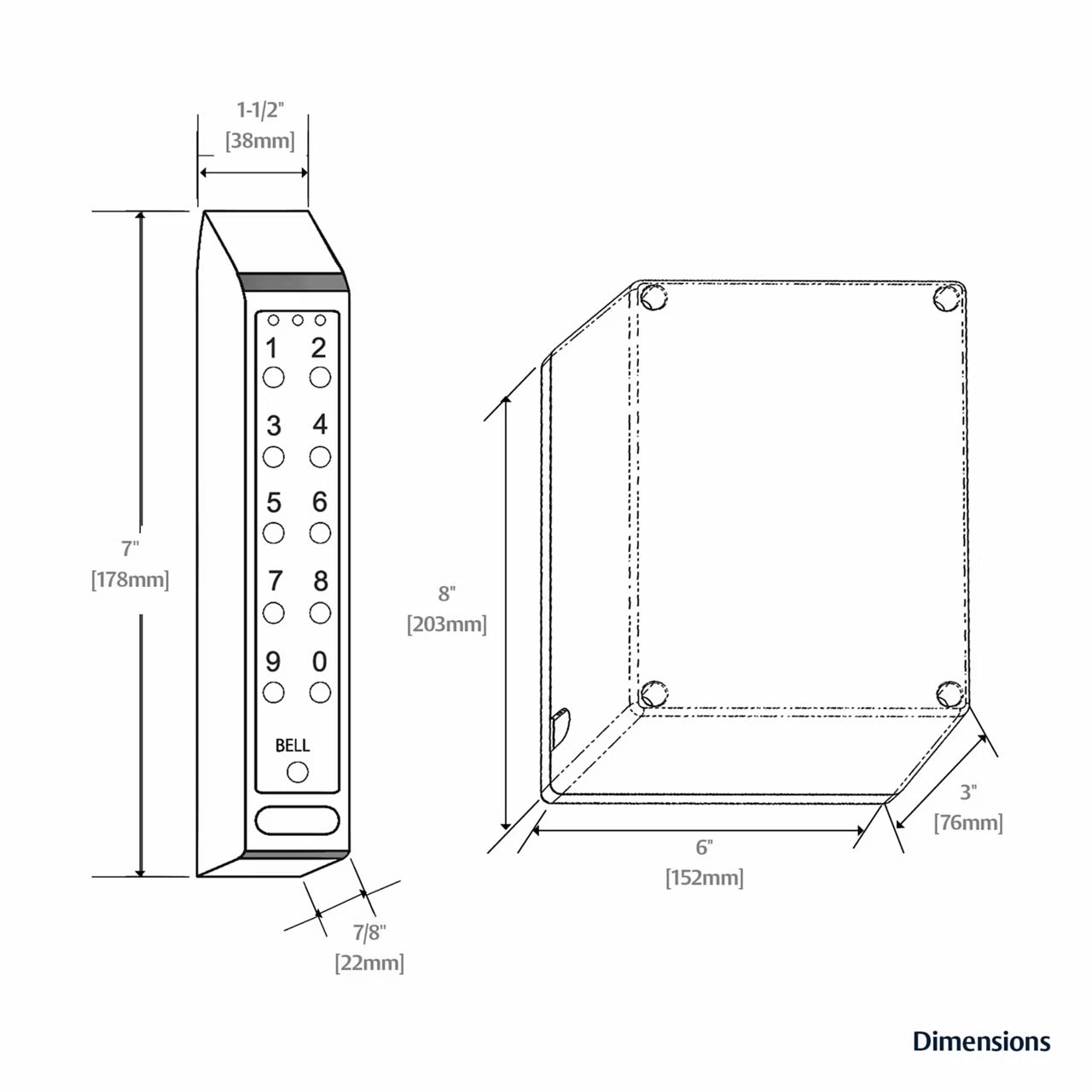

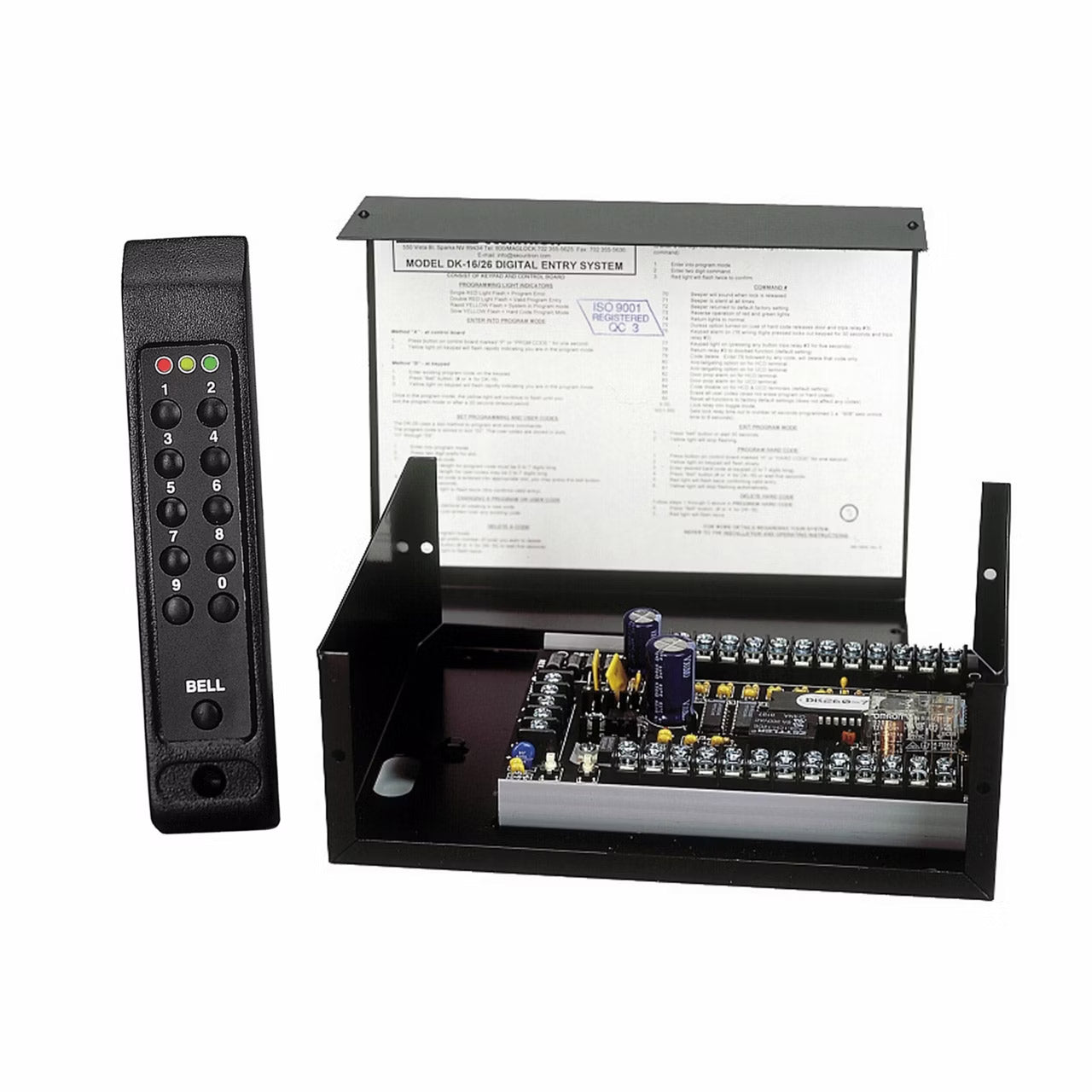

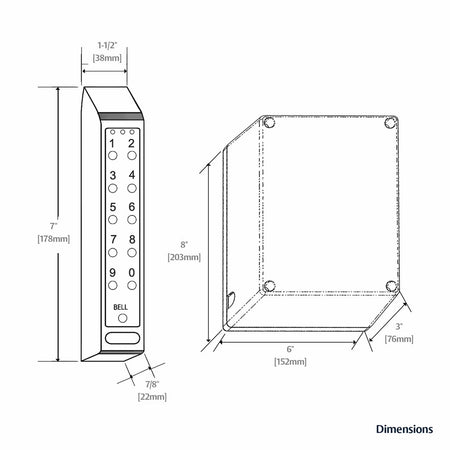

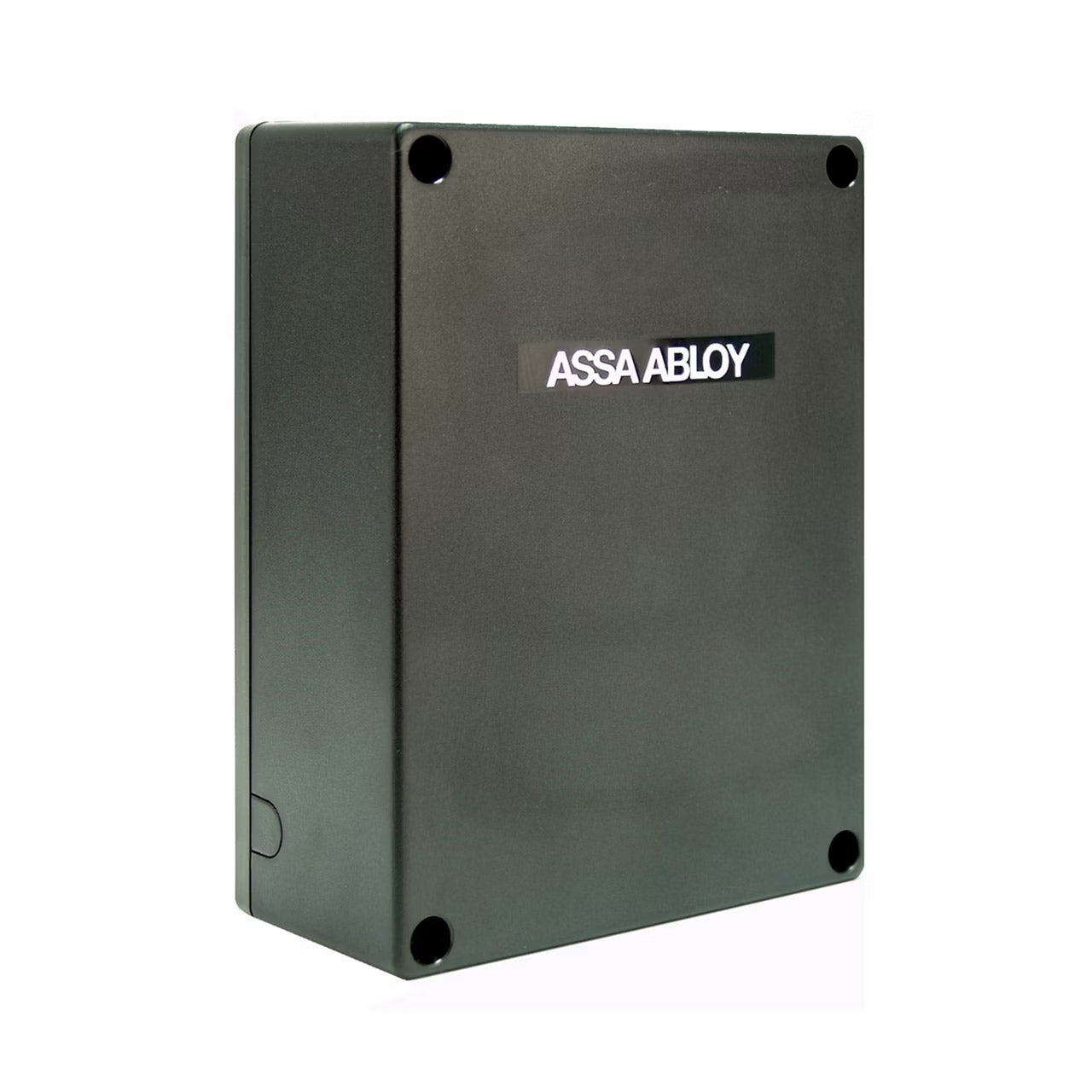

The DK-26 digital keypad system provides medium/high security control of electric locks in one or two door applications where doors have the same control needs. The fully weatherproof, rugged stainless steel keypad can be mounted in most outdoor environments. Encased in a separate enclosure for secure installation, the full-featured, easy to program, DK-26 is ideal for narrow stile applications. Cast stainless steel with 11 EPDM rubber keys. Weatherproof and vandal resistant. 12V or 24V/ AC or DC current. Mounts on a narrow mullion. Audible keystroke echo. True 10 digit operation (keys are not paired). 59 users with multiple entry codes. User code and hard code disable feature. Passage Mode and Lockout Mode. 5A DPDT relay. Request to exit (REX) input. 16 ft. [4.8m], 12 conductor, 22 gauge keypad cable. 3 LEDs and a bell button. Keypad: 1-1/2"W x 7"H x 7/8"D. Enclosure: 6"W x 8"H x 3"D. CPU opereating tempuratur +32 to +158F [0 to +70C], keypad operating temperature -22 to +158F [-30 to +70C]. Indoor or Outdoor use.

BAA QUALIFIED: Yes
BASE MATERIAL: Aluminum / Steel
BURGLAR RATED: No
COUNTRY OF ORIGIN: USA
FINISH: Black Applied
FINISH DESCRIPTION: Applied
FINISH TITLE: Black
FIRE RATED: No
FLORIDA: 0
HEIGHT: 0.75
ILLINOIS: 5
LENGTH: 7
LIMITED WARRANTY: Lifetime
MANUFACTURER: Securitron
MASSACHUSETTS: 4
MECHANICAL OPTIONS: Keypad and Controller
NEVADA: 0
SERIES: Securitron Keypads & Accessories
WEIGHT: 5 lbs.
WIDTH: 1.5
