DK-16 Securitron Readers, Keypads, Credential

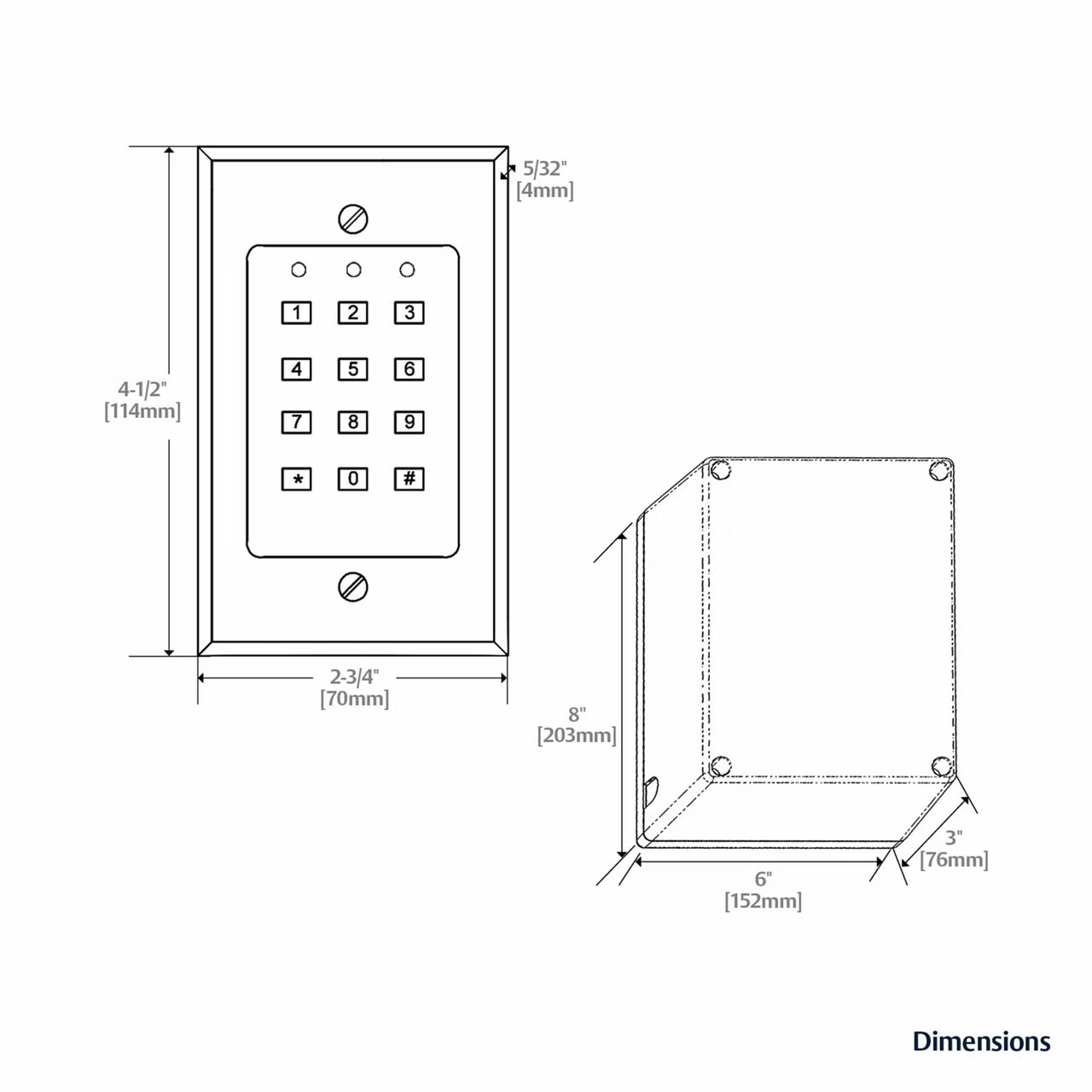

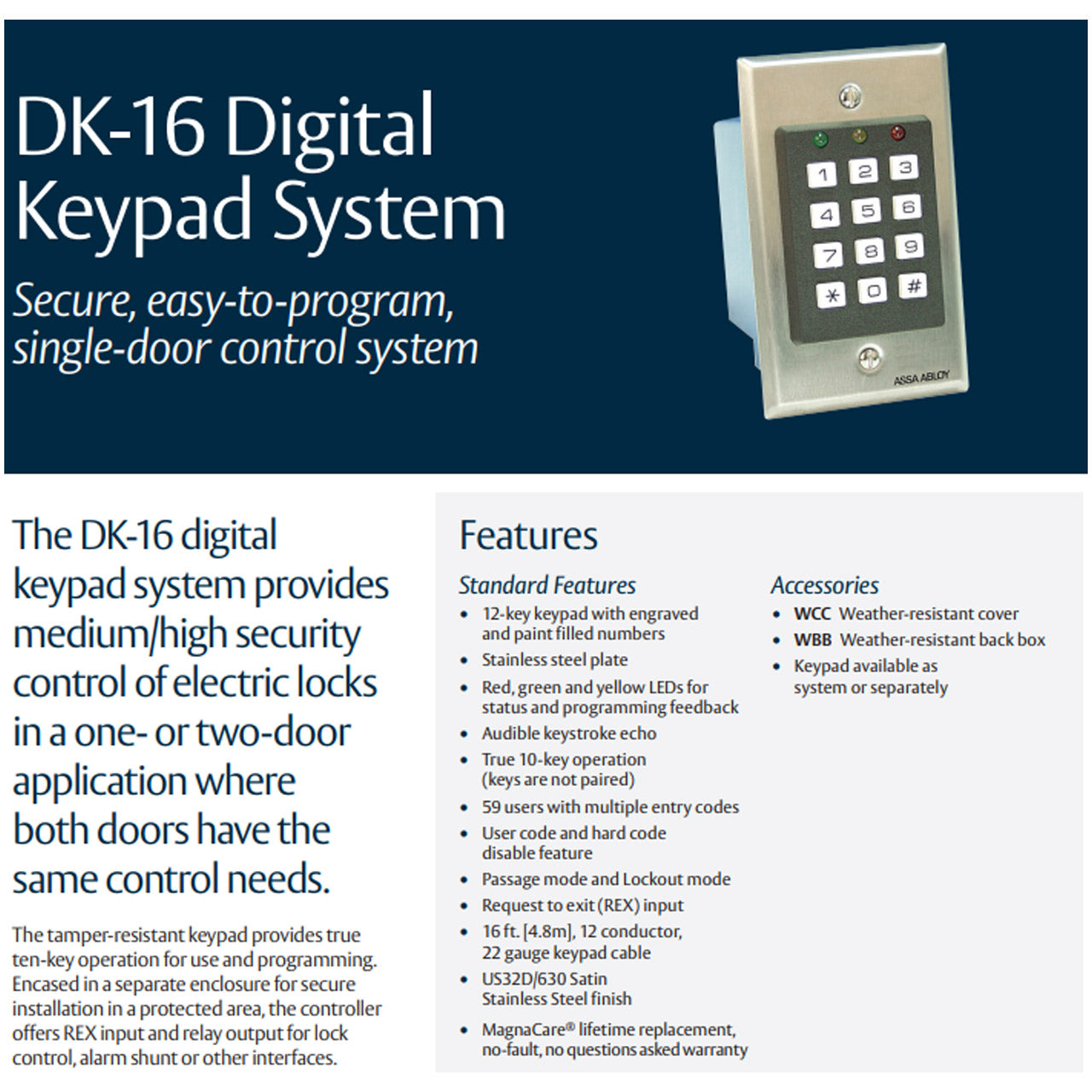

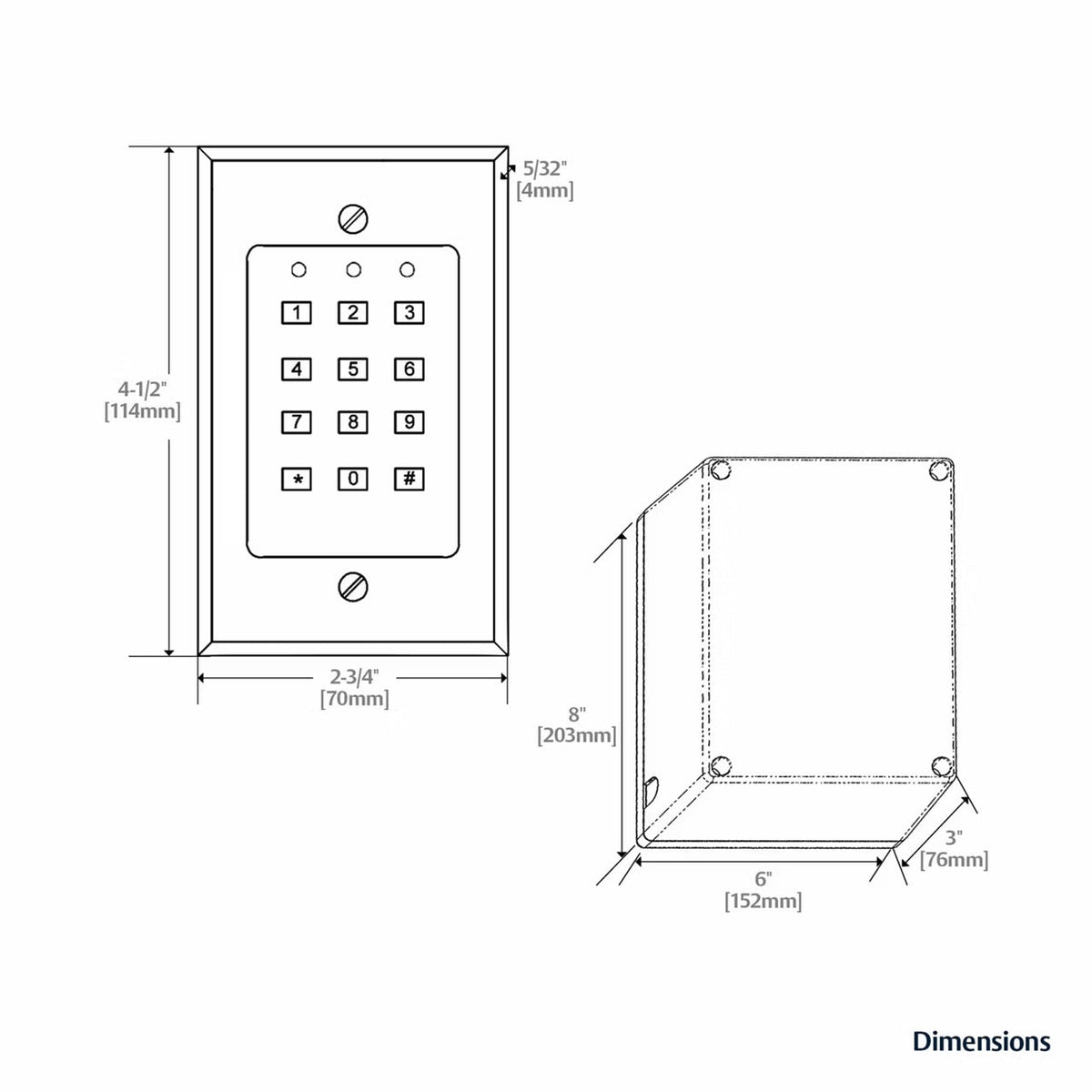

The DK-16 digital keypad system provides medium/high security control of electric locks in a one or two-door application where both doors have the same control needs. The tamper-resistant 3x4 keypad provides true 10-key operation for use and programming. Encased in a separate enclosure for secure installation in a protected area, the controller offers REX input and relay output for lock control, alarm shunt or other interfaces. 12 VAC/VDC: 7 mA at rest; 160 mA active 24 VAC/VDC: 20 mA at rest; 190 mA active. 12 key 3x4 keypad with engraved and paint filled numbers. Stainless steel plate. Red, green and yellow LEDs for status and programming feedback. Audible keystroke echo. Controller mounted in plastic enclosure. 59 users with user code and/or hard code disable feature. 5A DPDT relay output. Request to exit (REX) input. 16 ft. [4.8m], 12 conductor, 22 gauge keypad cable. Keypad available as system or separately. 12 VAC/VDC: 7 mA at rest; 160 mA active 24 VAC/VDC: 20 mA at rest; 190 mA active. CPU operating temperature +32 to +158F [0 to +70C], Keypad operating temperature +32 to +110F [0 to +43C] Indoor use only. Keypad: 2-3/4"W x 4-1/2"H x 5/32"D, Enclosure: 6"W x 8"H x 3"D.

BAA QUALIFIED: Yes
BASE MATERIAL: Stainless Steel
BURGLAR RATED: No
COUNTRY OF ORIGIN: USA
FINISH: 630/US32D Satin Stainless Steel
FINISH DESCRIPTION: Satin Stainless Steel
FINISH TITLE: 630/US32D
FIRE RATED: No
HEIGHT: 0.156
LENGTH: 4.5
LIMITED WARRANTY: Lifetime
MANUFACTURER: Securitron
MECHANICAL OPTIONS: Keypad and Controller
PLASTIC COLOR: Black
SERIES: Securitron Keypads & Accessories
WEIGHT: 4.2 lbs.
WIDTH: 2.75
