Seco-Larm SD-996C-NUQ Universal Electric Strike
Regular price
$91.95
Regular price
Sale
$109.10
Sale price
$91.95
Electric Strike, Field Selectable (Fail Safe/Fail Secure), For Aluminum, Hollow Metal or Wood Doors
Inventory loading
Inventory loading
- UL 294 & UL 1034 Listed

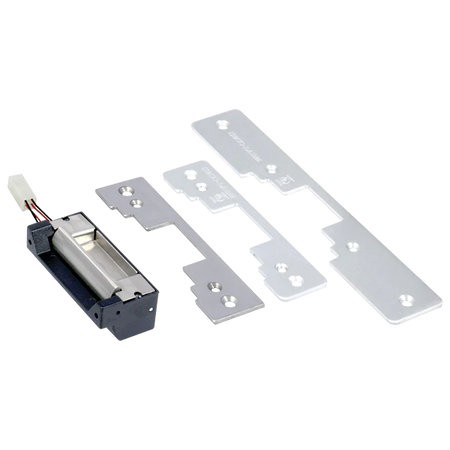

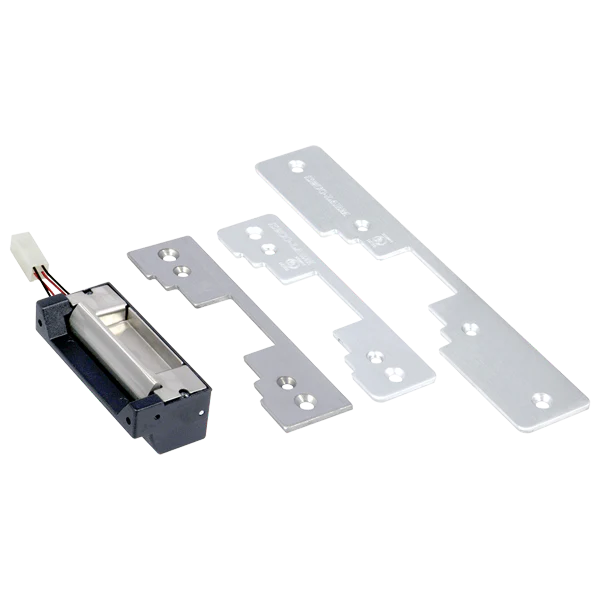

- Includes 3 faceplates for nearly any door type
- Field-selectable for fail-safe or fail-secure operation
- Field-selectable dual-voltage 12/24 VDC operation
- Powered by a solenoid
- Reversible non-handed design fits either right-hand or left-hand doors
- Low profile: Strike is only 1-1/4″ deep for use with hollow aluminum frames
| Operating Voltage | 12 or 24 VDC ±15% |
| Operation | Fail-secure or fail-safe |
| Current Draw | 280mA@12VDC, 140mA@24VDC |
| Jaw Strength | 2,000-lb |
| Operating Temperature | 14°F~113°F (-10°~45° C) |
| Operating Humidity | 85%± 15% |
| Dimensions – Aluminum | 4-7/8″ x 1-1/4″ (124×32 mm) |
| Dimensions – Hollow Metal | 4-7/8″ x 1-1/4″ (124×32 mm) |
| Dimensions – Wood | 7-15/16″ x 1-7/16″ (202×37 mm) |
FINISH: 630/US32D Satin Stainless Steel
