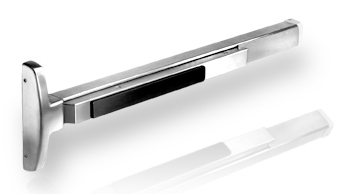

Sargent AD8400 Narrow Stile Concealed Vertical Rod Exit Device

Sargent AD8400 Narrow Stile Concealed Vertical Rod Exit Device

Sargent

  • 1,25800


Sargent AD8400 Narrow Stile Concealed Vertical Rod Exit Device For Aluminum Entrances.

Barzel Lock Stocks Sargent Hardware. Contact Us At 212-677-7530 With Any Questions.

Features
  • Concealed rods for security and aesthetics
  • UL Panic listed only
  • Specify NB- for less bottom rod
  • Devices are ANSI A156.3- Grade 1

Specifications

  • Door types: Hollow or extruded aluminum doors (for doors over 1-3/4" to 2-1/4" thick, specify thickness and order as 31-option. 1-3/4" (44mm) minimum stile width required. Stile must be hollow with inside dimension of at least 1-3/8" (35mm) square)
  • Rail sizes: F Rail- for 33" to 36" door widths
  • Strike: 640 strike for Top and Bottom
  • Dogging feature: Hex key dogging standard
  • Mounting Fasteners: Supplied standard with machine screws
  • Top Bolt: Stainless steel
  • Device centerline from finished floor: 41" (1041mm) for standard applications  38" (969mm) for elementary schools and to meet local accessibility standards when a 100 series auxiliary control is used
  • Door opening/height: Must be specified -120" (3048mm) Max Door opening
  • Center Case Dimensions: 8-3/8" (213mm) x 2-5/8" (67mm)
  • Projection: Pushbar neutral- 3" (76mm)  Pushbar depressed- 2-1/8" (54mm)
  • Fire Exit hardware: Not available
