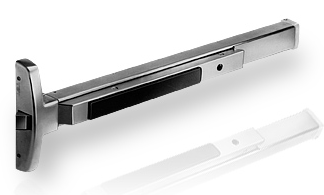

Sargent 8510 Narrow Design Rim Exit Device

by Sargent
$ 922.00

Sargent 8510 Narrow Design Rim Exit Device.

Sargent 8500 Series

Features

  • Designed for narrow stile applications such as aluminum frame full glass doors
  • Single and double doors with mullion
  • Single point rim latching device
  • Quiet operation and solid security
  • Devices are ANSI A156.3 - 2001 Grade 1 Panic listed
  • UL Fire and Panic listed
Finishes:
32D-Satin Stainless Steel

Specifications

  • Door Types: Wood or metal 1-3/4"(44mm) Thick Door; Over 1-3/4" specify thickness and order as a 31- prefix.  1-3/4" (44mm) minimum stile
  • Door Widths:
    E Rail - 24" to 32" (61cm to 81cm) No cutting required for 32" door;
    F Rail - 33" to 36" (84cm to 91cm) No cutting required for 36" door
    G Rail - 43" to 48" (110cm to 122cm) No cutting required for 48" door



  • Strike: 657 Standard Black Nylon Coated
  • Optional Strikes: 649
  • Dogging Feature: Hex key dogging standard
  • Mounting Fasteners: Supplied standard with wood and machine screws; Available with through-bolts and mortise (sex) nuts
  • Latch Bolt: Stainless steel, 3/4" (19mm) throw
  • Device Centerline from Finished Floor: 41” (1041 mm)
  • Center Case Dimensions: 8-5/16" (211mm) x 1-1/16" (27mm)
  • Projection: Pushbar Neutral – 3" (76 mm); Pushbar Depressed – 2-1/8" (54 mm)
