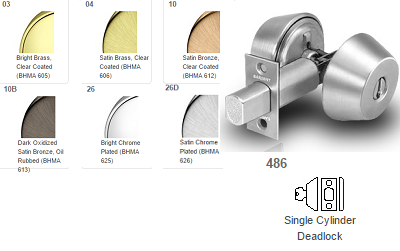

Sargent 486 Single Cylinder x Blank Deadbolt Grade 1 480 Series

by Sargent
$ 105.00

 Sargent 486 Single Cylinder x Blank Deadbolt

Specifications

  • For Door: Fits 1-3/8" (35 mm) to 1-3/4" (44 mm) thick standard; For doors over 1-3/4" (44 mm) consult factory (2-1/4" Thick door max)
  • Door Prep: Fits 161 (standard) cut outs and Fits 160 with 2-3/8"(60mm) backset with 1"(25mm) front and for 1-3/8"(35mm) think door
  • Backsets: 2-3/4" (70 mm) standard. 2-3/8" (60 mm) available (20 option)
  • Strike: Wrought brass, bronze or stainless steel
  • Bolt: Solid steel with hardened steel pin insert and nickel silver plating; 7/8" (22 mm) x 5/8" (16 mm)x1"(25mm) throw
  • Cylinder: Brass, 6 pin. 2 nickel silver keys
Sargent 486 Single Cylinder x Blank Deadbolt:
• Key outside operates deadbolt
• Blank plate by exposed screws inside. Minimum 1" (25mm) required between doors
• ANSI E0161

  • Masterkeying: Can be masterkeyed. Construction key system available
  • Specification: Meets ANSI A156.5 Grade 1 requirements with 408 or 488 strike
  • Front: Wrought brass, bronze or stainless steel 2-1/4" (57 mm) x 1-1/8" (29mm) with fixed bevel 1/8" (3mm) in 2" (51mm) furnished standard
  • Hand: Non-handed, field reversible
  • Turn Lever: Non-ferrous
  • UL/cUL Listed: UL listed to US and Canadian safety standards                            Note: Any retrofit or other field modification to a fire rated opening can potentially impact the fire rating of the opening, and Sargent Manufacturing Company makes no representations or warranties concerning what such impact may be in any specific situation.
  • Positive pressure: Conforms to standards UL 10 C and UBC 7-2 (1997)
