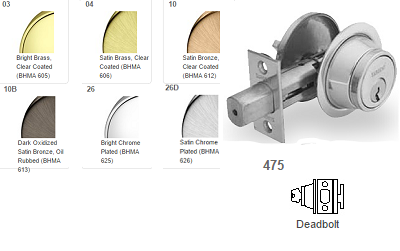

Sargent 475 Single Cylinder x Thumbturn Deadbolt 470 Series

by Sargent
$ 52.00
Sargent 475 Single Cylinder x Thumbturn Deadbolt.
  • For Doors: 1-3/4" (44 mm) to 2-3/8" (61 mm) door thickness (except 475 with 2-1/16" (53 mm) maximum thickness). (1-3/8" door optional as 1- option)
  • Door Prep: 1-1/2" dia. (38 mm) hole standard for all functions; 2-1/8" dia. (54 mm) hole (161 door prep) for 474 and 475 only with adapter ring provided
  • Backsets: 2-3/8" (61 mm) or 2-3/4" (70 mm) adjustable backset
  • Strike: 406 Strike standard. 407 1/4" Radius strike (specify option 13-) 408 Flat lip strike 4-7/8"x 1-1/4" (specify option 28-)
  • Bolt: Brass with hardened steel pin; 5/8" (16 mm) x 13/16" (21 mm) x 1" (25 mm) throw
  • Cylinder: Brass, 6 pin cylinder
Sargent 475 Single Cylinder x Thumbturn Deadbolt:
• Key outside operates deadbolt
• Thumb turn inside operates deadbolt
  • Masterkeying: Can be masterkeyed. Construction key system available.
  • Front: Stamped brass strike 2-1/4 " (57 mm) x 1" (25 mm) wide with filler for 1-1/8" (29 mm) wide
  • Hand: Universal - non handed
  • Specification: Grade 2 ANSI 156.5 1000 series                                                                                                                                                                                                                                                                   Note: Any retrofit or other field modification to a fire rated opening can potentially impact the fire rating of the opening, and Sargent Manufacturing Company makes no representations or warranties concerning what such impact may be in any specific situation. When retrofitting any portion of an existing fire rated opening, or specifying and installing a new fire-rated opening, please consult with a code specialist or local code official (Authority Having Jurisdiction) to ensure compliance with all applicable codes and ratings.

  • Many Grade 2 Applications
  • Apartments
  • Hotels

 Schools  Healthcare  Commercial
