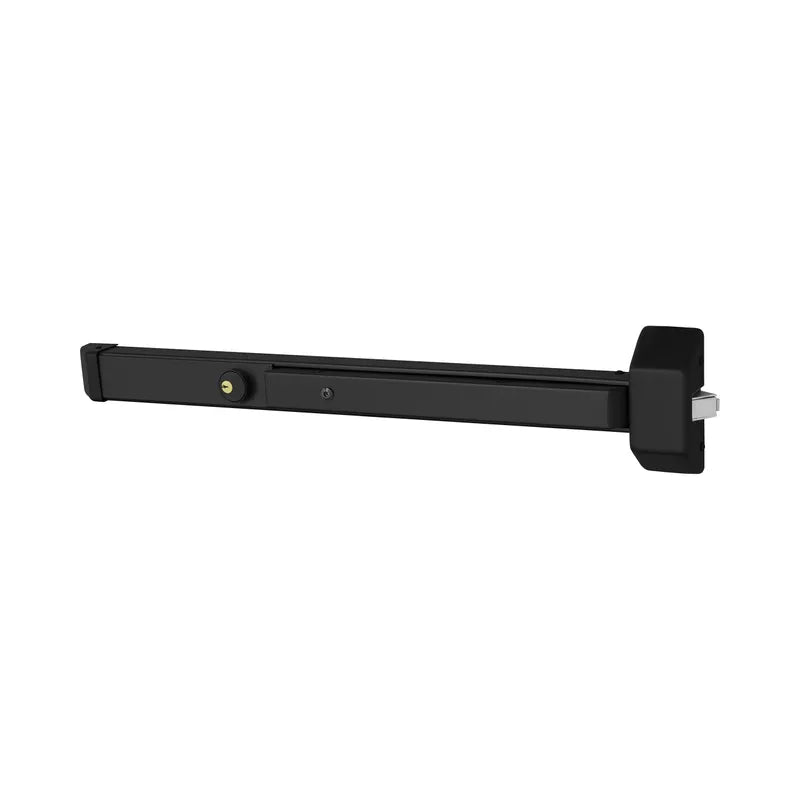

Sargent 3828 Rim Exit Device With 12-Fire Option

by Sargent
$ 253.00

Sargent 3828 Rim Exit Device With 12-Fire Option

Features

  • Chassis mounted unit construction assures easy installation and maintenance
  • Tapered push rail and angled covers
  • Steel endcaps and covers
  • Available in seven different functions
  • ANSI/BHMA Standard 156.3 Grade 1
  • UL Listed
  • UL Listed to Canadian safety standards
Barzel Lock Stocks The Sargent 3828 In Stock In Most Options. PLease Call Us With Any Questions At 212-677-7530
Ideal Use:
  • Warehouses
  • Fire exits from stairwells in office buildings

Specifications

  • For Doors: 1-3/4" (44mm) thick standard. 4-1/2" (114mm) minimum stile width required for single or double door applications using standard 649 strike
  • Mounting: Furnished standard with wood and machine screws; Available with through bolts and mortise nuts
  • Cover: steel
  • Chassis: Nonferrous alloy
  • Rail Assembly: Roll formed steel
  • End Cap: Steel
  • Hand: Non-handed
  • Latchbolt: Stainless steel 3/4" (19mm) throw
  • Strike: 649 packed standard
  • Dogging Feature: Allen-type key furnished standard (non fire rated devices only)
