Sargent 2828 Rim Exit Device With 12-Fire Option

Sargent 2828 Rim Exit Device With 12-Fire Option

Sargent

  • 35500


Sargent 2828 Rim Exit Device With 12-Fire Option. The 2828 Non Configured Rim Exit Device is the perfect stocking device.

Barzel Lock Stocks The Sargent 2828 & 12-2828 Exit Devices. Contact Us With Any Questions At 212-677-7530.

Bar Sizes:

E-32" Bar

Standard F-36" Bar

G-48" Bar

Finishes:

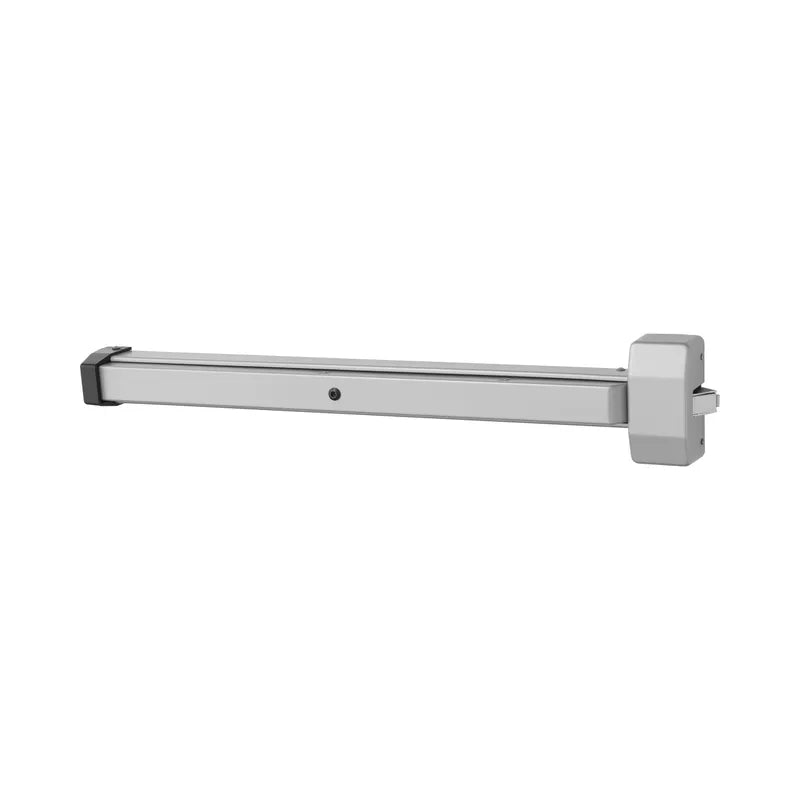

EN-Sprayed Aluminum

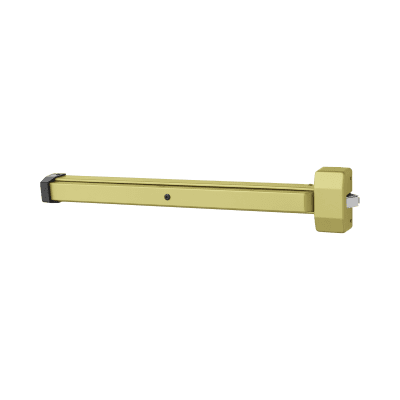

EAB-Sprayed Brass(Call For Availability)

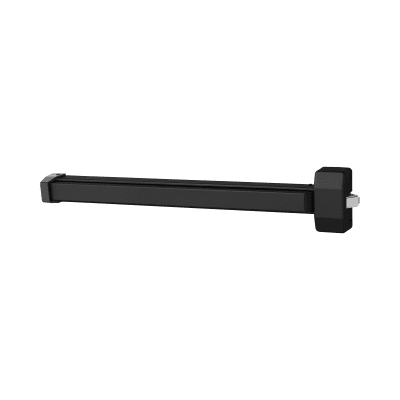

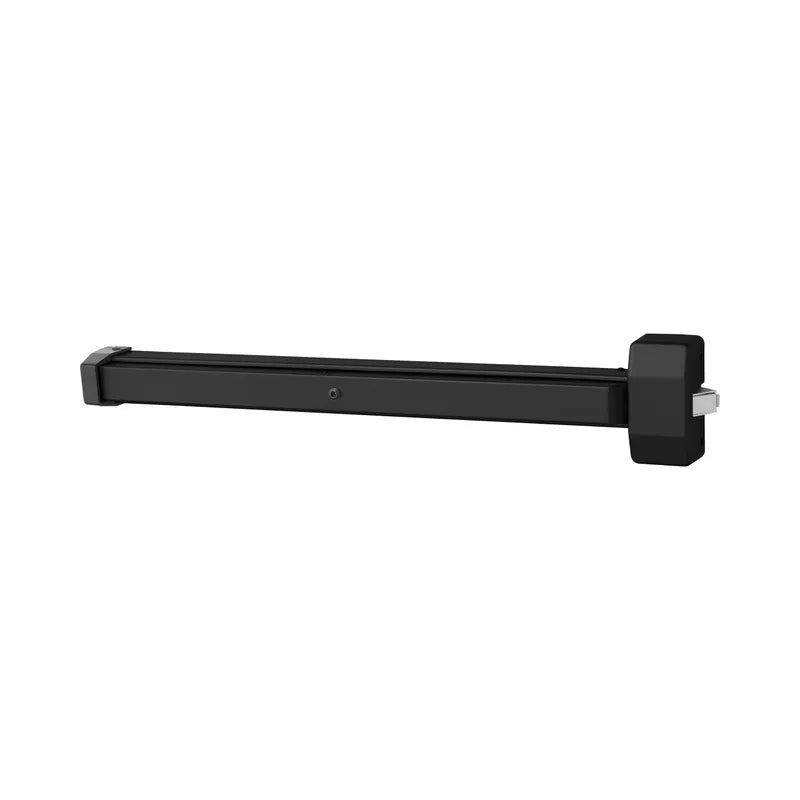

ED-Sprayed Black(Call For Availability)

Features

  • Chassis mounted unit construction assures easy installation and maintenance
  • Tapered push rail and angled covers
  • Steel end caps and covers
  • All devices meet ANSI/BHMA Standard 156.3 Grade 1
  • UL Listed
  • UL Listed to Canadian safety standards
  • Available as Fire Exit Hardware (12-)

Specifications

  • For Doors - 1-3/4" (44mm) thick standard. 4-1/2" (114mm) minimum stile width required for single or double door application using standard 649 strike
  • Mounting - Furnished standard with wood and machine screws. Available with through-bolts and mortise nuts
  • Cover - steel
  • Chassis - Nonferrous alloy
  • Rail Assembly - Roll formed steel
  • End Cap - steel
  • Hand - Non handed
  • Latchbolt - Stainless Steel 3/4" (19mm) throw
  • Strike - 649 packed standard
  • Dogging Feature - Allen-type key furnished standard(non fire rated devices only)
