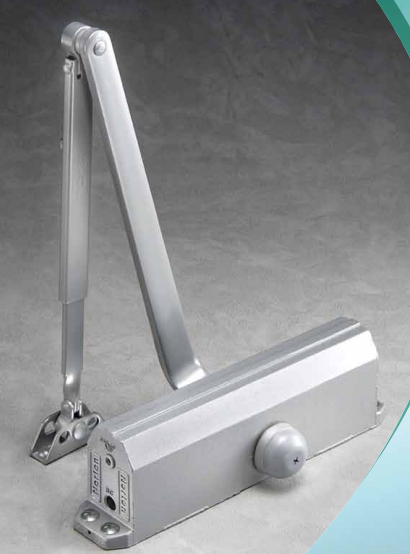

Norton 1602BC,1603BC,1604BC, 1605BC,1606BC Sizes Storefront Door Closer 1600 Series

by Norton
$ 80.00

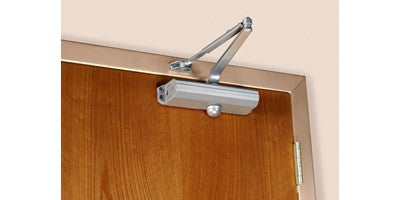

The 1600BC/1601 Series Door Closers are designed to fit almost any application and are the choice of engineers worldwide. Ideal for use with aluminum storefront doors and frames, these closers have a history of proven quality and tradition.

Features

  • 1600BC: Sized springs 3 or 4
  • 1601: Adjustable spring sizes 3-6
  • 1601BF: Adjustable spring sizes 1-4
  • Exceeds 12 million cycles (witnessed and verified by UL)
  • Non-handed
  • Rack and pinion design
  • Cast aluminum body
  • 2-7/8" (73mm) projection
  • 1-3/8" (35mm) diameter piston
  • 5/8" (16mm) diameter pinion journals
  • Standard, separate and independent, latch, sweep and backcheck intensity valves
  • Tri-Style® packaging (regular arm, top jamb and parallel arm mounting)
  • All standard arm applications allow doors to swing 180°, conditions permitting
  • Staked valves

Optional Features

  • Delayed action (in lieu of backcheck). Specify 1601DA or 1601BFDA
  • Corrosion-resistant model (non-hold open only). Specify 1601SS or 1601BFSS. (Not tri-packed)
  • Molded plastic cover. Specify suffix P
  • Heavy-duty arms: Parallel Rigid, CloserPlus®, CloserPlus Spring™, and Unitrol®
