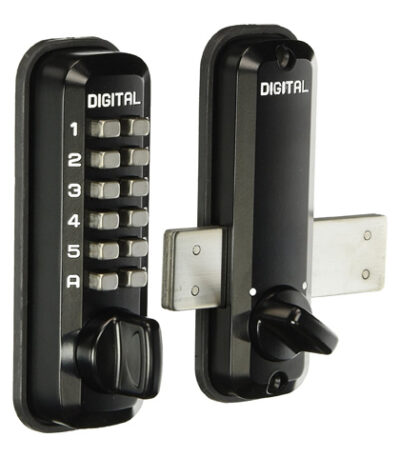

LockeyUSA M220 Surface Mount Lock
Features
Mechanical, keyless deadbolt
Surface/Rim mount
One user code with thousands of possible combinations
Thumb turn on exterior and interior
Changeable handing
Reversible long/short bar
Ideal for narrow stile doors & cabinets
Deadbolt throws 3/4”
Works on most hinged doors
Options

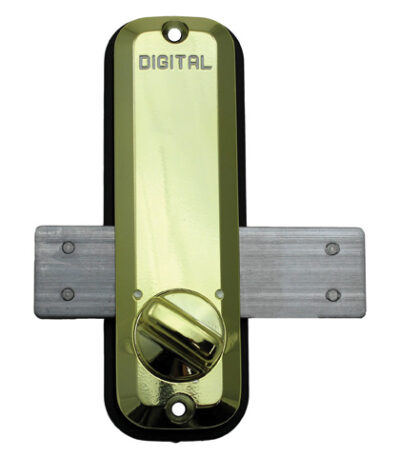

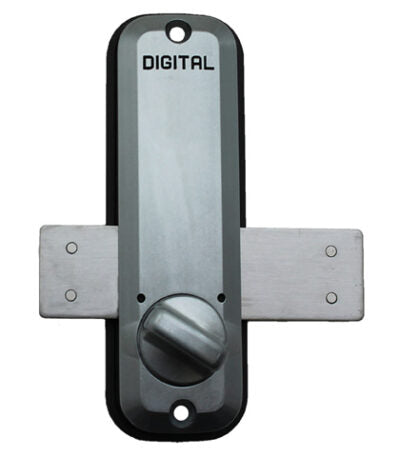

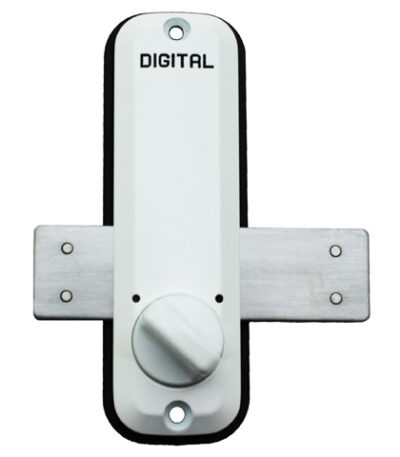

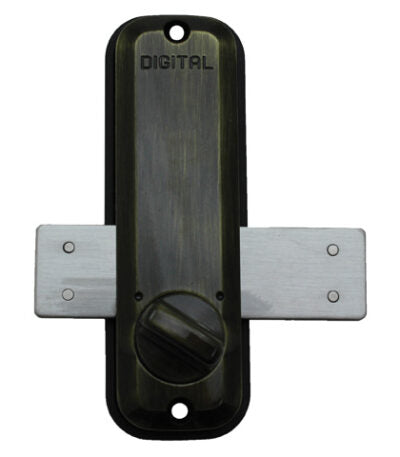

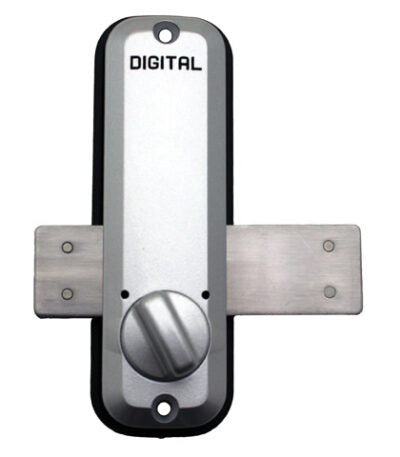

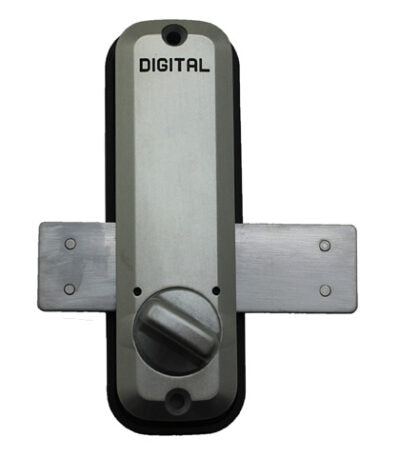

Finishes: Antique Brass (AB), Bright Brass (BB), Jet Black (JB), Marine Grade (MG), Satin Chrome (SC), Satin Nickel (SN), White (WH)
Dimensions & Specifications
Dimensions: 5” L x 1 1/2” W x 1 7/8” D
Deadbolt Throw: 3/4″
Door Thickness: 1 1/8” to 2”
Fits doors 1/8” thick and up with Thin Door Kit
Fits doors up to 5” thick with Extension Kit
Material: Zinc-plated steel
Teflon coated stainless steel interior components
For Exterior & Interior Use
Weather Resistant
Lifetime Mechanical Warranty
Compatible With
Order Number
M220
