Features
Mechanical, keyless, push button lock

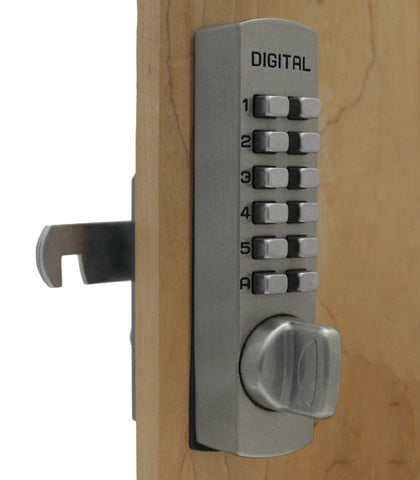

Surface mount cam lock
Ideal for cabinet doors
One user code with thousands of possible combinations
Low profile
Compatible with:
C25 Pull Handle (sold separately)
Options

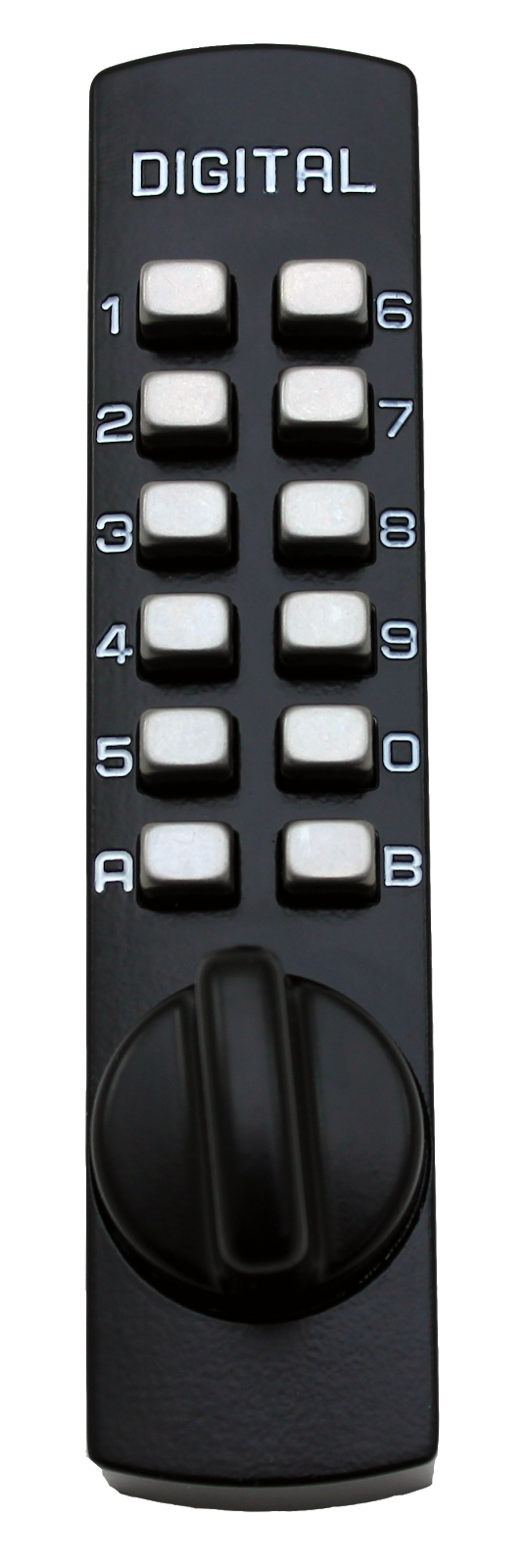

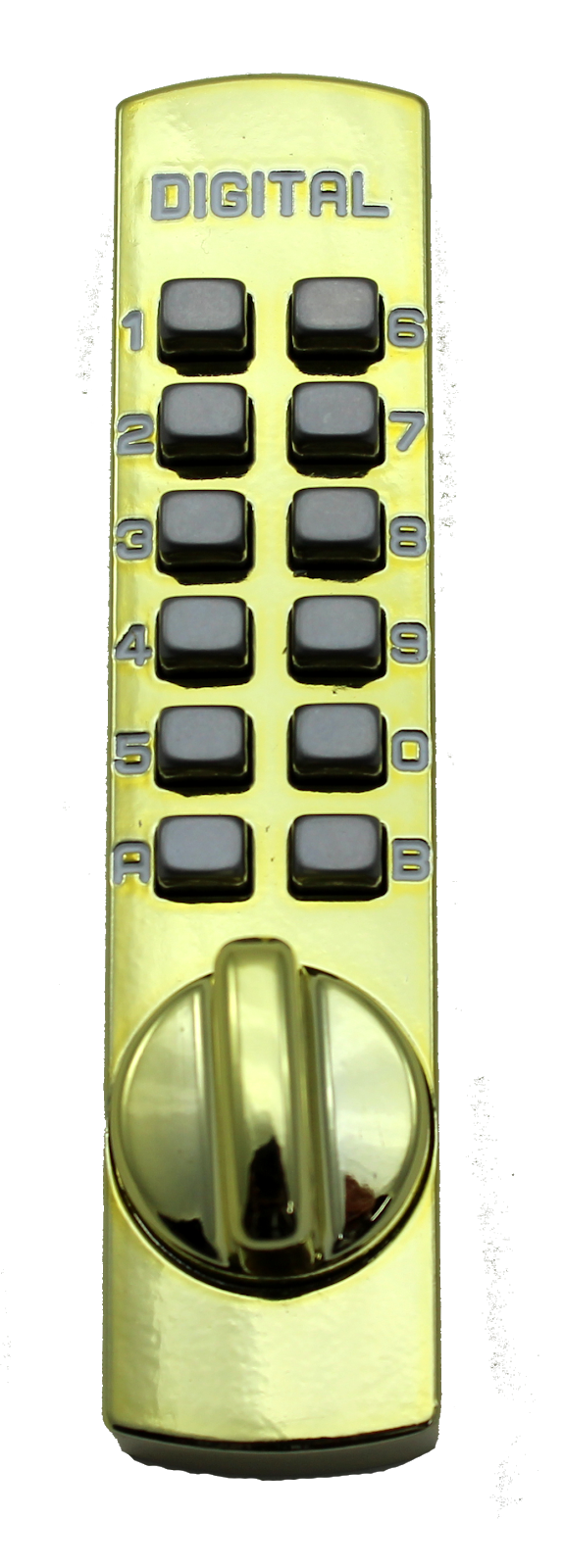

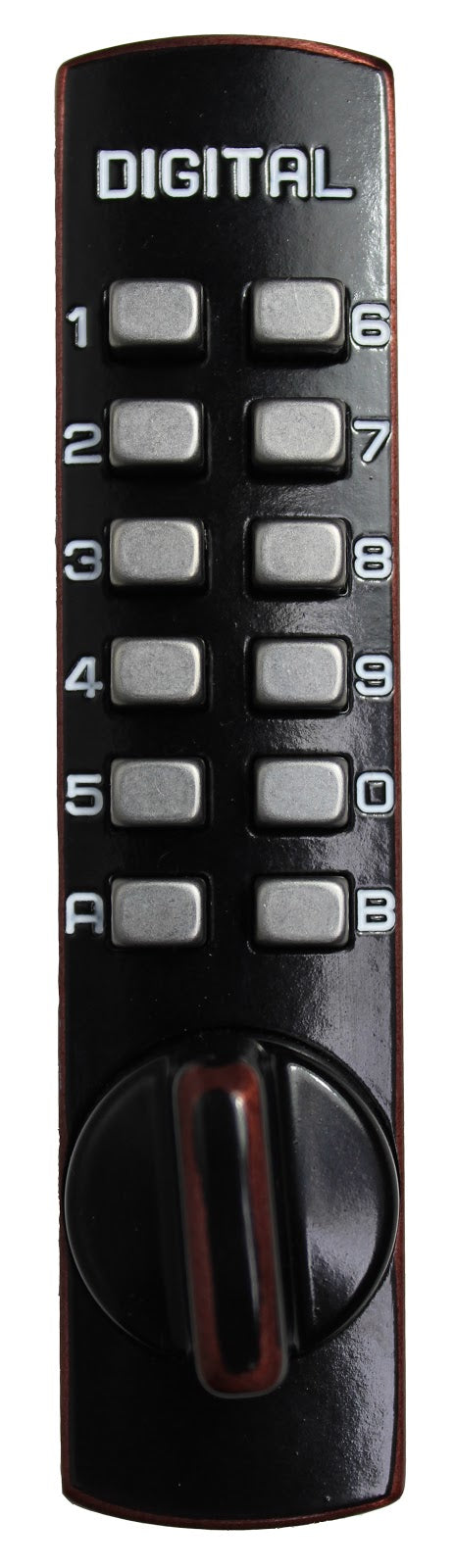

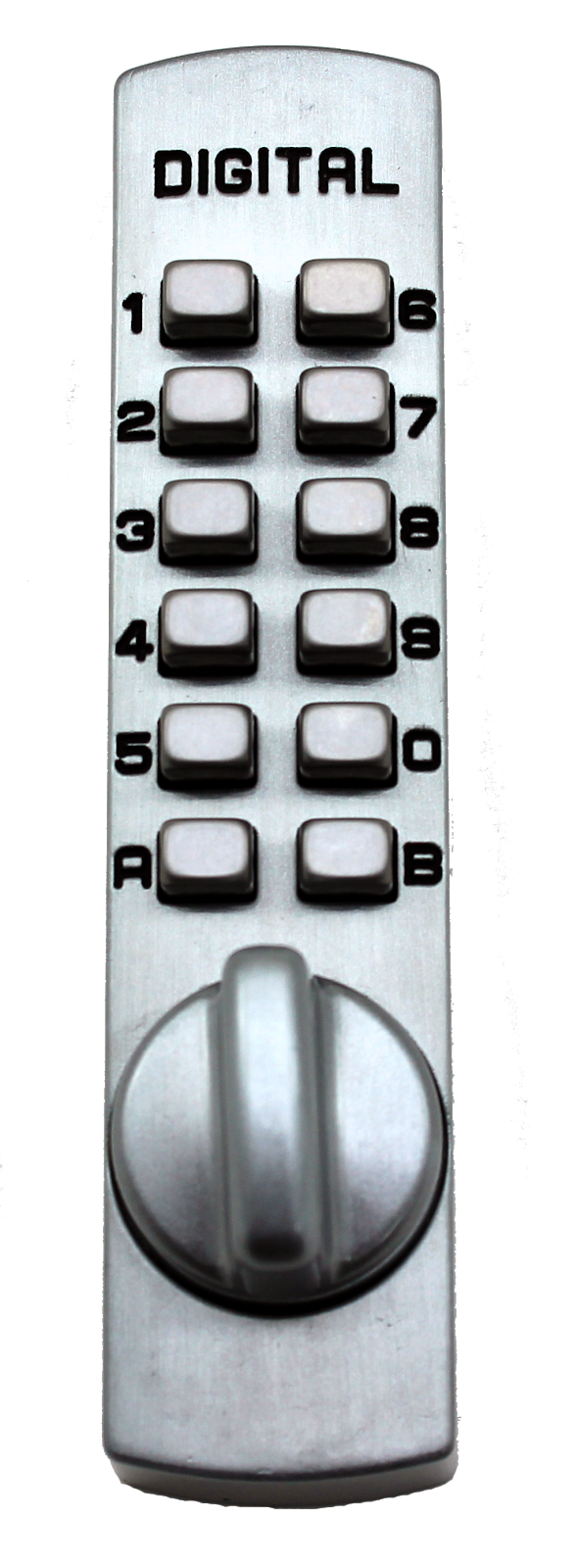

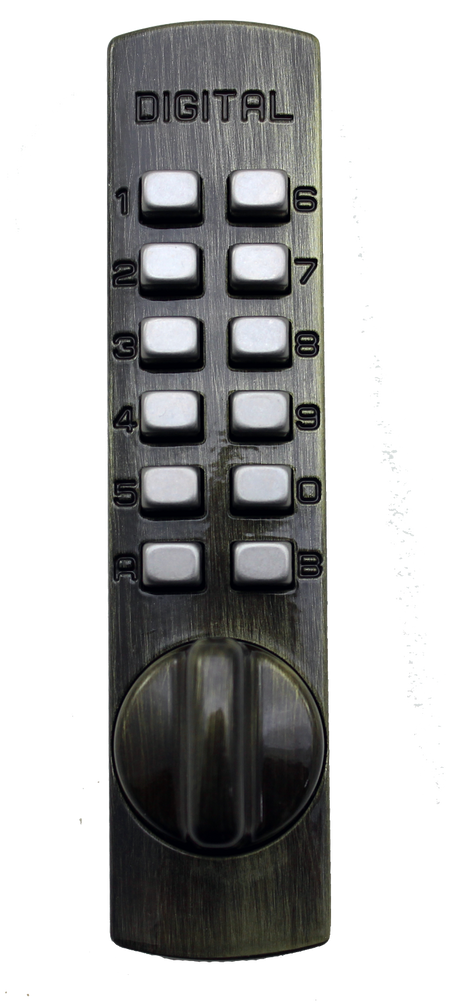

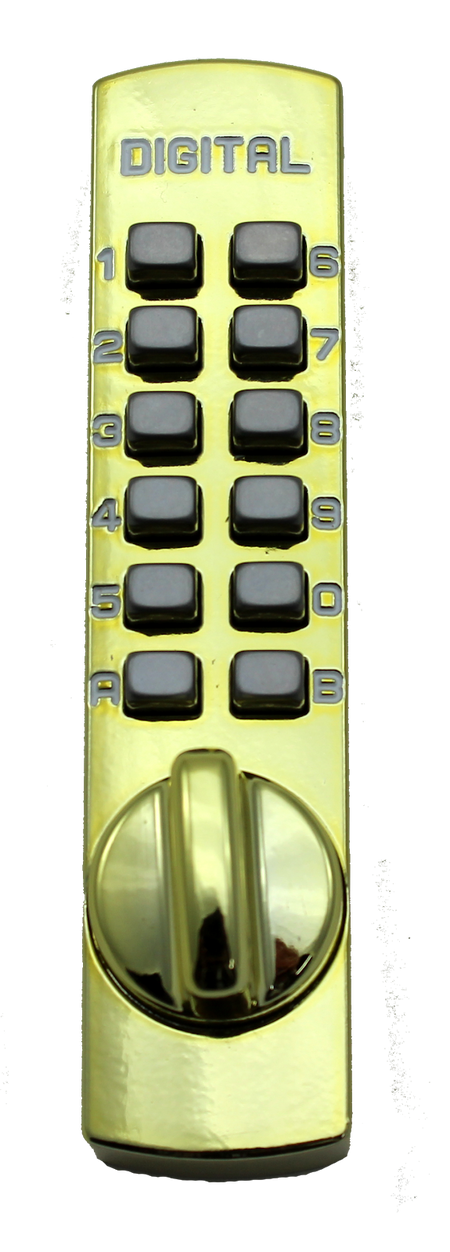

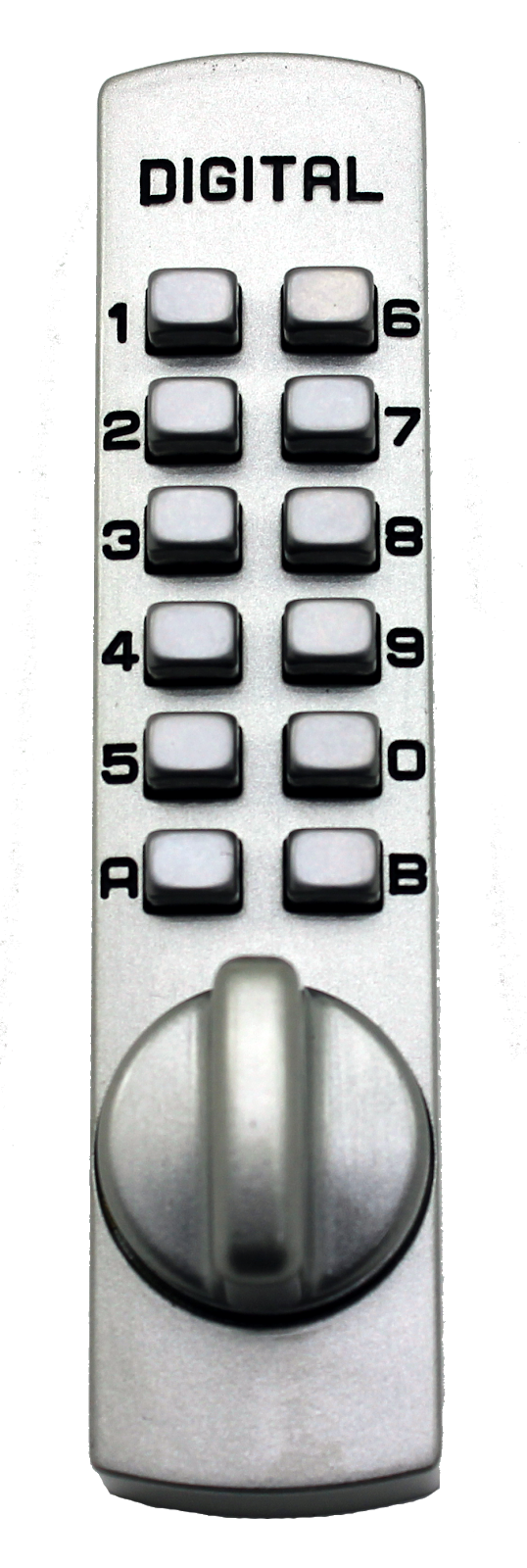

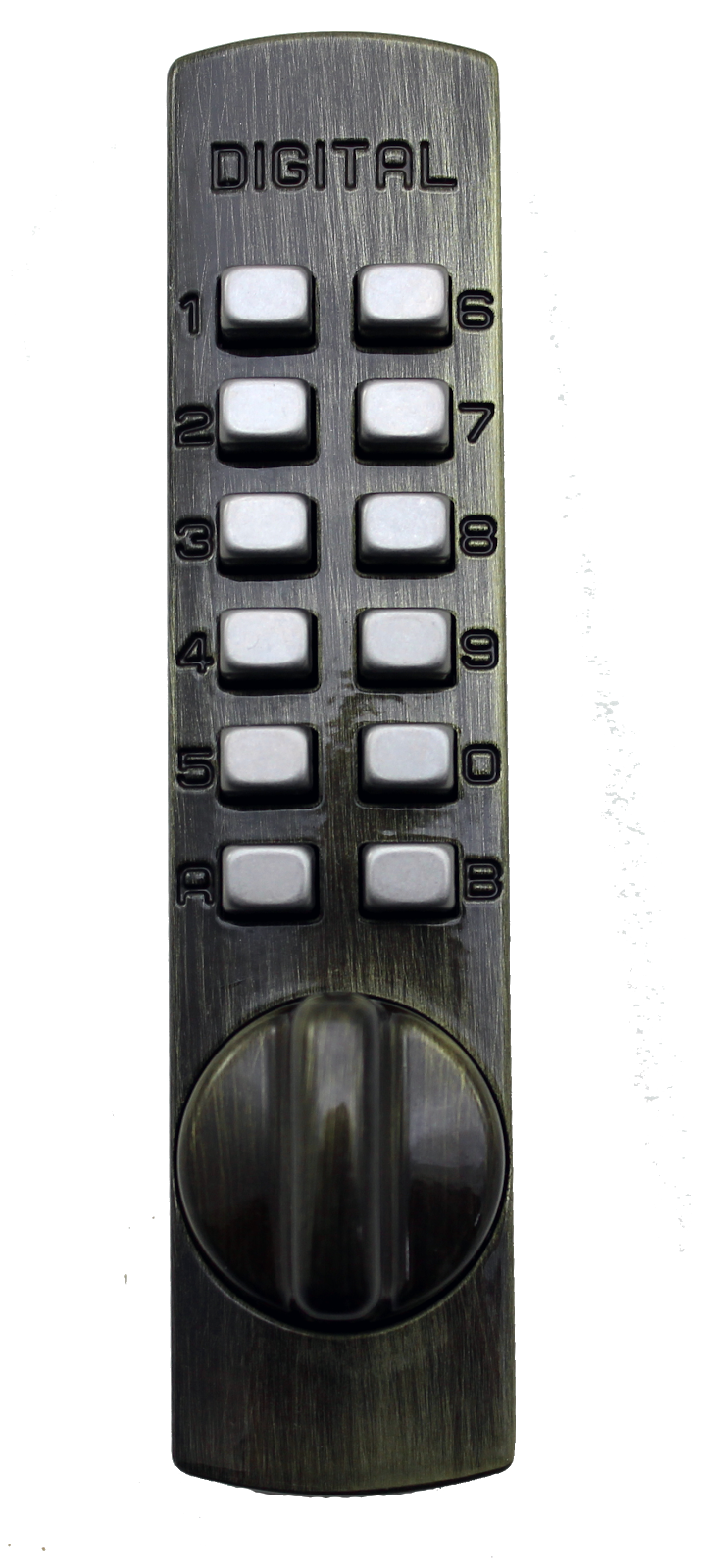

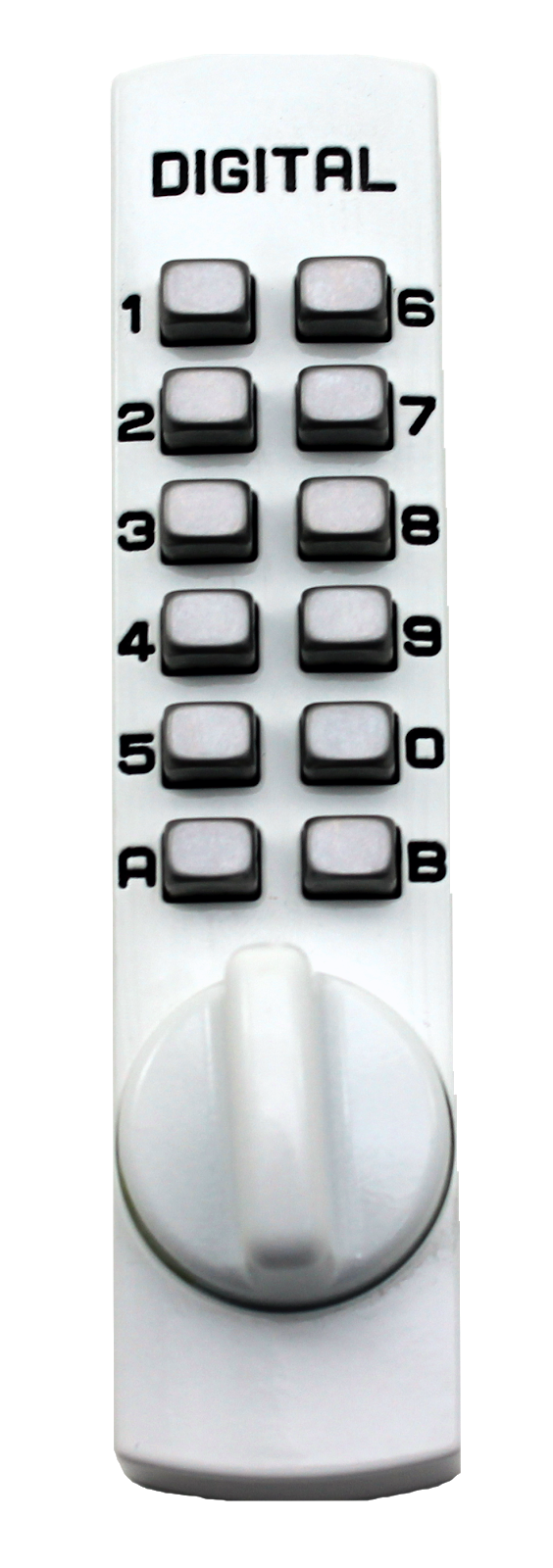

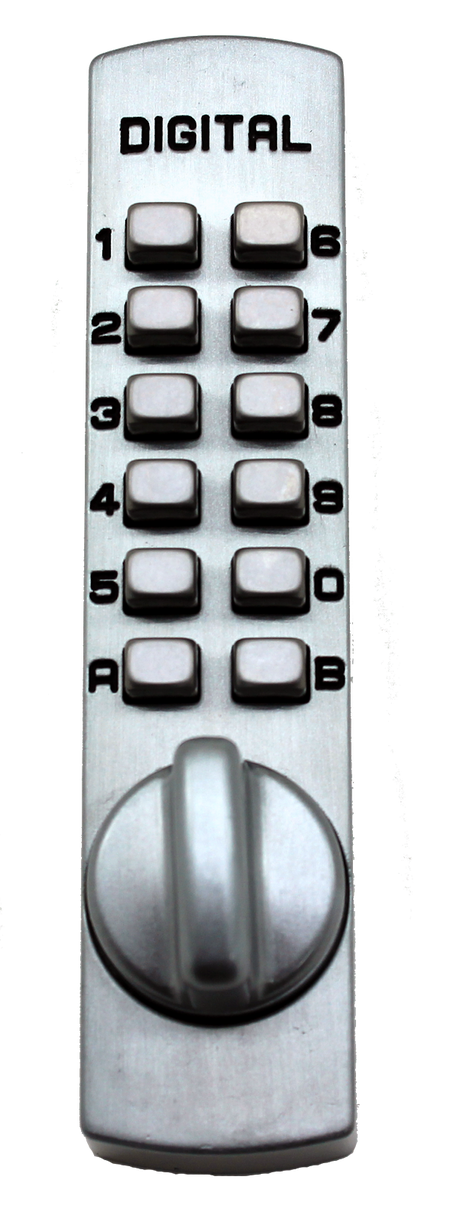

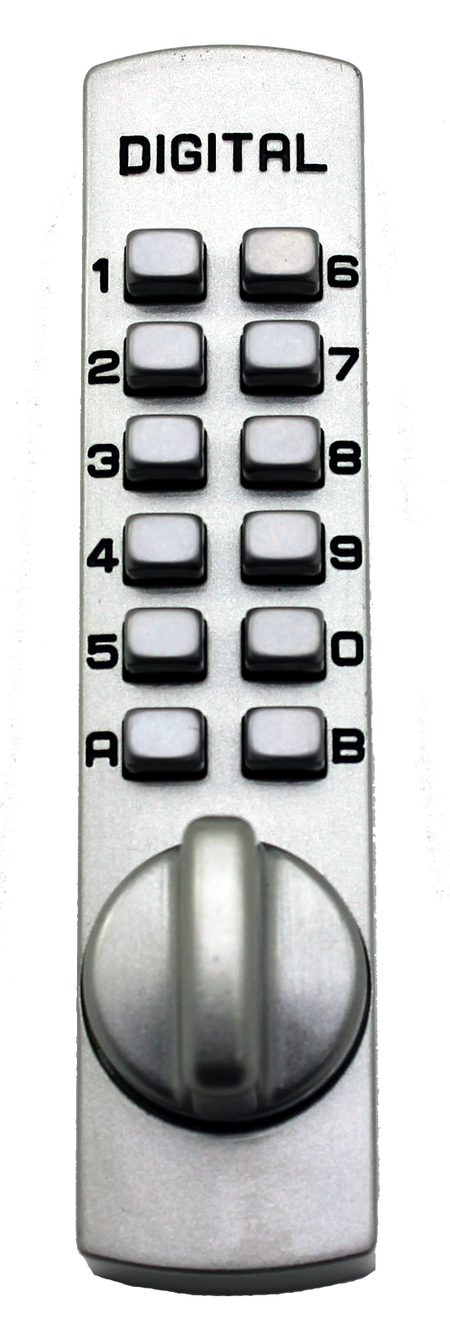

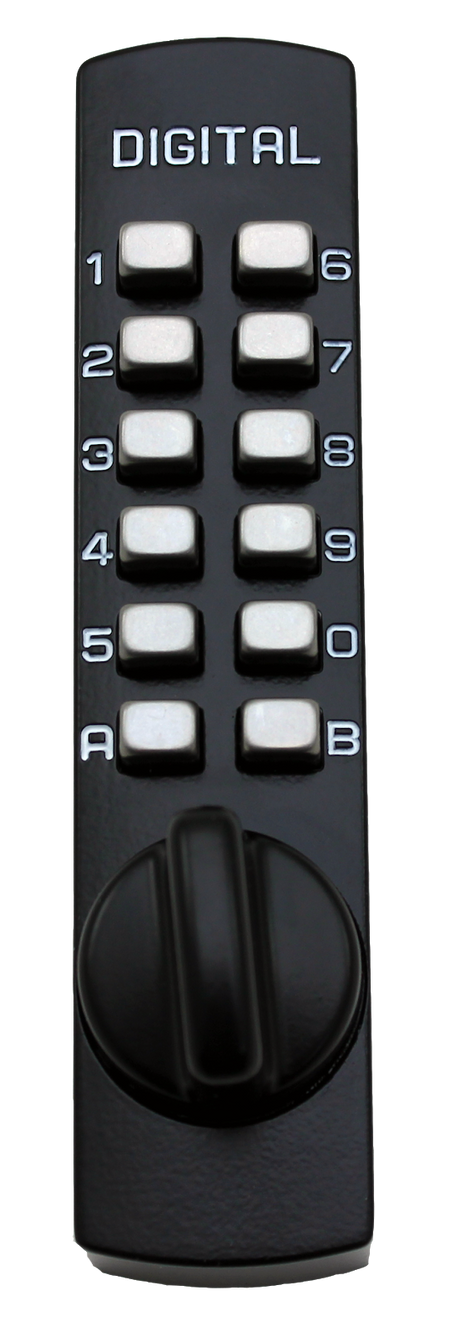

Finishes: Antique Brass (AB), Bright Brass (BB), Jet Black (JB), Oil Rubbed Bronze (OB), Satin Chrome (SC), Satin Nickel (SN), White (WH)
Dimensions & Specifications
Outside Body: 5” L x 1 1/4” W x 1 7/8” D
Inside Body: 5” L x 1 1/4” W x 1 1/4” D
Door Thickness: 1 3/16” to 2”
Fits doors 1/8” thick and up with Thin Door Kit
Fits doors up to 5” thick with Extension Kit
Material: Zinc-plated Steel with Teflon coated stainless steel interior components
For Exterior & Interior Use
Weather Resistant
Lifetime Mechanical Warranty
Compatible With
C25 Pull Handle
Extension Kit
Thin Door Kit
Order Number
C170
Resources
Download Instructions
Download Spec Sheet
How to Change Code C170
