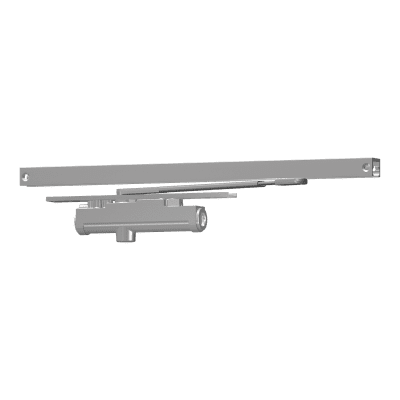

LCN 3131, 3132, 3133, 3133-H Overhead Concealed Door Closer Size 1, 2, 3, 3-H

by LCN
$ 283.00
LCN 3131, 3132, 3133, 3133-Hold Open Concealed Door Closer, LCN 2030 Series
The concealed 2030 Series Pacer® is a heavy duty closer designed to fit in a narrow, minimum 1 3/4” aluminum transom. The single lever arm and roller assembly provide smooth, quiet door control and the choice of finishes and track functions meet virtually all architectural requirements.

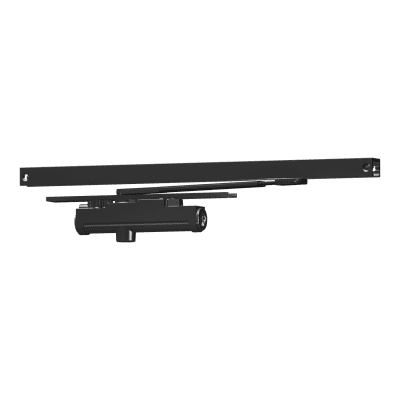

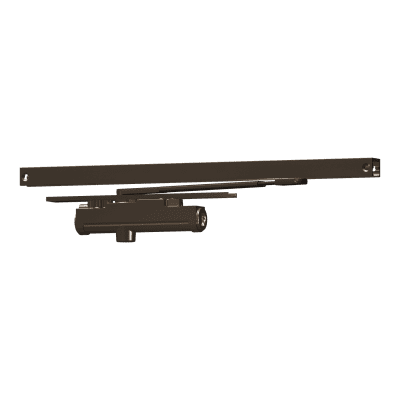

Finish: 689-Aluminum 695-Dark Bronze
Size: 3131-Size 1  3132-Size 2   3133-Size 3   3133-H- Size 3
Features and Benefits
  • UL & cUL listed for self-closing doors, without hold-open
  • Tested and certified under ANSI Standard A156.4, grade 1

Specifications

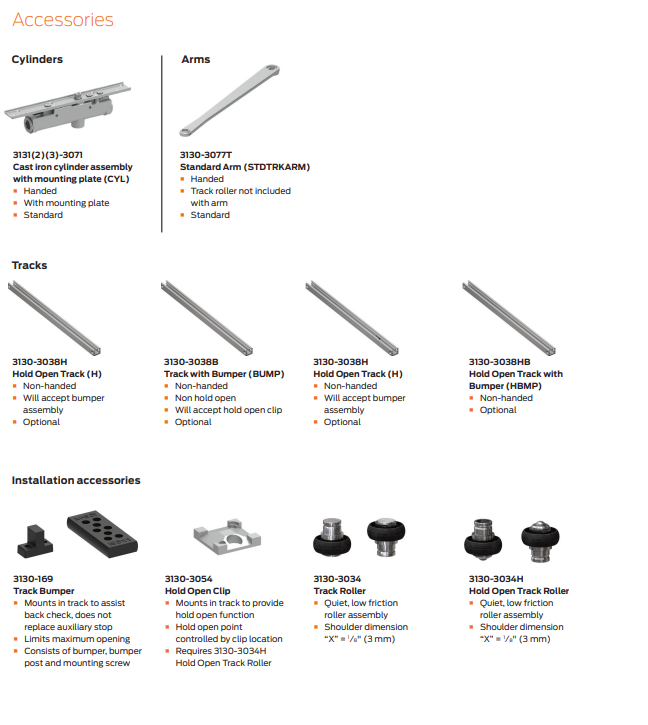

  • Standard 2030 series closer shipped with standard arm, standard track, mounting/finish plate, and wood and machine screw pack
  • Sized cylinders for interior doors to 4’6” and exterior doors to 3’6”
  • Handed for right or left swinging doors

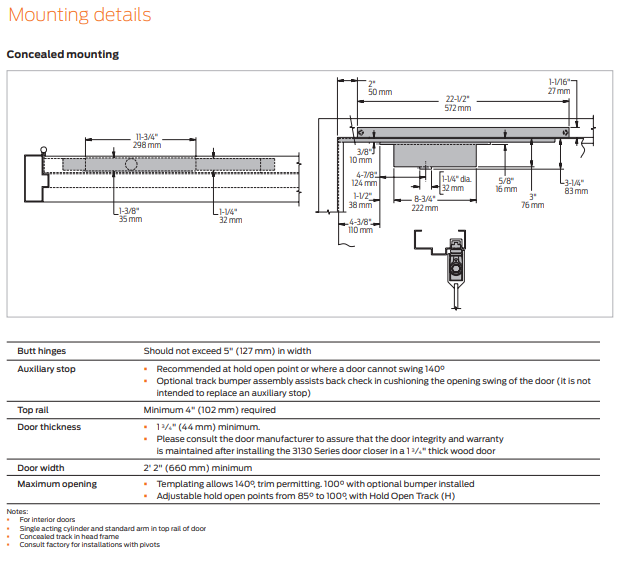

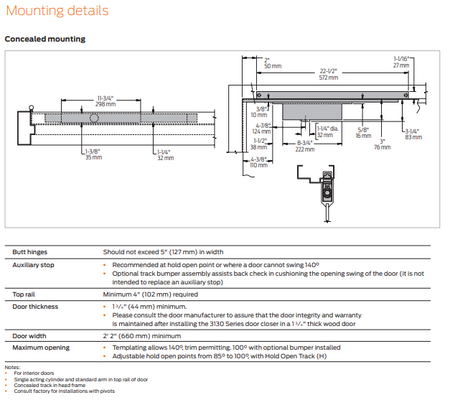

  • Aluminum frame requires minimum 1 3/4” (44 mm) x 4” (102 mm) tube
  • Closers to meet ADA requirements
  • Standard or optional custom powder coat finish
  • Optional plated finish on arm, fasteners and finish plate
