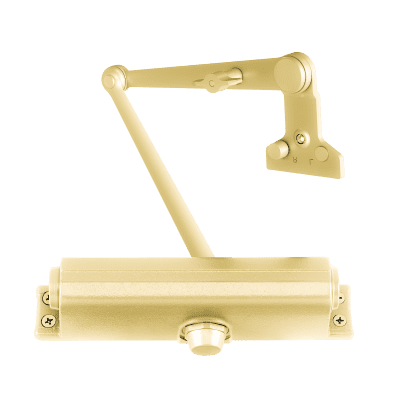

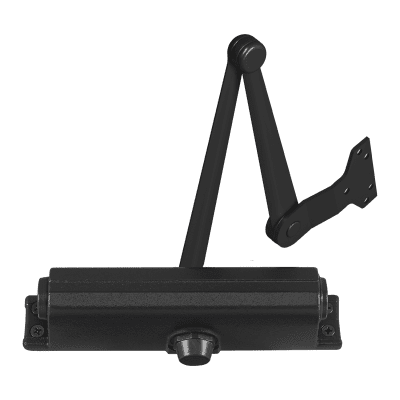

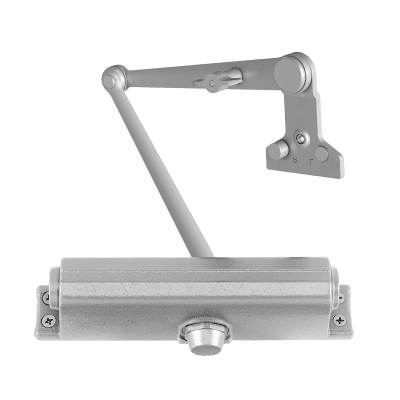

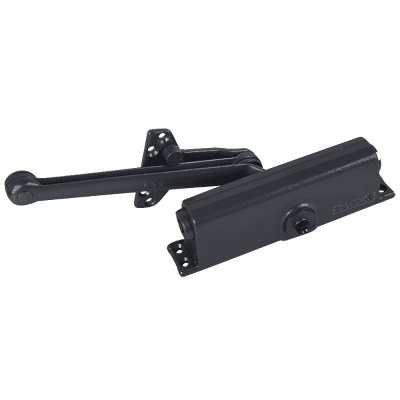

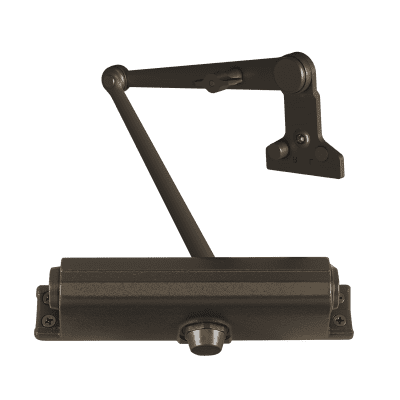

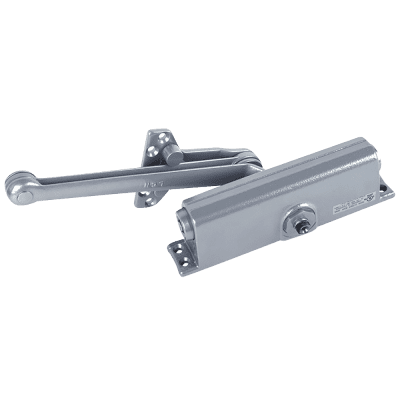

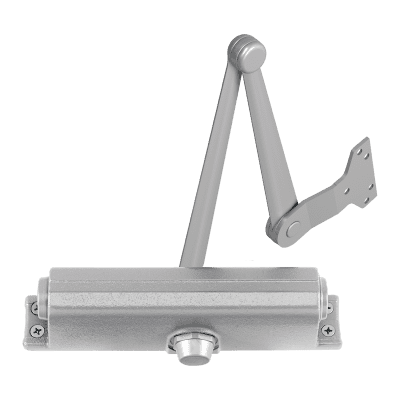

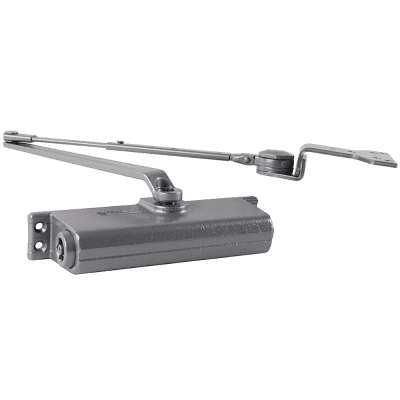

LCN 1261 Standard RW/PA Arm Door Closer 1260 Series

by LCN
$ 143.00
The LCN 1260 Series combines the best features from the previous 1070 and 1370 into a single versatile and economical cast iron closer, with dual mounting capability. The 1260 is adjustable spring sizes 1-5 and mounts to the most common commercial footprint. The 1260 also features a complete line of regular and extra duty arms and LCN's peel-n-stick installation templates.

UL and cUL listed for self-closing doors without hold-open. Tested and certified under ANSI Standard A156.4, grade one.

Features Common to 1000 Series

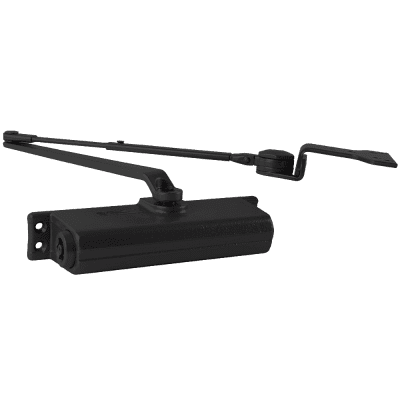

  • 1000 series closers mount three ways. Closers with regular or hold-open arm mount hinge side or top jamb. Parallel arm, designated with a "P", closers include - 62PA SHOE required for parallel arm mount. 1460T mounts hinge side, top jamb (pull side) and stop face.
  • Non-handed for right and left swinging doors
  • Closers to meet ADA reduced opening for requirements
  • Adjustable hydraulic backcheck cushions opeing swing prior to 90 degrees
  • Separate regulation of general closing speed and latching speed
  • Joints in arm and shoe adapt to uneven trim
  • Reversible shoe to boost latching power on double lever arms
Specifications
  • Standard 1260 series closer shipped with regular arm, a shaft cover, and self reaming and tapping screws. See 1260 Series catalog pages 8-9 for options
  • Non-sized (1-5) cylinder is adjustable for interior doors to 4’6” and exterior doors to 3’6”
  • Closer mounts hinge side, top jamb and parallel arm on either right or left swinging doors
  • Mounts to most common commercial footprint (3/4” x 9 1/16”)
  • Closer meets ADA requirements. See 1260 Series catalog page 10
  • Optional Quick Fix™ bracket kit
  • Standard or optional custom powder coat finish
  • Optional SRI primer for installations in corrosive conditions
  • Optional Slim Line cover
