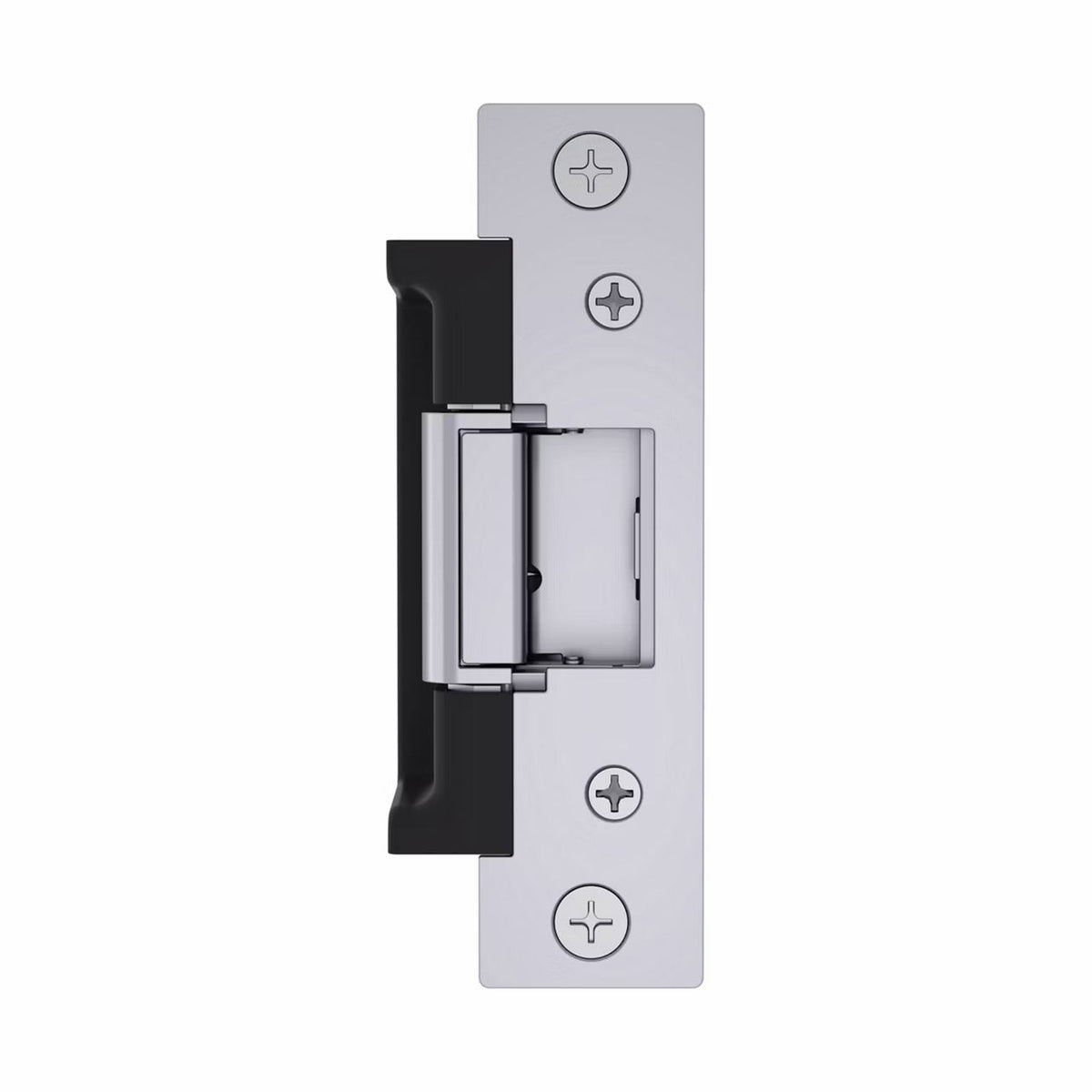

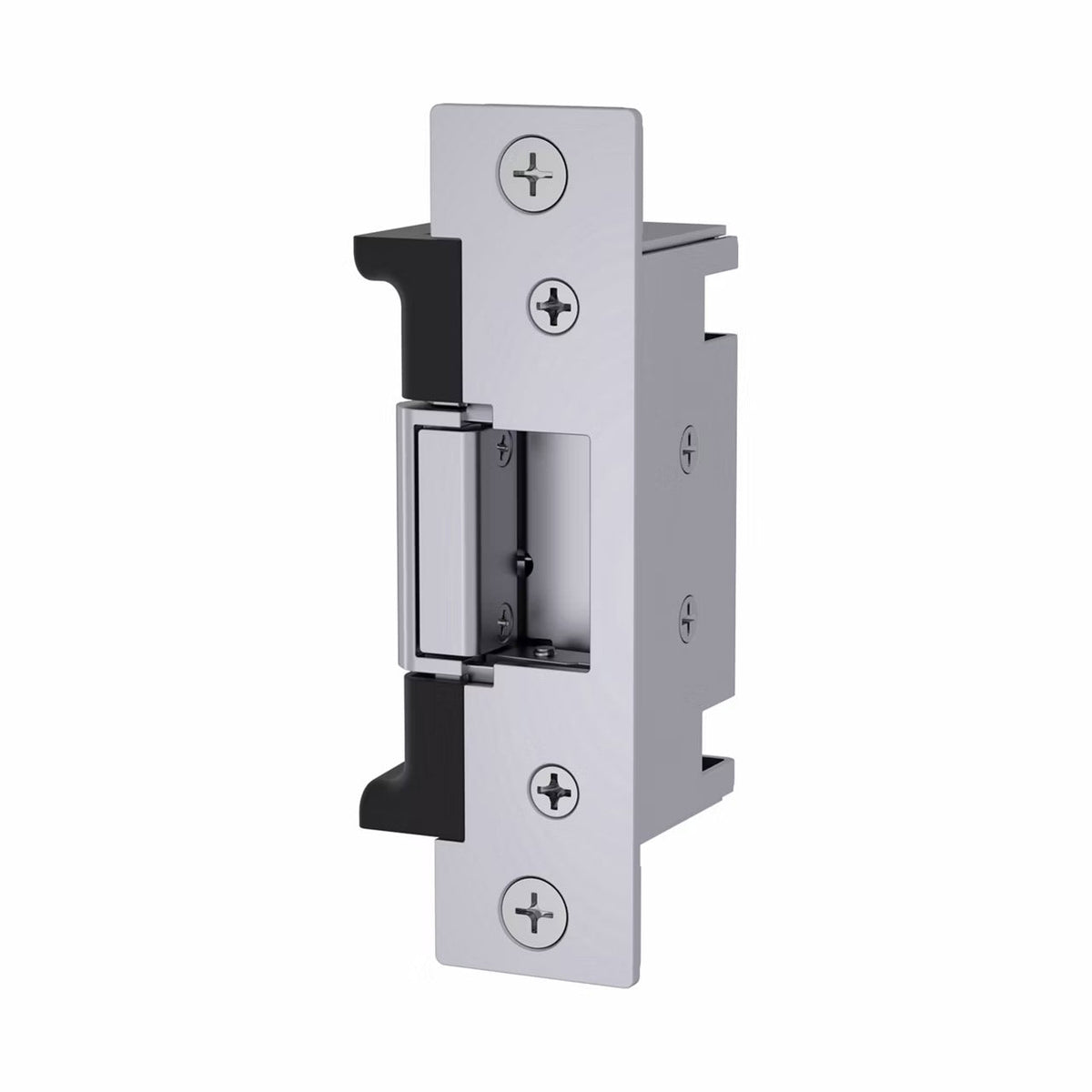

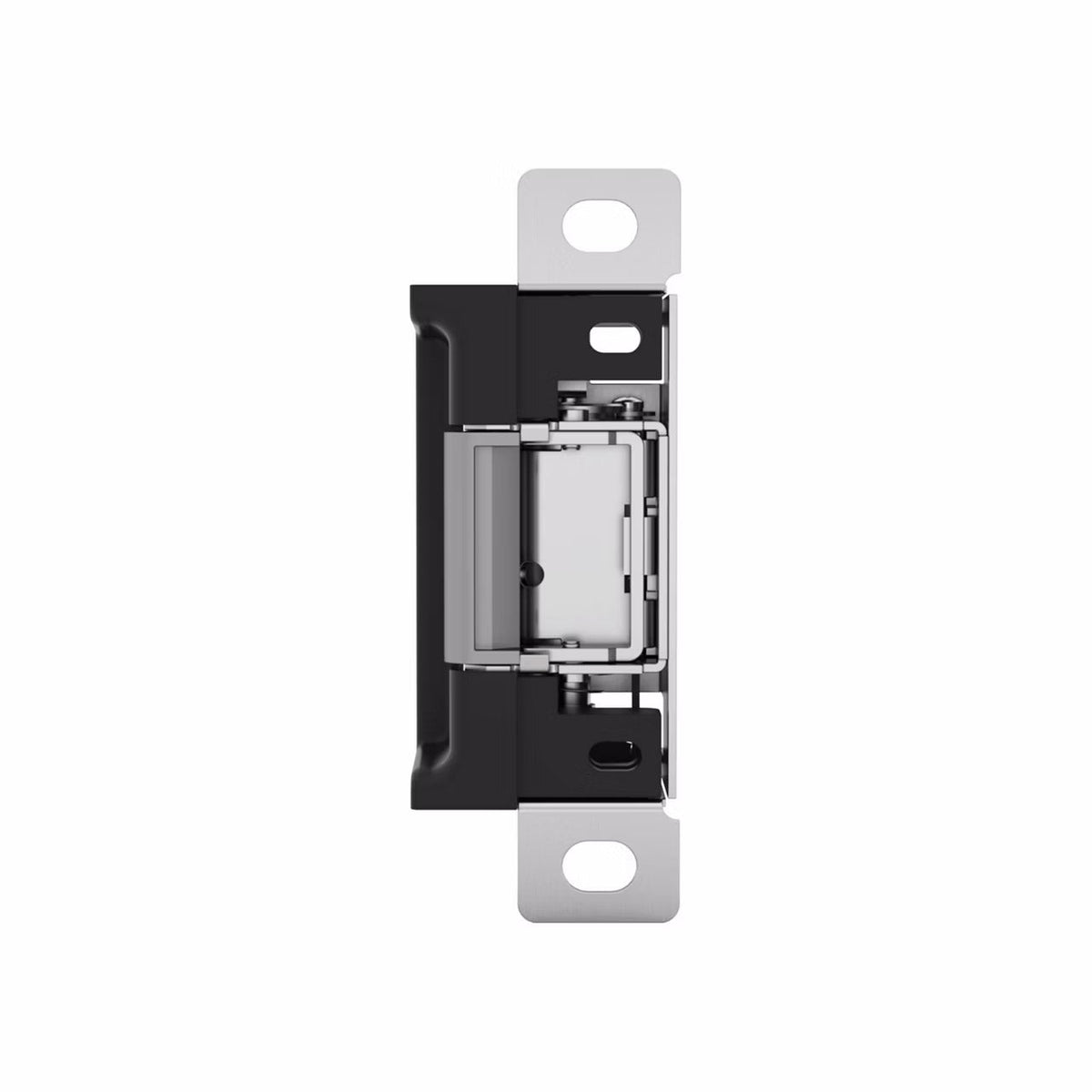

Hes 7000 Series Electric Strike

Hes 7000 Series Electric Strike

hes

  • 13400


Hes 7000 Series Electric Strike. Barzel Lock Stocks The 7000 Series In All Finishes & Options. Specifications

  • UL 1034, burglary-resistant listed
  • UL 294 (6th Edition) listed
  • ANSI/BHMA A156.31, Grade 1 (791 and 792 options)
  • ANSI/BHMA A156.31, Grade 2 (783S, 786S and 789S options)
  • MEA New York City accepted
  • Patent #5,484,180

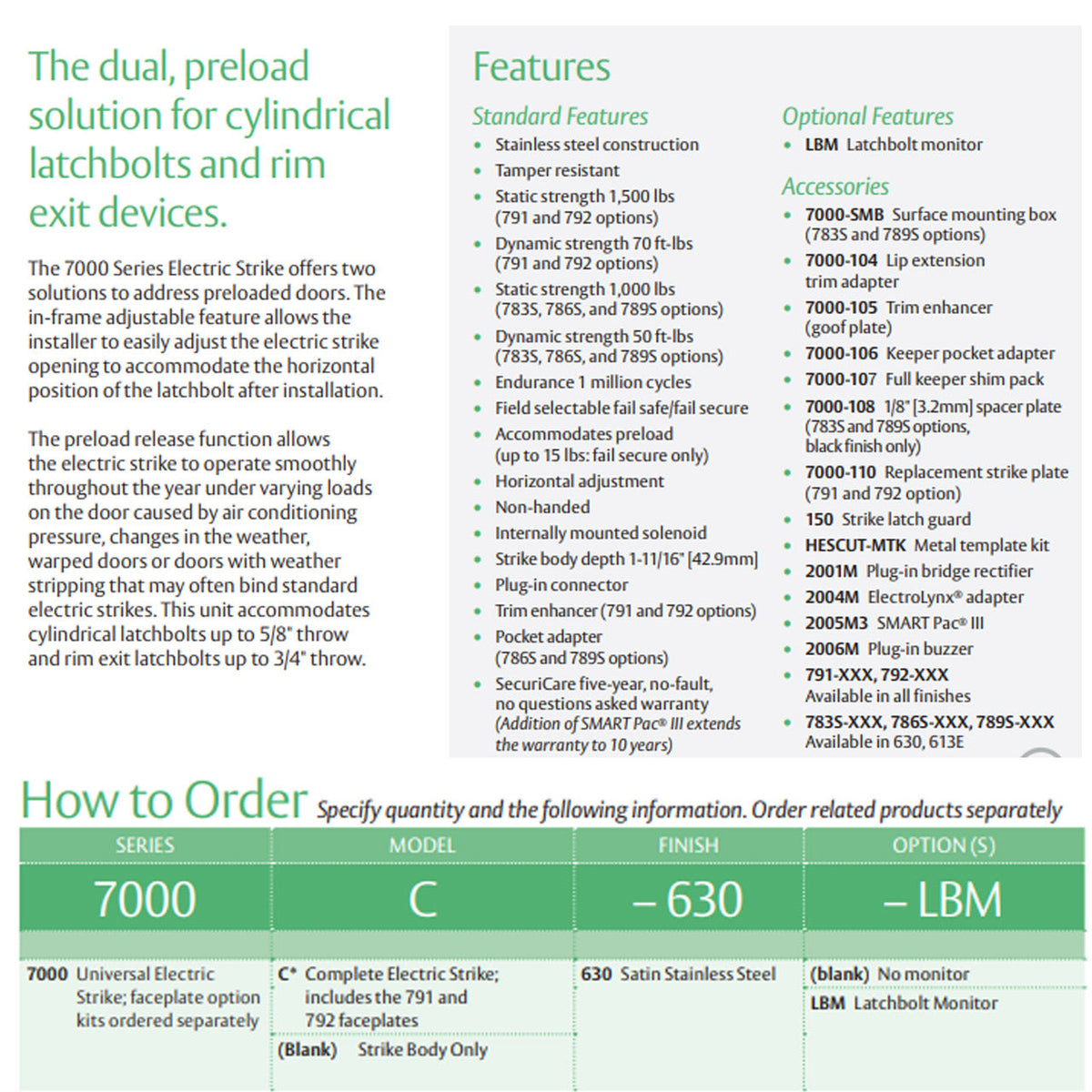

Hes 7000 Series Electric Strike Catalog

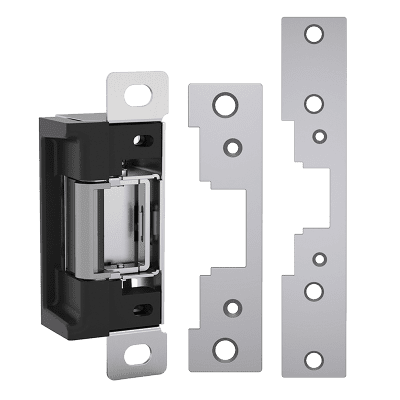

Faceplate Options

  • 791  (4-7/8" x 1-1/4") For use with Cylindrical locksets up to 5/8" throw. ANSI/BHMA Numbers: #E09322, #E09323
  • 792  (7-15/16" x 1-7/16") For use with cylindrical locksets up to 5/8" throw. ANSI/BHMA Numbers: #E09322, #E09323
  • Please Contact Us For Other Faceplates At 212-677-7530 or Sales@Barzellock.com

Standard Features

  • Stainless steel construction
  • Tamper resistant
  • Static strength 1,500 lbs. (791 and 792 options)
  • Dynamic strength 70 ft-lbs. (791 and 792 options)
  • Static strength 1,000 lbs. (783S, 786S and 789S options)
  • Dynamic strength 50 ft-lbs. (783S, 786S and 789S options)
  • Endurance 500,000 cycles
  • Field selectable fail secure/fail safe
  • Accommodates pre-load (fail secure only)
  • Horizontal adjustment
  • Non-handed
  • Internally mounted solenoid
  • Strike body depth 1-11/16"
  • Plug-in connector
  • Trim enhancer (791 and 792 options)
  • Pocket adapter (786S and 789S options)
  • Three year limited warranty
