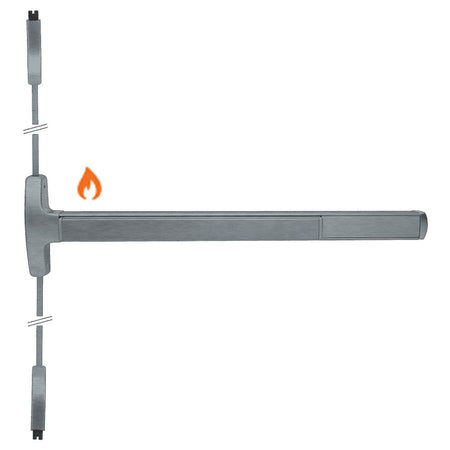

Falcon F-24-V Fire Rated Vertical EO Rod Exit Device

Falcon F-24-V Fire Rated Vertical EO Rod Exit Device

Falcon

  • 75800

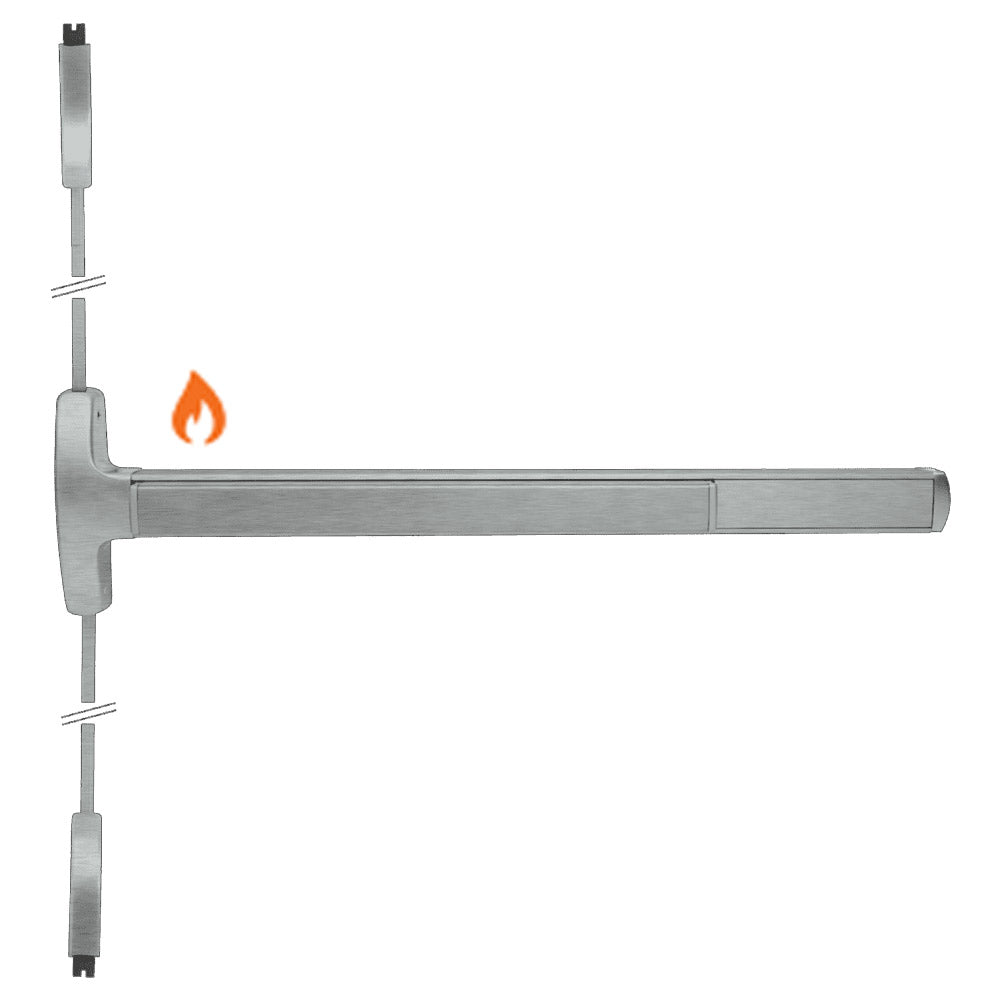

Falcon F-24-Vertical EO Rod Exit Device. Panic exit hardware High-traffic applications demand the added strength and protection that comes with a vertical rod device. The Falcon 24-V Series delivers with a surface-applied design that includes standard top latch and deadlocking. The narrow stile and sleek touch bar design ensure an attractive installation.

Hand: Field reversible

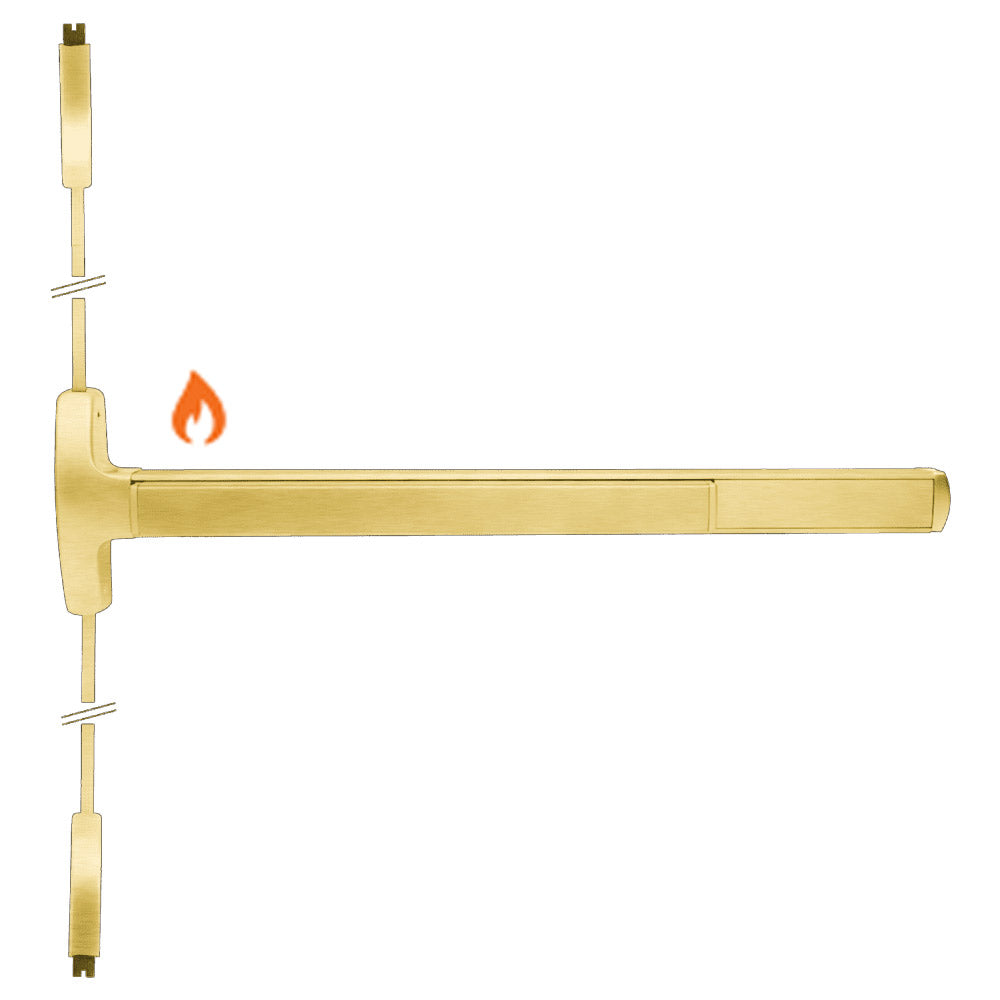

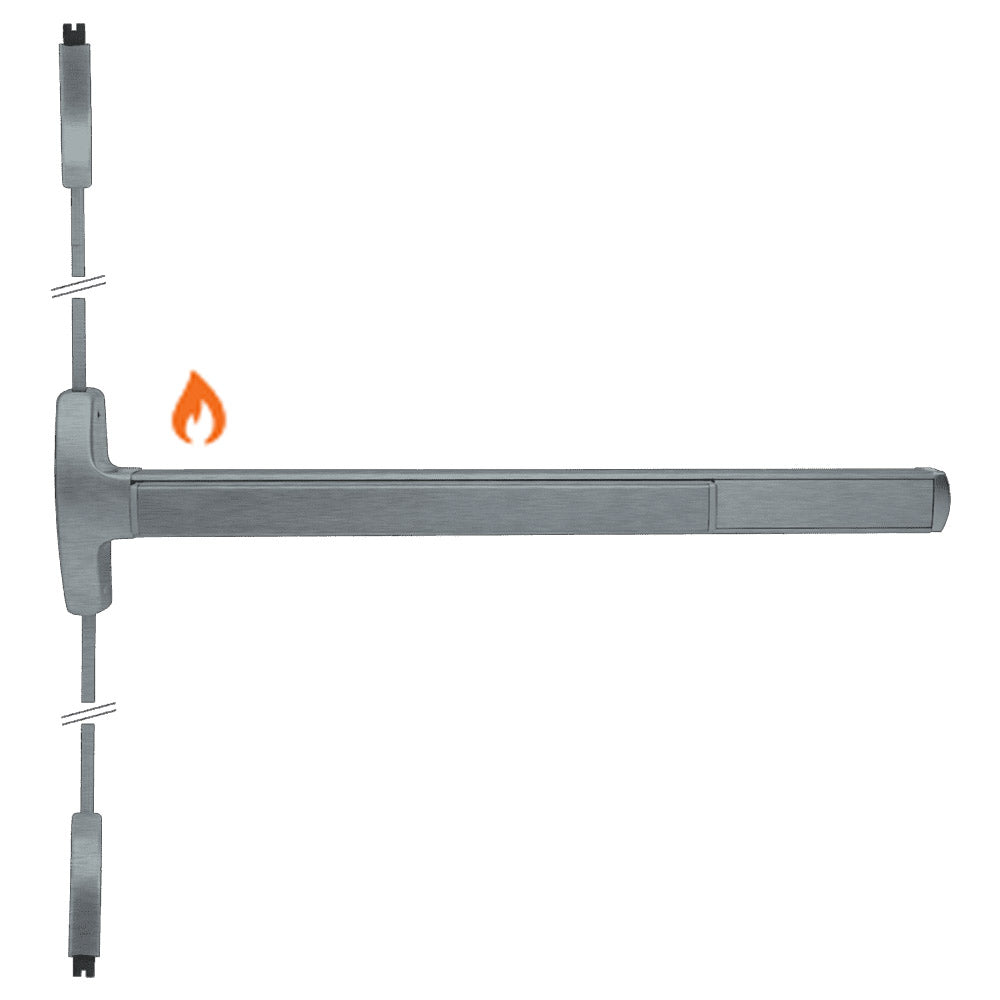

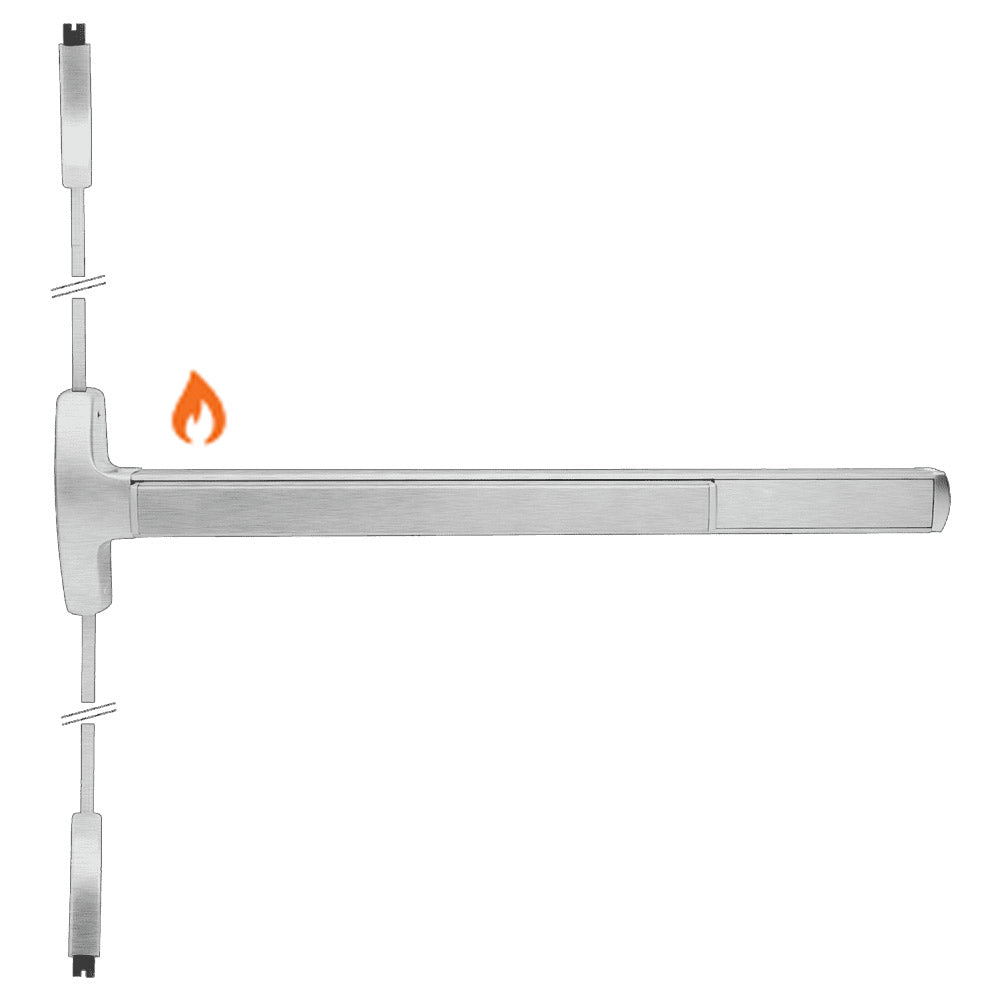

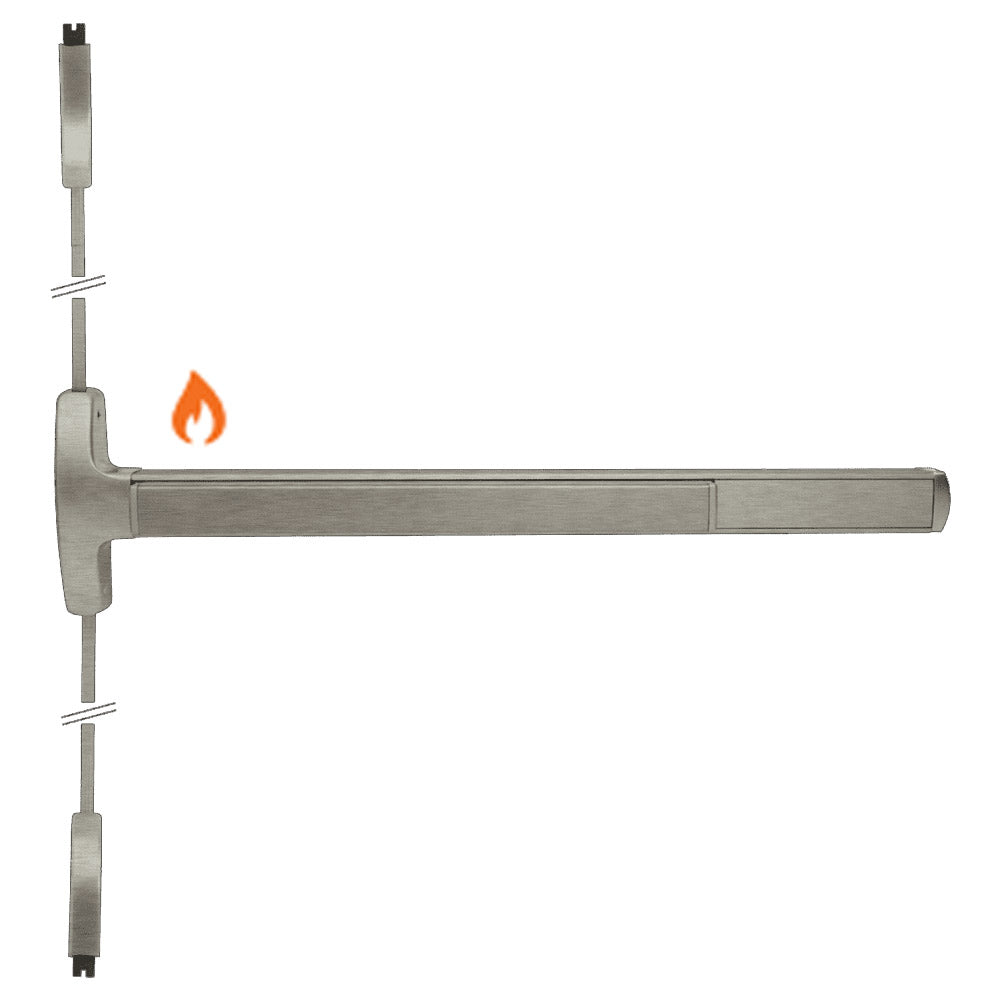

Finishes: US3 (605); US4 (606); US10 (612); US26 (625); US26D (626); US32 (629); US32D (630); US28 (628), 313AN. Contact Us For Finishes Not In The Finish Options At 212-677-7530.

UL: “A” Label (3 hr) - double egress - 8' x 10'; 90 min. same egress - 8' x 10'. Wood door: 20 min. 8' x 10'; 90 min. 8' x 9'. Consult door manufacturer for maximum rating.

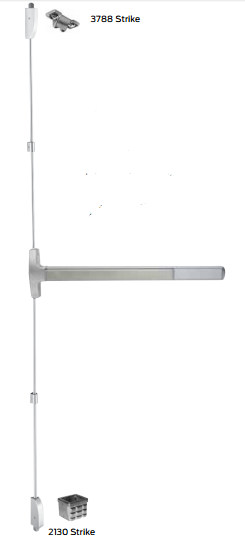

Strikes: 3788 top strike is surface applied, 2130 bottom strike is mortised into floor.

Angle Bracket: Use 4215 angle bracket in flush transom installations. Allow use of standard 3788 strike.

Latchbolt: Top stainless steel, top latch 3⁄4" throw, bottom bolt 1 ⁄2" throw.

Deadlocking latchbolt: Standard with top latch

Latch retention hold: Standard with top latch. On top latch.

Doors: 1 3⁄4" thick, wood or metal. Specify thickness if other than 1 3⁄4" thick.

Projections: 2 3⁄4" maximum, 2" dogged.

Stile: 1 3⁄4” minimum when used in pairs.

Fasteners: All mounting screws are concealed, sheet metal screws standard, machine screws available, specify AMS.

Sex bolts: Recommended when device is used with hollow core wood, composite or light gauge hollow metal doors. For EO device, specify 8 - 425 (#10-24) SNB and 2 - 325 (1 ⁄4"-20) SNB. For devices with trim, specify 8 - 425 (#10-24) SNB.

ANSI: Certified ANSI A156.3-2001 grade 1 standards

Vertical rods: Furnished to length based on a 40" horizontal CL from finished floor and a 7'0" door standard. Variations from these standards must be specified when ordering.
