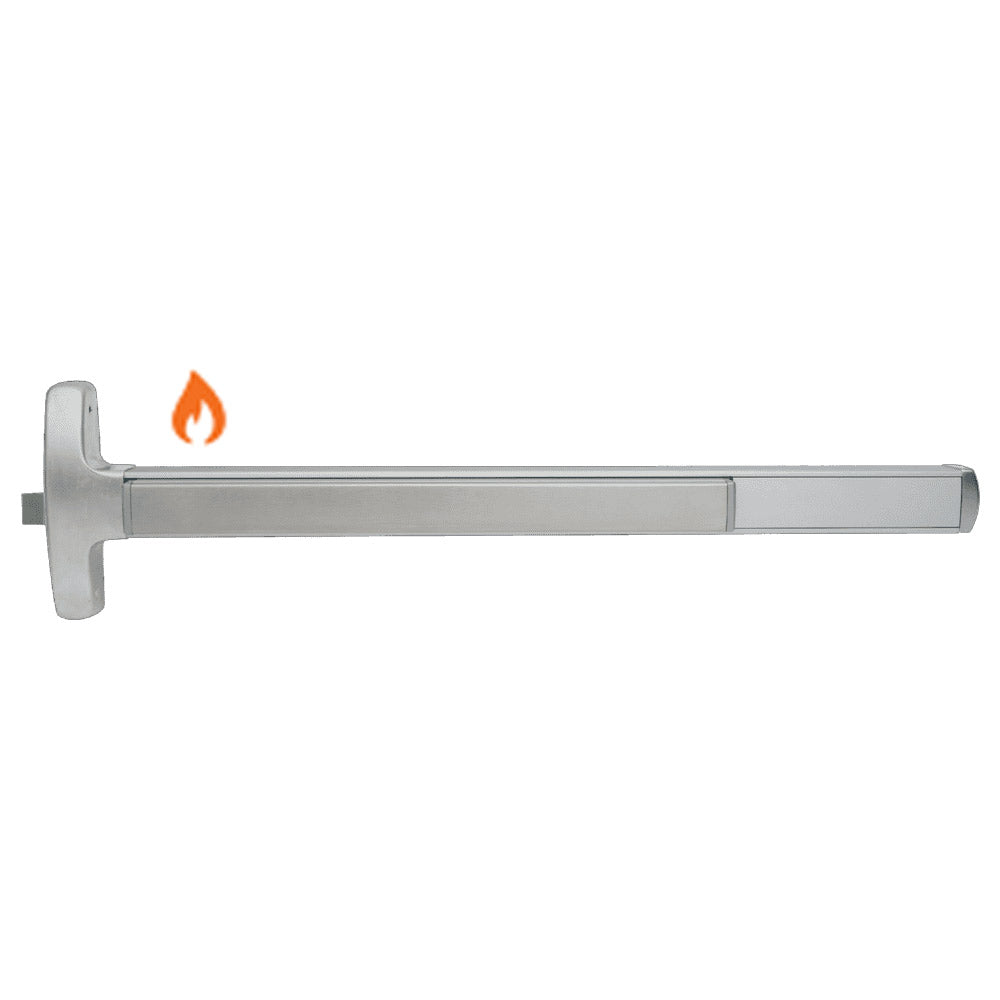

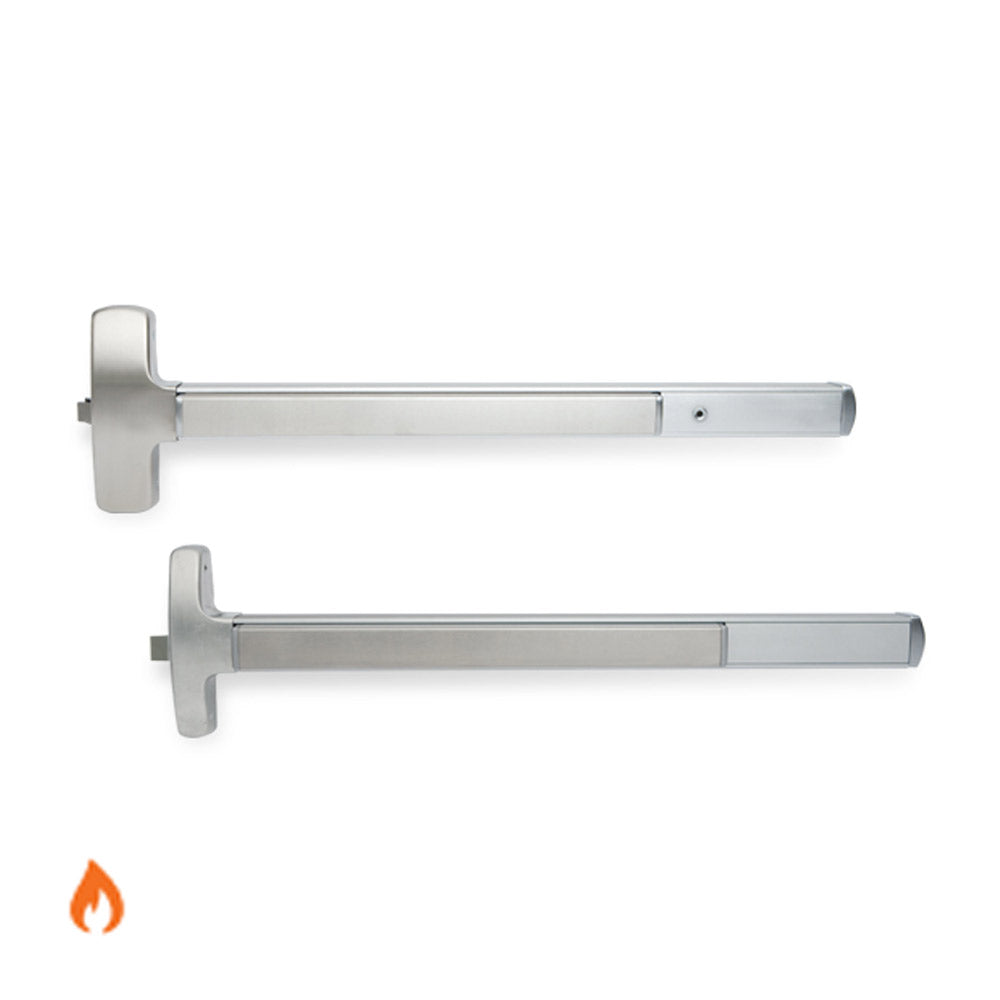

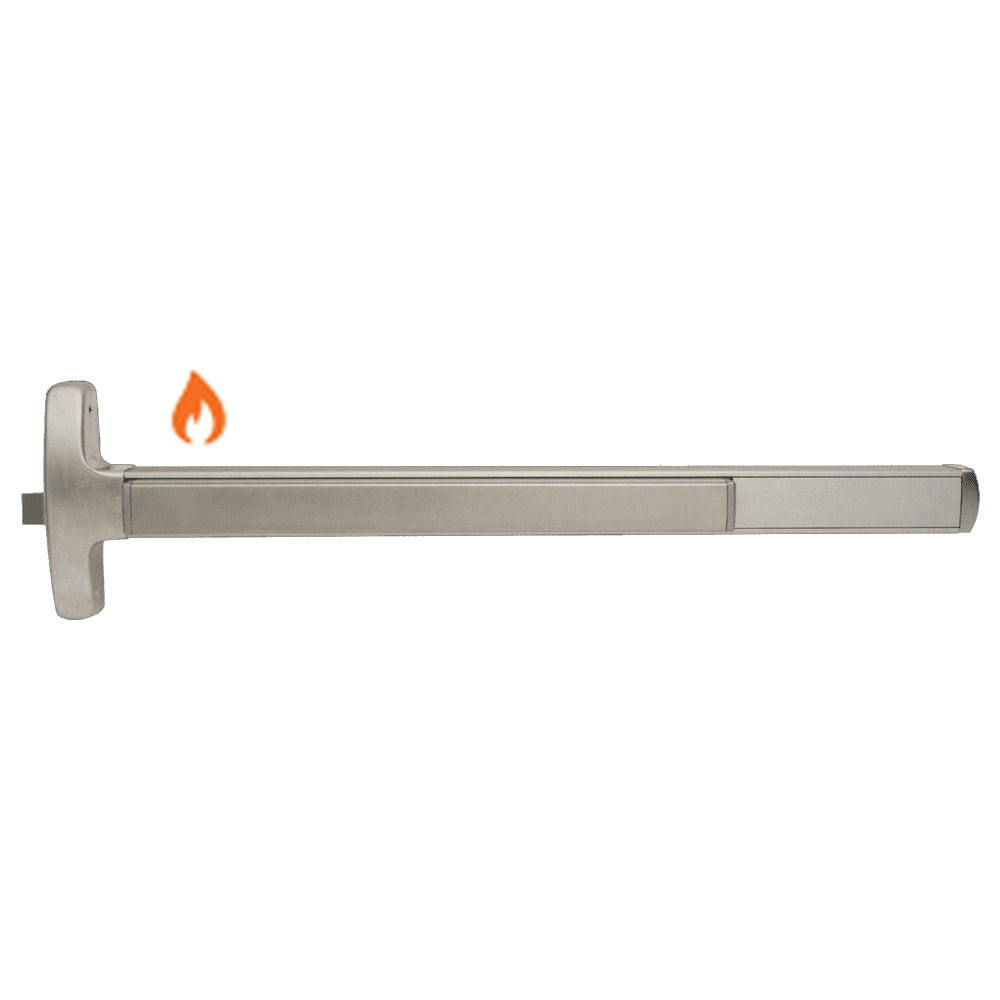

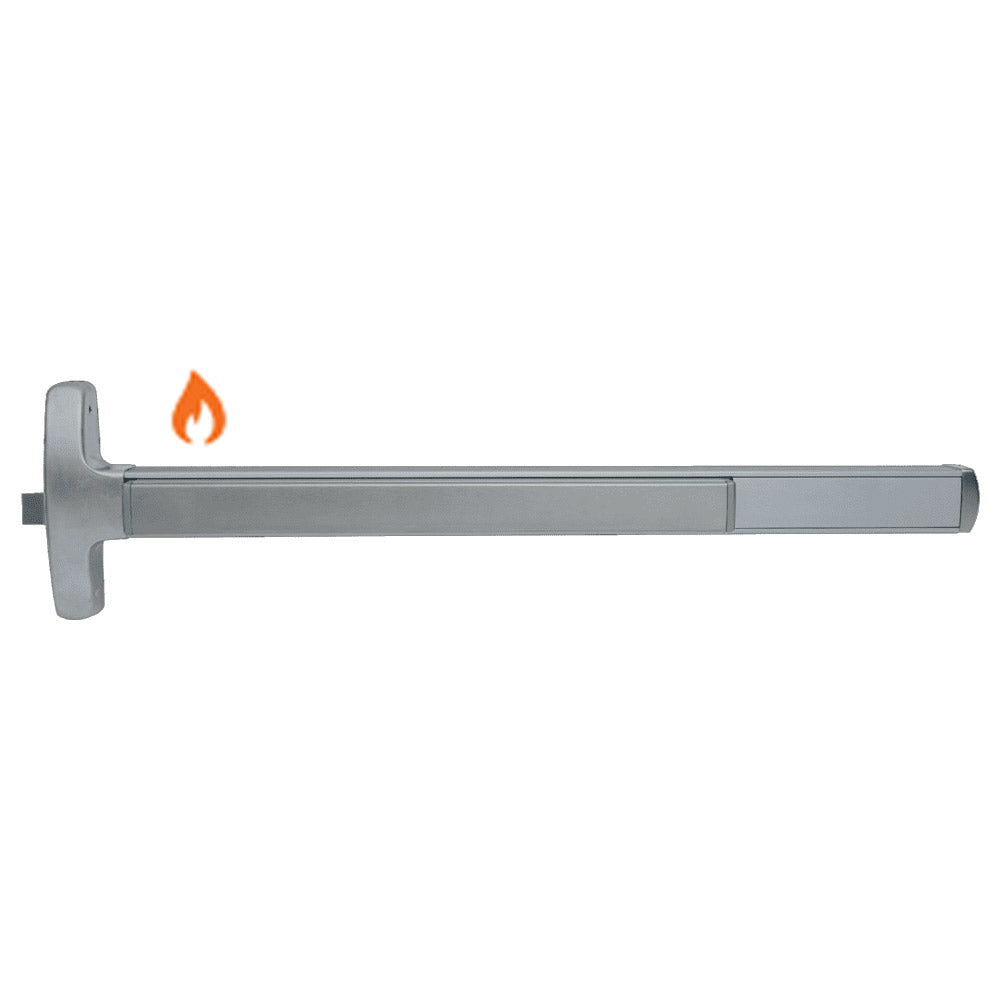

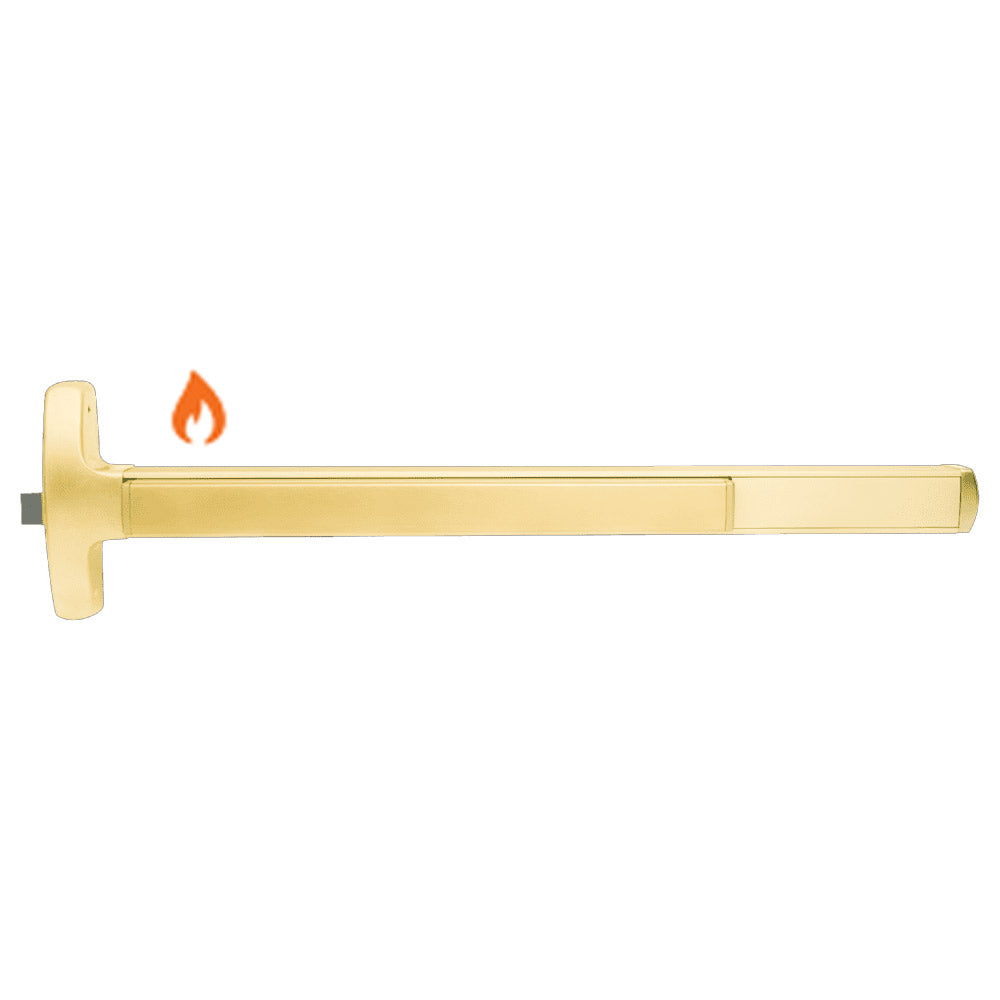

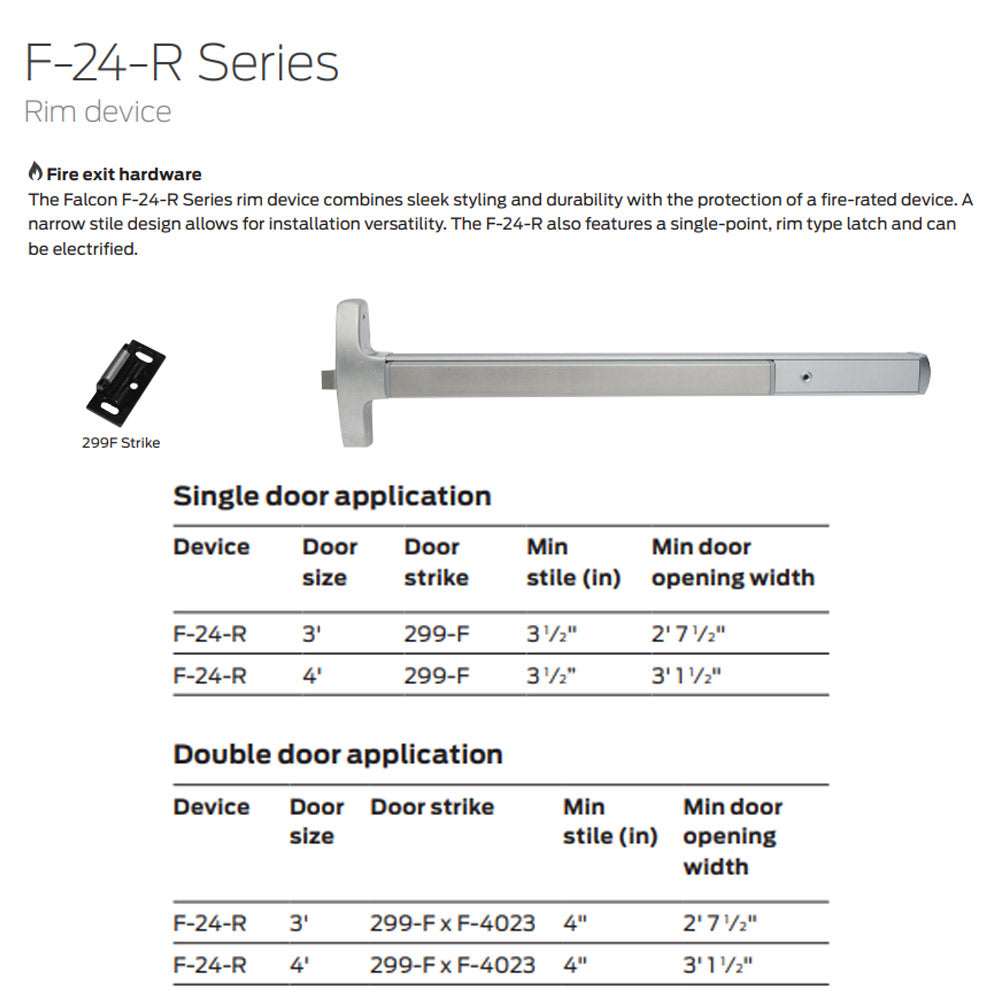

Falcon F-24-R Fire Rated Rim Touch Bar Exit Device

by Falcon
$ 623.00
Falcon F-24-R Fire Rated Rim Touch Bar Exit Device. Offices, banks, assisted living facilities, retail stores and other commercial buildings have constant traffic, so door hardware must be able to take continual use and abuse. The Falcon 24 Series exit devices fit the bill with some of the toughest, most reliable performance in the business. A host of features makes this a smart solution, like a choice of an A or B label fire rating, electrified and panic options, and a full complement of trims. Sleek, streamlined styling and narrow stile device applications means a smart solution for your building design, as well as its use. And since they’re backed by one of the best names in the business, you can be sure you’re getting the utmost value, reliability and durability.

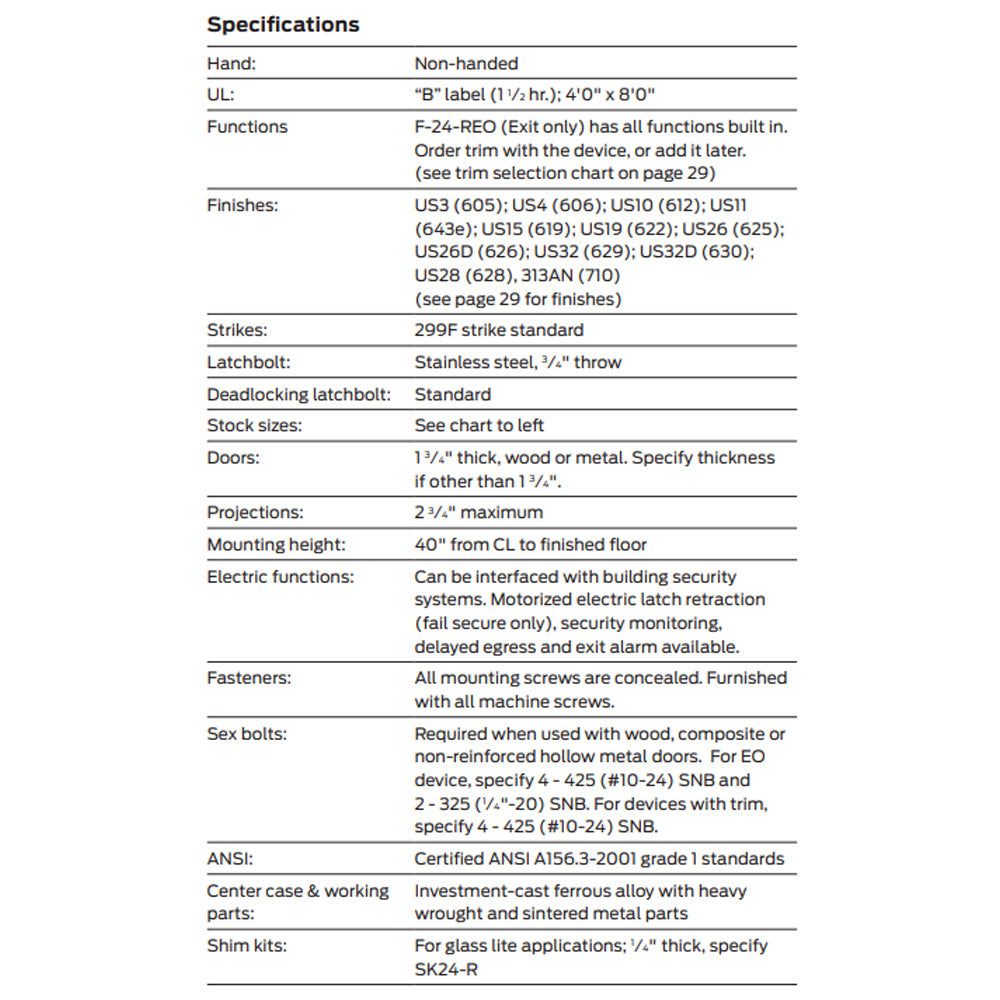

Hand: Non-handed UL: “B” label (1 1 ⁄2 hr.); 4'0" x 8'0".
Functions F-24-REO (Exit only) has all functions built in. Order trim with the device, or add it later.
Finishes: US3 (605); US4 (606); US10 (612); US26 (625); US26D (626); US32 (629); US32D (630); US28 (628), 313AN. Contact Us At 212-677-7530 For Finishes That Are not In Our Finish Option.
Strikes: 299F strike standard.
Latchbolt: Stainless steel, 3⁄4" throw.
Deadlocking latchbolt: Standard.
Doors: 1 3⁄4" thick, wood or metal. Specify thickness if other than 1 3⁄4".
Projections: 2 3⁄4" maximum.
Mounting height: 40" from CL to finished floor.
Fasteners: All mounting screws are concealed. Furnished with all machine screws.
Sex bolts: Required when used with wood, composite or non-reinforced hollow metal doors. For EO device, specify 4 - 425 (#10-24) SNB and 2 - 325 (1 ⁄4"-20) SNB. For devices with trim, specify 4 - 425 (#10-24) SNB.
ANSI: Certified ANSI A156.3-2001 grade 1 standards.
Center case & working parts: Investment-cast ferrous alloy with heavy wrought and sintered metal parts

Features and Benefits
  • Streamlined design includes flush-end cap for clean lines and a more attractive installation
  • Stainless steel pushpad cover for a scratch-resistant surface
  • Clean design with no exposed screws or rivets on the back of the device
  • Patent-pending deadlocking technology ensures reliable security
  • One trim input design for maximum versatility
  • Extruded aluminum construction delivers greater strength and impact resistance
