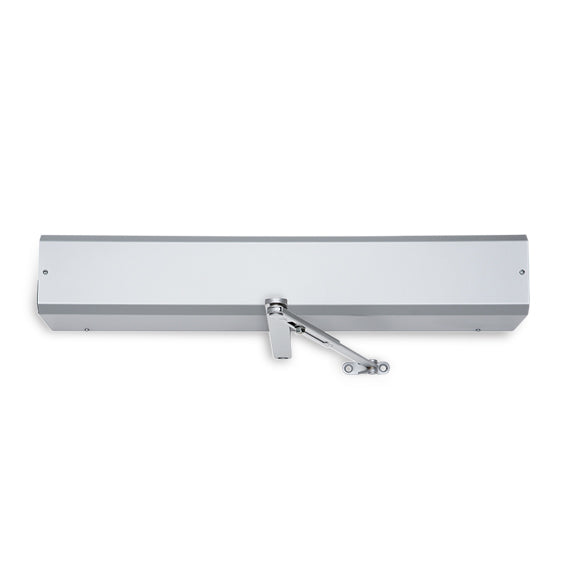

Falcon 8242 Automatic Operators - Push Side Mount 689 Finish
Makes automation possible for more openings
Only the Falcon 8200 Series has been specially designed to fit in low to moderate traffic applications at an entry-level price point. This makes it easier and more affordable to configure accessible interior openings throughout a facility.
Standared features for easy operation
- SmartLatch - Senses and overcomes external perssure conditions with a graduated energy assist for secure latching.
- Push'n'Go - Selectable feature allows door to open automatically as soon as it feels pressure.
- Open Position Learning - Automatically sets the opening position to eliminate wall and door damage.
- Obstacle Obstruction Detection - Safety feature stops and reverses door direction when distress or an obstruction is sensed.
- Pre-Load Strike Assist - Removes load on strike lip with a one second delay allowing the door to release and automatically open.
- LED Light Illumination - Light illumination on control box signals accurate installation and helps with connection diagnostics.
- On Board Power Supply (12 VAC) - Powers the accessories without the need to install an external power supply.
- Hold-open time delay
- Backcheck position
- Backcheck speed
- Opening/closing speed
- Aluminum powder coated steel cover makes the Falcon Operator aesthetic for any application.
- One piece mounting bracket eliminates the need for end caps to reduce parts and installation time.
- Intelligent control box provides the most precise door operation and includes adjustable features for all commercial applications.
- Non-handed motor gearbox uses mechanical controls and acts as size 3 closer in manual use.
- Mounting bracket contains fastening notches to reduce parts and allow for faster and easier installation.
- Header length - 26"
- Mounting - Surface Mount
- Handing - Non-handed
- Cycle Tested - 1 million gear box
