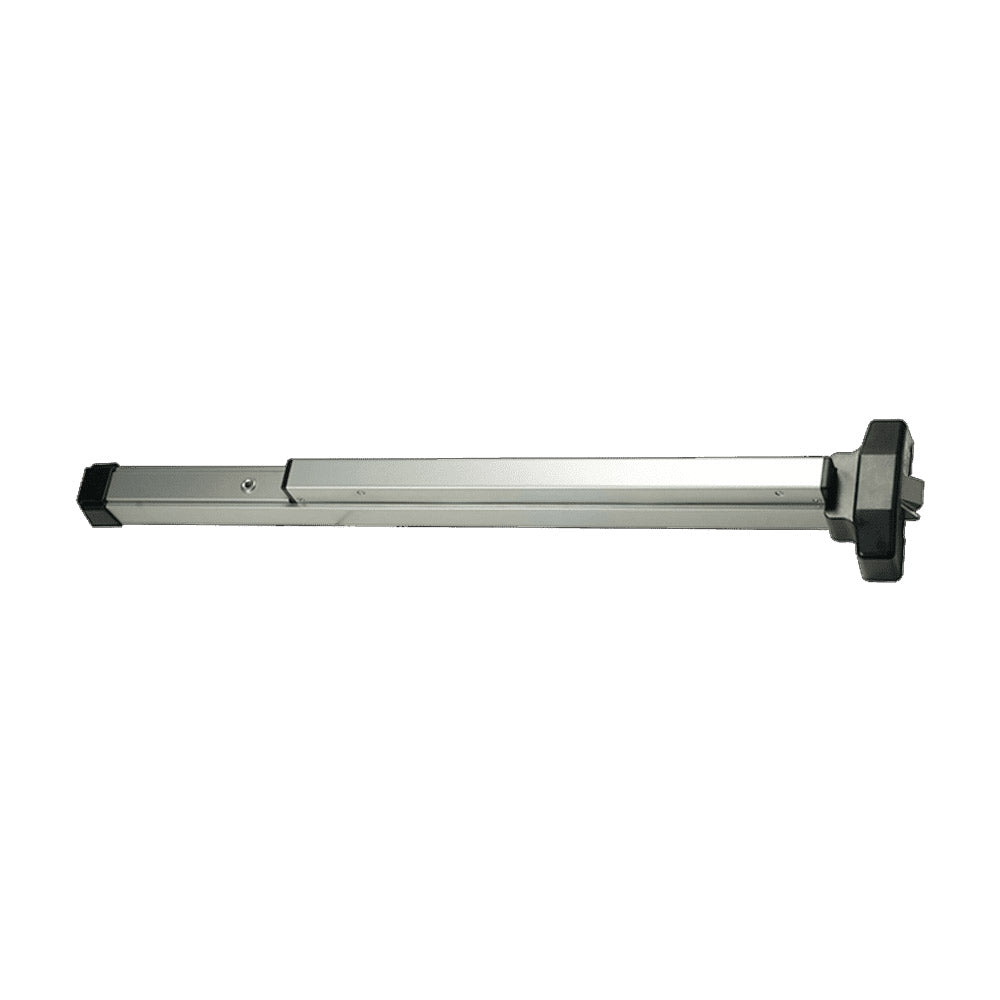

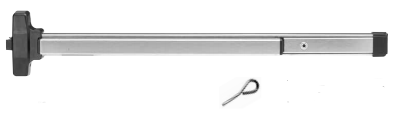

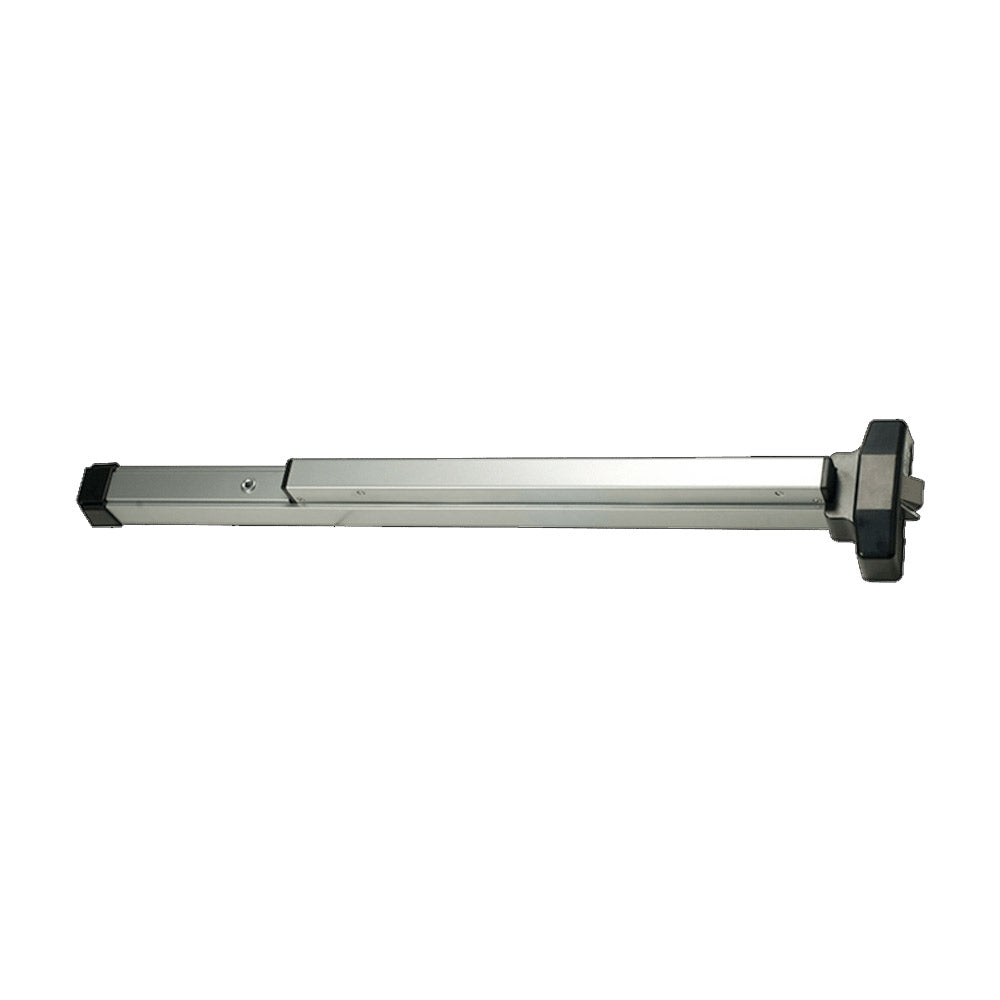

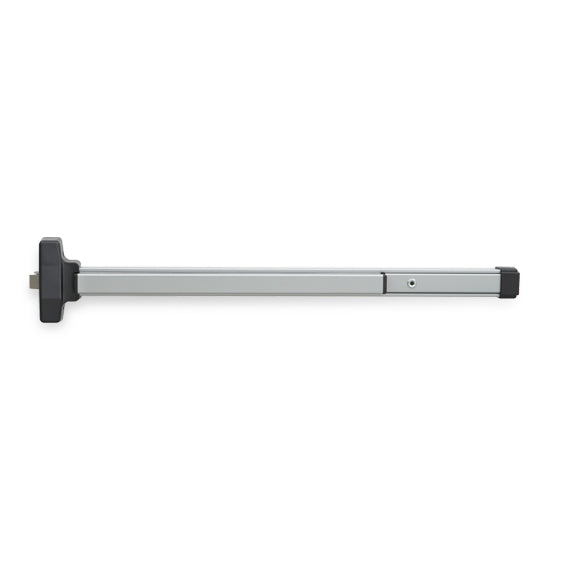

Falcon 19R EO Rim Touch Bar Exit Device With Fire Option
Falcon 19R EO Rim Touch Bar Exit Device With Fire Option. When low cost and dependability are essential, you can count on the Falcon 19 Series. The 19 Series is built to stand up in high traffic applications and is available with a wide variety of function options and a full complement of trim devices. And since it’s backed by one of the best names in the business you can be sure you’re getting the utmost value and reliability.

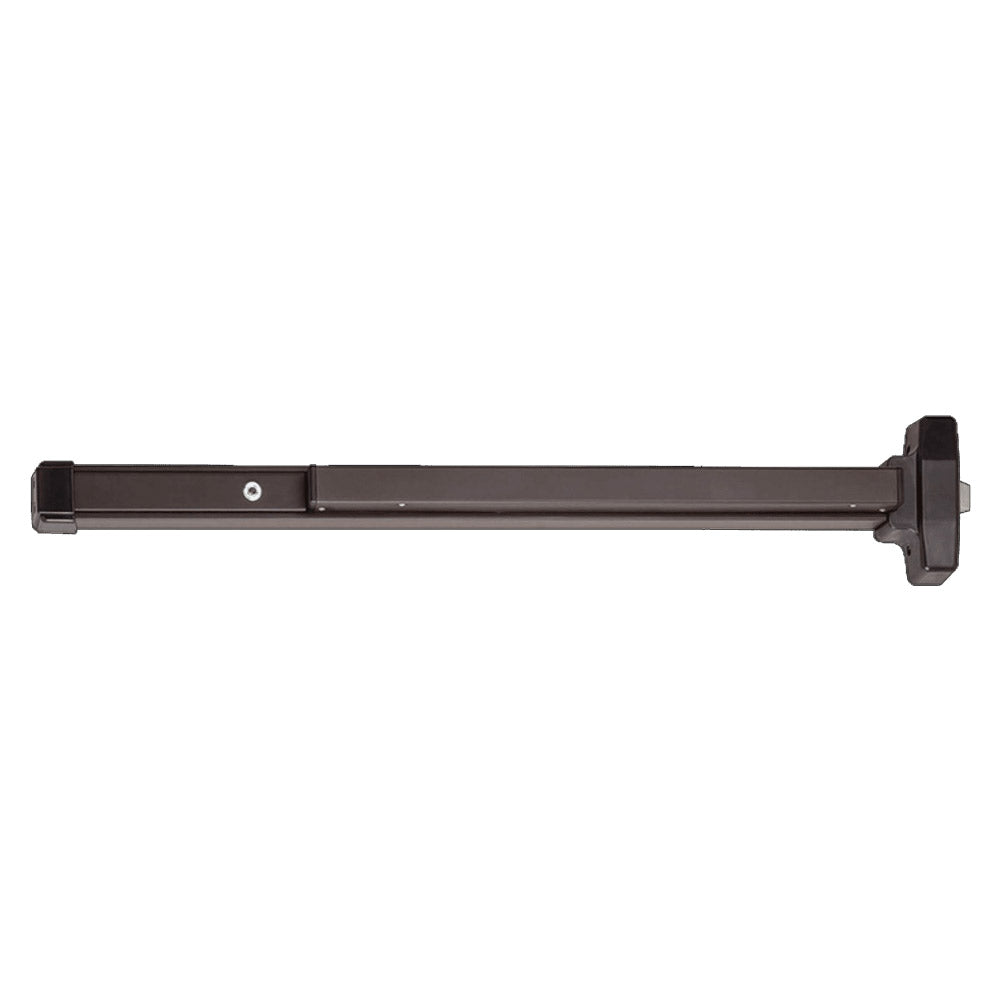

SP313-Dark Bronze Painted
US32D-Satin Stainless Steel
Centercase and end cap are powder-coated black only.

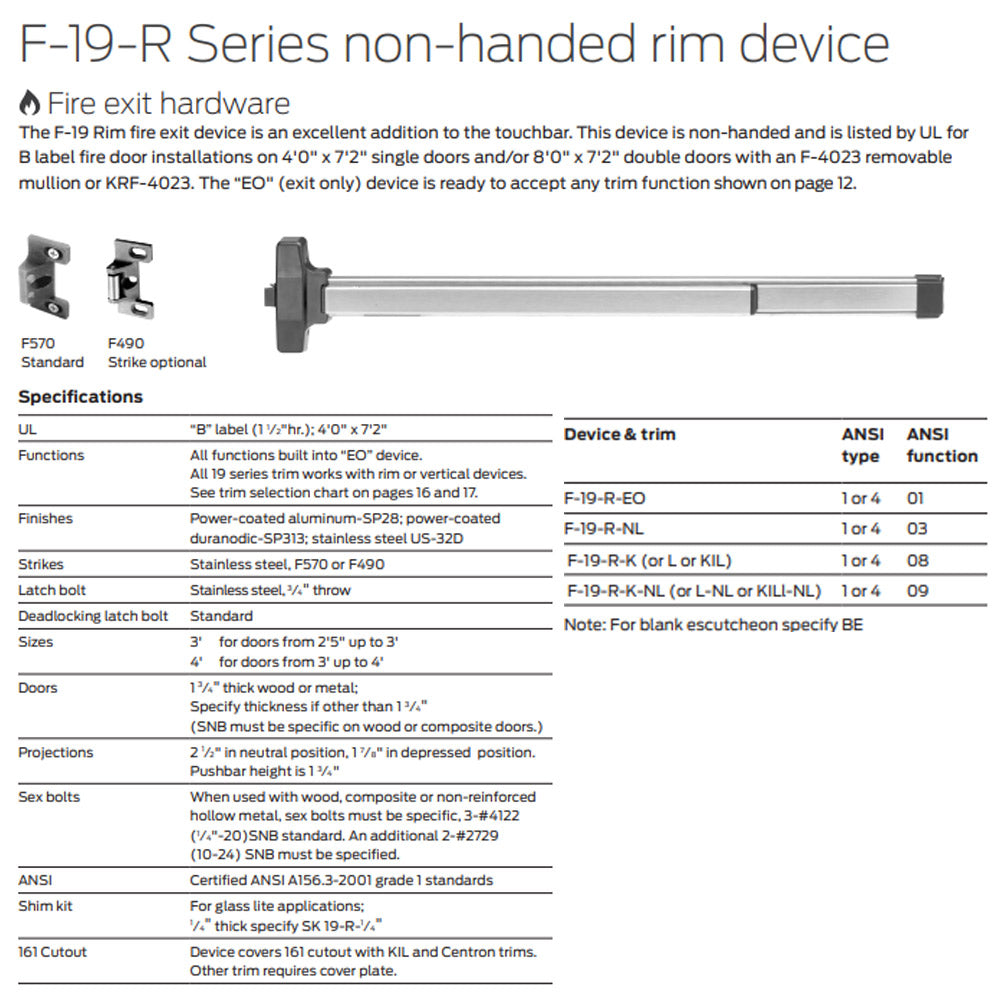

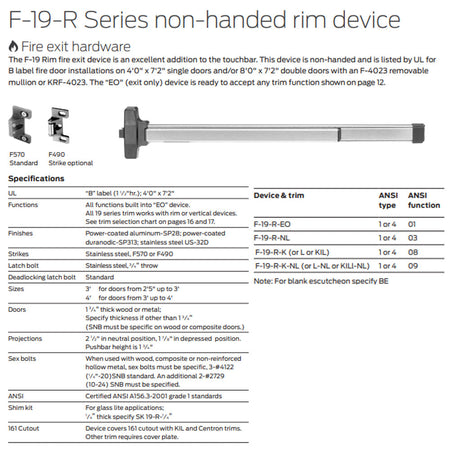

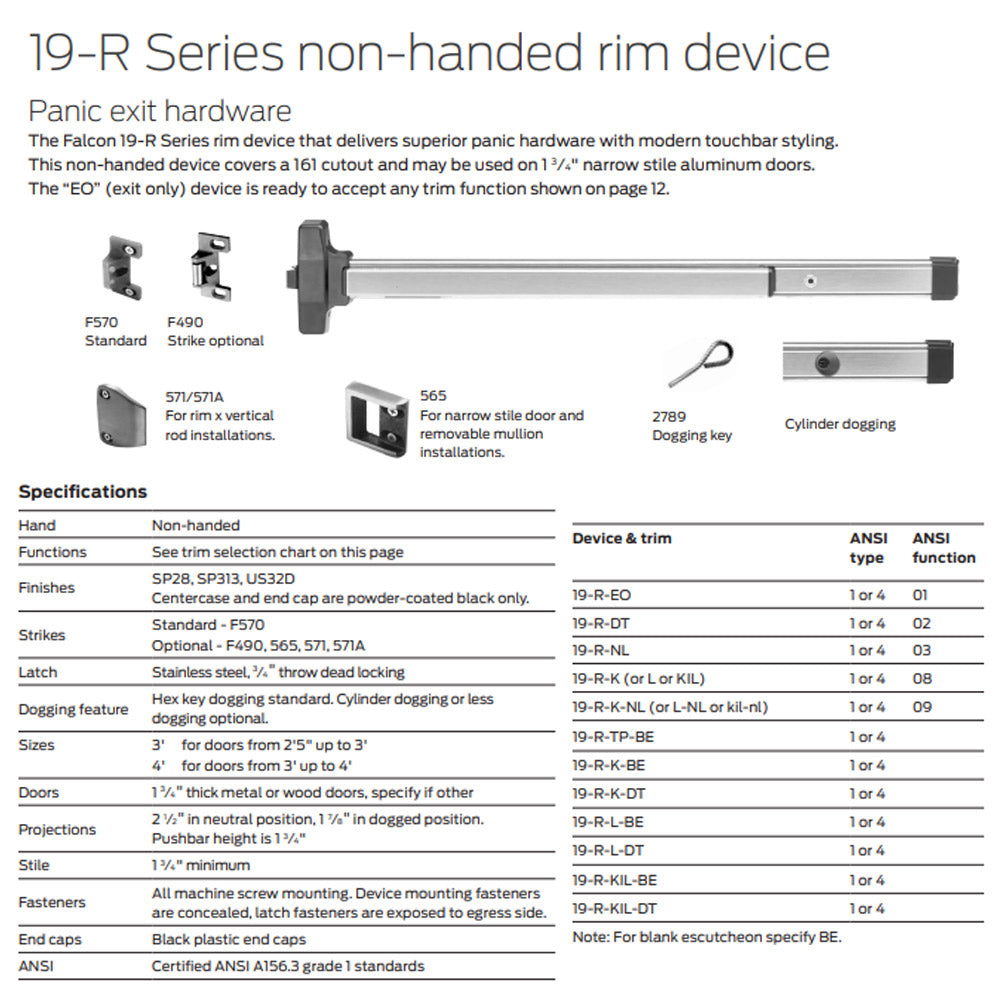

Specifications Hand: Non-handed.
Strikes: Standard - F570. Optional - F490, 565, 571, 571A.
Latch: Stainless steel, 3 ⁄4" throw dead locking.
Dogging feature: Hex key dogging standard. Cylinder dogging or less dogging optional.Contact Us For More Info.
Sizes: 3' for doors from 2'5" up to 3'. 4' for doors from 3' up to 4'.
Doors: 1 3 ⁄4" thick metal or wood doors, specify if other.
Projections: 2 1 ⁄2" in neutral position, 1 7 ⁄8" in dogged position. Pushbar height is 1 3 ⁄4".
Stile: 1 3 ⁄4" minimum.
Fasteners: All machine screw mounting. Device mounting fasteners are concealed, latch fasteners are exposed to egress side.
End caps: Black plastic end caps.
ANSI: Certified ANSI A156.3 grade 1 standards.
Features and Benefits
- ANSI Grade 1 rating
- Optional “B” label (1-1/2-hour) fire exit construction
- Available with a full complement of trims
