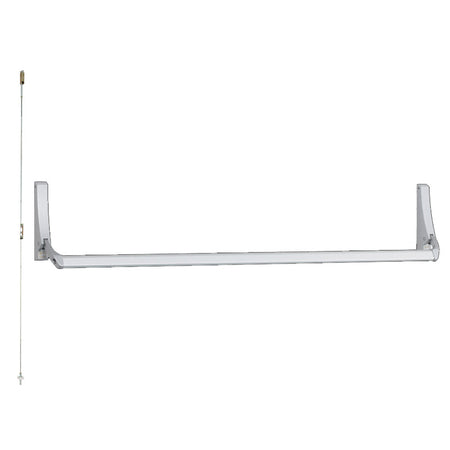

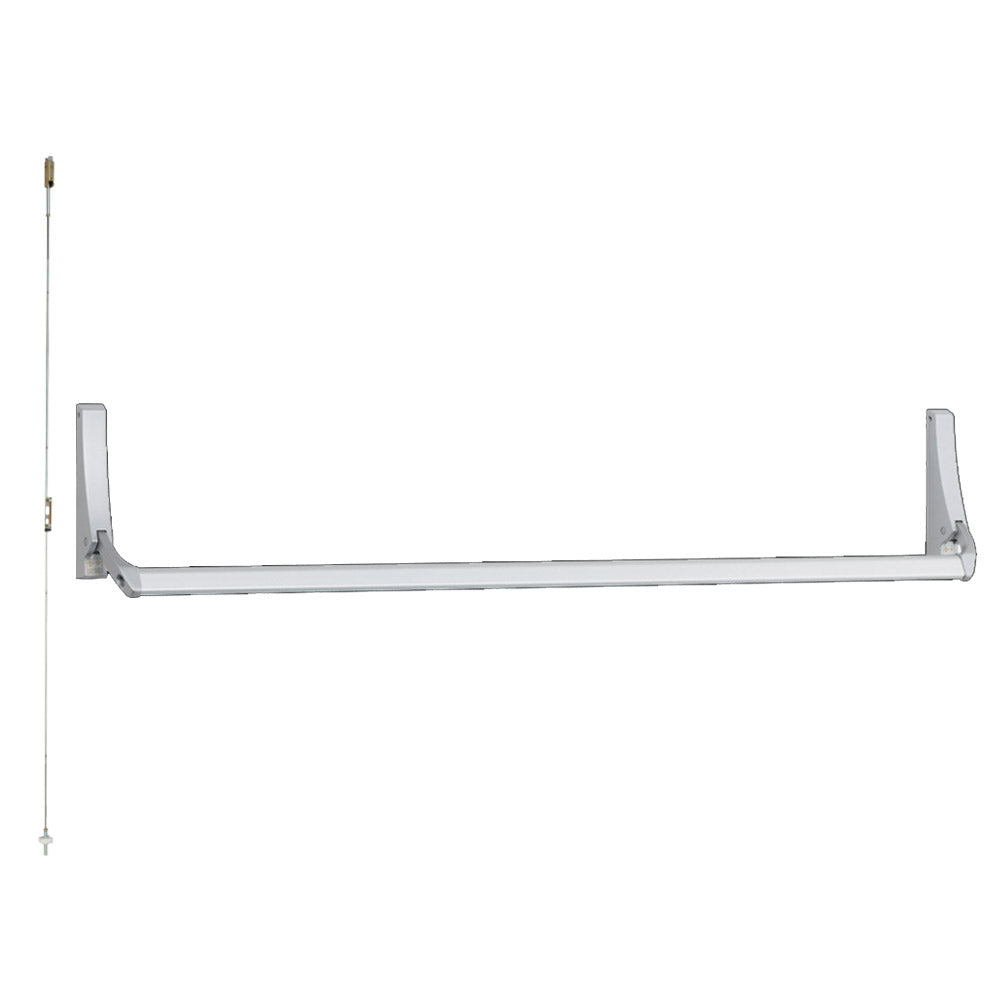

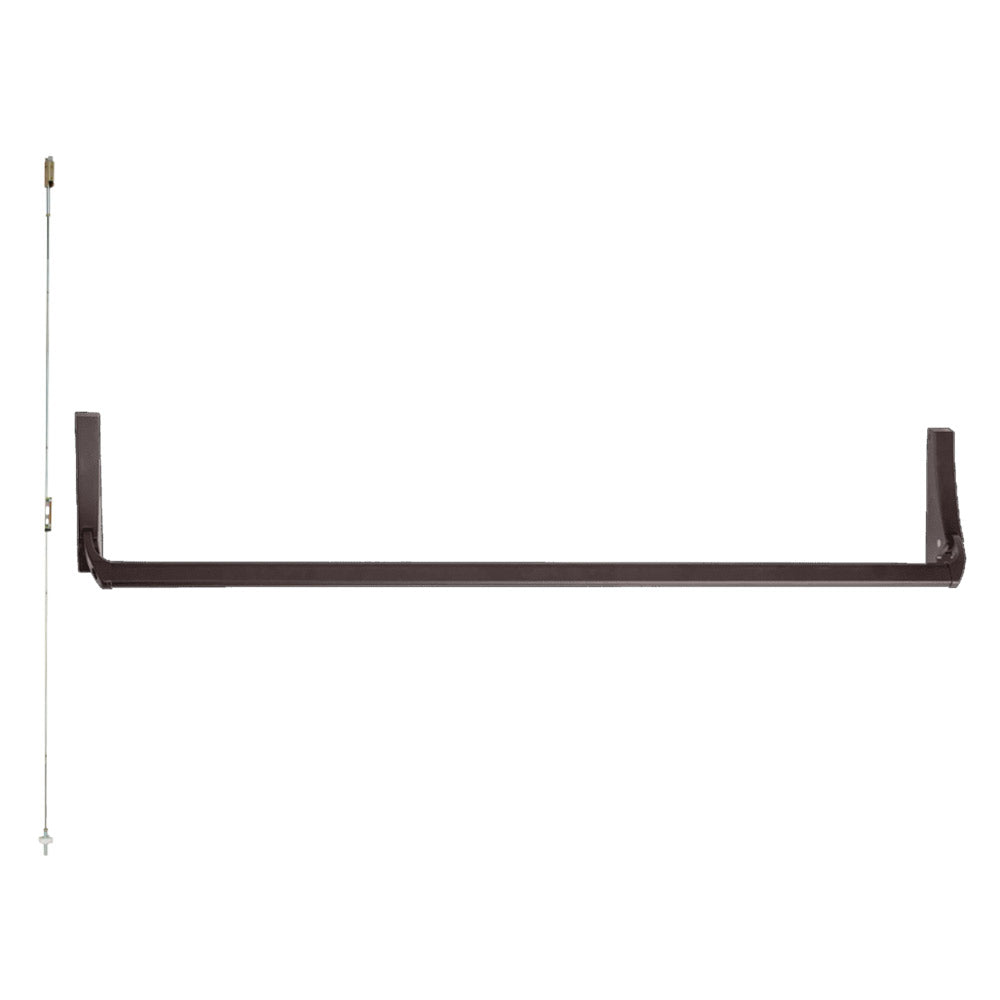

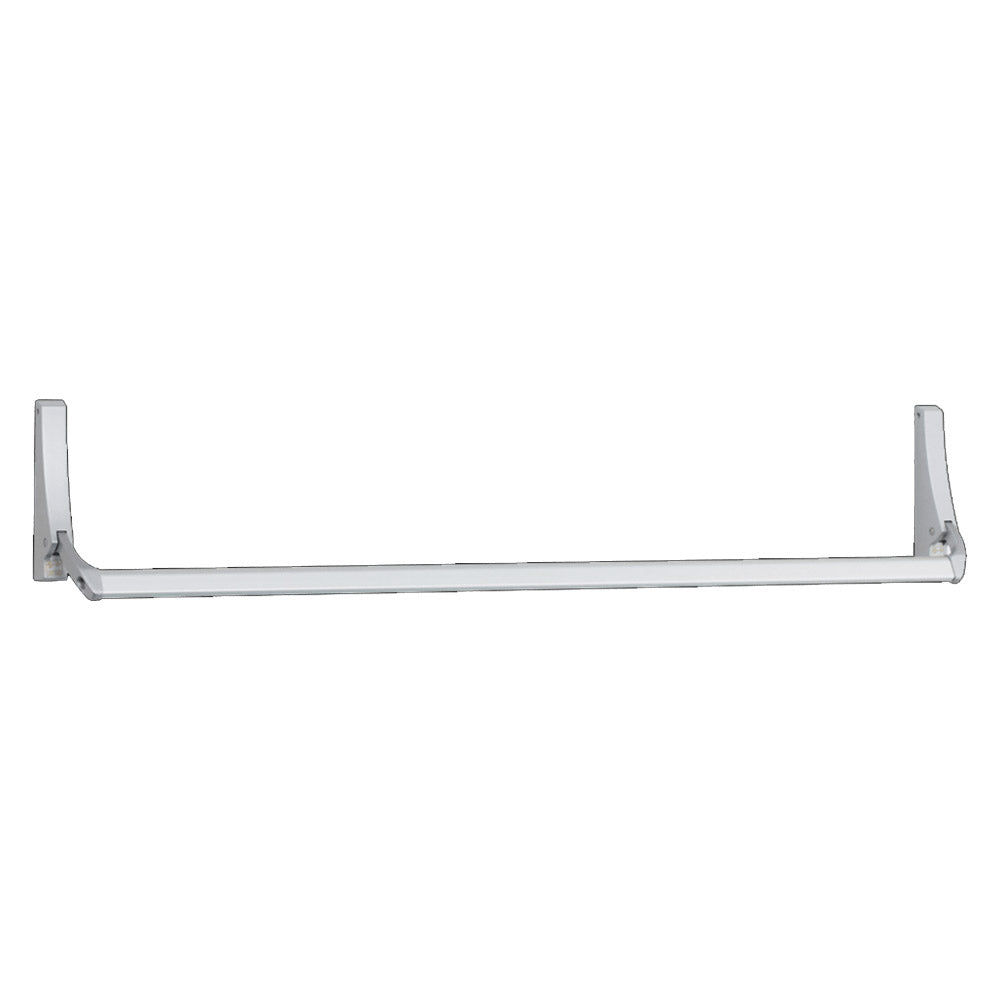

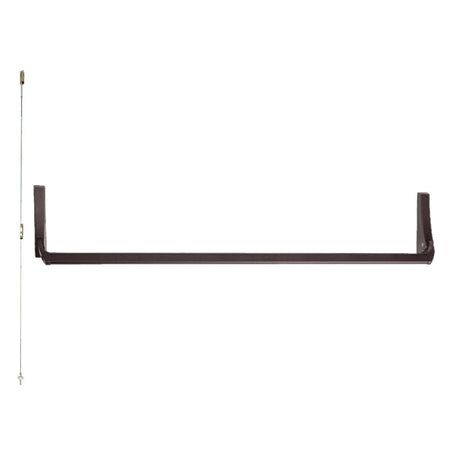

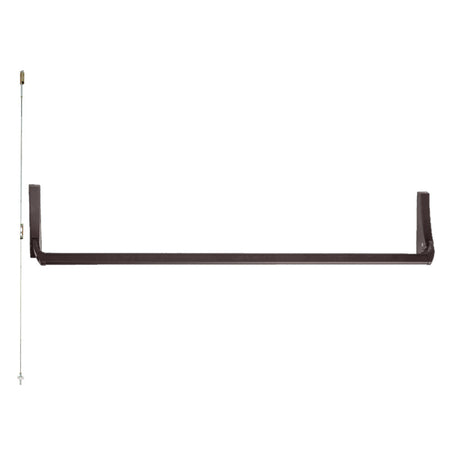

Falcon 1990 EO Concealed Vertical Rod Cross Bar Exit Device

Falcon 1990 EO Concealed Vertical Rod Cross Bar Exit Device

Falcon

  • 24000


Falcon 1990 EO Concealed Vertical Rod Cross Bar Exit Device.

Tough crossbar design
The classic look of 1990 has a long history of reliable performance. It is equipped with hardened steel latches and adjustable strike to ensure safety, security and quiet operation. Barzel Lock Stocks All Falcon Hardware.

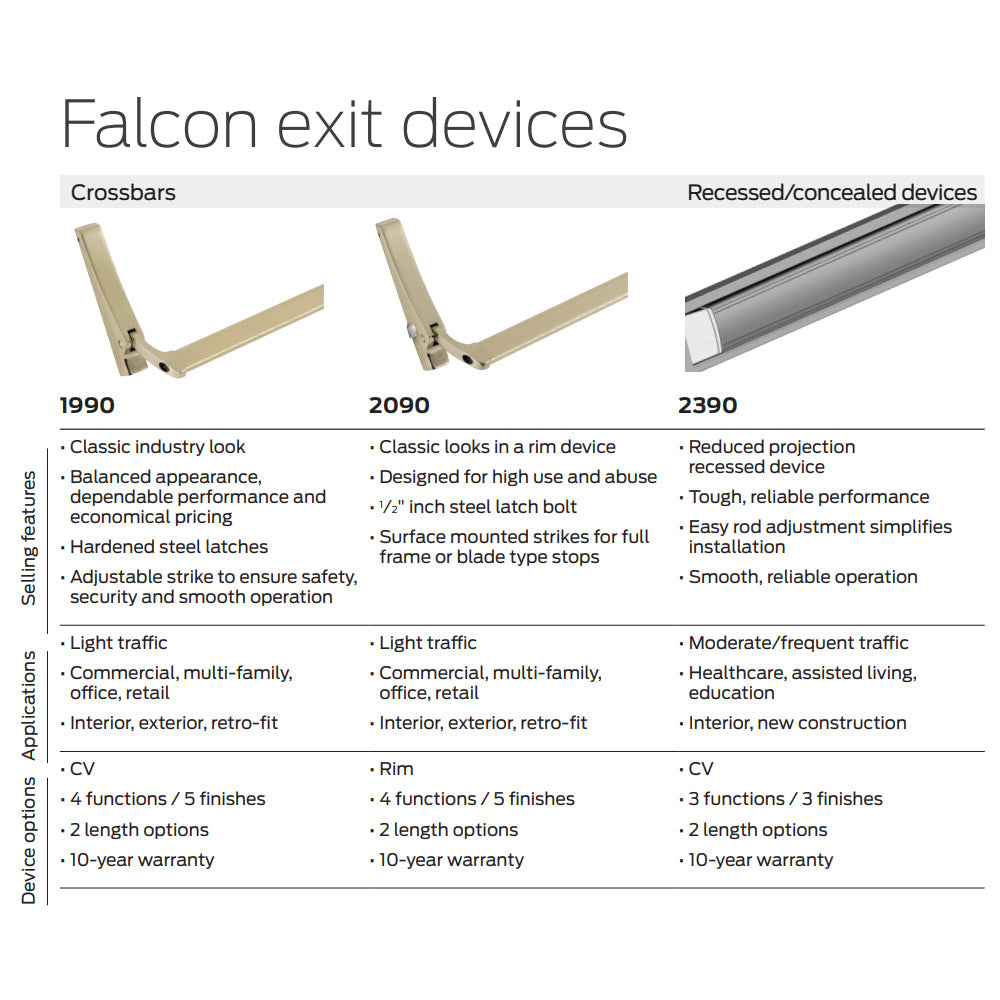

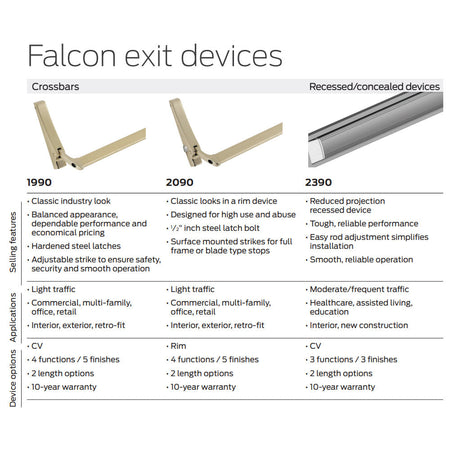

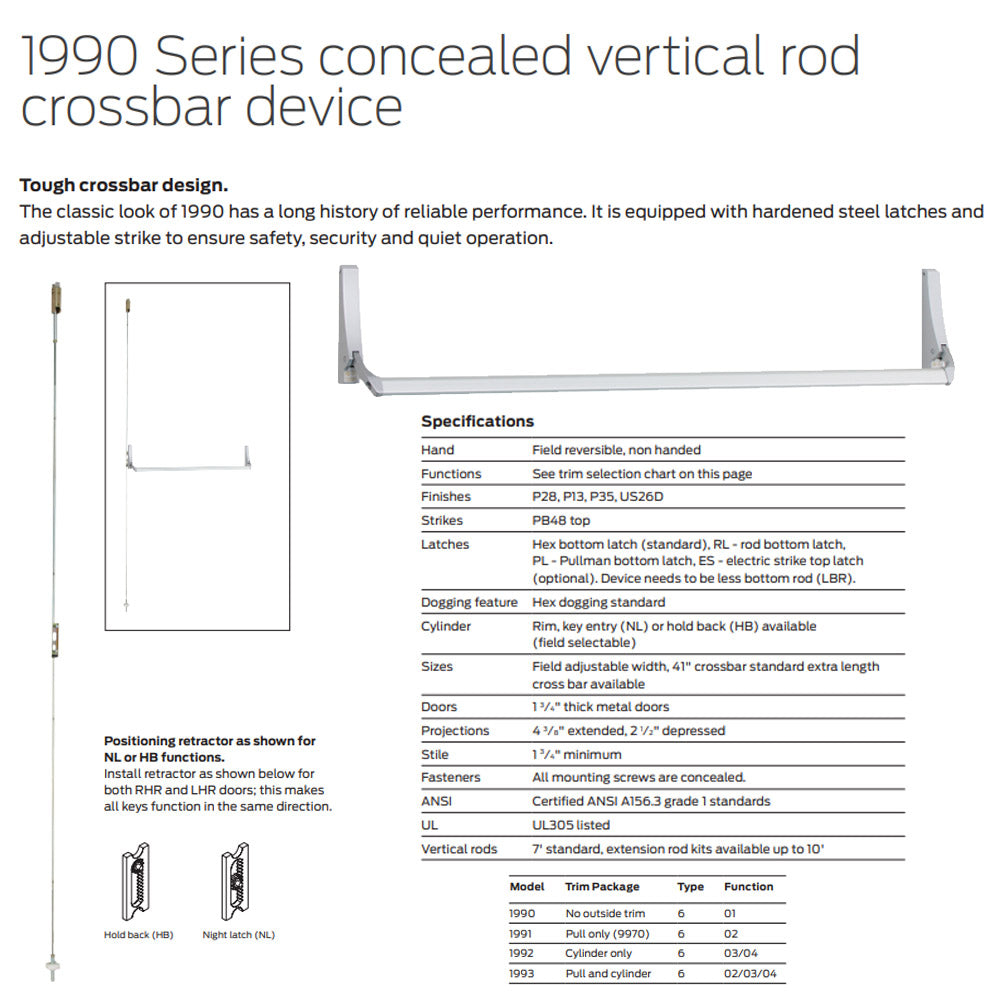

Falcon 1990 Catalog
Specifications
  • Hand: Field reversible, non handed
  • Finishes: P28, P13.
  • Strikes: PB48 top
  • Latches: Hex bottom latch (standard), RL - rod bottom latch, PL - Pullman bottom latch, ES - electric strike top latch (optional). Device needs to be less bottom rod (LBR).
  • Dogging Feature: Hex dogging standard
  • Cylinder: Rim, key entry (NL) or hold back (HB) available (field selectable) Please Contact Us At 212-677-7530 For Cylinder Options.
  • Sizes: Field adjustable width, 41" crossbar standard fits 3' 8" x 7' door, extra length cross bar available
  • Doors: 1 3/4" thick metal doors
  • Projections: 4 3/8" extended, 2 1/2" depressed
  • Stile: 1 3/4" minimum
  • Fasteners: All mounting screws are concealed
  • ANSI: Certified ANSI A156.3 Grade 1 standards
  • Vertical Rods: 7' standard, extension rod kits available up to 10'
