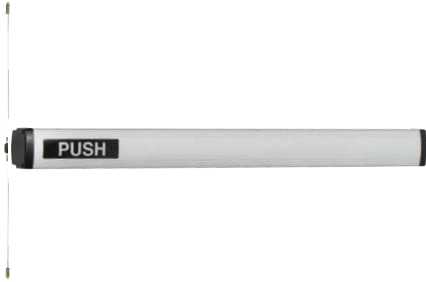

Falcon 1490 Concealed Vertical Rod Touch Bar Exit Device

by Falcon
$ 406.00
Falcon 1490 Concealed Vertical Rod Touch Bar Exit Device. The 1490 is our heaviest device and offers a clean appearance with pushpad styling and a variety of practical features. The 1490 is built with rugged steel operating mechanisms, and durable aluminum push bars and end caps.

Specifications
  • Hand: Specify RHR or LHR-supplied RHR if not specified. Both handed labels are provided standard.
  • Functions: See trim selection chart on the Options tab
  • Finishes: US28-Aluminum  DC13-Dark Bronze
  • Strikes: PB48 top
  • Latches: RL - Rod bottom latch (standard), Hex bottom latch (standard for EL), PL - Pullman bottom latch (optional), ES - electric strike top latch (optional). Device needs to be less bottom rod (LBR).
  • Dogging Feature: Quarter turn hex dogging standard. No threaded parts to wear out.
  • Sizes: 36"
  • Doors: 1 3/4" thick metal doors-specify if other than 1 3/4"
  • Projections: 2 3/4" maximum, 2" when dogged. Pushbar height is 3"
  • Stile: 1 3/4" minimum
  • Electric Functions: EL - electric latch retraction, include "S". Requires PS873-2 minimum power supply.
  • Fasteners: All mounting screws are concealed. Uses all machine screws for device and latch.
  • End Caps: Durable zinc die cast, powder coated
  • Vertical Rods: 1' standard, extension rods available up to 7' 10"
  • ANSI: Certified ANSI A156.3 2001 Grade 1 standards
  • Shim Kits: 1/2" riser is available
  • Hurricane: 1490 is hurricane rated-consult door manufacturer’s listing
