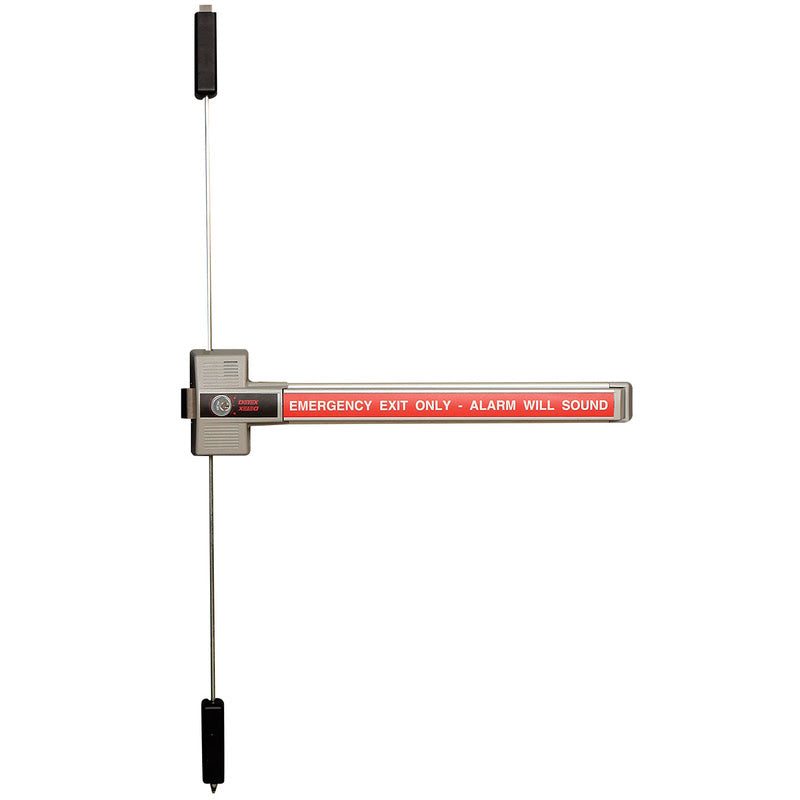

Detex ECL-230X-TDB 3 Point Deadbolt Alarmed Panic Device

by Detex
$ 620.00

Barzel Hardware Stocks The Full Detex Line. The ECL-230X-TDB is a code compliant, battery alarmed, rugged 3-point dead bolt, panic device with photo-luminescent sign providing maximum security and a 100 decibel alarm for secondary exits. Independent laboratory testing shows that the ECL- 230X-TDB can withstand up to 16,000 pounds of pull force.

Detex ECL-230X-TDB Intructions Video

• Reduces employee and customer theft

• Attack resistant design for maximum holding force

• Proven durability and reliability at a reasonable price

• Easy to install

• 3-point, 1" throw dead bolt lock with just over 3/4” engagement with the frame, and 3/4” throw top and bottom locks with 5/8” engagement with the strike

• Saw resistant dead bolts

• Corrosion resistant alloy lock body

• 100 decibel alarm, powered by 9-volt battery (included)

• Time tested construction resists attack from the inside

• One size fits 36”-48” doors for code compliant acceptance

• For maximum security with 6 locking points, specify ECL-230X-TDB-DX3

• Easy to see if the lights go out

• Straightforward operation that everyone understands

• Surface/flush reversible strike

• Accepts 5-pin through 7-pin standard and interchangeable core rim cylinders without using cylinder collar

• Durable photo-luminescent sign absorbs light to then "glow in the dark" when lights are dimmed

• Locking and unlocking the dead bolt always arms and disarms the alarm

• Non-handed

• Low profile meets International Building Code requirement allowing for 4” maximum projection off face of door

• Resetting the alarm can only be accomplished with a control key

• For 9VDC hardwiring add BE-961-1 or BE-961-2
