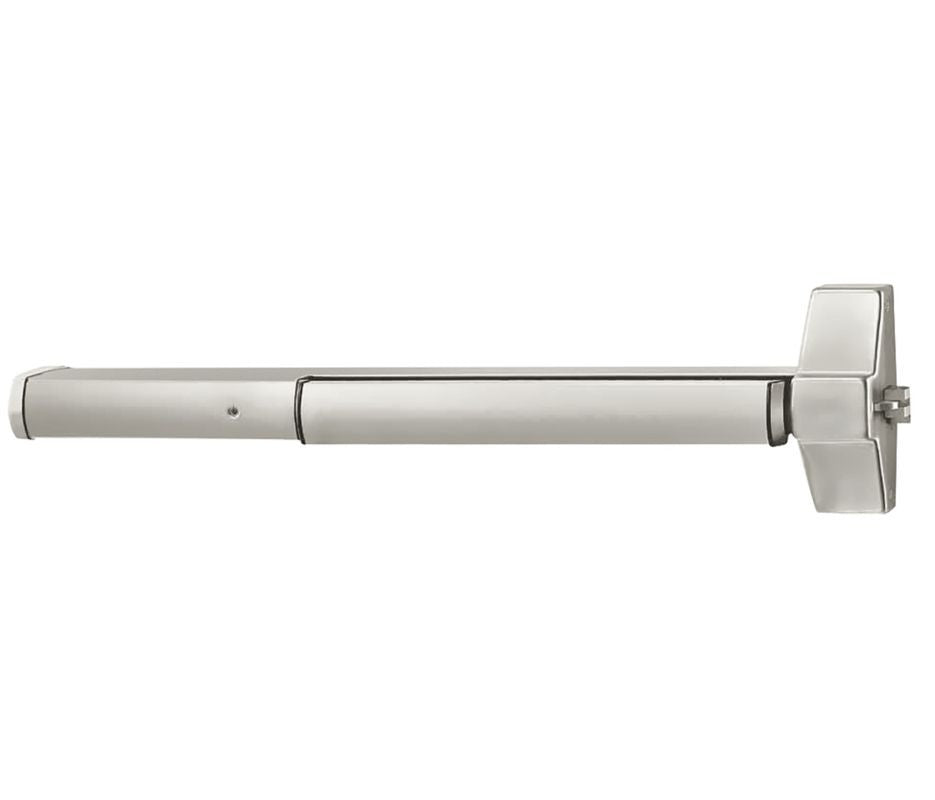

Corbin Russwin ED5200A Fire Rated Rim Exit Device

Corbin Russwin ED5200A Fire Rated Rim Exit Device

Corbin Russwin

  • 81000


Corbin Russwin ED5200A Fire Rated Rim Exit Device

Handing: Standard Device is non-handed.

Instructions

Bar Length: Easily field cut to size.

Standard: 36" (914mm) bar fits 30"- 36"

Optional: 48" (1219mm) bar fits 36"- 48" (914mm-1219mm) door; specify.

Finishes:

630-Satin Stainless Steel



Door Thickness: 1-3/4" (44mm) standard

Latchbolt: 3/4" (19mm) throw,Stainless Steel pullman type with stainless steel deadlocking latch.

Dogging Standard: single point 1/4 turn hex key dogging.

Contact Us To See If We Have These Options In Stock

Optional: less dogging; specify M51.

Optional: cylinder dogging; specify M52.

Optional: electric dogging; specify M97.

Strike: Surface mounted 3/8" (10mm) diameter roller strike, complete with positive locking plate and shims, assuring low friction relocking for a long, trouble-free life.

Warranty: Five-year limited.

Certification/Compliance ANSI Meets A156.3, Type 1, Grade 1. Meets A117.1 Accessibility Code. UL /cUL All devices listed for safety as panic hardware; devices comply with UL 305 standards for panic hardware. Three-hour fire-rated devices listed as fire exit hardware for A label and lesser class 4' x 8' single or 8' x 8' double doors; UL symbol on active case cover indicates listing. Any retrofit or other field modification to a fire rated opening can potentially impact the fire rating of the opening, and Corbin Russwin, Inc. makes no representations or warranties concerning what such impact may be in any specific situation. When retrofitting any portion of an existing fire rated opening, or specifying and installing a new fire-rated opening, please consult with a code specialist or local code official (Authority Having Jurisdiction) to ensure compliance with all applicable codes and ratings. California State Reference Code This product has been approved by the California State Fire Marshal pursuant to section 13144.1 of the California Health and Safety Code. NFPA All exit devices comply with NFPA 101 Life Safety Code. All fire-rated devices comply with NFPA 80 Fire Doors and Windows. ADA Exit devices, lever trims and pulls comply with Americans with Disabilities Act.
