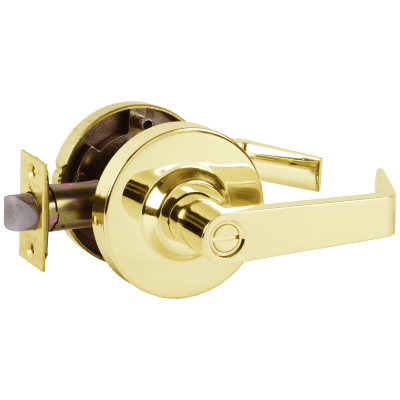

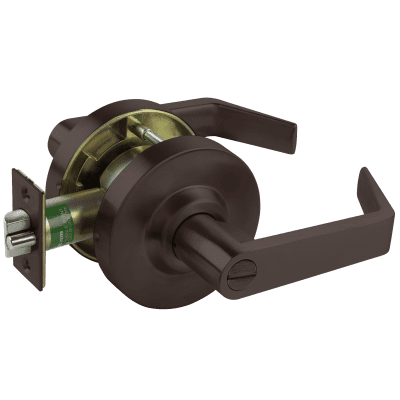

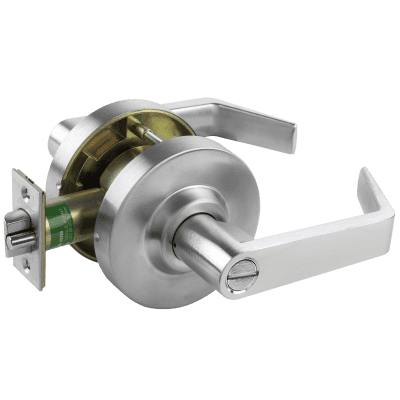

Arrow MLX72 - Privacy Lever

by Arrow
$ 67.00

Arrow’s MLX Series cylindrical lever locks are BHMA Grade 2 Certified, ANSI/BHMA A156.2, Series 4000, while Arrow’s QL Series is BHMA Grade 1 Certified, ANSI/BHMA A156.2, Series 4000. Both lever locks are U.L and c.U.L listed for use on 3 hour, ‘A’ label or lesser doors and meet American with Disabilities Act requirements while also having a 10-year mechanical warranty for ultimate customer satisfaction.

Features:

Door Preparation – Requires standard 2-1/8" (53.97mm) bore through door.
Backset – 2-3/4" (69.85mm)
Door Thickness – Fits 1-3/8" (34.93mm) to 1-3/4" (44.45mm) doors standard.
Latch – Stainless Steel 1/2" (12.7mm) throw, UL Listed, guarded latchbolt on all locking functions
Latch Front – 1-1/8" x 2-1/4" for 2-3/4" (69.85mm) backset.
Warranty – Ten Year Warranty
Handing – Non-handed
Packaging – 6 per case
Strike – 4-7/8" ANSI (123.83mm)
Cylinder – Solid brass 6 pin, Arrow AR and Schlage CS Keyway, keyed different
Keys – 2 brass keys
Available in SFIC
Freewheeling Lever
