Von Duprin 33A 35A Series

Von Duprin 3327A/3527A-EO Series Surface Mounted Vertical Rod Exit Device. 3327A and 3527A for all types of single and double doors, UL listed for Panic Exit Hardware. Devices are ANSI A156.3 – 2001 Grade 1. The 3527A has a smooth mechanism case and the 3327A has grooved case. The surface vertical rod device is non-handed except when the SS (Signal Switch) option is used.

3327A/3527A fits door stiles as narrow as 1 3/4" (44mm). Newly designed device has a one piece center case cover.

The 3327A/3527A devices are available in the following finishes; US3, US4, US10, US26, US26D, US28, 313 and 315.

Specifications
  • Device Lengths: 3’ 2’4" to 3’ (711mm to 914 mm) Door Size; 4’ 2’10" to 4’ (864 mm to 1219 mm) Door Size
  • Strikes: Top – 266 – Dull Black, Bottom – 248L4 & 304L – Unfinished
  • Dogging Feature: Hex key dogging standard
  • Dogging Options: CD Cylinder Dogging; LD Less Dogging
  • Electric Options: LX Latchbolt Monitor Switch; RX Pushpad Monitor Switch; RX2 Double Pushpad Monitor Switch; SS Signal Switch; EL Electric Latch Retraction; ALK Alarm Exit Kit
  • Miscellaneous Options: PN Pneumatic Latch Retraction; LBR Less Bottom Rod; GBK Glass Bead Kit PL Pullman Latch
  • Fasteners & Includes Sex Bolts (SNB): 1 3/4" (44mm) – 2 1/4" (57mm) Wood & Metal Doors; #425 SNB furnished standard for end case; #325 SNB furnished standard for EO (exit only device); #325 SNB furnished for top and bottom latches
  • Latch Bolt: Deadlocking Anti-friction Top & Bottom Bolt 5/8" (16mm) throw
  • Device Centerline from Finished Floor: 39 5/8" (1006mm)
  • Door Undercut: 1/4" (7mm)
  • Center Case Dimensions: 8 3/16" x 2 13/32" x 1 9/16" (208mm x 62mm x 40mm)
  • Mechanism Case Dimensions: 2 1/4" x 2 1/4" (57mm x 57mm)
  • Top and Bottom Latch: 4 1/2" x 2 1/8" x 1 1/2" (114mm x 54mm x 38mm)
  • Vertical Rods: 1/2" square tubing, standard rods accommodate 7’(2134mm) door; Top rod length is 34 15/16” (887mm); Bottom rod length is 31 1/4"(794mm); Extension rods available 1’ (205mm) or 3’(914mm) for doors over 7’; One piece top rod available for 8’(2438mm)-10’(3048mm) door
  • Projection: Pushbar Neutral – 3 13/16" (97 mm)
    Pushbar Depressed – 3 1/16" (78 mm)
3327A-F and 3527A-F for all types of double doors up to 8’ x 10’ (2438mm x 2540mm), UL listed for Fire Exit Hardware.  Devices are ANSI A156.3 – 2001 Grade 1. The 3527A-F has a smooth mechanism case and the 3327A-F has grooved case. The surface vertical rod device is non-handed except when the SS (Signal Switch) option is used.

3327A-F/3527A-F fits door stiles as narrow as 2 3/16"(56 mm). Newly designed device has a one piece center case cover.

The 3327A-F/3527A-F devices are available in the following finishes; US3, US4, US10, US26, US26D, US28, 313 and 315.

Specifications
  • Device Lengths: 3’ 2’4" to 3’ (711mm to 914 mm) Door Size; 4’ 2’10" to 4’ (864 mm to 1219 mm) Door Size
  • Strikes: Top – 299F(499F LBR) – Dull Black, Bottom – 304L – Unfinished
  • Dogging Feature: No mechanical Dogging, EL option available
  • Electric Options: LX Latchbolt Monitor Switch; RX Pushpad Monitor Switch; RX2 Double Pushpad Monitor Switch; SS Signal Switch; EL Electric Latch Retraction; ALK Alarm Exit Kit
  • Miscellaneous Options: PN Pneumatic Latch Retraction; LBR Less Bottom Rod; GBK Glass Bead Kit
  • Fasteners & Sex Bolts (SNB): Includes 1 3/4" (44mm) – 2 1/4" (57mm) Wood & Metal Doors; #425 SNB furnished standard for end case; #325 SNB furnished standard for EO (exit only device); #325 SNB furnished for top and bottom latches
  • Latch Bolt: Deadlocking Anti-friction Top & Bottom Bolt 5/8" (16mm) throw
  • Device Centerline from Finished Floor 39 5/8" (1006mm)
  • Door Undercut 1/4" (7mm)
  • Center Case Dimensions 8 3/16" x 2 13/32" x 1 9/16" (208mm x 62mm x 40mm)
  • Mechanism Case Dimensions 2 1/4" x 2 1/4" (57mm x 57mm)
  • Top and Bottom Latch 4 1/2" x 2 1/8" x 1 1/2" (114mm x 54mm x 38mm)
  • Vertical Rods 1/2" square tubing, standard rods accommodate 7’(2134mm) door; Top rod length is 34 15/16” (887mm); Bottom rod length is 31 1/4"(794mm); Extension rods available 1’ (205mm) or 3’(914mm) for doors over 7’; One piece top rod available for 8’(2438mm)-10’(3048mm) door
  • Projection Pushbar Neutral – 3 13/16" (97 mm); Pushbar Depressed – 3 1/16" (78 mm)

Von Duprin 3347A-EO-F/3547A-EO-F Series Fire Exit Concealed Vertical Rod Device. 3347A-F and 3547A-F for all types of double doors up to 8’ x 10’ (2438mm x 2540mm), UL listed for Fire Exit Hardware.  Devices are ANSI A156.3 – 2001 Grade 1. The 3547A-F has a smooth mechanism case and the 3347A-F has grooved case. The concealed vertical rod device is non-handed except when the SS (Signal Switch) option is used.

3347A-F/3527A-F fits door stiles as narrow as 3 1/2”(90mm). Newly designed device has a one piece center case cover.

The 3347A-F/3547A-F devices are available in the following finishes; US3, US4, US10, US26, US26D, US28, 313 and 315. See catalog for finish chips.

Specifications
  • Device Lengths: 3’ 2’4" to 3’ (711mm to 914 mm) Door Size; 4’ 2’10" to 4’ (864 mm to 1219 mm) Door Size
  • Strikes: Top – 338 – Unfinished, Bottom – 385A – Unfinished
  • Dogging Feature: No mechanical Dogging, EL option available; Electric Options LX Latchbolt Monitor Switch; RX Pushpad Monitor Switch; RX2 Double Pushpad Monitor Switch; SS Signal Switch; EL Electric Latch Retraction; ALK Alarm Exit Kit
  • Miscellaneous Options: PN Pneumatic Latch Retraction; LBR Less Bottom Rod; GBK Glass Bead Kit
  • Fasteners & Sex Bolts (SNB): Includes 1 3/4" (44mm) – 2 1/4" (57mm) Wood & Metal Doors; #425 SNB furnished standard for end case; #325 SNB furnished standard for EO (exit only device)
  • Latch Bolt: Deadlocking Anti-friction Top & Bottom Bolt 5/8" (16mm) throw
  • Device Centerline from Finished Floor: 39 5/8" (1006mm) Standard, Adjustable from 35 5/8" (905mm) to 49 5/8" (1260mm)
  • Door Undercut: 1/4" (7mm)
  • Center Case Dimensions: 8 3/16" x 2 13/32" x 1 9/16" (208mm x 62mm x 40mm)
  • Mechanism Case Dimensions: 2 1/4" x 2 1/4" (57mm x 57mm)
  • Vertical Rods: Round 2 piece adjustable rods; Top rod adjustable from 6’8”(2027mm) to 8’4”(2533mm); Bottom rod adjustable from 35 5/8”(905mm) to 49 5/8”(1260mm); Extension rod kits available for doors over 8’4” (2533mm)
  • Projection: Pushbar Neutral – 3 13/16" (97 mm)
  • Pushbar: Depressed – 3 1/16" (78 mm)
Von Duprin 3347A/3547A-EO Concealed Vertical Rod Device
Von Duprin 3347A/3547A-EO Concealed Vertical Rod Device. 3347A and 3547A for all types of single and double doors, UL listed for Panic Exit Hardware. Devices are ANSI A156.3 – 2001 Grade 1. The 3547A has a smooth mechanism case and the 3347A has grooved case. The concealed vertical rod device is non-handed except when the SS (Signal Switch) option is used.

3347A/3547A fits door stiles as narrow as 1 3/4”(44 mm), wood door stiles as narrow as 4”(102mm). Newly designed device has a one piece center case cover.

The 3347A/3547A devices are available in the following finishes; US3, US4, US10, US26, US26D, US28, 313AN and 315AN. See the inside cover for finish chips.

Specifications
  • Device Lengths: 3’ 2’4" to 3’ (711mm to 914 mm) Door Size; 4’ 2’10" to 4’ (864 mm to 1219 mm) Door Size
  • Strikes: Top – 338 – Unfinished, Bottom – 385A – Unfinished; Optional Strikes – see Options section
  • Dogging Feature: Hex key dogging standard
  • Dogging Options: CD Cylinder Dogging; LD Less Dogging
  • Electric Options: LX Latchbolt Monitor Switch; RX Pushpad Monitor Switch; RX2 Double Pushpad Monitor Switch; SS Signal Switch; EL Electric Latch Retraction; ALK Alarm Exit Kit
  • Miscellaneous Options: PN Pneumatic Latch Retraction; LBR Less Bottom Rod; GBK Glass Bead Kit; PL Pullman Latch
  • Fasteners & Sex Bolts (SNB): Includes 1 3/4" (44mm) – 2 1/4" (57mm) Wood & Metal Doors; #425 SNB furnished standard for end case; #325 SNB furnished standard for EO (exit only device)
  • Latch Bolt: Deadlocking Anti-friction Top & Bottom Bolt 5/8" (16mm) throw
  • Device Centerline from Finished Floor: 39 5/8" (1006mm) Standard, Adjustable from 35 5/8”(905mm) to 49 5/8”(1260mm)
  • Door Undercut: 1/4" (7mm)
  • Center Case Dimensions: 8 3/16" x 2 13/32" x 1 9/16" (208mm x 62mm x 40mm)
  • Mechanism Case Dimensions: 2 1/4" x 2 1/4" (57mm x 57mm)
  • Vertical Rods: Round 2 piece adjustable rods; Top rod adjustable from 6’8”(2027mm) to 8’4”(2533mm); Bottom rod adjustable from 35 5/8”(905mm) to 49 5/8”(1260mm); Extension rod kits available for doors over 8’4” (2533mm); Projection Pushbar Neutral – 3 13/16" (97 mm); Pushbar Depressed – 3 1/16" (78 mm)
Von Duprin 33A/35A-EO Rim Device

Von Duprin 33A/35A-EO Rim Device

by Von Duprin
$ 746.00
Von Duprin 33A/35A-EO Rim Device. 33A and 35A for all types of single and double doors with mullion, UL listed for Panic Exit Hardware. Devices are ANSI A156.3 – 2001 Grade 1. The 35A has a smooth mechanism case and the 33A has grooved case. The rim device is non-handed except when the SS (Signal Switch) option is used. See opposite page for available outside trim and device functions.

33A/35A fits door stiles as narrow as 1 3/4" (44mm). Newly designed device has a one piece center case cover.

The 33A/35A devices are available in the following finishes; US3, US4, US10, US26, US26D, US28, 313 and 315.

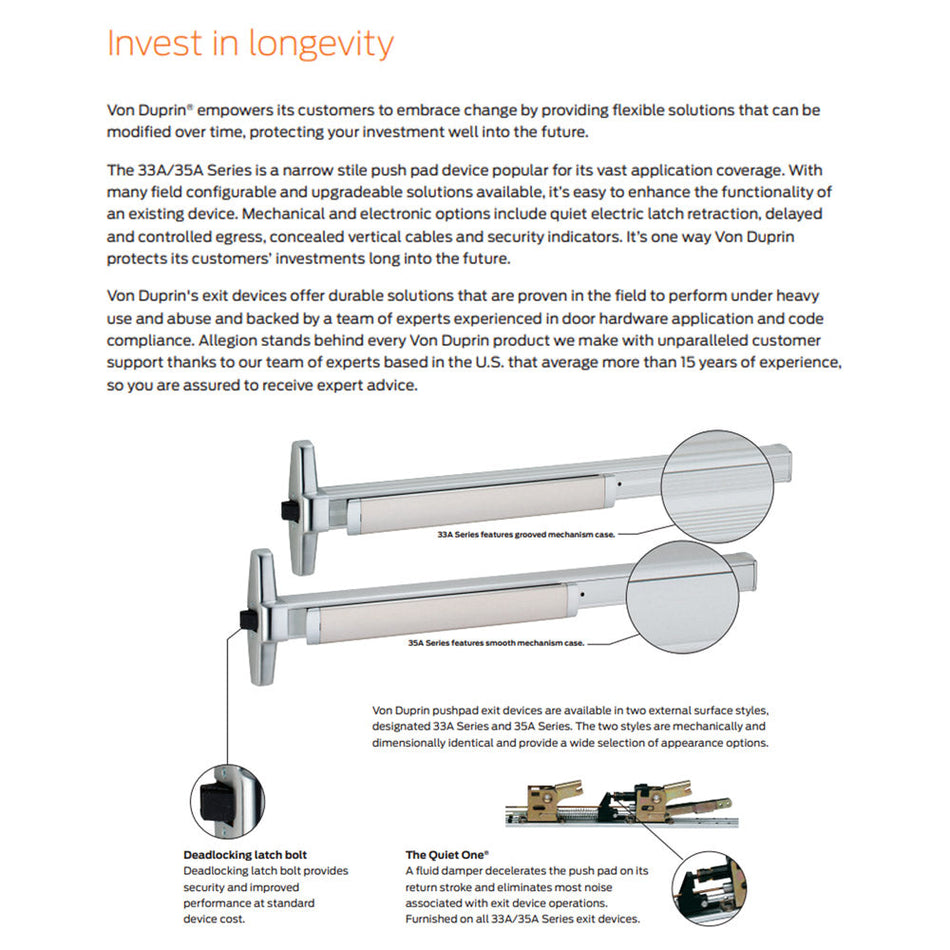

Features and Benefits
  • 33A Series features grooved mechanism case
  • 35A Series features smooth mechanism case
  • Deadlocking latchbolt prevents forced latchbolt retraction providing higher security for your openings
  • A fluid dampener decelerates the pushpad on its return stroke and eliminates most noise associated with exit device operations. Furnished on all 33A/35A series exit devices

Specifications

  • Device Lengths: 3’ 2’4" to 3’ (711mm to 914 mm) door size; 4’ 2’10" to 4’ (864 mm to 1219 mm) door size
  • Strikes: 1439 – Dull Black
  • Dogging Feature: Hex key dogging standard
  • Dogging Options: CD Cylinder Dogging; LD Less Dogging
  • Electric Options: LX Latchbolt Monitor Switch; RX Pushpad Monitor Switch; RX2 Double Pushpad Monitor Switch; SS Signal Switch; EL Electric Latch Retraction; ALK Alarm Exit Kit
  • Miscellaneous Options: PN Pneumatic Latch Retraction; GBK Glass Bead Kit
  • Fasteners & Includes Sex Bolts (SNB): 1 3/4" (44mm) – 2 ¹|4" (57mm) Wood & Metal Doors; #425 SNB furnished standard for end case; #325 SNB furnished standard for EO (exit only device)
  • Latch Bolt: Deadlocking, 3/4" (19mm) throw
  • Device Centerline from Finished Floor: 39 13/16" (1011 mm); 39 11/16" (1008 mm) with Mullion
  • Center Case Dimensions: 8 3/16" x 2 13/32" x 1 9|16" (208mm x 62mm x 40mm)
  • Mechanism Case Dimensions: 2 1/4" x 2 1/4" (57mm x 57mm)
  • Projection: Pushbar Neutral – 3 13/16" (97 mm); Pushbar Depressed – 3 1/16" (78 mm)
