Von Duprin 22 Series

22 Series
Vertical Rod
Fire Rated
Exit Only, No Trim
2227EO
2227EO-F
w-Dummy Trim
2227DT
N/A
w-Nightlatch Trim
2227NL
2227NL-F
w-Knob Trim
2227K
2227K-F
w-Lever Trim
2227L
2227L-F
wThumbpiece Trim
2227TP
2227TP-F

Features: Nonhanded, field sizeable, hex key dogging, 5/8” throw deadlocking anti-friction top and bottom latch bolt.

Dimensions
      -      Touchbar height to finished floor: 39-13/16” at center
      -      Door Undercut: Neutral = 1/4" from finished floor; 3/4" max. or 1/8" from threshold
      -      Device Length:
                    -  3’ or 4' door size

Strike and Fasteners
– Device is furnished with 299, 248L-4, and 304L strikes in dull black finish. Sex nuts and bolts are furnished standard for mounting on 1-3/4” and 2-1/4” thick doors.
22-Series Vertical Rod Device by Von Duprin

The 22-Series is the economical alternative, incorporating a modern touchbar styling for all types of doors. Devices are UL Listed Panic Hardware, tested in accordance to ANSI A1563.3, Grade 1.

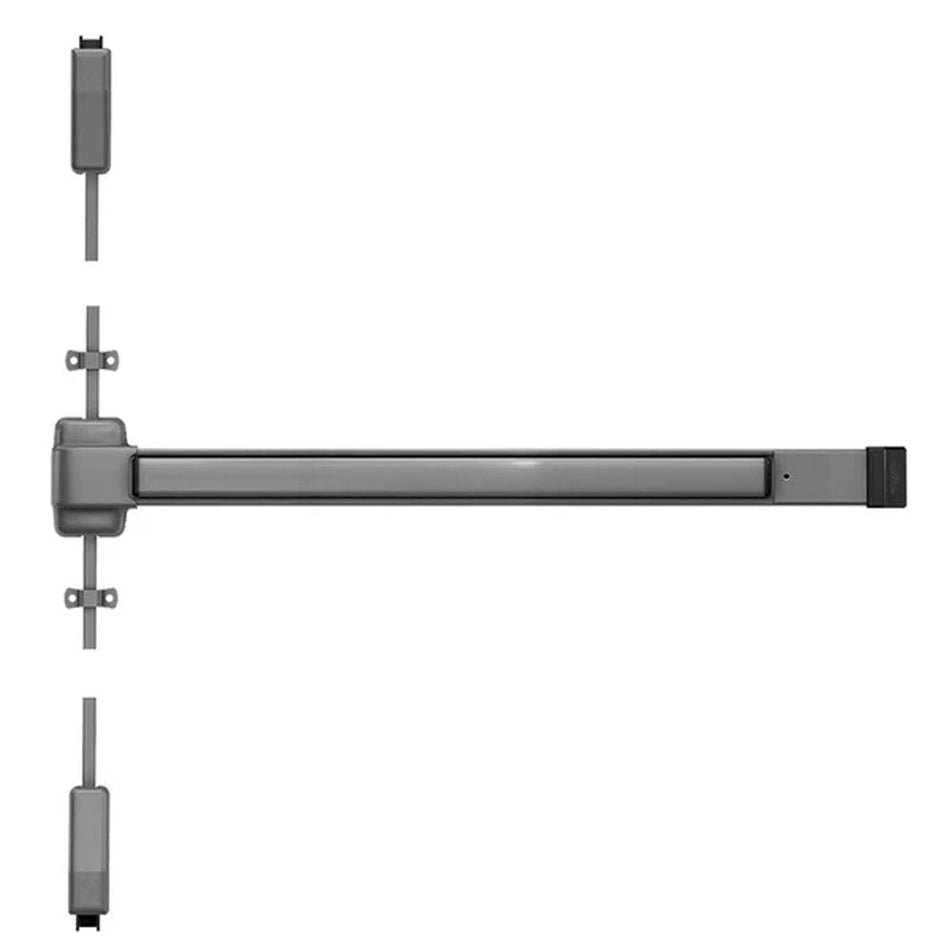

22 Series Vertical Rod Device (2227) -
 for all types of single and double doors with mullion. Covers stock hollow metal doors with 86 or 161 cutouts. Fits door stiles as narrow as 3-5/8".

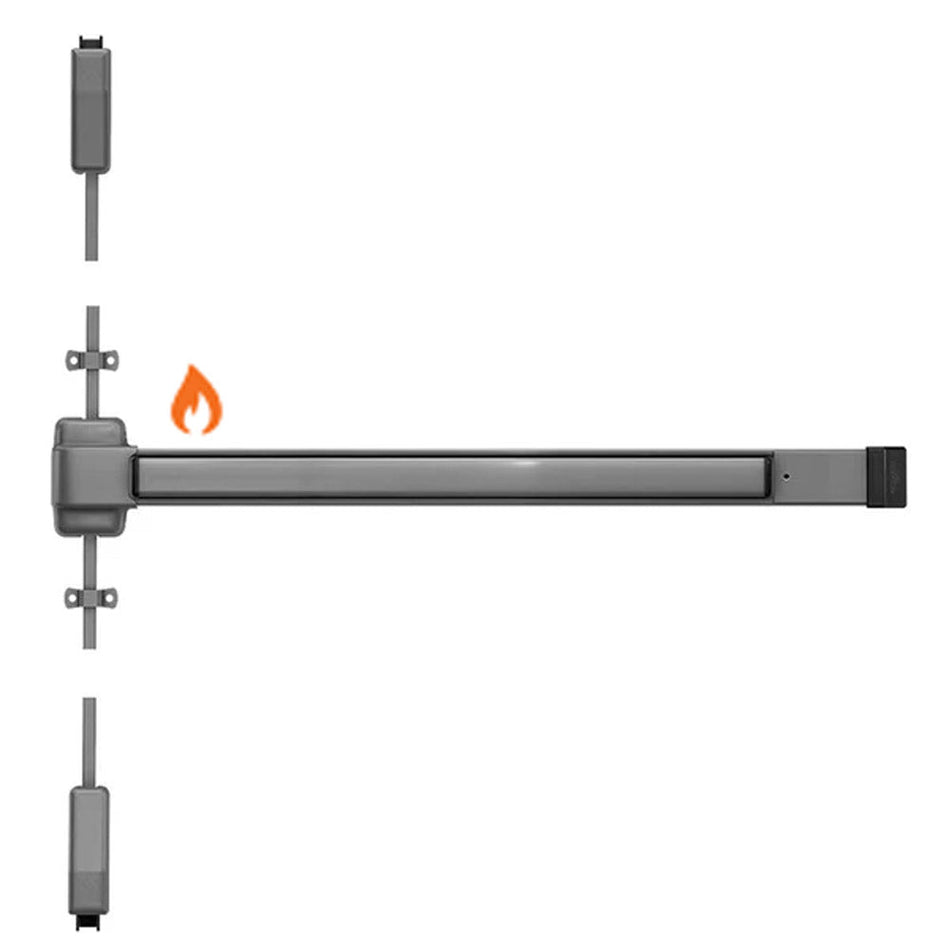

22 Series Fire Rated Vertical Rod (2227-F) -
for pairs of doors up to 8' x 10', UL listed for Fire Exit Hardware. Fits door stiles as narrow as 3-5/8".

Features: Nonhanded, field sizeable, hex key dogging, 5/8” throw deadlocking anti-friction top and bottom latch bolt.

- Finish: Choose between Anodized Aluminum (SP28) or Anodized Duranodic (SP313) Finish.
- Device: Choose between Surface Vertical Rod Device (standard) or Fire Rated Surface Vertical Rod Device.
- Device Length: Choose between 3 Feet (standard) or 4 Feet.

22-Series Surface Vertical Rod Device Options:

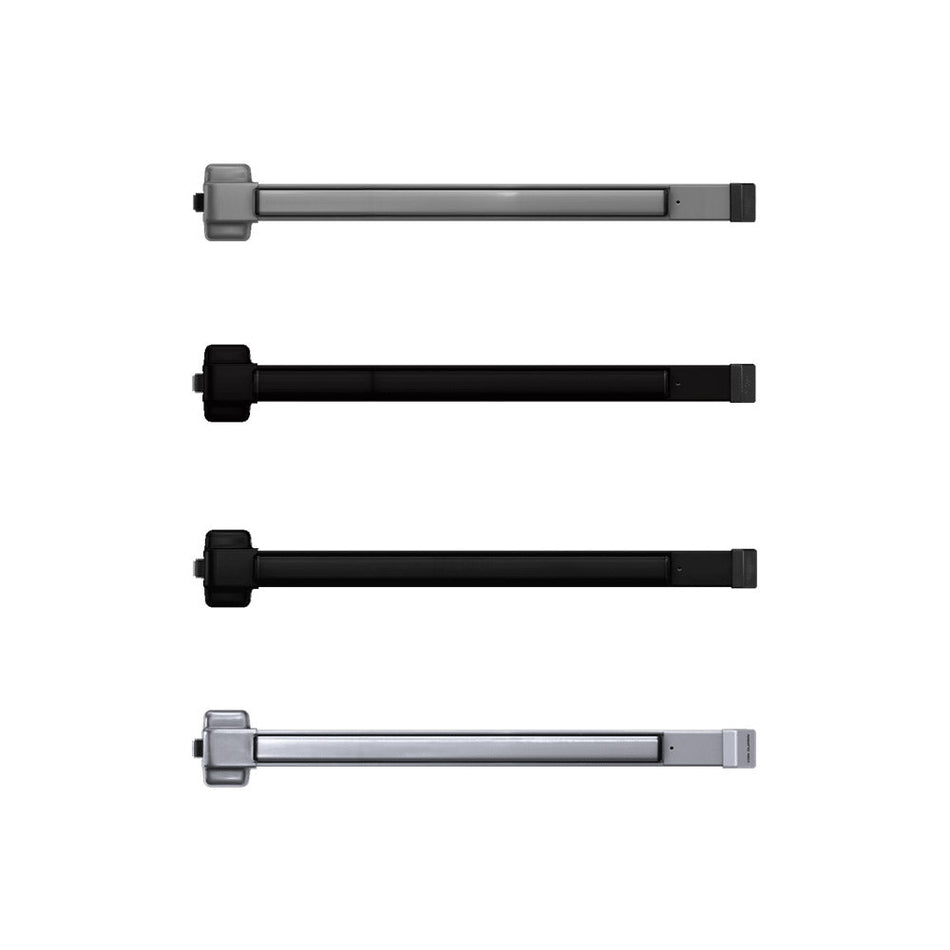

2227EO - Exit Only (No Trim).

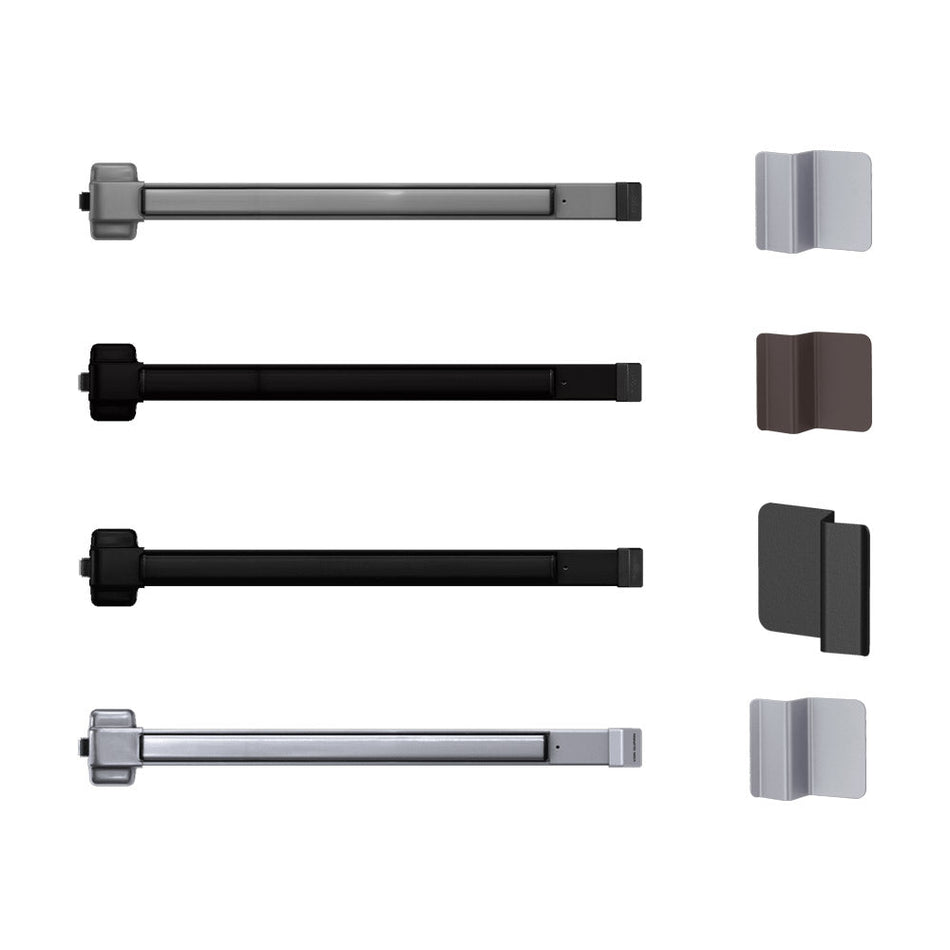

2227DT - With Dummy Trim.

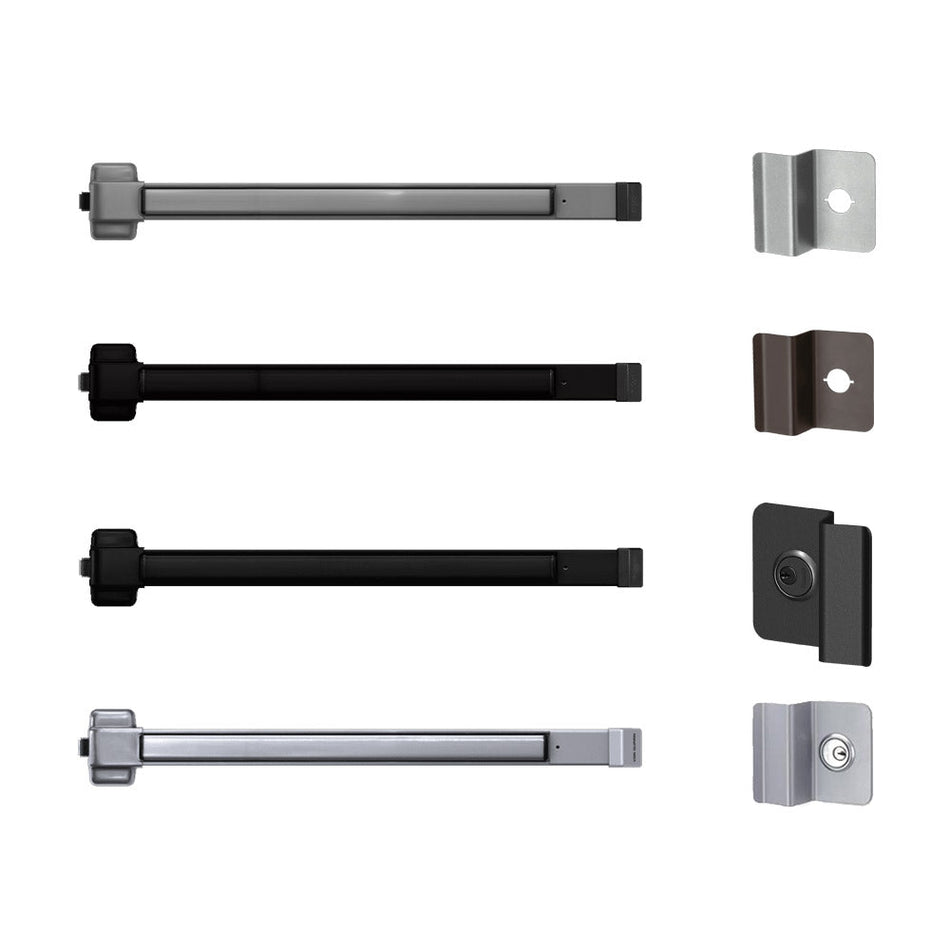

2227NL - With Nightlatch Trim .
2227K - With Schlage Orbit A-Series Knob Trim (Cylinder Included Keyed Random, KD).
2227L - With Lever Trim .
2227TP - With Thumbturn Trim
