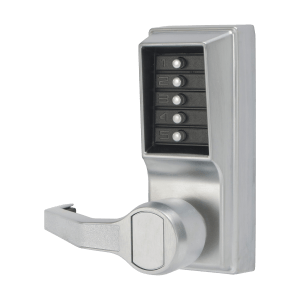

Simplex L1000 Series

The LP1000 Series lock is a fully mechanical pushbutton access control with no electrical wiring, electronics, or batteries.

This lock is designed to operate surface mounted exit devices (not supplied) from the outside using a tailpiece, replacing the key cylinder on new or existing devices. Exterior access is by combination. Egress is by interior exit device and is free at all times. The LP1000 lock meets Americans with Disabilities Act (ADA) standards. The lock can be used with many leading brands of surface-mounted (rim-mounted) exit devices; however, the LP1000 cannot be used with mortise design or most vertical rod exit devices. The exit device can be “dogged” open without affecting the operation of the lock. Designed for high-frequency use and indoor or outdoor applications. The pushbutton design eliminates problems associated with the issue, control, and collection of keys and magnetic cards. The combination can be quickly and easily changed to ensure continued maximum security once employees, tenants, or guests leave, saving the cost of new keys, key cylinders, magnetic cards, and card-encoding devices. Combination can be changed without removing lock from the door.

Tough-as-nails combination lock from the leader in top of the line security solutions, Kaba Ilco.  Kaba has been making high quality security products for over 100 years.  The Simplex® L1000 Series is a 3-hour UL/ULC fire rated stand-alone security lock that is highly weather resistant and certified for durability, as it complies with D.O.D (Dept. of Defense) 5220.22M.  Entry is gained via a 1 to 5 digit code that is sequential.  Vandal resistant, the Simplex® locks have found widespread acceptance in high-traffic commercial, institutional, and government buildings.

Features

  • ADA compliant lock
  • 100% Mechanical HEAVY DUTY push button lock
  • Fully bump and pick proof lock
  • Thousands of possible codes combinations
  • Auto-locking; can be ordered with passage mode feature in Simplex® L1031 & L1041models
  • HEAVY DUTY Latchbolt with deadlocking plunger
  • Covers existing standard ASA 161 door hole
  • Fits left and right swinging doors
  • All hardware and instructions included with order
  • Low maintenance, no batteries or wires
  • Fits nearly all hinged doors

Specs

  • Dimensions:  7 3/8" H x 3 1/8" W x 3 3/16" D
  • Door thickness:  1 3/8" ~ 2 1/4"
  • Backset:  2 3/4" included (2 3/8" available at checkout)
  • 3 year manufacturer's warranty
