Barzel Lock is the leading online provider of wholesale power operated door closers for sale. We offer a variety of quality products. Order today!
The 4630 Auto Equalizer™ is LCN’s smart & reliable electrically powered low-energy power operator. It provides easy access for people with disabilities, the elderly, or the frail. Designed primarily for manual opening applications that occasionally required automatic opening.
The 4630 AUTO EQUALIZER  is LCN SMART & RELIABLE electrically powered low-energy power operator. It provides easy access for people with disabilities, the elderly, or the frail. Designed primarily for manual opening applications that occasionally required automatic opening.


Features and Benefits
  • Digital Control Box
  • Utilizes a 10,000,000 Cycle Heavy Duty Door Closer
  • On-Board Diagnostics
  • On-Board Power Supply
  • Factory-Default Memory
  • Plug-and-Play Connections
  • No Destruct Feature
  • No Guard Rails or Safety Mats Required

Specifications

  • Standard, top jamb (pull side) mounted 4630 series closer shipped with single lever (standard) arm, metal cover, standard track, and wood and machine screw pack. Actuators available separately, see pages 199-215 of the Catalog
  • Meets ADA requirements (power mode).
  • Non-sized cylinders for interior doors to 4’0” and exterior doors to 3’0”.
  • Non-handed for either right or left swinging door.
  • 4630 has easily accessible switches to provide on/off and continuous hold open functions. 4630CS provides concealed on/off power switch. Control module provides all timing and sequential door functions, electric strike controls and adjustments for opening speed and force.
  • Standard or optional custom powder coated finish, end caps are black.
  • Optional plated finish on cover, arm, and fasteners.

4630 Series is UL and cUL listed withstandard arm for self-closing doors and meets the provisions of ANSI Standards A117.1, A156.19, and the Americans with Disabilities Act.

The 4640 Auto Equalizer™ is LCN’s smart & reliable electrically powered low-energy power operator. It provides easy access for people with disabilities, the elderly, or the frail. Designed primarily for manual opening applications that occasionally require automatic opening.

Features and Benefits
  • NEW Digital Control Suite
  • Utilizes a 10,000,000 Cycle Heavy Duty Door Closer
  • On-Board Diagnostics
  • On-Board Power Supply
  • Factory-Default Memory
  • Plug-and-Play Connections
  • No Destruct Feature
  • No Guard Rails or Safety Mats Required

Specifications

  • Standard, top jamb (push side) mounted 4640 series closer shipped with regular arm, metal cover, and wood and machine screw pack. Actuators available separately, see pages 199-215.
  • Meets ADA, requirements (power mode).
  • Non-sized cylinders for interior doors to 4’6” and exterior doors to 3’6”.
  • Non-handed for either right or left swinging door.
  • 4640 has easily accessible switches to provide on/off and continuous hold open functions. 4640CS provides concealed on/off power switch. Control module provides all timing and sequential door functions, electric strike controls and adjustments for opening speed and force.
  • Standard or optional custom powder coated finish, end caps are black.
  • Optional plated finish on cover, arm, and fasteners.

The 4640 Series is UL and cUL listed with regular arm for self-closing doors and meets the provisions of ANSI Standards A117.1, A156.19, and the Americans with Disabilities Act.

4810 Series Door Closer by LCN

LCN automatic operators are the proven standard in schools and health care facilities for over 20 years. They are easily retrofitted into existing doors and frames, as well as new construction. LCN low energy electrohydraulic and pneumatic automatic operators feature a heavy duty closer with a slow opening function. LCN's electromechanical automatic operators utilizes a motor gearbox and control box to perform the opening and closing function.

The 4810 Series AUTO EQUALIZER™ is LCN's pneumatically powered MULTI-DOOR solution. This low-energy power operator provides easy access for peole with disabilities, or the elderly. Designed primarily for manual opening applications that occasionally require automatic opening.

Features and Benefits:

- Multi-Door Solution.
- Utilizes a 10,000,000 Cycle Heavy Duty Door Closer.
- Quiet, Efficient & Reliable.
- Requires Control Boxes with integral compressor or control box using auxiliary air supply.
- Guard Rails/Safety Mats not required.
- Available in Aluminum (689) & Dark Bronze (695) finish.

The 4810 Series is UL and cUL228 listed and meets the provisions of ANSI Standards A117.1, A156.19, and the Americans with Disabilities Act.

Specification Data:

- Ideal for multi-door applications since cost per door leaf decrease significantly as the number of door leaves increases.
- Standard, plate mounted 4810 Series closer shipped with single lever (standard) arm, metal cover, standard track, and wood and machine screw pack.
- Meets ADA requirements (power mode).
- Non-sized cylinders for interior doors to 4'0" and exterior doors to 3'0".
- Non-handed.

Track Function Option:

Standard Track (4810-3038): Standard, non-handed track. Will not accept hold open clip or bumper assembly.

The 4820 AUTO EQUALIZER™ is LCN’s pneumatically powered MULTI-DOOR solution. This low energy automatic operator provides easy access for people with disabilities, the elderly, or the frail. Designed primarily for manual opening applications that occasionally require automatic opening.
Features & Benefits
  • Multi-Door Solution
  • Utilizes a 10,000,000 Cycle Heavy
  • Duty Door Closer
  • Quiet, Efficient & Reliable
  • Requires Control Boxes with integral compressor or control box using auxiliary air supply.
  • No Guard Rails/Safety Mats Required

The 4820 Series is UL and cUL228 and meets the provisions of ANSI Standards A117.1, A156.19, and the Americans with Disabilities Act.

Specifications

  • Ideal for multi-door applications since cost per door leaf decrease significantly as the number of door leaves increases.
  • Standard, plate mounted 4820 series closer shipped with regular arm, metal cover, and wood and machine screw pack.
  • Meets ADA requirements (power mode).
  • Non-sized cylinders for interior doors to 4’6” and exterior doors to 3’6”.
  • Non-handed.
  • Requires additional system components.
  • Standard or optional custom powder coated finish, end caps are black. Optional plated finish on cover, arm, and fasteners.

4840 Series Door Closer by LCN

LCN automatic operators are the proven standard in schools and health care facilities for over 20 years. They are easily retrofitted into existing doors and frames, as well as new construction. LCN low energy electrohydraulic and pneumatic automatic operators feature a heavy duty closer with a slow opening function. LCN's electromechanical automatic operators utilizes a motor gearbox and control box to perform the opening and closing function.

The 4840 Series AUTO EQUALIZER™ is LCN's pneumatically powered MULTI-DOOR solution. This low-energy power operator provides easy access for peole with disabilities, or the elderly. Designed primarily for manual opening applications that occasionally require automatic opening.

Features and Benefits:

- Multi-Door Solution.
- Utilizes a 10,000,000 Cycle Heavy Duty Door Closer.
- Quiet, Efficient & Reliable.
- Requires Control Boxes with integral compressor or control box using auxiliary air supply.
- Guard Rails/Safety Mats not required.
- Available in Aluminum (689) finish.

The 4840 Series is UL and cUL228 listed and meets the provisions of ANSI Standards A117.1, A156.19, and the Americans with Disabilities Act.

Specification Data:

- Ideal for multi-door applications since cost per door leaf decrease significantly as the number of door leaves increases.
- Standard, plate mounted 4840 Series closer shipped with EXTRA DUTY arm, metal cover and a wood and machine screw pack.
- Meets ADA requirements (power mode).
- Installation requires use of either DOOR LOOP-459 or TRANSFER HINGE-460 (not included).
- Non-sized cylinders for interior doors to 4'6" and exterior doors to 3'6".
- Non-handed.

Arm Function Option:

EDA (Extra Duty Arm 4840-3077EDA): Standard, non-handed parallel arm features forged solid steel main arm and forearm for potentially abusive installations.
CUSH (Cush-N-Stop Arm 4840-3077CNS): Optional, non-handed parallel arm features forged solid steel main arm and forearm with stop in soffit shoe.
SCUSH (Spring Cush-N-Stop Arm 4840-3077SCNS): Optional, non-handed parallel arm for abusive applications features forged solid steel main arm and forearm with spring loaded stop in soffit shoe.

9130 Series Door Closer by LCN

The LCN 9130 BENCHMARK is an automatic electromechanical swinging door operator for use on hinged, center pivoted and offset pivoted doors. When activated, the Benchmark drives the door to full open position, then electrical power is turned off and the door is closed by spring force. The activating cirucit opens the door from any position in the closing swing. During a power failure, the Benchmark acts as a manual door closer (Size 3). Door opening and closing cycles, including opening speed, back check speed, hold open time delay, closing speed, and latch positon, are adjustable.

The 9130 BENCHMARK by LCN is an electrically powered low-energy operator. It provides easy access for people with disabilities, the elderly or the frail. Designed primarily for automatic opening applications that occasionally require manual opening. The BENCHMARK is a cost-effective solution for retrofitting an activated or manual door.

Features and Benefits:

- Push 'N Go permits non-switch activation.
- Microprocessor control box ensures reliability and maintains customer settings.
- Tested internally to over 3,000,000 cycles.
- Power Boost allows for increased closing force near latch.
- Available in Aluminum (ANCLR) finish.

9130 Series is fully compliant with UL325 and meets the provisions of ANSI A156.19. The 9130 Series is UL listed for fire-rated applications. The 9130 Series also meets the provisions of the Americans with Disabilities Act.

Specifications:

- 9130 Series operator is shipped with motor gearbox, control box, mounting plate, standard arm, metal cover, standard track, wood and machine screws.
- Single interior door, surface mounted.
- ADA compliant.
- On/Off switch included as standard.
- Non-handed for either right or left swinging door.
- 27" cover is standard. Full length covers available up to 36" for single doors.
- All potentiometers clearly labeled with their functions.
- LED lights indicate power to control box and motor gearbox.

Arm Function Option:

STD (Standard Arm 9130-3077T): Non-handed arm. Track roller not included.

9140 Series Door Closer by LCN

The LCN 9140 BENCHMARK is an automatic electromechanical swinging door operator for use on hinged, center pivoted and offset pivoted doors. When activated, the Benchmark drives the door to full open position, then electrical power is turned off and the door is closed by spring force. The activating circuit opens the door from any position in the closing swing. During a power failure, the Benchmark acts as a manual door closer (Size 3). Door opening and closing cycles, including opening speed, back check speed, hold open time delay, closing speed, and latching position, are adjustable.

The 9140 BENCHMARK by LCN is an electrically powered low-energy operator. It provides easy access for people with disabilities, the elderly or the frail. Designed primarily for automatic opening applications that occasionally require manual opening. The BENCHMARK is a cost-effective solution for retrofitting an activated or manual door.

Features and Benefits:

- Push 'N Go permits non-switch activation.
- Microprocessor control box ensures reliability and maintains customer settings.
- Power Boost allows for increased closing force near latch.
- Available in Aluminum (ANCLR) finish.

9140 Series is fully compliant with UL325 and meets the provisions of ANSI A156.19. The 9140 Series is UL listed for fire-rated applications. The 9140 Series also meets the provisions of the Americans with Disabilities Act.

Specifications:

- 9140 Series operator is shipped with motor gearbox, control box, mounting plate, regular arm, metal cover, standard track, wood and machine screw pack.
- Single interior door, surface mounted.
- ADA compliant.
- On/Off switch included as standard.
- Non-handed for either right or left swinging door.
- 27" cover is standard. Full length covers available up to 36" for single doors.
- All potentiometers clearly labeled with their functions.
- LED lights indicate power to control box and motor gearbox.

Arm Function Option:

REG (Regular Arm 9140-3077): Non-handed arm.

9150 Series Door Closer by LCN

The LCN 9150 BENCHMARK is an automatic electromechanical swinging door operator for use on hinged, center pivoted and offset pivoted doors. When activated, the Benchmark drives the door to full open position, then electrical power is turned off and the door is closed by spring force. The activating circuit opens the door from any position in the closing swing. During a power failure, the Benchmark acts as a manual door closer. Door opening and closing cycles, including opening speed, back check speed, hold open time delay, closing speed, and latch position, are adjustable.

The 9150 BENCHMARK by LCN is an electrically powered low-energy operator. It provides easy access for people with disabilities, the elderly or the frail. Designed primarily for automatic opening applications that occasionally require manual opening. The BENCHMARK is a cost-effective solution for retrofitting an activated or manual door.

Features and Benefits:

- Push 'N Go permits non-switch activation.
- Microprocessor control box ensures reliability and maintains customer settings.
- Power Boost allows for increased closing force near latch.
- Available in Aluminum (ANCLR) finish.

9150 Series is fully compliant with UL325 and meets the provisions of ANSI A156.19. The 9150 Series is UL listed for fire-rated applications. The 9150 Series also meets the provisions of the Americans with Disabilities Act.

Specifications:

- 9150 Series operator is shipped with motor gearboxes, control boxes, mounting plate, regular arms, metal cover, wood and machine screw packs.
- Pair of interior doors, surface mounted.
- ADA compliant.
- On/Off switch included as standard.
- Non-handed for either right or left swinging door.
- 72" cover is standard.
- All potentiometers clearly labeled with their functions.
- LED lights indicate power to control box and motor gearbox.

Arm Function Option:

REG (Regular Arm 9150-3077): Non-handed arm.

9530 Series Door Closer by LCN

LCN automatic operators are the proven standard in schools and health care facilities for over 20 years. They are easily retrofitted into existing doors and frames, as well as new construction. LCN low energy electrohydraulic and pneumatic automatic operators feature a heavy duty closer with a slow opening function. LCN's electromechanical automatic operators utilize a motor gearbox and control box to perform the opening and closing function. LCN's electromechanical products are designed primarily for automatic opening applications that occasionally require manual opening. A control box provides all electrical functions. These self-contained units are suitable for use on single leaf doors or pairs of doors. These products combine all the control and power elements into a single operator package, only some actuators are required to complete the system.

The 9530 SENIOR SWING by LCN is an ADA door operator that is a two-in-one swing door operator. SENIOR SWING operators when activated, opens doors automatically for wheelchair access, yet allows for manual operation for regular pedestrian traffic.

Features and Benefits:

- Push 'N Go permits non-switch activation.
- Power Boost provides additional latching force.
- Electromechanical unit with microprocessor control.
- Digital keypad for easy setup.
- Meets International Building Code requirements and ANSI A156.19.
- UL approved for fire doors.
- Available in Aluminum (ANCLR) finish.

9530 Series is fully compliant with UL325 & UL1998 and meets the provisions of ANSI A156.19. The 9530 Series is UL listed for fire-rated applications. The 9530 Series also meets the provisions of the Americans with Disabilities Act.

Specifications:

- 9530 Series operator is shipped with motor gearbox, control box, standard arm, header, and mounting hardware.
- Single door, surface mounted.
- Meets ADA requirements (power mode only).
- Handed for right (RH or LHR) or left (LH or RHR) swinging doors. Click here for Handing Diagram.
- 36" header length is standard. Specify length 33" to 48" max.
- Adjustable hold open period of 2 to 32 seconds in automatic or manual mode.

Arm Function Option:

STD (Standard Arm 9530-3077T): Handed arm. Track roller not included.

9530 Series Door Closer by LCN

LCN automatic operators are the proven standard in schools and health care facilities for over 20 years. They are easily retrofitted into existing doors and frames, as well as new construction. LCN low energy electrohydraulic and pneumatic automatic operators feature a heavy duty closer with a slow opening function. LCN's electromechanical automatic operators utilize a motor gearbox and control box to perform the opening and closing function. LCN's electromechanical products are designed primarily for automatic opening applications that occasionally require manual opening. A control box provides all electrical functions. These self-contained units are suitable for use on single leaf doors or pairs of doors. These products combine all the control and power elements into a single operator package, only some actuators are required to complete the system.

The 9530 SENIOR SWING by LCN is an ADA door operator that is a two-in-one swing door operator. SENIOR SWING operators when activated, opens doors automatically for wheelchair access, yet allows for manual operation for regular pedestrian traffic.

Features and Benefits:

- Push 'N Go permits non-switch activation.
- Power Boost provides additional latching force.
- Electromechanical unit with microprocessor control.
- Digital keypad for easy setup.
- Meets International Building Code requirements and ANSI A156.19.
- UL approved for fire doors.
- Available in Aluminum (ANCLR) finish.

9530 Series is fully compliant with UL325 & UL1998 and meets the provisions of ANSI A156.19. The 9530 Series is UL listed for fire-rated applications. The 9530 Series also meets the provisions of the Americans with Disabilities Act.

Specifications:

- 9530 Series operator is shipped with motor gearbox, control box, standard arm, header, and mounting hardware.
- Single door, surface mounted.
- Meets ADA requirements (power mode only).
- Handed for right (RH or LHR) or left (LH or RHR) swinging doors. Click here for Handing Diagram.
- 36" header length is standard. Specify length 33" to 48" max.
- Adjustable hold open period of 2 to 32 seconds in automatic or manual mode.

Arm Function Option:

STD (Standard Arm 9530-3077T): Handed arm. Track roller not included.

9540 Series Door Closer by LCN

LCN automatic operators are the proven standard in schools and health care facilities for over 20 years. They are easily retrofitted into existing doors and frames, as well as new construction. LCN low energy electrohydraulic and pneumatic automatic operators feature a heavy duty closer with a slow opening function. LCN's electromechanical automatic operators utilize a motor gearbox and control box to perform the opening and closing function. LCN's electromechanical products are designed primarily for automatic opening applications that occasionally require manual opening. A control box provides all electrical functions. These self-contained units are suitable for use on single leaf doors or pairs of doors. These products combine all the control and power elements into a single operator package, only some actuators are required to complete the system.

The 9540 SENIOR SWING by LCN is an ADA door operator that is a two-in-one swing door operator. SENIOR SWING operators when activated, opens doors automatically for wheelchair access, yet allows for manual operation for regular pedestrian traffic.

Features and Benefits:

- Push 'N Go permits non-switch activation.
- Power Boost provides additional latching force.
- Electromechanical unit with microprocessor control.
- Digital keypad for easy setup.
- Meets International Building Code requirements and ANSI A156.19.
- UL approved for fire doors.
- Available in Aluminum (ANCLR) finish.

9540 Series is fully compliant with UL325 & UL1998 and meets the provisions of ANSI A156.19. The 9540 Series is UL listed for fire-rated applications. The 9540 Series also meets the provisions of the Americans with Disabilities Act.

Specifications:

- 9540 Series operator is shipped with motor gearbox, control box, regular arm, header, and mounting hardware.
- Single door, surface mounted.
- Meets ADA requirements (power mode only).
- Handed for right (RH or LHR) or left (LH or RHR) swinging doors.
- 36" header length is standard. Specify length 33" to 48" max.
- Adjustable hold open period of 2 to 32 seconds in automatic or manual mode.

Arm Function Option:

REG (Regular Arm 9540-3077): Handed arm.

9540 Series Door Closer by LCN

Simultaneous Pair, Surface Mount (Push/Pull) Double Egress

9550 Series Door Closer by LCN

LCN automatic operators are the proven standard in schools and health care facilities for over 20 years. They are easily retrofitted into existing doors and frames, as well as new construction. LCN low energy electrohydraulic and pneumatic automatic operators feature a heavy duty closer with a slow opening function. LCN's electromechanical automatic operators utilize a motor gearbox and control box to perform the opening and closing function. LCN's electromechanical products are designed primarily for automatic opening applications that occasionally require manual opening. A control box provides all electrical functions. These self-contained units are suitable for use on single leaf doors or pairs of doors. These products combine all the control and power elements into a single operator package, only some actuators are required to complete the system.

The 9550 SENIOR SWING by LCN is an ADA door operator that is a two-in-one swing door operator. SENIOR SWING operators when activated, opens doors automatically for wheelchair access, yet allows for manual operation for regular pedestrian traffic.

Features and Benefits:

- Push 'N Go permits non-switch activation.
- Power Boost provides additional latching force.
- Electromechanical unit with microprocessor control.
- Digital keypad for easy setup.
- Meets International Building Code requirements and ANSI A156.19.
- UL approved for fire doors.
- Available in Aluminum (ANCLR) finish.

9550 Series is fully compliant with UL325 & UL1998 and meets the provisions of ANSI A156.19. The 9550 Series is UL listed for fire-rated applications. The 9550 Series also meets the provisions of the Americans with Disabilities Act.

Specifications:

- 9550 Series operator is shipped with motor gearbox, control box, arms, header, and mounting hardware.
- Simultaneous pair, surface mounted.
- Meets ADA requirements (power mode only).
- Handed for right (RH or LHR) or left (LH or RHR) swinging doors.
- Pull, Push or Double Egress applications available.
- 72" header length is standard. Specify other length 60" to 98".
- Adjustable hold open period of 1 to 32 seconds in automatic or manual mode.

Arm Function Option:

REG2 (Regular Arm 9550-3077): Handed arm. Includes 77 main arm assembly and 79 linkage assembly.

9560 Series Door Closer by LCN

Independent Pair, Surface Mount (Push/Pull) Double Egress

9560 Series Door Closer by LCN

LCN automatic operators are the proven standard in schools and health care facilities for over 20 years. They are easily retrofitted into existing doors and frames, as well as new construction. LCN low energy electrohydraulic and pneumatic automatic operators feature a heavy duty closer with a slow opening function. LCN's electromechanical automatic operators utilize a motor gearbox and control box to perform the opening and closing function. LCN's electromechanical products are designed primarily for automatic opening applications that occasionally require manual opening. A control box provides all electrical functions. These self-contained units are suitable for use on single leaf doors or pairs of doors. These products combine all the control and power elements into a single operator package, only some actuators are required to complete the system.

The 9560 SENIOR SWING by LCN is an ADA door operator that is a two-in-one swing door operator. SENIOR SWING operators when activated, opens doors automatically for wheelchair access, yet allows for manual operation for regular pedestrian traffic.

Features and Benefits:

- Push 'N Go permits non-switch activation.
- Power Boost provides additional latching force.
- Electromechanical unit with microprocessor control.
- Digital keypad for easy setup.
- Meets International Building Code requirements and ANSI A156.19.
- UL approved for fire doors.
- Available in Aluminum (ANCLR) finish.

9560 Series is fully compliant with UL325 & UL1998 and meets the provisions of ANSI A156.19. The 9560 Series is UL listed for fire-rated applications. The 9560 Series also meets the provisions of the Americans with Disabilities Act.

Specifications:

- 9560 Series operator is shipped with motor gearbox, control boxes, arms, header, and mounting hardware.
- Independent pair, surface mounted.
- Meets ADA requirements (power mode only).
- Handed for right (RH or LHR) or left (LH or RHR) swinging doors.
- Pull, Push or Double Egress applications available.
- 72" header length is standard. Specify other length 60" to 98".
- Adjustable hold open period of 1 to 32 seconds in automatic or manual mode.

Arm Function Option:

REG2 (Regular Arm 9560-3077): Handed arm. Includes 77 main arm assembly and 79 linkage assembly.

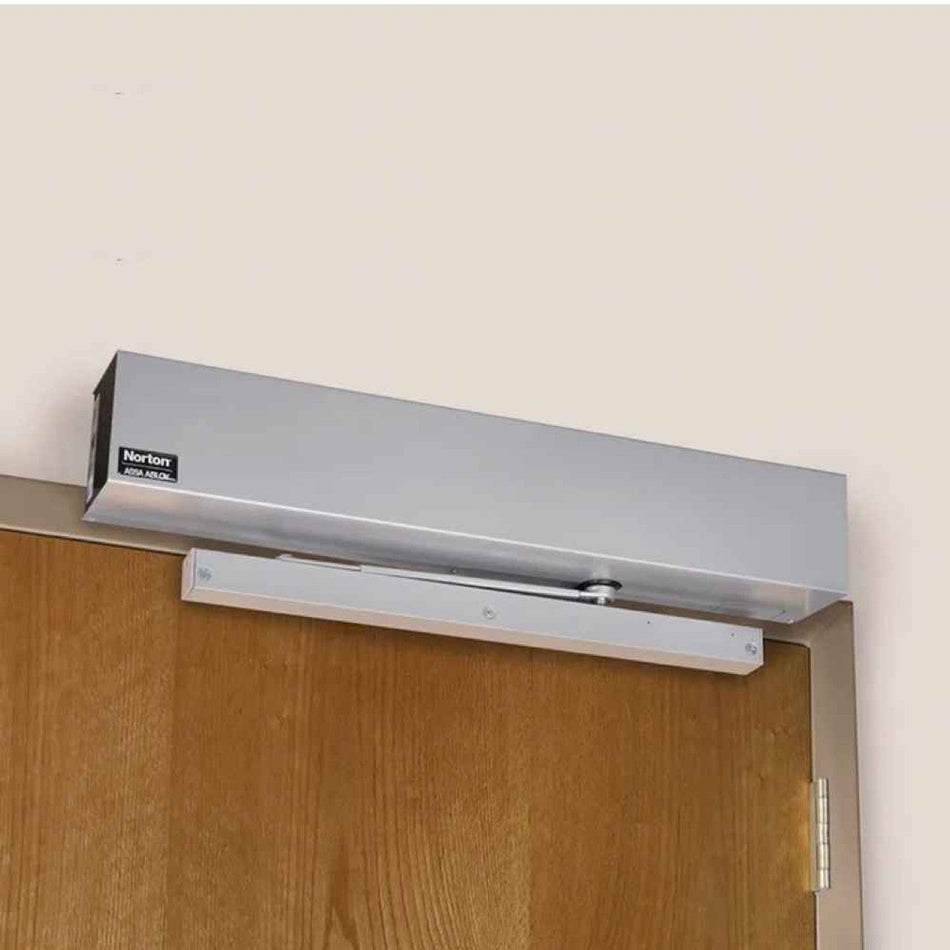

Norton 5700 Power Operated Door Closer 5710, 5730, 5730

Norton 5700 Series is the latest generation of power door operators. Low energy door operators were once considered a necessity only for those with physical challenges. Today, due to the population?s busy lifestyles, the convenience of ?hands-free? door opening is more popular than ever. The patented design of LEO? is based on ease and simplicity. LEO installs in minutes rather than hours and consists of three basic components: inverter, motor and Norton

Features

Non-Handed

Ease of installation and setup - Simple instructions

Application versatility & ease of adjustment - Push or pull side mounting units available

Operates as mechanical surface closer during close cycles or when door is opened manually or if power is turned off - Quiet operation, acceptable for fire-rated doors, spring force provides the feel of a normal manual door closer, door can be opened manually if desired

Power Size: Multi-Sized Door Closer Adjustable through the power range of sizes 3 through 6.

Separate and independent, latch, sweep and backcheck intensity valves

Sweep Speed: Allows adjustment of door speed from the door's full open position down to approximately 10from the closed position.

Latch Speed: Allows adjustment of door speed from approximately 10down to the door?s fully closed position.

Backcheck: Provides control of the door in the opening cycle, beginning at approximately 75of door opening. It slows/cushions the door opening, when the door is forcibly opened beyond its pre-adjusted opening speed limits.

Unit Activation Options - Wall switches, Motion sensor, Radio frequency device

End-User On/Off Switch

Hold Open options - 0-30 seconds (5 seconds minimum required for ADA and ANSI A156.19)

Obstruction Detection - Motor stops if door is obstructed during an opening, door closes under manual spring force.

"Push and Close" Allows the operator to skip the hold open time when it is not necessary or required Adjustable door sensitivity

Overload Safety Shut-Off After two minutes of receiving a door activation signal, the inverter will time out and close the door Prevents motor/inverter damage

Motor Start Delay for Locking Hardware 0-5 second delay to allow locking hardware to release first

2-year warranty (refer to current Nortonprice book for terms & conditions)

Model: Norton, 5710, 5730, 5740
