Norton Door Closers

Barzel Lock Stocks Norton Door Closers In All Options & Finishes Ready To Ship.
Norton 1601 Door Closer 689

Norton 1601 Door Closer

by Norton
$ 76.00
Qty Price
Buy 1 $ 76.00 ea
Buy 6 $ 69.16 ea
Buy 12 $ 66.12 ea
Buy 18 $ 63.84 ea

"Excellent service, excellent price, excellent timing! Huge help in crazy construction business environment! Five stars! Would suggest BarzelLock to anybody, no doubt about it." Irina Bord, Regency Glass.

                          Compare The Norton 1601
Brand/Model # Our Price  Barzel Lock Comment
Dorma 7400 $145.00 Great Closer
Falcon SC60 $74.00 Highly Recommended
Norton 1601 $76.00 Best In Class Closer
S. Parker 900 $46.00 Good Imported Closer
Sargent 1130 $105.00

Solid Closer

Yale 51 $110.00

Solid Closer

Best Used In Medium To High Traffic Doors


Barzel Lock Stocks The Norton 1601 Closer In All Options & Finishes Ready To Ship Free On Orders Over $189.  Ideal for use with aluminum storefront doors and frames, these closers have a history of proven quality and tradition.

1601 Arm Options:

RW/PA Regular Arm
HW/PA Hold Open With Regular Arm

1601 Finishes:

689-Aluminum
690-Dark Bronze
691-Light Bronze
696-Satin Brass

Features

    • 1600BC: Sized springs 3 or 4
    • 1601: Adjustable spring sizes 3-6
    • 1601BF: Adjustable spring sizes 1-4
    • Exceeds 12 million cycles (witnessed and verified by UL)
    • Non-handed
    • Rack and pinion design
    • Cast aluminum body
    • 2-7/8" (73mm) projection
    • 1-3/8" (35mm) diameter piston
    • 5/8" (16mm) diameter pinion journals
    • Standard, separate and independent, latch, sweep and backcheck intensity valves
    • Tri-Style® packaging (regular arm, top jamb and parallel arm mounting)
    • All standard arm applications allow doors to swing 180°, conditions permitting
    • Staked valves

    Optional Features

    • Delayed action (in lieu of backcheck). Specify 1601DA or 1601BFDA
    • Corrosion-resistant model (non-hold open only). Specify 1601SS or 1601BFSS. (Not tri-packed)
    • Molded plastic cover. Specify suffix P
    • Heavy-duty arms: Parallel Rigid, CloserPlus®, CloserPlus Spring™, and Unitrol®

    The 1600BC/1601 Series Door Closers are designed to fit almost any application and are the choice of engineers worldwide. Ideal for use with aluminum storefront doors and frames, these closers have a history of proven quality and tradition.

    Features

    • 1600BC: Sized springs 3 or 4
    • 1601: Adjustable spring sizes 3-6
    • 1601BF: Adjustable spring sizes 1-4
    • Exceeds 12 million cycles (witnessed and verified by UL)
    • Non-handed
    • Rack and pinion design
    • Cast aluminum body
    • 2-7/8" (73mm) projection
    • 1-3/8" (35mm) diameter piston
    • 5/8" (16mm) diameter pinion journals
    • Standard, separate and independent, latch, sweep and backcheck intensity valves
    • Tri-Style® packaging (regular arm, top jamb and parallel arm mounting)
    • All standard arm applications allow doors to swing 180°, conditions permitting
    • Staked valves

    Optional Features

    • Delayed action (in lieu of backcheck). Specify 1601DA or 1601BFDA
    • Corrosion-resistant model (non-hold open only). Specify 1601SS or 1601BFSS. (Not tri-packed)
    • Molded plastic cover. Specify suffix P
    • Heavy-duty arms: Parallel Rigid, CloserPlus®, CloserPlus Spring™, and Unitrol®
    Norton 5700 Power Operated Door Closer 5710, 5730, 5730

    Norton 5700 Series is the latest generation of power door operators. Low energy door operators were once considered a necessity only for those with physical challenges. Today, due to the population?s busy lifestyles, the convenience of ?hands-free? door opening is more popular than ever. The patented design of LEO? is based on ease and simplicity. LEO installs in minutes rather than hours and consists of three basic components: inverter, motor and Norton

    Features

    Non-Handed

    Ease of installation and setup - Simple instructions

    Application versatility & ease of adjustment - Push or pull side mounting units available

    Operates as mechanical surface closer during close cycles or when door is opened manually or if power is turned off - Quiet operation, acceptable for fire-rated doors, spring force provides the feel of a normal manual door closer, door can be opened manually if desired

    Power Size: Multi-Sized Door Closer Adjustable through the power range of sizes 3 through 6.

    Separate and independent, latch, sweep and backcheck intensity valves

    Sweep Speed: Allows adjustment of door speed from the door's full open position down to approximately 10from the closed position.

    Latch Speed: Allows adjustment of door speed from approximately 10down to the door?s fully closed position.

    Backcheck: Provides control of the door in the opening cycle, beginning at approximately 75of door opening. It slows/cushions the door opening, when the door is forcibly opened beyond its pre-adjusted opening speed limits.

    Unit Activation Options - Wall switches, Motion sensor, Radio frequency device

    End-User On/Off Switch

    Hold Open options - 0-30 seconds (5 seconds minimum required for ADA and ANSI A156.19)

    Obstruction Detection - Motor stops if door is obstructed during an opening, door closes under manual spring force.

    "Push and Close" Allows the operator to skip the hold open time when it is not necessary or required Adjustable door sensitivity

    Overload Safety Shut-Off After two minutes of receiving a door activation signal, the inverter will time out and close the door Prevents motor/inverter damage

    Motor Start Delay for Locking Hardware 0-5 second delay to allow locking hardware to release first

    2-year warranty (refer to current Nortonprice book for terms & conditions)

    Model: Norton, 5710, 5730, 5740

    Norton 7500 Door Closer

    Norton 7500 Door Closer

    from $ 467.00
    from $ 230.00

    Norton 7500 Door Closer

    by Norton
    $ 467.00
    $ 230.00

    Barzel Lock Stocks The Norton 7500 Series Door Closer Ready To Ship Free On Orders Over $189. Order Today!

    • Adjustable spring sizes 1 through 6 (ADA Compliant)
    • Tri-Style® packaging for regular, top jamb or parallel arm mounting
    • Exceeds 25 million cycles (witnessed and verified by UL)
    • Non-handed
    • Rack-and-pinion design
    • Cast aluminum body
    • 2-3/16" (56mm) projection
    • 1-1/2" (38mm) diameter piston
    • 5/8" (16mm) diameter pinion journals
    • Staked valves
    • Standard, separate and independent, latch, sweep and backcheck intensity valves
    • Backcheck positioning valve
    • NorGlide® fluid
    • Molded plastic cover
    • All standard arm applications allow doors to swing 180°, conditions permitting
    • Self-drilling screws
    • Slide Tracks: push or pull side mounting

    Optional Features

    • Heavy-duty arms: Regular Rigid, Parallel Rigid, CloserPlus®, CloserPlus Spring™ and Unitrol®
    • Corrosion resistant model (non-hold open only). Specify 7500SS
    • Metal cover. Specify M suffix



    • Lead lined metal cover. Specify MLL suffix
    • Enhanced backcheck. Specify EBC suffix
    • Delayed action with pressure relief valve
    • Retrofit plates

    Typical Applications

    Recommended for interior or exterior doors including:



    • Classrooms
    • Offices
    • Main entrance doors
    • Hospitals
    • High use, high abuse doors

    Certifications

    • ANSI/BHMA A156.4, Grade 1 certified
    • ANSI/BHMA standard A117.1 certified
    • UL listed



    • UL10c compliant for positive pressure
    • Listed by the New York City Materials and Equipment Acceptance Division
    • 25-year limited warrant

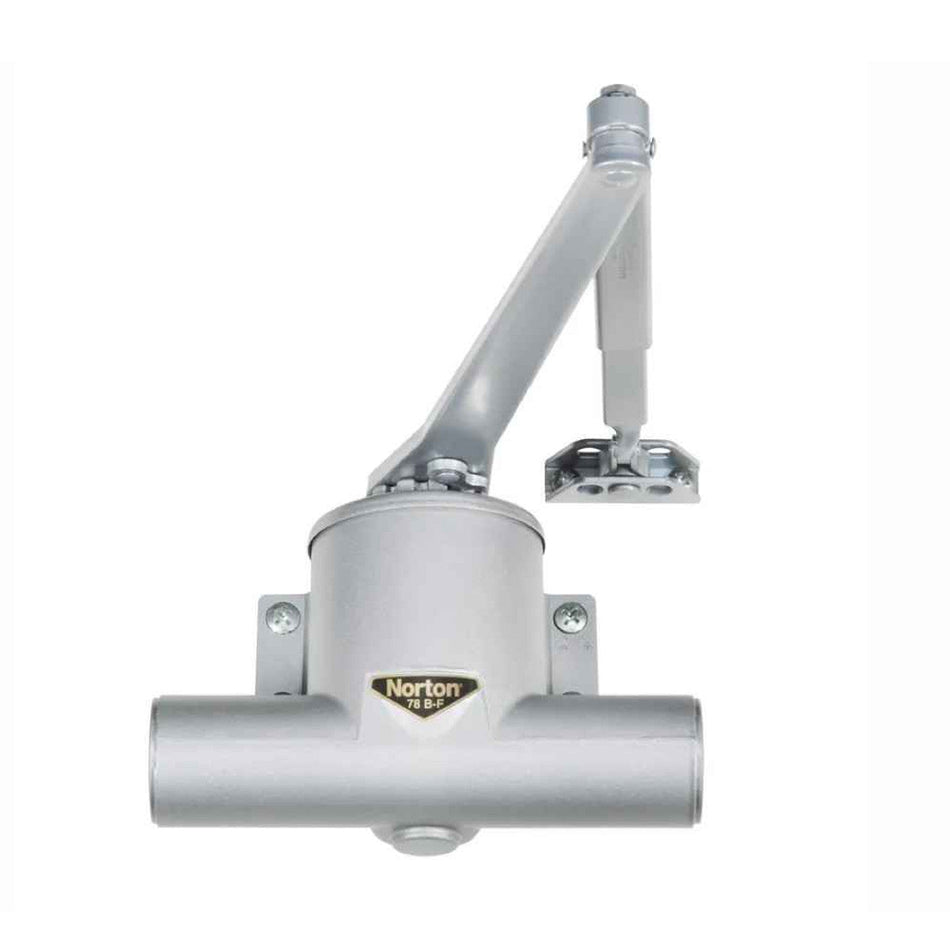

    Norton 78 B/F & E/F Door Closer 78 B/F Series
