Detex Exit Devices

Barzel Lock offers several Detex products, including Detex panic bars, alarmed exit devices and related products that help keep your building safer while making it easy for people to exit in an emergency.

Our selection includes Detex alarmed exit devices, exit alarms, exit devices with alarms, and all types of panic devices and other security door hardware for commercial buildings. Our Detex products offer many ways to control the exits in commercial buildings, educational buildings like colleges and dormitories, institutional buildings, hospitals, nursing homes, large apartment buildings and anywhere you need to control and alarm the exits.

Barzel Lock carries the entire Detex line of products in all their options, with many in stock and ready to ship. Shop our Detex exit devices, door alarms and alarmed exit devices today, and find the right solution for your property.

The 10 Series rim exit device is super-heavy-duty panic and fire exit hardware for use on all types of single and double doors with mullions. The patented mounting plate and strike locator system ensures the easiest and most accurate installation of panic hardware available.    Barzel Lock Stocks The Detex 10 Advantex Rim Exit Device In All Options.

Installation Video

Benefits:

• Tough and durable design for years of trouble-free service in high-use, high-abuse environments

• Fast and accurate installation

• Minimal door prep saves time and money

• Outside trims are easily changed or re-keyed without removing device from door

Features:

• Patented mounting plate and strike locator system replaces paper templates

• Stainless steel deadlocking, Pullman-type latch bolt

• Tested beyond 1,000,000 cycles - Twice the cycling required for Grade 1 UL testing

• All exposed surfaces are finished over stainless steel with PVD, an environmentally-friendly finishing process

• Heavy-duty angled end-cap deflects damage away from device

• Non-handed

• Field sizeable

• 1/8 turn hex or cylinder dogging

Mechanical Options:

• HD - Hex Dogging (Std.)

• 99 - Surface Strike (Std.)

• 36 - Fits 36" Door Width (Std.)

Call For Additional Options 212-677-7530

Catalog For Detex 10 Series Advantex Rim Exit Device





Detex ECL-230D Battery Alarmed Deadbolt Panic Device ECL-230D-PH. The ECL-230 is a code compliant, battery alarmed, rugged dead bolt, panic device with steel plate and photo-luminescent sign providing managed security and a 100 decibel alarm for secondary exits.

Instructions Video For Detex ECL-230D/ECL-230D-PH

• Attack resistant design withstands over 2200 lbs. of outside pull force

• Proven durability and reliability at a reasonable price

• Reduces employee and customer theft

• Single point, 1" throw dead bolt

• Saw resistant dead bolt

• Corrosion resistant alloy lock body

• 100 decibel alarm, powered by 9-volt battery (included)

• Easy to install

• Door Types - Wood, Hollow Metal or Aluminum

• Door Thickness - Fits standard 1-3/4" - 2-1/4"

• Minimum standard door width for ECL-230D is 20"

• Minimum standard door width for ECL-230D-PH is 34"

• Time tested construction resists attack from the inside

• Durable steel plate with photo luminescent sign absorbs light to then “glow in the dark” when lights are dimmed

• Easy to see if the lights go out

• Straightforward operation that everyone understands

• Accepts 5-pin through 7-pin standard and interchangeable core rim cylinders

• Resetting the alarm can only be accomplished with a control key

• Non-handed

• Locking and unlocking the dead bolt always arms and disarms the alarm

The Detex Hardware alarmed commercial grade panic exit device is perfect for use on the back door of retail stores or any secondary exit door. Set the alarm using the keyed cylinder and the alarm beeps for 10 seconds to allow you to exit the door. After the alarm is armed if the push bar is depressed the alarm will sound. Alarm can be easily turned off using the keyed cylinder which is included. Meets ADA requirements. Fits doors 36" wide.
Detex EAX-300 Battery Powered Door Prop Alarm

Barzel Lock Stocks All The Detex EAX-300 Series is designed for applications where doors may be used for egress or ingress, but may not be held or propped open. Door open times from 1 second to 4 minutes (15 second default) are field selectable.

The smaller size makes installation quick and easy.

Benefits

• Alarm silences when door is closed, no waiting for key-holder to arrive

• Low cost, solution to propped open doors

• Helps keep energy costs down by ensuring doors are closed

• Quick, easy installation saves time and money

• Secure, tamper resistant housing

• Patented plastic template assures accurate installation by providing foolproof alignment with internal magnetic door contact

• Tapered cover allows for installation on narrow stile doors

• Intelligent circuit senses the external magnet location automatically and sets the correct door handing

• 100 dB piezo alarm

• 9VDC battery operated with Low Battery Alert

• LED visual arming indicators

Detex EAX-2500 12-24VAC/DC Exit Alarm

The Detex EAX-2500 Series Exit Alarm is designed for applications requiring a hardwired AC/DC alarm on secure doors. The alarm, with approximately 100dB, will sound when an unauthorized exit occurs. The smaller size of the EAX-2500, which is designed to fit in a standard 4"x4" outlet box, makes it the choice for quick and easy installations on emergency exit and restricted doors.

Here Are Instructions For The EAX-2500

• Field selectable features allow customer to choose status indicators and auto rearm options

• 100dB piezo horn provides security for restricted doors

• Surface and flush mount available using 4"x4" double switch/outlet box

• Patented cam assembly automatically adjusts for different size cylinders without spacers

• Inside Key Control uses mortise cylinder with standard Yale cam Features Benefits

• Easy to install using ordinary tools to save time and money

• New graphics on cover are easy to understand and make key operation simple

• Available in either gray or black to blend with any décor

• AC/DC hardwired power with optional 9VDC backup battery

• Low battery alert is field selectable

• Silent arming feature is field selectable

• Tamper resistant housing and cover protects electronics

• Extended bypass allows alarm to remain silenced when door is open and automatically rearm upon closing of door

• Relay output for signaling external accessories

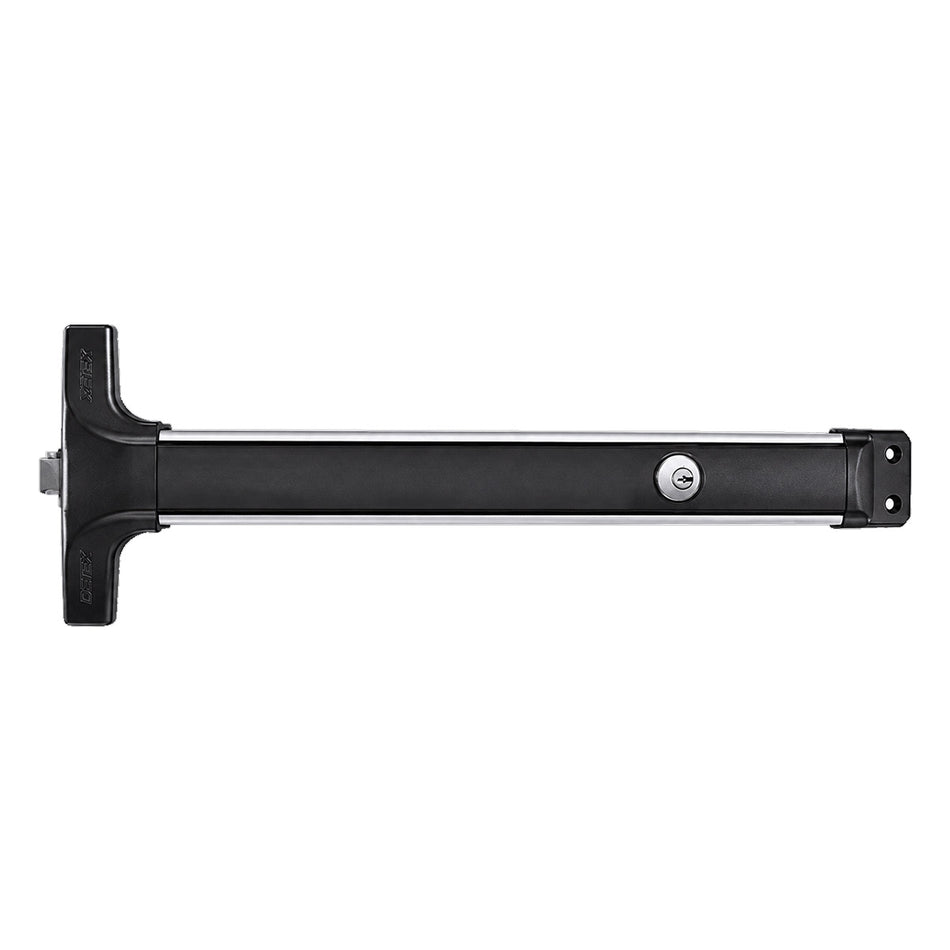

Detex V40 Cylinder Dogging Rim Exit Device

Detex V40 Cylinder Dogging Rim Panic Exit Device. The V40 Series rim exit device is secure and durable panic and fire exit hardware at an economical price. It is designed for use on all types of single and double doors with mullions. The patented mounting plate and strike locator system ensures the easiest and most accurate installation of panic hardware available. Barzel Lock Stocks The V40 In All Options. Give Us A Call If You Cant Find It At 212-677-7530

Installation Video

Benefits:

• Priced to be the best value for durable and attractive loss prevention panic hardware

• Fast and easy installation

• Minimal door prep saves time and money

• Fits almost any door in any décor

• Outside trims are easily changed or rekeyed without removing device from door

Features:

• Patented mounting plate and strike locator

• Covers a 161 door prep

• Stainless steel, 3/4" deadlocking Pullman-type latch bolt

• Non-handed

• Field sizeable

• Heavy-duty angled end cap

• Heavy-duty ribbed aluminum rail extrusion

• High impact ABS and anodized surfaces

• Withstands over 1400 pounds of static pull force for greater security

• Modular design accepts a variety of outside trims and functions

• Standard and narrow stile pull trims available

Mechanical Options:

• CD - Cylinder Dogging

• 36 - Fits 36" Door Width (Std.)

• 48 - Fits 48" Door Width

• 99 - Surface Strike (Std.)

Instructions Catalog

The Detex EAX-300W Series is designed for applications where doors that open to the outdoors or wet environments may be used for egress or ingress, but may not be held or propped open. Door open times from 1 second to 4 minutes (15 second default) are field selectable. The smaller size makes installation quick and easy on doors or gates.

Instructions For The Detex EAX-300W Exit Alarm

Benefits:

• Low cost, solution to propped open doors

• Weatherized for use on gates or doors that are subjected to inclement weather

• Helps keep energy costs down by ensuring doors are closed

• Quick, easy installation saves time and money

• Alarm silences when door is closed, no waiting for key-holder to arrive

Features:

• Secure, tamper resistant housing

• Patented plastic template assures accurate installation by providing foolproof alignment with internal magnetic door contact

• Weatherized electronics certified to driving rain and salt fog test (see Listings & Approvals)

• Tapered cover allows for installation on narrow stile doors

• Intelligent circuit senses the external magnet location automatically and sets the correct door handing

• 100 dB piezo alarm

• 9VDC battery operated with Low Battery Alert

• LED visual arming indicators

The Detex EAX-3500 is designed for applications requiring a hard-wired, timed-bypass alarm with rechargeable backup battery. The 100dB alarm will sound when someone attempts an unauthorized exit. The EAX-3500 can be temporarily bypassed for deliveries and trash removal, but reminds manager to close and secure the door.

Instructions

• Allows manager to temporarily bypass the alarm, but does not allow the alarm to be turned off

• Reminds manager to close and secure the door, minimizing door prop time

• Minimizing door prop time saves energy costs

• Hard-wired low voltage power with rechargeable battery insures uninterrupted secure power feed

• Maximum allowable bypass time can be factory set or field- adjusted to 5, 10, 20 or 40 minutes • Bypass time is easily set using two simple slide jumpers, located inside secured enclosure Features Benefits

• Minimizing door prop time reduces exposure to theft and threat of robbery

• Simple, on-the-cover instructions make operation easy

• LEDs illustrate armed status and bypass time, allowing quick easy reference

• Alarm demands attention even in noisy environments

• Tamper-resistant housing and circuits prevent dishonest employees from defeating alarm

• Mortise cylinder sold separately, allowing alarm to be keyed to existing master-key system, helping to maintain key control

• 100dB alarm, powered by 12 to 24 VAC and rechargeable backup battery (included)

• Low battery alert

• Rechargeable backup battery provides 72-hours of operation

• Timed bypass allows alarm to remain bypassed for allotted minutes, automatically rearming upon door closing

• Accepts 5, 6 or 7-pin standard and interchangeable core mortise cylinders with a standard Yale cam

• Patented cam assembly automatically adjusts for different size/length cylinders without the use of additional spacers or cylinder collars

• Resetting the alarm can only be accomplished with a control key

Barzel Lock Stocks The Detex EAX-500 Battery Powered Door or Wall Mount  Exit Alarm. Benefits The Detex EAX-500 Series is designed for applications requiring a battery-powered alarm on secured doors. The alarm, with approximately 100dB, will sound when an unauthorized exit occurs.

Finishes:

Grey

Black

Here Is An Instructions Video

The redesigned shape and smaller size of the EAX-500 makes it the ideal choice for quick and easy installations on emergency exit and restricted doors.

• Quick, easy installation saves time and money

• EAX-500SK includes exit alarm prepped for wall mounting, and surface magnetic door contacts - specify cover lock # - additional surface contacts can be ordered separately (mortise cylinder sold separately)

• OKC - Outside Key Control (Rim Cylinder required) Mechanical Options

• Low cost, self-contained door alarm with piezo horn that sounds to warn unauthorized use of a door or gate • Secure, tamper resistant housing

• Patented plastic template allows for foolproof alignment of internal magnetic door contact and accurate installation

• Tapered cover allows for installation on narrow stile doors

• Intelligent circuit senses the external magnet location automatically and sets the correct door handing

• Patented cam assembly automatically adjusts for different sizes of cylinders without use of spacers

• Alarm can only be silenced by proper control key

• Extended bypass (now a standard feature) allows alarm to remain bypassed when door is open and automatically rearm upon door closing

• 100 dB piezo alarm

• Modern graphics on cover to demonstrate key rotation and operation

• 9VDC battery operated with Low Battery Alert

• LED visual and audible arming indicators

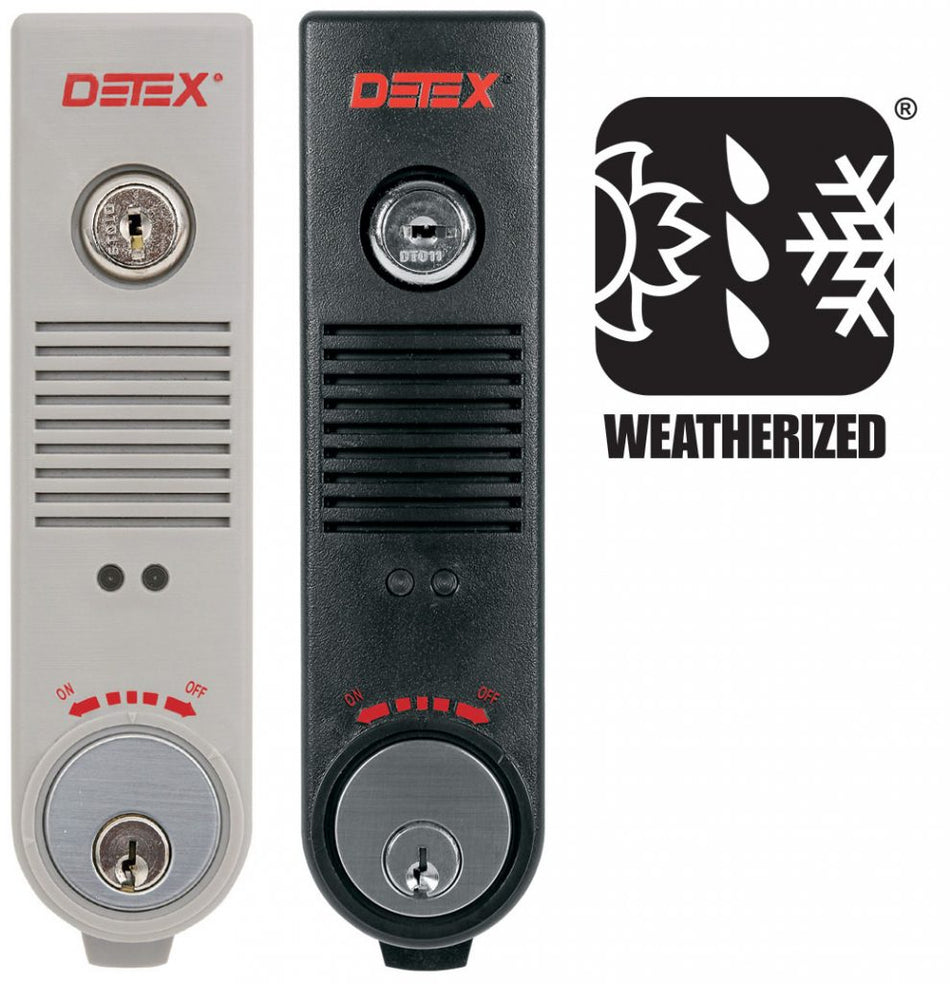

Detex EAX-500W Weatherized Battery Powered Exit Alarm

The Detex EAX-500W Weatherized Exit Alarm is designed for applications that require a battery-powered alarm on secured doors, particularly emergency exits that open to the outdoors or wet environment. The alarm, with approximately 100dB, will sound when someone attempts an unauthorized exit. The redesigned shape and smaller size of the EAX-500W makes it the choice for quick and easy installations on emergency exit and restricted doors.

Finishes:

Grey

Black

Here Is An Instructions Video

• Low cost, self-contained door alarm with piezo horn that sounds to warn unauthorized use of a door or gate

• Patented plastic template allows for foolproof alignment of internal magnetic door contact and accurate installation

• Tapered cover allows for installation on narrow stile doors

• Intelligent circuit senses the external magnet location automatically and sets the correct door handing

• Patented cam assembly automatically adjusts for different sizes of cylinders without use of spacers Features Benefits

• Weatherized for outdoor environments

• Secure, tamper resistant housing

• Quick, easy installation saves time and money

• Alarm can only be silenced by proper control key

• Extended bypass (now a standard feature) allows alarm to remain bypassed when door is open and automatically rearm upon door closing

• Modern graphics on cover to demonstrate key rotation and operation

• 100 dB piezo alarm

• 9VDC battery operated with Low Battery Alert

• LED visual and audible arming indicators

• Field selectable 2-minute auto rearm, if desired

• Field selectable status indicators, if desired

• Weatherized electronics certified to Driving Rain and Salt Fog Test (see Listings and Approvals)

Detex ECL-230X Deadbolt Panic Device Alarm Grey

The ECL-230X is a code compliant, battery alarmed, rugged dead bolt, panic device with photoluminescent sign providing maximum security and a 100 decibel alarm for secondary exits.

Attack resistant design for maximum holding force

• Proven durability and reliability at a reasonable price

• Easy to install

• Dead bolt lock -1” throw with just over 3/4” engagement with the frame

• Saw resistant dead bolt

• Corrosion resistant alloy lock body

• 100 decibel alarm, powered by 9-volt battery (included)

• Surface/flush reversible strike

• Reduces employee and customer theft

• Time tested construction resists attack from the inside

• One size fits 36”-48” doors for code compliant acceptance

• For additional security with 4 locking points, specify ECL-230X-DX3

• Easy to see if the lights go out

• Straightforward operation that everyone understands

• Accepts 5-pin through 7-pin standard and interchangeable core rim cylinders without using cylinder collar

• Durable photo-luminescent sign absorbs light to then "glow in the dark" when lights are dimmed

• Locking and unlocking (dead bolt) always arms and disarms the alarm

• Non-handed

• Low profile meets International Building Code requirement allowing for 4” maximum projection off face of door

• Resetting the alarm can only be accomplished with a control key

• For 9VDC hardwiring add BE-961-1 or BE-961-2

Barzel Hardware Stocks The Full Detex Line. The ECL-230X-TDB is a code compliant, battery alarmed, rugged 3-point dead bolt, panic device with photo-luminescent sign providing maximum security and a 100 decibel alarm for secondary exits. Independent laboratory testing shows that the ECL- 230X-TDB can withstand up to 16,000 pounds of pull force.

Detex ECL-230X-TDB Intructions Video

• Reduces employee and customer theft

• Attack resistant design for maximum holding force

• Proven durability and reliability at a reasonable price

• Easy to install

• 3-point, 1" throw dead bolt lock with just over 3/4” engagement with the frame, and 3/4” throw top and bottom locks with 5/8” engagement with the strike

• Saw resistant dead bolts

• Corrosion resistant alloy lock body

• 100 decibel alarm, powered by 9-volt battery (included)

• Time tested construction resists attack from the inside

• One size fits 36”-48” doors for code compliant acceptance

• For maximum security with 6 locking points, specify ECL-230X-TDB-DX3

• Easy to see if the lights go out

• Straightforward operation that everyone understands

• Surface/flush reversible strike

• Accepts 5-pin through 7-pin standard and interchangeable core rim cylinders without using cylinder collar

• Durable photo-luminescent sign absorbs light to then "glow in the dark" when lights are dimmed

• Locking and unlocking the dead bolt always arms and disarms the alarm

• Non-handed

• Low profile meets International Building Code requirement allowing for 4” maximum projection off face of door

• Resetting the alarm can only be accomplished with a control key

• For 9VDC hardwiring add BE-961-1 or BE-961-2

Detex ECL-600 Exit Device Fire Rated Alarm

Fire-Rated Exit Control Hardware Features Benefits The ECL-600 is a fire rated, code-compliant, rugged, dependable relatching exit device with a steel plate and photo-luminescent sign providing managed security and a 100 decibel alarm for secondary fire exits.

Instructions For Detex ECL-600

• Gray Finish (Std.)

• Black Finish (BK) Mechanical Options

• English Push Plate Sign (Std.)

• Other Languages available (call factory for details)

• For Panic Hardware see ECL-230D or ECL-230D-PH ECL-620 ECL-600 Also available in Black (Cylinders and bar guard sold separately)

• Attack resistant design withstands over 2200 lbs. of outside pull force

• Proven durability, reliability and long service life at a reasonable price

• Reduces employee and customer theft

• Easy to Install

• Time tested construction resists attack from the inside

• Easy to see if the lights go out

• Straightforward operation that everyone understands

• 1" throw dead bolt and 3/4" dead locking latch bolt

• Relatching for additional security

• Saw resistant dead bolt

• Corrosion resistant alloy lock- body

• 100 decibel alarm, powered by 9-volt battery (included)

• Accepts 5-pin through 7-pin standard and interchangeable core rim cylinders

• Durable steel plate with photo luminescent sign

• Non-handed

• Locking and unlocking the dead bolt always arms and disarms the alarm

• Resetting the alarm can only be accomplished with a control key

Detex V40 & V40-W Hex Dogging Rim Panic Exit Device

Detex V40 Hex Dogging & V40 HD W Rim Panic Exit Device. The V40 Series rim exit device is secure and durable panic and fire exit hardware at an economical price. It is designed for use on all types of single and double doors with mullions. The patented mounting plate and strike locator system ensures the easiest and most accurate installation of panic hardware available. Barzel Lock Stocks The V40 In All Options. Give Us A Call If You Cant Find It At 212-677-7530

Installation Video

Benefits:

• Priced to be the best value for durable and attractive loss prevention panic hardware

• Fast and easy installation

• Minimal door prep saves time and money

• Fits almost any door in any décor

• Outside trims are easily changed or rekeyed without removing device from door

Features:

• Patented mounting plate and strike locator

• Covers a 161 door prep

• Stainless steel, 3/4" deadlocking Pullman-type latch bolt

• Non-handed

• Field sizeable

• 1/8 turn hex key dogging

• Heavy-duty angled end cap

• Heavy-duty ribbed aluminum rail extrusion

• High impact ABS and anodized surfaces

• Withstands over 1400 pounds of static pull force for greater security

• Modular design accepts a variety of outside trims and functions

• Standard and narrow stile pull trims available

Mechanical Options:

• HD - Hex Dogging (Std.)

• 36 - Fits 36" Door Width (Std.)

• 48 - Fits 48" Door Width

• 99 - Surface Strike (Std.)

• 98 - Semi Mortise Strike

Instructions Catalog

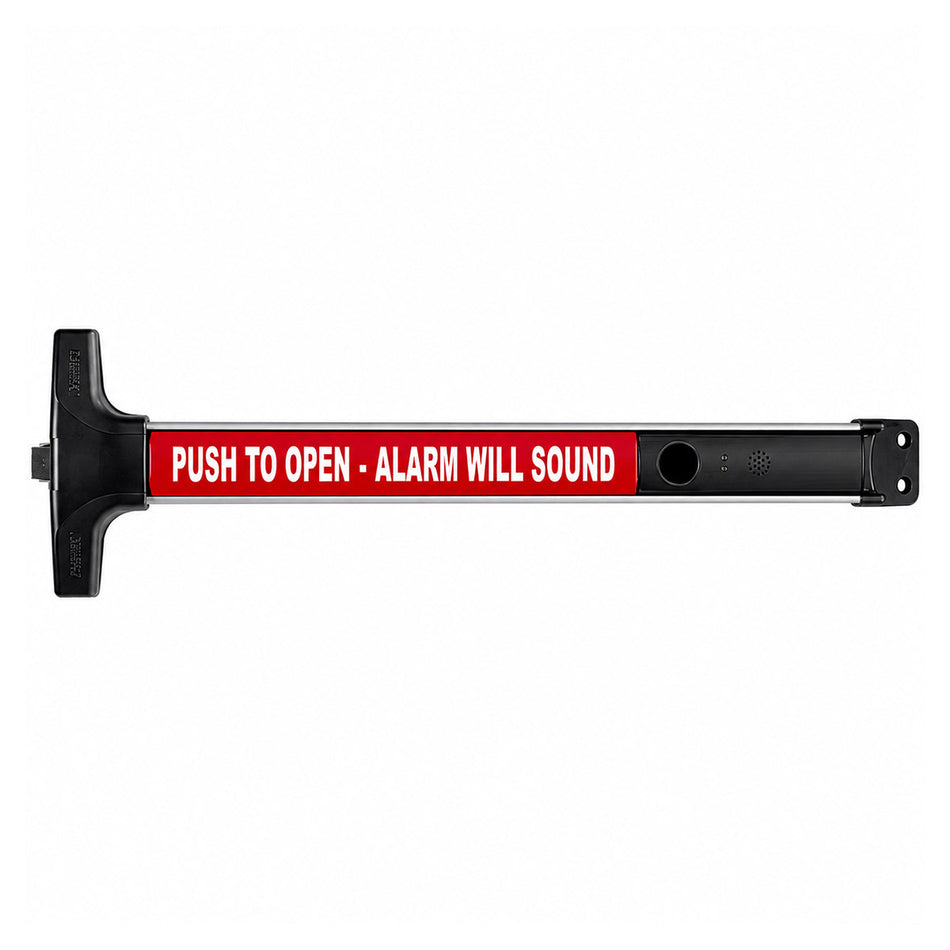

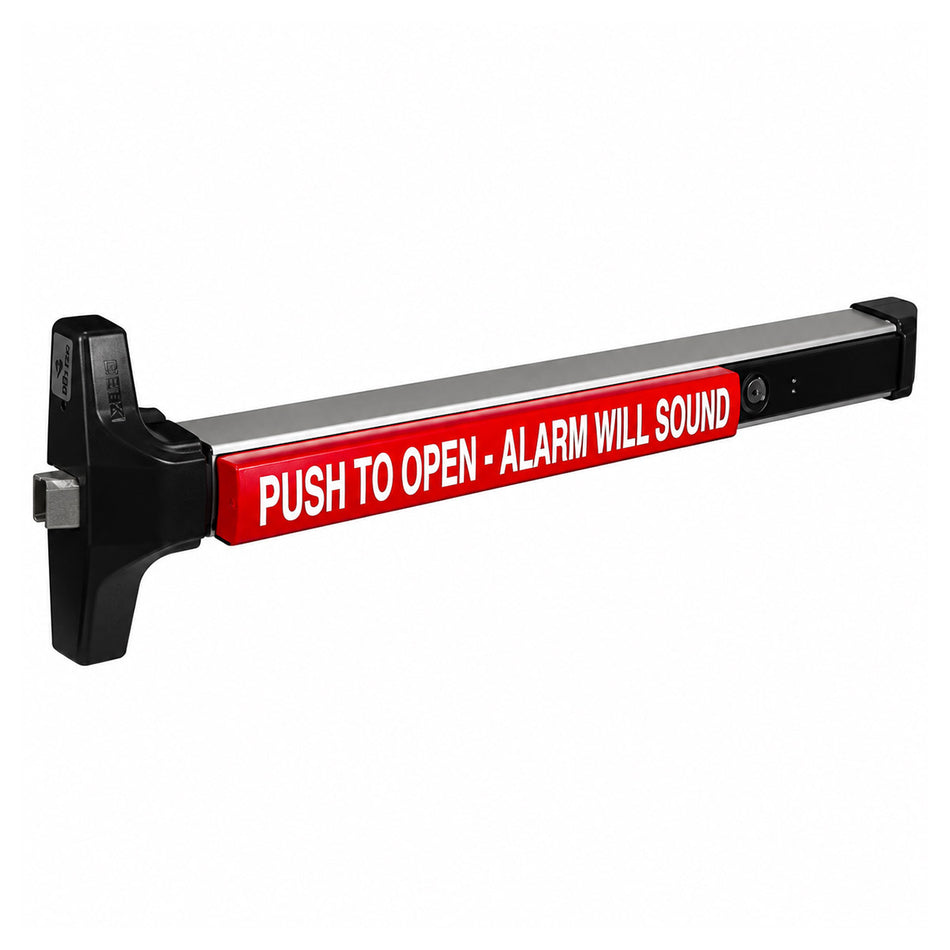

Detex V40 EB Cylinder Dogging Alarmed Rim Exit Device

Detex V40 EB Cylinder Dogging Alarmed Rim Exit Device

The V40 EB is designed for primary and secondary exits that require an alarmed panic device. The 100dB alarm will sound when someone attempts to exit, alerting management to the unauthorized exit. Barzel Lock Stocks The V40 EB CD In All Options.

Instructions For Detex V40 EB CD

Benefits:

Priced to be the best value for durable and attractive loss prevention panic hardware

• Reduces employee and customer theft
• Fast and easy installation
• Secure installation prevents mistakes, enhances security and reduces maintenance
• Durable design provides years of trouble-free protection, saving on replacement costs
• Fits almost any door in any décor
• Controls foot traffic, deters unauthorized exits, prevents loss and meets building code requirements
Features:
• V40xEB - Alarmed Exit Device powered by standard 9-volt battery
• Stainless steel, 3/4" deadlocking Pullman-type latch bolt
• 100 decibel alarm
• 1/8 turn cylinder dogging
 • Heavy-duty angled end cap
• Heavy-duty ribbed aluminum rail extrusion
• Accommodates all types of mortise cylinders with a standard Yale cam (collar required for 7-pin IC cylinders)
• Patented back plate and plastic strike locator provide paperless template for perfect alignment with door and frame
• Single mortise cylinder (sold separate) provides arming and dogging
• State-of-art electronics offer reliable security and instantaneous alarm
• Field selectable key rearm or 2 min. auto rearm
• Visual and audible arming indicators • Armed and disarmed field selectable status indicator
Mechanical Options:
• CD - Cylinder Dogging (Std.)
 • 36 - Fits 36" Door Width (Std.)
• 48 - Fits 48" Door Width
• 99 - Surface Strike (Std.)
• 98 - Semi Mortise Strike

The V40xEBxW device option is designed for doors and gates requiring a stand alone, battery powered, alarmed, weatherized panic device. The alarm, with approximately 100dB, will sound when someone attempts to exit, alerting management that an unauthorized exit has occurred. The internal alarm with both remote bypass and remote signaling capabilities is ideal for applications where both security and life safety are a concern. In addition to listing as UL panic and fire exit hardware device, this device conforms to MIL-STD 810F Method 506.4 (driving rain test), MIL-STD 810F, Method 509.4 (salt fog test) and UBC standard 7-2 (positive pressure).

Barzel Lock Stocks The Detex V40 EB W CD In All Options

Video Instructions For Detex V40 EB W CD

Benefits:

• Weather resistant loss prevention hardware designed for use in outdoor or wet environments

• Patented back plate and plastic strike locator designed for perfect alignment with door and frame without paper template

• Fast, easy, trouble-free installation prevents costly mistakes and enhances security

• Provides reliable loss prevention protection 24 hours a day

• Controls foot traffic to deter unauthorized exits and reduces employee and customer theft • Rugged, durable, corrosionresistant design reduces maintenance

• Aesthetically pleasing design for almost any door or gate in any décor

Features:

• Powered by standard 9-volt battery

• Stainless steel, self-latching bolt

• Angled end cap deflects damage

• Tamper-resistant, immersion- proof security switches

• Covers a 161 door prep

• Plated steel, anodized aluminum and ABS components endure heavy use and exposure to the elements

 • Built-in inhibitors prevent ABS fading and weakening, typically caused by exposure to extreme temperatures and UV rays

• 100dB alarm

• Indefinite alarm requiring manual rearm or variable 2 min. alarm duration with auto re-arm

• Cylinder dogging standard (can also be ordered less dogging)

 • Visual and audible arming indicators

• Tamper-resistant housing protects electronics, battery and internal hardware, preventing manipulation

• Tapered design sheds rainwater

• Visual and audible low battery alert

• Armed and disarmed field selectable status indicator

Mechanical Options:

• CD - Cylinder Dogging (Std.)

• 36 - Fits 36" Door Width (Std.)

• 48 - Fits 48" Door Width

• 99 - Surface Strike (Std.)

• 98 - Semi Mortise Strike

Detex Catalog
