Barzel Lock Stocks Adams Rite Electric Strikes.

Adams Rite Electric Strikes In Stock In 313 & 628 Finishes. Description: 7100, 7101 Electric Strikes with 4-7/8” faceplates are designed for Adams Rite deadlatches or cylindrical locksets with 1/2” to 5/8” latchbolt projection. For use in aluminum jambs and stiles.

Function: Remote electrical control of any door equipped with an Adams Rite 4500, 4700, or 4900 Series (or similar) Deadlatch or cylindrical (key-in-knob/lever) type lockset with 1/2” to 5/8” latchbolt projection. Electrical actuation unlocks strike jaw, releasing latchbolt so door can be opened without operating latch itself. Extremely compact mechanism fits into aluminum jamb (or opposing door) sections as shallow as 1-5/8”. Fits existing prep for discontinued Adams Rite 7000, 7500, 7800 Electric Strikes.

Finishes:

313-Dark Bronze Anodized Aluminum

628-Clear Aluminum Anodized

Specifications:

Fail-Safe/Fail-Secure: Field convertible from one mode to the other. However, AC intermittent solenoid must not be used continuously in either.

Case: Approximately 1” x 3-3/8” x 1-5/8” deep.

Strike Lip: Basic 7100 strike has lip of proper length for 1-3/4” thick door that closes flush with jamb edge. Where door thickness or jamb shape differs from this standard relationship, lip extension kits are available, specified by last dash number. Not available on 7101.

Strike Opening: 5/8” x 1-7/16” x 1/2” deep. Bolt retainer jaw is stainless steel. Strike accepts bolt of any Adams Rite 4500, 4700 (discontinued), or 4900 Deadlatch or cylindrical latches.

Faceplate: Measures 1-1/4” x 4-7/8”. 7100 has flat faceplate; 7101 is radiused to match nose on inactive leaf in a pair of narrow stile glass doors. Available in a wide range of architectural finishes.

Voltage: Available in 12 or 24 volt AC and DC. DC continuous units are silent, AC intermittent units “buzz” on operation.

Adams Rite Electric Strikes In Stock In 313 & 628 Finishes. Description: 7100, 7101 Electric Strikes with 4-7/8” faceplates are designed for Adams Rite deadlatches or cylindrical locksets with 1/2” to 5/8” latchbolt projection. For use in aluminum jambs and stiles.

Function: Remote electrical control of any door equipped with an Adams Rite 4500, 4700, or 4900 Series (or similar) Deadlatch or cylindrical (key-in-knob/lever) type lockset with 1/2” to 5/8” latchbolt projection. Electrical actuation unlocks strike jaw, releasing latchbolt so door can be opened without operating latch itself. Extremely compact mechanism fits into aluminum jamb (or opposing door) sections as shallow as 1-5/8”. Fits existing prep for discontinued Adams Rite 7000, 7500, 7800 Electric Strikes.

Finishes:

313-Dark Bronze Anodized Aluminum

628-Clear Aluminum Anodized

Specifications:

Fail-Safe/Fail-Secure: Field convertible from one mode to the other. However, AC intermittent solenoid must not be used continuously in either.

Case: Approximately 1” x 3-3/8” x 1-5/8” deep.

Strike Lip: Basic 7100 strike has lip of proper length for 1-3/4” thick door that closes flush with jamb edge. Where door thickness or jamb shape differs from this standard relationship, lip extension kits are available, specified by last dash number. Not available on 7101.

Strike Opening: 5/8” x 1-7/16” x 1/2” deep. Bolt retainer jaw is stainless steel. Strike accepts bolt of any Adams Rite 4500, 4700 (discontinued), or 4900 Deadlatch or cylindrical latches.

Faceplate: Measures 1-1/4” x 4-7/8”. 7100 has flat faceplate; 7101 is radiused to match nose on inactive leaf in a pair of narrow stile glass doors. Available in a wide range of architectural finishes.

Voltage: Available in 12 or 24 volt AC and DC. DC continuous units are silent, AC intermittent units “buzz” on operation.

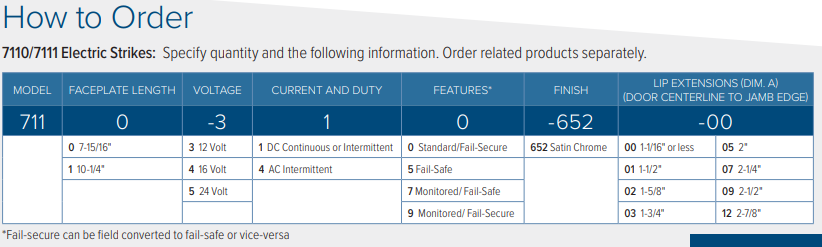

Barzel Lock Stocks The 7110 & 7111 In All Finishes & Options. Description: 7110 Electric Strike with 7-15/16” faceplate and 7111 Electric Strike with 10-1/4” faceplate are designed for Adams Rite deadlatches or cylindrical locksets with 1/2” to 5/8” latchbolt projection. For use in hollow metal, wood and aluminum door jambs.

Function: Replaces earlier 002, 7510, or 7810 electric releases in either metal or wood jambs for remote electrical control of any door equipped with an Adams Rite 4500, 4700, or 4900 Series (or similar) Deadlatch or cylindrical (key-in-knob/lever) type lockset with 1/2” to 5/8” latchbolt projection. Electrical actuation unlocks strike jaw, releasing latchbolt so door can be opened without operating latch itself. Extremely compact mechanism fits into jamb sections as shallow as 1-5/8”.

Finishes:

628-Clear Aluminum Anodized

Specifications:

Fail-Safe/Fail-Secure: Field convertible from one mode to the other. However, AC intermittent solenoid must not be used continuously in either.

Case: Approximately 1” x 3-3/8” x 1-5/8” deep.

Strike Lip: Basic 7110 strike has lip of proper length for 1-3/4” thick door that closes flush with jamb edge. Where door thickness or jamb shape differs from this standard relationship, lip extension kits are available, specified by last dash number (see catalog page).

Strike Opening: 5/8” x 1-7/16” x 1/2” deep. Bolt retainer jaw is stainless steel. Strike accepts bolt of any Adams Rite 4500, 4700 (discontinued), or 4900 Deadlatch or cylindrical latches.

Faceplate: Faceplate for 7110 measures 1-7/16” x 7-15/16”. 7111 faceplate measures 1-7/16” x 10-1/4”. Available in a wide range of architectural finishes.

Voltage: Available in 12 or 24 volt AC and DC. DC continuous units are silent, AC intermittent units “buzz” on operation.

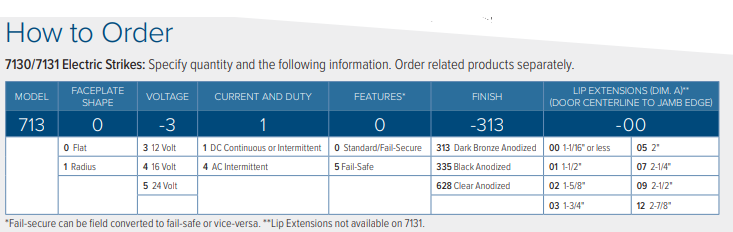

Barzel Lock Stocks The 7130 & 7131 In All Finishes & Options.

Description: 7130, 7131 Electric Strikes with 6-7/8” faceplates are designed for Adams Rite deadlatches or cylindrical locksets with 1/2” to 5/8” latchbolt projection. For use in aluminum jambs and stiles.

Function: Remote electrical control of any narrow stile or hollow metal door equipped with an Adams Rite Series 4500, 4700, or 4900 Series (or similar) Deadlatch or cylindrical (key-in-knob/lever) type lockset with 1/2” to 5/8” latchbolt projection. Large faceplate is designed to cover strike opening when converting from an MS pivoted-bolt deadlock to a deadlatch. Electrical actuation unlocks strike jaw, releasing latchbolt so door can be opened without operating latch itself. Extremely compact mechanism fits into aluminum jamb (or opposing door) sections as shallow as 1-5/8”. Replaces discontinued Adams Rite 7030, 7530, 7830 Electric Strikes.

Finishes:

313-Dark Bronze Anodized Aluminum

628-Clear Aluminum Anodized

Specifications:

Fail-Safe/Fail-Secure: Field convertible from one mode to the other. However, AC intermittent solenoid must not be used continuously in either.

Case: Approximately 1” x 3-3/8” x 1-5/8” deep.

Strike Lip: Basic 7130 strike has lip of proper length for 1-3/4” thick door that closes flush with jamb edge. Where door thickness or jamb shape differs from this standard relationship, lip extension kits are available, specified by last dash number. Not available for 7131.

Strike Opening: 5/8” x 1-7/16” x ½” deep. Bolt retainer jaw is stainless steel. Strike accepts bolt of any Adams Rite 4500, 4700 (discontinued), or 4900 Deadlatch or cylindrical latches.

Faceplate: Measures 1-1/4” x 6-7/8”. 7130 has flat faceplate, 7131 is radiused to match nose on inactive leaf in a pair of narrow stile glass doors. Available in a wide range of architectural finishes.

Voltage: Available in 12 or 24 volt AC and DC. DC continuous units are silent, AC intermittent units “buzz” on operation.





Barzel Lock Stocks The 7140 In All Finishes & Options. Description: 7140 Electric Strikes with 4-7/8” faceplates are designed for Adams Rite deadlatches or cylindrical locksets with 1/2” to 5/8” latchbolt projection. For use in hollow metal or wood doors and jambs.

Function: Remote electrical control of any door equipped with an Adams Rite 4500, 4700, or 4900 Series (or similar) Deadlatch or cylindrical (key-in-knob/lever) type locksets with 1/2” to 5/8” latchbolt projection. Electrical actuation unlocks strike jaw, releasing latchbolt so door can be opened without operating latch itself. Extremely compact mechanism fits into aluminum jamb sections as shallow as 1-5/8”. Fits existing prep for discontinued Adams Rite 7040, 7840N, 7850 Electric Strikes.

Finishes:

313-Dark Bronze Anodized Aluminum

628-Clear Aluminum Anodized

Specifications:

Fail-Safe/Fail-Secure: Field convertible from one mode to the other. However, AC intermittent solenoid must not be used continuously in either.

Case: Approximately 1” x 3-3/8” x 1-5/8” deep. Zinc aluminum alloy.

Strike Lip: Basic 7140 strike has lip of proper length for 1-3/4” thick door that closes flush with jamb edge. Where door thickness or jamb shape differs from this standard relationship, lip extension kits are available, specified by last dash number.

Strike Opening: 5/8” x 1-7/16” x 1/2” deep. Bolt retainer jaw is stainless steel. Strike accepts bolt of any Adams Rite 4500, 4700 (discontinued), or 4900 Deadlatch or cylindrical latches.

Faceplate: Measures 1-1/4 x 4-7/8” Faceplate is flat, with square corners. Available in a wide range of architectural finishes.

Voltage: Available in 12 or 24 volt AC and DC. DC continuous units are silent, AC intermittent units “buzz” on operation.

Adams Rite 7160 Electric Strike

Adams Rite 7160 Electric Strike

by Adams Rite
$ 136.00

Barzel Lock Stocks The 7160 In All Opions. Description: 7160 Electric Strikes with 4-7/8” faceplates are designed for mortise or cylindrical type locksets with up to 3/4” latchbolt projection without deadbolt. For use in aluminum jambs.

Function: Remote electrical control of any door equipped with a mortise or cylindrical type lockset with up to 3/4” latchbolt projection without deadbolt. Electrical actuation unlocks strike jaw, releasing latchbolt so door can be opened without operating latch itself. Extremely compact mechanism fits into aluminum jamb (or opposing door) sections as shallow as 1-7/8”. Fits existing prep for discontinued Adams Rite 7560, 7860 Electric Strikes.

Finishes:

313-Dark Bronze Anodized Aluminum

628-Clear Aluminum Anodized

Specifications:

Fail-Safe/Fail-Secure: Field convertible from one mode to the other. However, AC intermittent solenoid must not be used continuously in either.

Case: Approximately 1” x 3-3/8” x 1-7/8” deep.

Strike Lip: Basic 7160 strike has lip of proper length for 1-3/4” thick door that closes flush with jamb edge. Where door thickness or jamb shape differs from this standard relationship, lip extension kits are available, specified by last dash number.

Strike Opening: 3/4” x 1-7/16” x 5/8” deep. Bolt retainer jaw is stainless steel. Strike location must be centered on latchbolt.

Faceplate: Measures 1-1/4 x 4-7/8” Faceplate is flat, with radiused corners. Available in a wide range of architectural finishes.

Voltage: Available in 12 or 24 volt AC and DC. DC continuous units are silent, AC intermittent units “buzz” on operation.

Adams Rite 7170 Electric Strike

Adams Rite 7170 Electric Strike

by Adams Rite
$ 136.00

Barzel Lock Stocks The 7170 In All Opions.

Description: 7170 Electric Strikes with 4-7/8” faceplates are designed for mortise or cylindrical type locksets with up to 3/4” latchbolt projection without deadbolt. For use in hollow metal or wood door jambs.

Function: Remote electrical control of any door equipped with a mortise or cylindrical type lockset with up to 3/4” latchbolt projection without deadbolt. Electrical actuation unlocks strike jaw, releasing latchbolt so door can be opened without operating latch itself. Extremely compact mechanism fits into hollow metal jamb sections as shallow as 1-7/8”. Fits existing prep for discontinued Adams Rite 7560AN, 7570, 7860AN, 7870 Electric Strikes.

The electric strike must be positioned to accommodate offset mortise latches during installation. Please refer to installation instructions.

Specifications:

Fail-Safe/Fail-Secure: Field convertible from one mode to the other. However, AC intermittent solenoid must not be used continuously in either.

Case: Approximately 1” x 3-3/8” x 1-7/8” deep.

Strike Lip: Basic 7170 strike has lip of proper length for 1-3/4” thick door that closes flush with jamb edge. Where door thickness or jamb shape differs from this standard relationship, lip extension kits are available, specified by last dash number.

Strike Opening: 5/8” x 1-7/16” x 5/8” deep. Bolt retainer jaw is stainless steel.

Faceplate: Measures 1-1/4 x 4-7/8” Faceplate is flat, with square corners. Available in a wide range of architectural finishes.

Voltage: Available in 12 or 24 volt AC and DC. DC continuous units are silent, AC intermittent units “buzz” on operation.

Finishes:

313-Dark Bronze Anodized Aluminum

628-Clear Aluminum Anodized

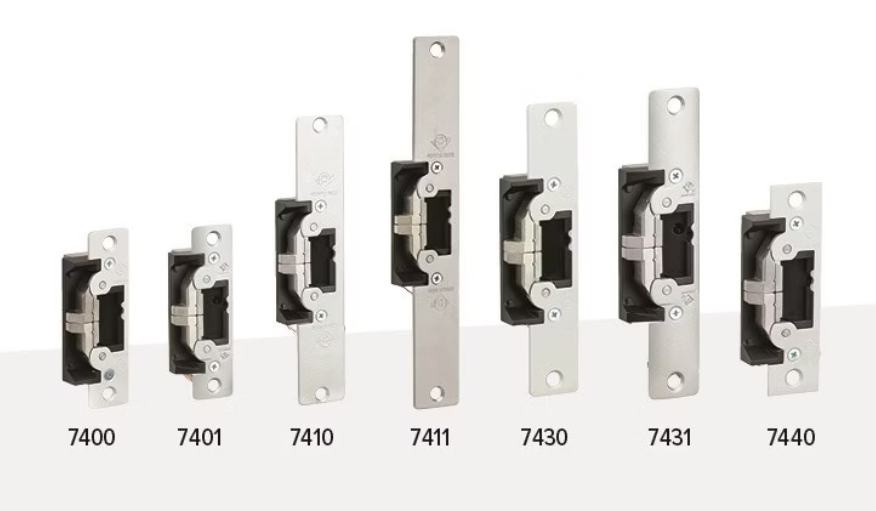

Adams Rite 7400 Electric Strike

Adams Rite 7400 Electric Strike

by Adams Rite
$ 150.00

Description: 7440 Electric Strikes with 4-7/8” faceplates are designed for Adams Rite deadlatches or cylindrical locksets with 1/2” to 5/8” latchbolt projection. For use in hollow metal or wood door jambs and steel or wood doors. Opens electrically under 35 lbs. of preload.

Function: Remote electrical control of any door equipped with an Adams Rite 4500, 4700, or 4900 Series (or similar) Deadlatch or cylindrical (key-in-knob/lever) type lockset with 1/2” to 5/8” latchbolt projection. Electrical actuation unlocks strike jaw, releasing latchbolt so door can be opened without operating latch itself. Extremely compact mechanism fits into jamb sections as shallow as 1-1/16”. Direct upgrade for Adams Rite 7140 Electric Strikes.

Finishes:

313-Dark Bronze Anodized Aluminum

628-Clear Aluminum Anodized

This non-handed strike features an ultra-compact design and an adjustable stainless steel split-jaw with over 1500 lbs. of holding force in fail-secure mode. The strike releases electrically with up to 35 lbs. of door “preload” (pressure exerted on doors by air conditioning systems, warping or misaligned hardware which can disable common electric strikes). Single solenoid operates on 12, 16, or 24 volt AC/DC power. Strikes are equipped with a quick connect plug-in type connector.

Specifications:

Fail-Safe/Fail-Secure: Field selectable at time of installation.

Case: Approximately 1” x 3-3/8” x 1-1/16” deep.

Strike Lip: Basic 7400 electric strike has lip of proper length for 1-3/4” thick door that closes flush with jamb edge. Where door thickness or jamb shape differs from this standard relationship, lip extension kits are available.

Strike Opening: 5/8” adjustable x 1-7/16” x 1/2” deep. Bolt retainer jaw is stainless steel. Strike accepts bolt of Adams Rite 4500, 4700 (discontinued), or 4900 Series Deadlatch or cylindrical latches

Faceplate: Measures 1-1/4” x 4-7/8” Faceplate is flat, with square corners. Available in a wide range of architectural finishes.

Voltage

  • Field selectable to match power source of 12, 16, or 24 VDC.
  • 16 DC requires adapter (P/N VA 7400-16VDC)
  • 4603 Rectifier is required to convert low voltage AC current to DC current of same voltage. Please contact factory when using in AC mode.

Options:

Monitoring – Two internally mounted switches (Form “C”) to indicate when the latchbolt is engaged in the strike jaws and a locked/unlocked solenoid status.

Lip Extension Kits – Please see catalog for more information.

Modular Packaging – Consult factory or sales representative for details.

Wood Door Cover – WDC7400 for use when mounting the 7400 Series Electric Strike on the inactive leaf of a pair of door. The cover simplifies the mortise prep.

ELX-ElectroLynx™ Adapter – Connects Adams Rite electrified products to ElectroLynx system.

16 VDC Adapter – VA7400-16VDC required when using 16 VDC power.

For more information please see POWER.

Standard Package: Individually boxed with mounting screws, mounting tabs, adhesive shims to accommodate jamb or stile extrusion thickness greater or less than nominal 1/8”, and adjustable jaw shim pack and two plug-in voltage adapters for 12/16/24 VAC and 12/24 VDC.

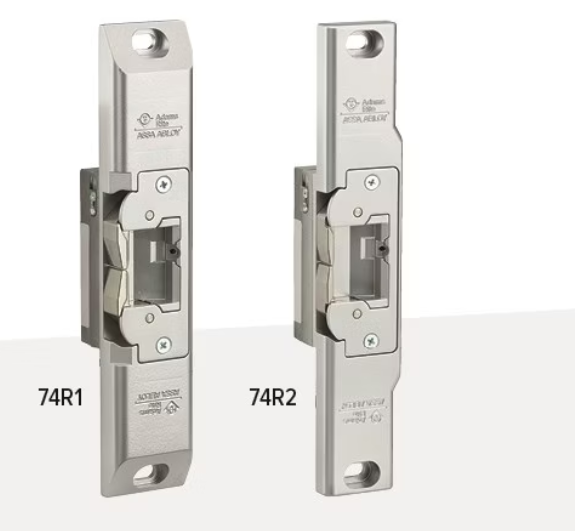

Adams Rite 74R1 Ultra Line Electric Strike

Barzel Lock Stock The 74R1 Ready To Ship. Description: The 74R1 Electric Strike is designed for rim exit devices with 3/4” Pullman type latchbolt. For use in hollow metal, wood and aluminum door jambs. Opens electrically under 35 lbs. of preload.

Function: A semi-mortised strike for rim exit devices having 3/4” Pullman type bolts without auxiliary bolts. Provides electrical remote control, allowing door to open without actuation of the exit device.

This non-handed strike features an ultra-compact design and a stainless steel split-jaw with over 1500 lbs. of holding force in fail-secure mode. The strike releases electrically with up to 35 lbs. of door “preload” (pressure exerted on doors by air conditioning systems, warping or misaligned hardware which can disable common electric strikes). Single solenoid operates on 12, 16, or 24 volt AC/DC power. Strikes are equipped with a quick connect plug-in type connector.

Specifications:

Fail-Safe/Fail-Secure: Field selectable at time of installation.

Case: Approximately 1” x 3-3/8” x 1-1/16” deep.

Mounting Plate/Housing: Measure 1-3/4” x 9” x 11/16” deep. Made of zinc aluminum alloy. Standard finish in epoxy to match Clear, Dark Bronze Anodized and Black Anodized finishes.

Strike Opening: 5/8” x 1-7/16” x 9/16” deep. Bolt retainer jaw is stainless steel. Strike accepts Pullman bolt of exit devices without deadlocking bolts.

Voltage

  • Field selectable to match power source of 12, 16, or 24 VDC.
  • 16 DC requires adapter (P/N VA 7400-16VDC)
  • 4603 Rectifier is required to convert low voltage AC current to DC current of same voltage. Please contact factory when using in AC mode.
Adams Rite 74R2 Ultra Line Electric Strike

Barzel Lock Stocks The Adams Rite 74R2 Ready To Ship In All Options. Description: The 74R2 Electric Strike is designed for narrow style rim exit devices with 1/2” Pullman type latchbolt. For use in aluminum door jambs. Opens electrically under 35 lbs. of preload.

Function: A semi-mortised strike for rim exit devices having 1/2” Pullman type bolts. Provides electrical remote control, allowing door to open without actuation of the exit device.

This non-handed strike features an ultra-compact design and a stainless steel split-jaw with over 1500 lbs. of holding force in fail-secure mode. The strike releases electrically with up to 35 lbs. of door “preload” (pressure exerted on doors by air conditioning systems, warping or misaligned hardware which can disable common electric strikes). Single solenoid operates on 12, 16, or 24 volt AC/DC power. Strikes are equipped with a quick connect plug-in type connector.

Specifications:

Fail-Safe/Fail-Secure: Field selectable at time of installation.

Case: Approximately 1” x 3-3/8” x 1-1/8” deep.

Strike Opening: 5/8” x 1-7/16” x 1/2” deep. Bolt retainer jaw is stainless steel.

Mounting Plate/Housing: Made of zinc aluminum alloy and measures 1-5/8” x 9” x 1/2” deep. Standard finish in epoxy to match Clear, Dark Bronze Anodized and Black Anodized finishes.

Voltage

  • Field selectable to match power source of 12, 16, or 24 VDC.
  • 16 DC requires adapter (P/N VA 7400-16VDC)
  • 4603 Rectifier is required to convert low voltage AC current to DC current of same voltage. Please contact factory when using in AC mode.
